BF100 A XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1000001 - BBMJ-9999999) FUEL TANK Parts Diagram

Marine Engine, Made in Japan

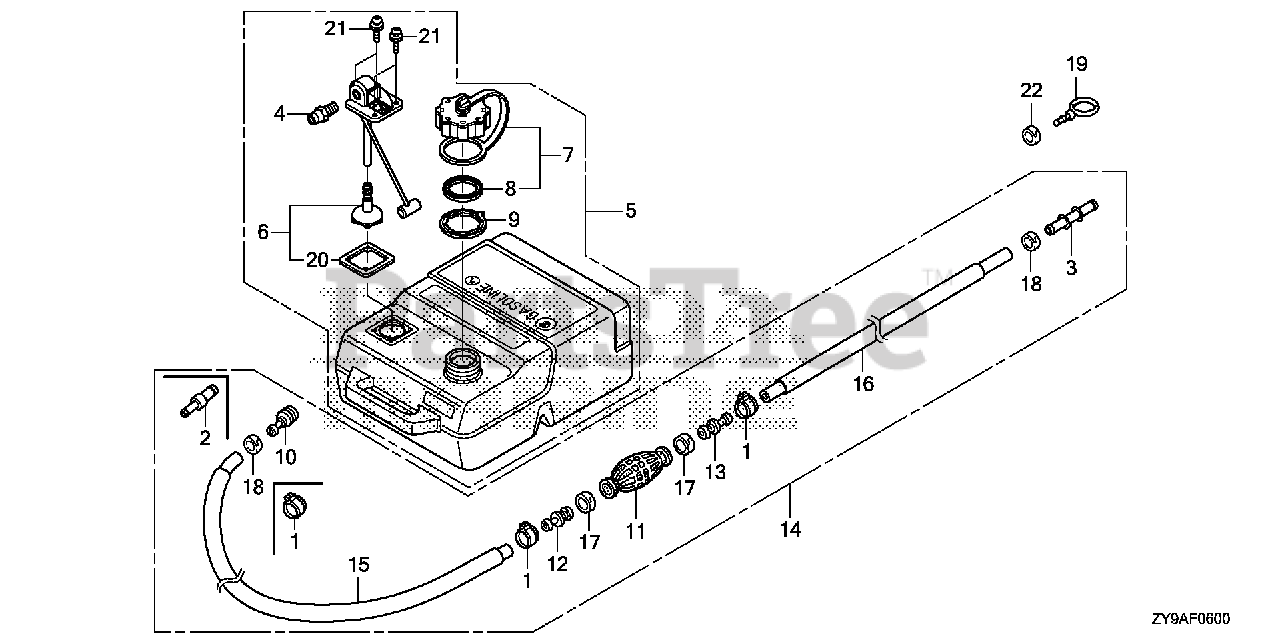

FUEL TANK Parts Diagram

  • Title

1

Honda 16897-ZW9-003

CLAMP, FUEL TUBE (14.0)

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

2

Honda 16966-MR1-000

JOINT, FUEL TUBE

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

3

Honda 16966-MR5-000

JOINT, FUEL TUBE

$10.99

$

Usually ships in 3-6 days

0

4

Honda 16977-ZV5-A00

FITTING, QUICK DISCONNECT

Note: (Optional).

$19.99

$

Usually ships in 3-6 days

0

5

Honda 17500-ZZ5-711

SEE PART DETAILS - PRI; TANK ASSY., FUEL

Note: (Optional).

$244.99

$

Usually ships in 3-6 days

0

6

Honda 17580-ZZ5-003

FILTER KIT, FUEL

Note: (Optional).

$42.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZZ5-003

CAP, FUEL FILLER

Note: (Optional).

$45.99

$

Usually ships in 3-6 days

0

8

Honda 17624-ZZ5-003

GASKET, FUEL CAP

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

9

Honda 17625-ZZ5-003

RETAINER, PRESSURE RELIEF

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

10

Honda 17660-ZW9-003

SEE PART DETAILS - PRI; CONNECTOR, FUEL

$42.99

$

Usually ships in 3-6 days

0

11

Honda 17661-ZW9-900

BULB, PRIMER

$63.99

$

Usually ships in 3-6 days

0

12

Honda 17665-ZX2-003

VALVE, IN.

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

12

Honda 17665-ZV5-000

VALVE, IN.

$15.99

$

Usually ships in 3-6 days

0

13

Honda 17680-ZX2-003

VALVE, OUTLET

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

13

Honda 17680-ZV4-000

VALVE, OUTLET

$15.99

$

Usually ships in 3-6 days

0

14

Honda 17700-ZX2-C01

TUBE ASSY., FUEL TANK
(Superseded to 17700-ZX2-C02)

Note: (Optional).

$255.99

$

Usually ships in 3-6 days

0

14

Honda 17700-ZY9-E04

SEE PART DETAILS - PRI; TUBE ASSY., FUEL TANK (CONNECTOR TYPE)
(Superseded to 17700-ZY9-E05)

$201.99

$

Usually ships in 3-6 days

0

15

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

$123.99

$

Usually ships in 3-6 days

0

15

Honda 17702-ZY9-E04

TUBE, FUEL SHORT

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

16

Honda 17701-ZY9-E04

SEE PART DETAILS - PRI; TUBE, FUEL LONG (7.3X2000)

Note: (Optional).

$123.99

$

Usually ships in 3-6 days

0

16

Honda 17702-ZY9-E04

TUBE, FUEL SHORT

$31.99

$

Usually ships in 3-6 days

0

17

Honda 17703-921-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 17738-ZY3-000

PLUG, FUEL TUBE

$13.99

$

Usually ships in 3-6 days

0

20

Honda 17742-ZZ5-003

GASKET, FUEL PICK-UP

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

21

Honda 17743-ZZ5-003

BOLT-WASHER (5MM) (SEAL)

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

22

Honda 17704-ZV4-010

SEE PART DETAILS - PRI; BAND, TUBE CLIP (12.5MM)

$2.99

$

Usually ships in 3-6 days

0
