BF100 A XRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1000001 - BBMJ-9999999) EXTENSION CASE Parts Diagram

Marine Engine, Made in Japan

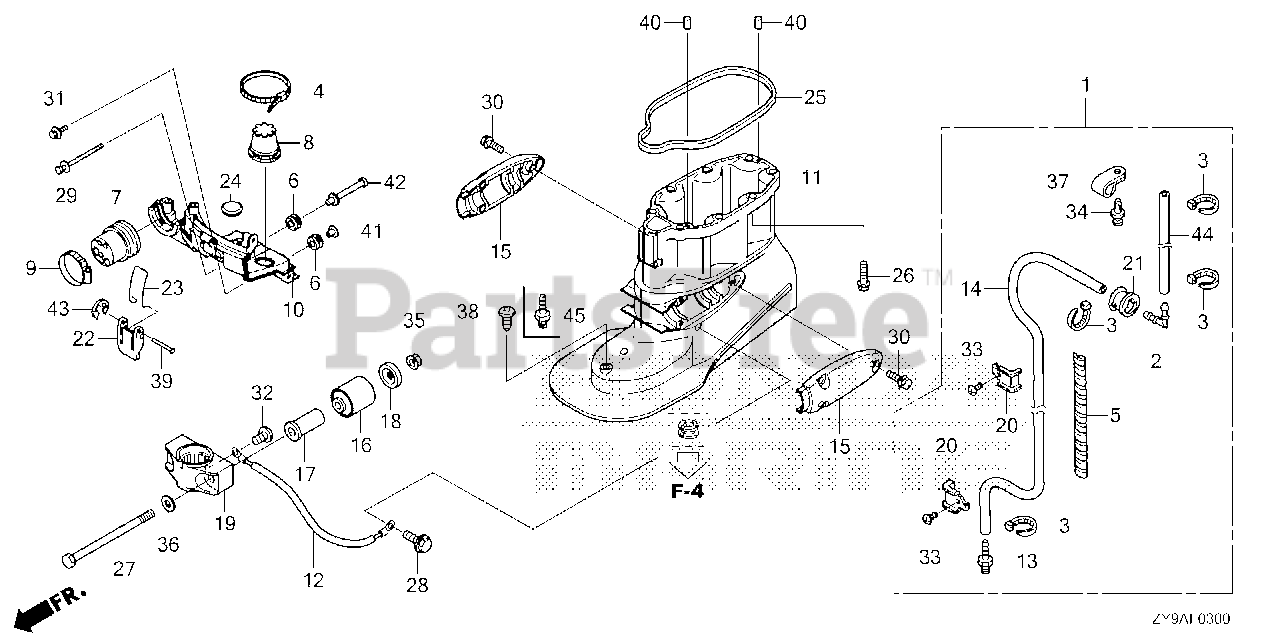

EXTENSION CASE Parts Diagram

  • Title

1

Honda 06411-ZY9-010

TUBE KIT, SPEED SENSOR

Note: (Optional).

$72.99

$

Usually ships in 3-6 days

0

2

Honda 17357-GE1-670

JOINT A, BREATHER

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

3

Honda 32161-KM3-003

BAND, WIRE

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

4

Honda 35701-MG9-950

BAND (BLACK 3.5X140)

$2.99

$

Usually ships in 3-6 days

0

5

Honda 36104-ZY6-003

TUBE, SPIRAL

Note: (Optional).

$5.99

$

Usually ships in 3-6 days

0

6

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

7

Honda 40105-ZY9-000

GROMMET, REMOTE CONTROL CABLE

$42.99

$

Usually ships in 3-6 days

0

8

Honda 40107-ZW1-700

GROMMET, CASE (LOWER) (C)

$21.99

$

Usually ships in 3-6 days

0

9

Honda 40119-ZY3-003

BAND, CASE GROMMET (LOWER)

$18.99

$

Usually ships in 3-6 days

0

10

Honda 40154-ZY9-000ZB

BRACKET, FR. COVER (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$459.99

$

Usually ships in 3-6 days

0

11

Honda 40201-ZY9-020ZB

CASE, EXTENSION *NHB14M* (AQUA MARINE SILVER METALLIC)

$1587.99

$

Usually ships in 3-6 days

0

12

Honda 40219-ZY6-023

WIRE, LEAD (1.5X137MM)
(Superseded to 40219-ZY6-033)

$11.99

$

In Stock, only 1 left!

0

13

Honda 41172-ZV5-000

NIPPLE, SENSOR

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

14

Honda 41173-ZY9-000

TUBE, SPEED SENSOR

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

15

Honda 50111-ZY9-000ZB

HOUSING, MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$89.99

$

Usually ships in 3-6 days

0

16

Honda 50155-ZZ0-000

MOUNT, RUBBER (LOWER)

$118.99

$

Usually ships in 3-6 days

0

17

Honda 50156-ZZ0-C00

COLLAR, MOUNTING (LOWER)

$24.99

$

Usually ships in 3-6 days

0

18

Honda 50157-ZY9-000

STOPPER, MOUNT (LOWER)

$23.99

$

Usually ships in 3-6 days

0

19

Honda 50161-ZW1-020ZB

HOUSING, CENTER MOUNTING (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$222.99

$

Usually ships in 3-6 days

0

20

Honda 50209-ZY6-000

PLATE, SPEED SENSOR TUBE

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

21

Honda 56118-ZY6-000

BUSH, MOTOR CODE

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

22

Honda 63232-ZY9-010

LEVER, FASTENER

$17.99

$

Usually ships in 3-6 days

0

23

Honda 63237-ZY9-000

WIRE, FASTENER

$11.99

$

Usually ships in 3-6 days

0

24

Honda 63515-ZC0-700

CAP, L. SIDE COVER

$8.49

$

Usually ships in 3-6 days

0

25

Honda 63719-ZY9-000

SEAL B, COVER (LOWER)

$9.99

$

Usually ships in 3-6 days

0

26

Honda 90002-ZY6-000

BOLT, FLANGE (10X40)

$8.99

$

Usually ships in 3-6 days

0

27

Honda 90102-ZY9-000

BOLT, HEX. (12X186)

$25.99

$

Usually ships in 3-6 days

0

28

Honda 90103-ZW9-010

BOLT, FLANGE (6X12)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 90104-ZY9-000

BOLT-WASHER (6X95)

$5.99

$

Usually ships in 3-6 days

0

30

Honda 90105-ZY6-000

BOLT-WASHER (8X30)

$8.49

$

Usually ships in 3-6 days

0

31

Honda 90105-ZY9-000

BOLT-WASHER (6X27)

$3.99

$

Usually ships in 3-6 days

0

32

Honda 90119-ZV5-000

SCREW, PAN (6X8)

$2.49

$

Usually ships in 3-6 days

0

33

Honda 90119-ZV5-000

SCREW, PAN (6X8)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

34

Honda 90127-ZV5-003

SCREW, RIVET (5X10)

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

35

Honda 90302-ZW5-003

NUT, FLANGE (12MM)

$8.99

$

Usually ships in 3-6 days

0

36

Honda 90559-ZW1-000

WASHER, PLAIN (12MM)

$7.99

$

Usually ships in 3-6 days

0

37

Honda 90628-750-000

CLIP (14MM)

Note: (Optional).

$2.99

$

In Stock, Qty 5

0

38

Honda 90651-ZZ3-003

CLIP (7MM)

$2.49

$

Usually ships in 3-6 days

0

39

Honda 90754-ZY9-000

PIN (5X44.5)

$4.99

$

Usually ships in 3-6 days

0

40

Honda 90756-ZV5-000

PIN, DOWEL (6X10)

$3.99

$

Usually ships in 3-6 days

0

41

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

42

Honda 91553-ZY9-000

COLLAR, FR. BRACKET

$11.99

$

Usually ships in 3-6 days

0

43

Honda 94540-04029

E-RING (4MM)

$6.99

$

In Stock, only 1 left!

0

44

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X950)

Note: (Optional).

$31.99

$

Usually ships in 3-6 days

0

45

Honda 41172-ZV5-000

NIPPLE, SENSOR

$10.99

$

Usually ships in 3-6 days

0
