BF100 A SA (B100) - Honda Marine Engine, Made in Japan (SN: B100-1200155 - B100-1205094) OIL CASE + ENGINE COVER Parts Diagram

Marine Engine, Made in Japan

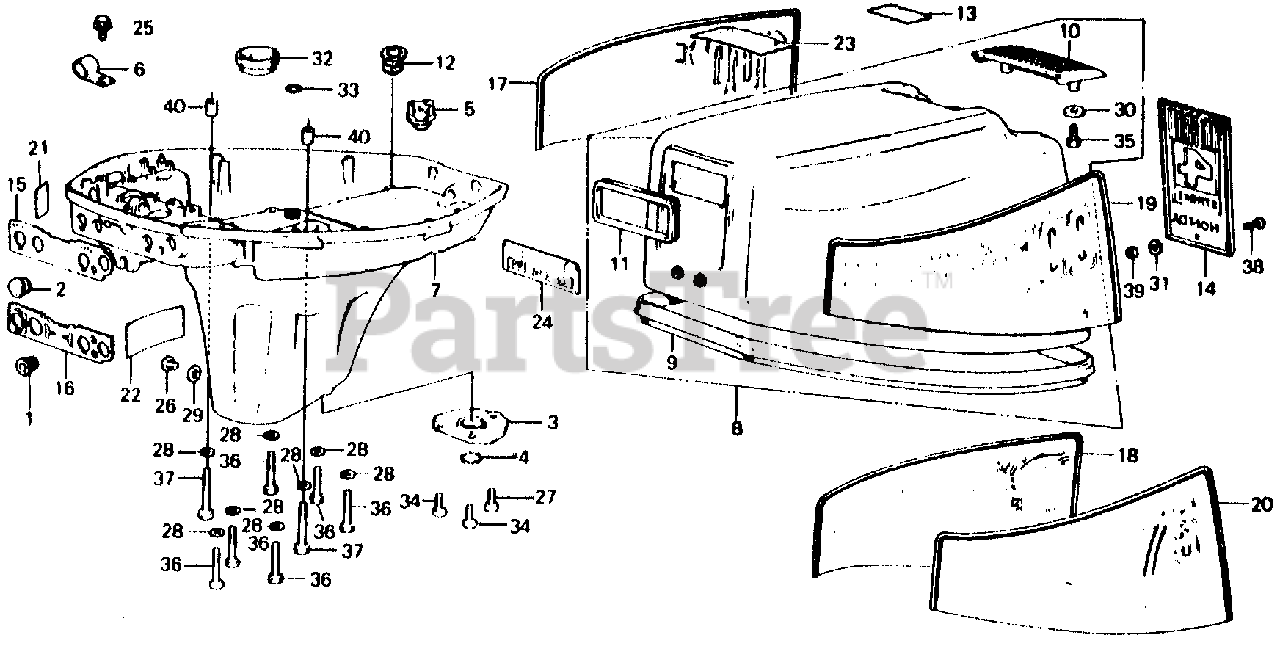

OIL CASE + ENGINE COVER Parts Diagram

  • Title

2

Honda 17918-881-000

GROMMET C, OIL CASE

$

$

Not available

3

Honda 18221-881-000

PLATE, EX.

$

$

Not available

4

Honda 18222-881-000

BAND, EX. SEAL

$7.49

$

Usually ships in 3-6 days

0

5

Honda 19262-921-000

MANIFOLD, TUBE

$

$

Not available

6

Honda 30549-881-010

CLAMP, WIRE (NOT AVAILABLE)

$

$

Not available

7

Honda 40101-881-030ZA

CASE, OIL *B9* (ATLANTIS BLUE)

$

$

Not available

8

Honda 63100-881-010WF

COVER, ENGINE *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 63102-881-300

SEAL, ENGINE COVER (NOT AVAILABLE)

$

$

Not available

10

Honda 63105-881-300WF

HANDLE, TILT *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

$

$

Not available

11

Honda 63109-881-310

SEAL, RECOIL

$

$

Not available

13

Honda 87103-881-000

SEE PART DETAILS - SUP; MARK, INSTRUCTION

$

$

Not available

14

Honda 87121-881-731

EMBLEM, RR. (NOT AVAILABLE)

$

$

Not available

15

Honda 87123-881-020

LABEL, INDICATION (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 87131-881-671

EMBLEM, R. SIDE COVER (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 87141-881-671

EMBLEM, L. SIDE COVER (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 87511-921-600

MARK, CHANGE (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 87531-935-630

LABEL, OIL FILLER POSITION (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 87538-935-601

MARK, STARTER CAUTION

$

$

Currently unavailable

24

Honda 87551-921-600

MARK, FR. (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 90016-920-000

BOLT, FLANGE (6X12)

$2.99

$

In Stock, only 3 left!

0

26

Honda 90105-921-000

BOLT, OIL CHECK

$8.99

$

Usually ships in 3-6 days

0

27

Honda 90106-881-000

BOLT, HEX. (6X12)

$

$

Not available

28

Honda 90504-921-010

WASHER, PLAIN (6MM)

$1.99

$

In Stock, only 1 left!

0

29

Honda 90507-921-000

WASHER, NYLON (8MM)

$1.49

$

In Stock, Qty 6

0

30

Honda 90512-921-010

WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

31

Honda 90519-921-000

WASHER, LOCK (4MM) (NOT AVAILABLE)

$

$

Currently unavailable

32

Honda 91255-881-004

SEAL, COUPLING (25X40X22) (NOK)

$

$

Not available

33

Honda 91305-PE2-003

O-RING (9.8X1.9)

$3.49

$

Usually ships in 3-6 days

0

34

Honda 92101-06012-4J

BOLT, HEX. (6X12)

$2.99

$

Usually ships in 3-6 days

0

35

Honda 92101-06016-4J

BOLT, HEX. (6X16)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 92000-06032-4J

BOLT, HEX. (6X32) (NOT AVAILABLE)

$

$

Currently unavailable

37

Honda 92000-06040-4J

BOLT, HEX. (6X40)

$

$

Currently unavailable

38

Honda 93500-04010-0G

SCREW, PAN (4X10)

$0.99

$

Usually ships in 3-6 days

0

39

Honda 94001-04390-0S

NUT, HEX. (4MM) (SOURCE: VINTAGE PARTS INC.)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0
