BF100 A LRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1000001 - BBMJ-9999999) IMPELLER PUMP KIT Parts Diagram

Marine Engine, Made in Japan

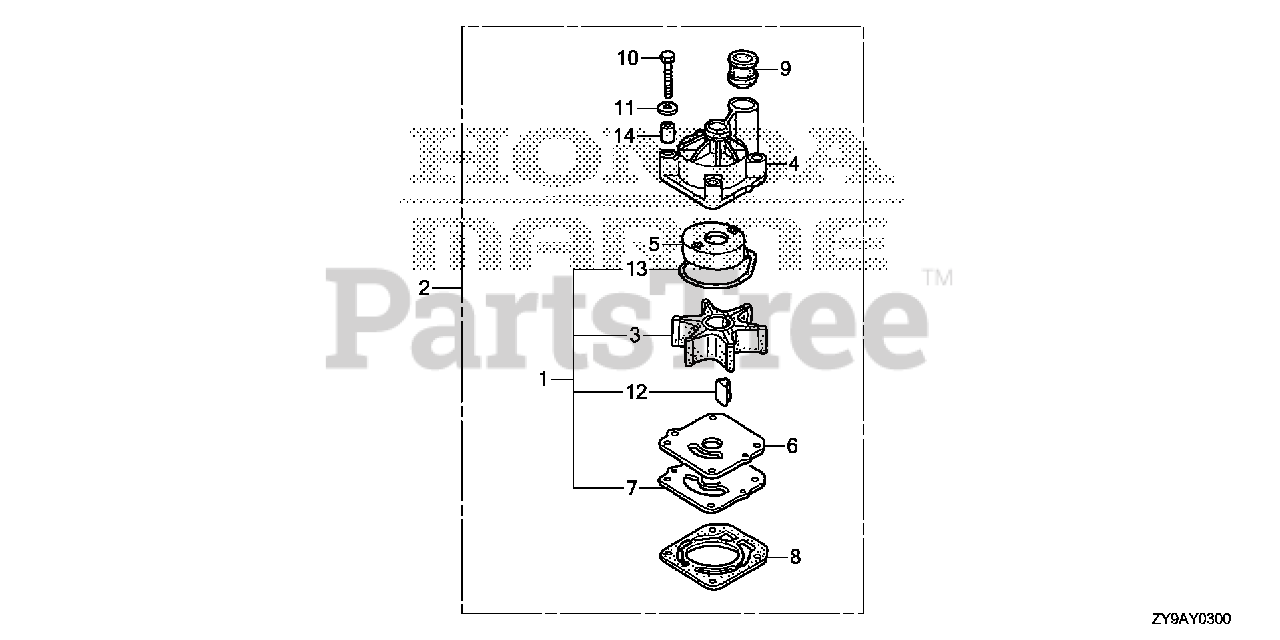

IMPELLER PUMP KIT Parts Diagram

  • Title

1

Honda 06192-ZY9-H00

PUMP KIT, IMPELLER
(Superseded to 06192-ZY9-H01)

Note: (Optional).

$75.99

$

Usually ships in 3-6 days

0

2

Honda 06193-ZY9-H00

SEE PART DETAILS - SUP; PUMP KIT, IMPELLER
(Superseded to 06193-ZY9-H01)

Note: (Optional).

$

$

Not available

2

Honda 06193-ZY9-H01

SEE PART DETAILS - PRI; PUMP KIT, IMPELLER
(Superseded to 06193-ZY9-H02)

Note: (Optional).

$148.99

$

Usually ships in 3-6 days

0

3

Honda 19210-ZY9-H01

IMPELLER, PUMP

Note: (Optional).

$42.99

$

Usually ships in 3-6 days

0

4

Honda 19221-ZY9-H00

HOUSING, IMPELLER
(Superseded to 19221-ZY9-H01)

Note: (Optional).

$63.99

$

Usually ships in 3-6 days

0

5

Honda 19223-ZY9-H00

LINER, PUMP

Note: (Optional).

$26.99

$

Usually ships in 3-6 days

0

6

Honda 19231-ZY9-H00

COVER, IMPELLER
(Superseded to 19231-ZY9-H01)

Note: (Optional).

$18.99

$

Usually ships in 3-6 days

0

7

Honda 19234-ZW1-B00

GASKET B, IMPELLER

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

8

Honda 19242-ZW1-B00

GASKET, WATER PUMP

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

9

Honda 19253-ZW1-B01

RING, WATER TUBE SEAL

Note: (Optional).

$7.99

$

Usually ships in 3-6 days

0

10

Honda 90010-ZV5-000

BOLT, HEX. (8X55)

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0

11

Honda 90514-921-000

WASHER (8MM)

Note: (Optional).

$1.49

$

In Stock, Qty 9

0

12

Honda 90752-ZW1-B02

KEY, WOODRUFF

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

13

Honda 91356-ZW1-B00

O-RING, WATER PUMP

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

14

Honda 91552-ZY6-000

COLLAR, DISTANCE

Note: (Optional).

$6.49

$

Usually ships in 3-6 days

0
