BF100 A LRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1000001 - BBMJ-9999999) ENGINE COVER + UNDER COVER Parts Diagram

Marine Engine, Made in Japan

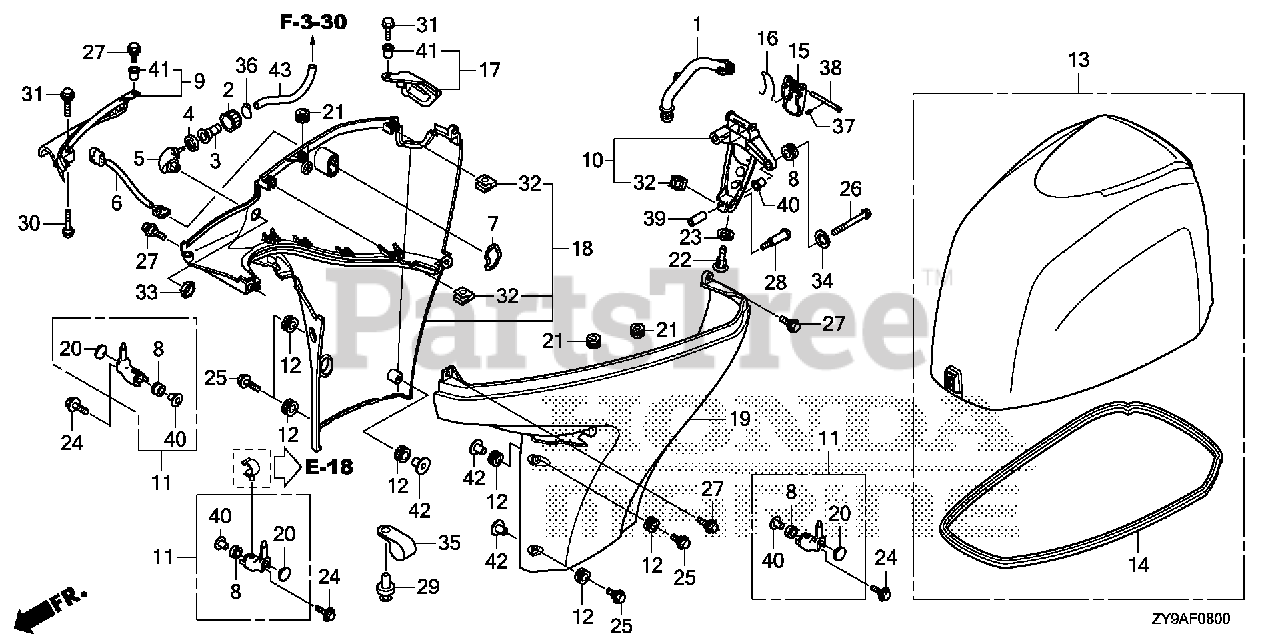

ENGINE COVER + UNDER COVER Parts Diagram

  • Title

1

Honda 18211-ZY9-000

PORT, IDLE EX.

$44.99

$

Usually ships in 3-6 days

0

2

Honda 19270-ZY3-000

NUT, WATER MOUTH

$18.99

$

Usually ships in 3-6 days

0

3

Honda 19271-ZY3-000

JOINT, WATER HOSE

$12.99

$

Usually ships in 3-6 days

0

4

Honda 19272-ZY3-000

SEAT, WATER MOUTH

$5.99

$

Usually ships in 3-6 days

0

5

Honda 19289-ZY6-000

CAP, WATER JOINT

$39.99

$

Usually ships in 3-6 days

0

6

Honda 35640-ZY9-003

SWITCH ASSY., POWER TILT

$81.99

$

Usually ships in 3-6 days

0

7

Honda 35645-ZY9-000

STAY, POWER TILT SWITCH

$10.99

$

Usually ships in 3-6 days

0

8

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 40151-ZY9-000ZB

COVER, FR. SEPARATE *NHB14M* (AQUA MARINE SILVER METALLIC)

$179.99

$

Usually ships in 3-6 days

0

10

Honda 40155-ZY9-010

BRACKET, COVER (LOWER)

$49.99

$

Usually ships in 3-6 days

0

11

Honda 40165-ZY9-010

STOPPER ASSY., ENGINE SIDE

$18.99

$

Usually ships in 3-6 days

0

12

Honda 61102-MB6-631

RUBBER, FENDER MOUNTING

$2.99

$

Usually ships in 3-6 days

0

13

Honda 63100-ZY9-020ZB

SEE PART DETAILS - SUP; COVER ASSY., ENGINE *NHB14M* (AQUA MARINE SILVER METALLIC)
(Superseded to 63100-ZY9-030ZB)

Note: Use up to Frame SN 1002931.

$1506.99

$

Usually ships in 3-6 days

0

13

Honda 63100-ZY9-030ZB

SEE PART DETAILS - PRI; COVER ASSY., ENGINE *NHB14M* (AQUA MARINE SILVER METALLIC)

$1506.99

$

Usually ships in 3-6 days

0

14

Honda 63102-ZY9-000

SEE PART DETAILS - SUP; SEAL, ENGINE COVER
(Superseded to 63102-ZY9-010)

Note: Use up to Frame SN 1002931.

$63.99

$

Usually ships in 3-6 days

0

14

Honda 63102-ZY9-010

SEE PART DETAILS - PRI; SEAL, ENGINE COVER

$63.99

$

Usually ships in 3-6 days

0

15

Honda 63232-ZY9-010

LEVER, FASTENER

$17.99

$

Usually ships in 3-6 days

0

16

Honda 63237-ZY9-000

WIRE, FASTENER

$11.99

$

Usually ships in 3-6 days

0

17

Honda 63347-ZY9-010ZB

COVER, PLUG MAINTENANCE *NHB14M* (AQUA MARINE SILVER METALLIC)

$27.99

$

Usually ships in 3-6 days

0

18

Honda 63711-ZY9-010ZB

COVER, R. ENGINE (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$207.99

$

Usually ships in 3-6 days

0

19

Honda 63716-ZY9-010ZB

COVER, L. ENGINE (LOWER) *NHB14M* (AQUA MARINE SILVER METALLIC)

$207.99

$

Usually ships in 3-6 days

0

20

Honda 77212-965-000

RUBBER, SEAT SIDE

$7.49

$

Usually ships in 3-6 days

0

21

Honda 80103-GJ5-000

GROMMET, ENGINE COVER

$2.99

$

Usually ships in 3-6 days

0

22

Honda 82873-ZY9-000

GROMMET, WATER CHECK

$6.49

$

Usually ships in 3-6 days

0

23

Honda 82874-ZY9-000

SEAL, WATER CHECK GROMMET

$5.49

$

Usually ships in 3-6 days

0

24

Honda 90003-ZW2-000

BOLT-WASHER (6X27) (CT200)
(Superseded to 90003-ZZ5-M01)

$3.99

$

Usually ships in 3-6 days

0

25

Honda 90103-ZY9-000

BOLT-WASHER (6X22)

$3.99

$

Usually ships in 3-6 days

0

26

Honda 90106-ZY9-000

BOLT, FLANGE (6X55)
(Superseded to 90106-ZZ0-M00)

$

$

Not available

27

Honda 90111-ZY3-000

BOLT, SPECIAL (6X17)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90113-ZY9-003

BOLT, RR. BRACKET

$13.99

$

Usually ships in 3-6 days

0

29

Honda 90127-ZV5-003

SCREW, RIVET (5X10)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90132-ZY3-000

BOLT, SPECIAL (6X37)

$4.99

$

Usually ships in 3-6 days

0

31

Honda 90168-ZW4-000

BOLT, FLANGE (6X20)
(Superseded to 90068-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 90301-ZY6-000

NUT, CLIP

$5.49

$

Usually ships in 3-6 days

0

33

Honda 90302-921-000

NUT, HEX. (16MM)

$5.99

$

In Stock, only 1 left!

0

34

Honda 90508-ZY3-000

WASHER, PLAIN (6MM)
(Superseded to 90508-ZZ5-M01)

$2.99

$

Usually ships in 3-6 days

0

35

Honda 90602-SB0-003

CLIP (10.7MM)

$5.99

$

Usually ships in 3-6 days

0

36

Honda 90651-ZY6-000

CLIP B1, TUBE

$5.49

$

Usually ships in 3-6 days

0

37

Honda 90751-ZY9-000

PIN, SPRING (2.0X12)

$3.49

$

Usually ships in 3-6 days

0

38

Honda 90755-ZY9-000

PIN (5X59)

$16.99

$

Usually ships in 3-6 days

0

39

Honda 91552-ZY9-000

COLLAR, DISTANCE (6.5X11X27)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 91553-ZV5-010

SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI)

$3.99

$

Usually ships in 3-6 days

0

41

Honda 91553-ZY6-000

COLLAR, DISTANCE (6.5X9X11.5)

$5.99

$

Usually ships in 3-6 days

0

42

Honda 91554-ZY9-000

COLLAR, DISTANCE (6.2X7.5)

$3.99

$

Usually ships in 3-6 days

0

43

Honda 95001-80001-60M

BULK HOSE, FUEL (8X1000) (8X300)

$35.99

$

Usually ships in 3-6 days

0
