BF100 A LRTA (BBMJ) - Honda Marine Engine, Made in Japan (SN: BBMJ-1000001 - BBMJ-9999999) CHAIN CASE Parts Diagram

Marine Engine, Made in Japan

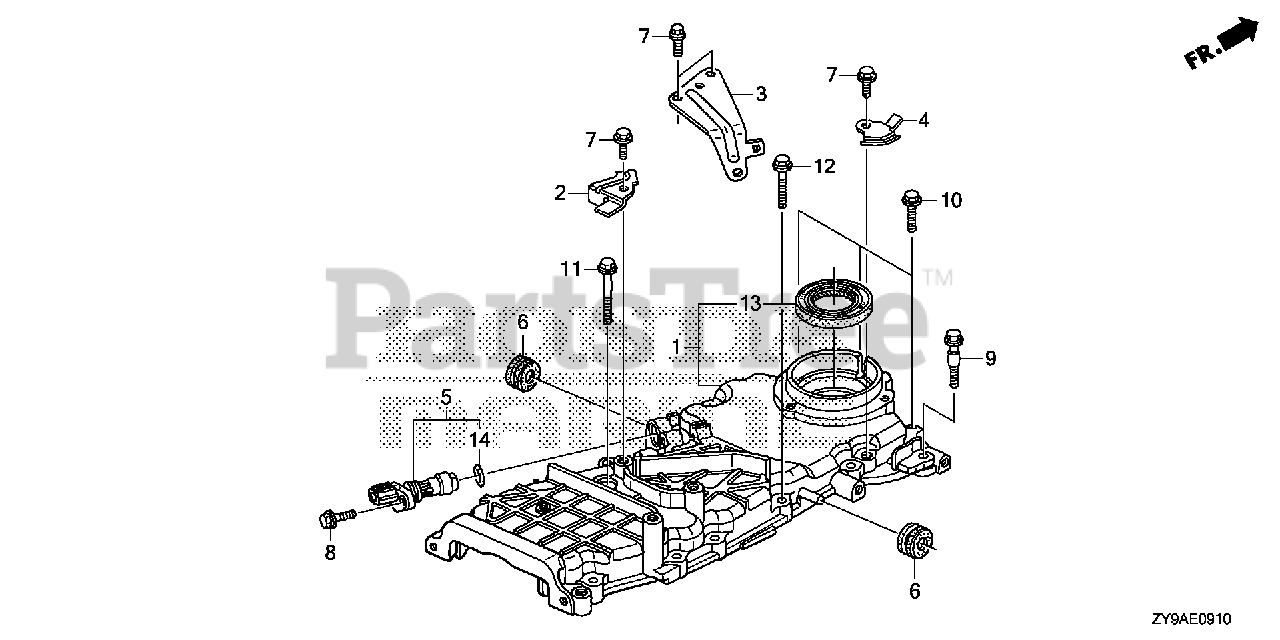

CHAIN CASE Parts Diagram

  • Title

1

Honda 11411-ZY9-405ZA

CASE, CHAIN *NH8* (DARK GRAY)
(Superseded to 11411-ZY9-415ZA)

$207.99

$

Usually ships in 3-6 days

0

2

Honda 32111-ZY9-000

BRACKET A, HARNESS CLIP

$7.49

$

Usually ships in 3-6 days

0

3

Honda 32113-ZY9-000

BRACKET C, HARNESS CLIP

$13.99

$

Usually ships in 3-6 days

0

4

Honda 32115-ZY9-000

BRACKET E, HARNESS CLIP

$4.99

$

Usually ships in 3-6 days

0

5

Honda 37500-PNB-003

SENSOR ASSY., CRANK

$232.99

$

Usually ships in 3-6 days

0

6

Honda 40102-ZV5-000

GROMMET, CASE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90011-ZW9-000

BOLT, FLANGE (6X14) (CT200)

$2.49

$

In Stock, only 1 left!

0

8

Honda 90017-ZY3-000

BOLT, FLANGE (6X16)
(Superseded to 90017-ZZ5-M01)

$1.99

$

In Stock, Qty 5

0

9

Honda 90023-ZY6-000

BOLT, SPECIAL (6X31)

$4.49

$

Usually ships in 3-6 days

0

10

Honda 90030-ZY3-000

BOLT, FLANGE (6X22)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90145-ZW4-000

BOLT, FLANGE (6X40)
(Superseded to 90045-ZZ5-M01)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90016-ZY3-000

BOLT, FLANGE (6X28)
(Superseded to 90016-ZZ5-M01)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 91212-PWA-003

OIL SEAL (40X55X7) (NOK)

$21.99

$

Usually ships in 3-6 days

0

14

Honda 91333-PNA-003

O-RING (15X1.9)

$4.49

$

Usually ships in 3-6 days

0
