BE2010-0130-01 - Briggs & Stratton Electric Motor Electric Motor and Related Parts Diagram

Electric Motor

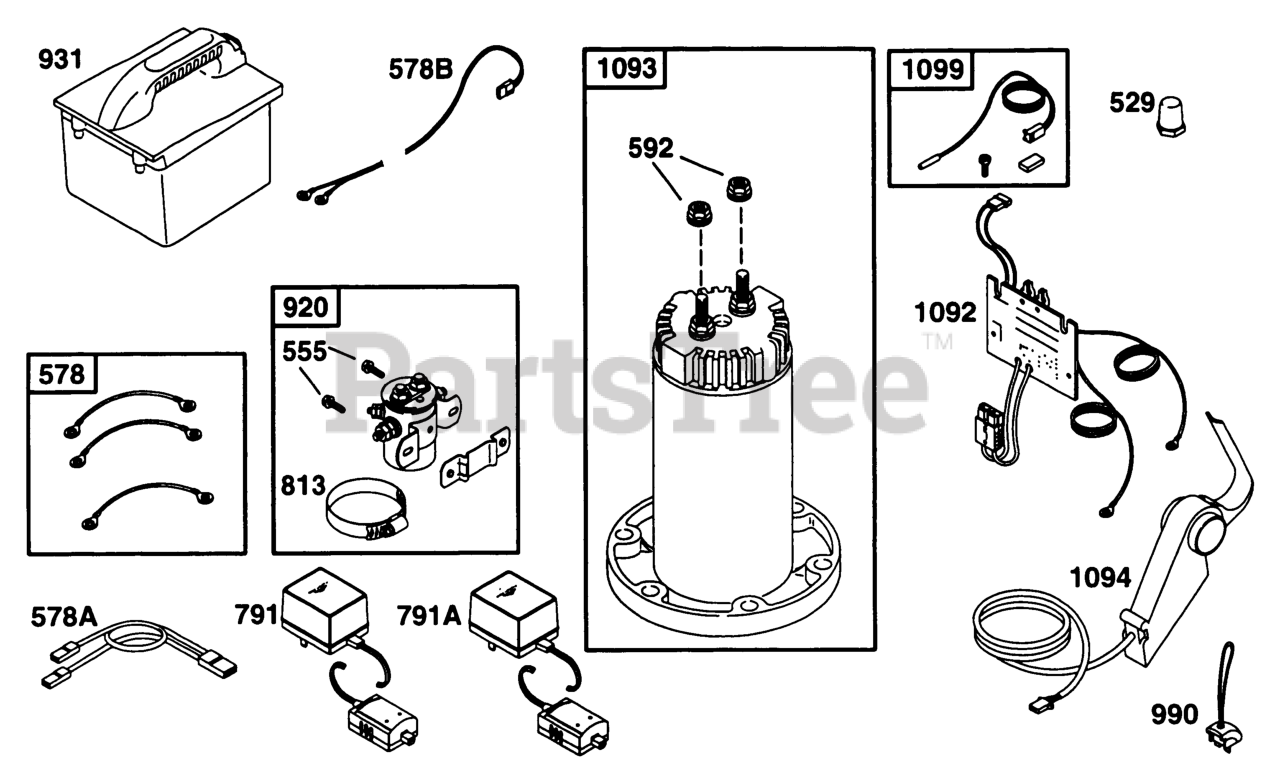

Electric Motor and Related Parts Diagram

  • Title

529

Briggs & Stratton 497926

Grommet (Circuit Breaker)

$5.99

$

Usually ships in 2-12 days

0

555

Briggs & Stratton 805448

Screw
(Superseded to 692067)

$3.99

$

In Stock, Qty 9

0

578B

Briggs & Stratton 497875

Wire Assembly
(Superseded to 690660)

$10.99

$

Usually ships in 2-12 days

0

578A

Briggs & Stratton 497435

Wire Assembly (Battery Charger)
(Superseded to 692964)

$19.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 498288

Wire Assembly

$16.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 94949

Nut
(Superseded to 691123)

$3.49

$

Usually ships in 2-12 days

0

791A

Briggs & Stratton 497476

Charger, Trickle (220 Volt)
(Superseded to 692965)

$72.99

$

Usually ships in 2-12 days

0

791

Briggs & Stratton 497400

Charger, Trickle (110 Volt)
(Superseded to 692962)

$136.99

$

In Stock, only 1 left!

0

813

Briggs & Stratton 393514

Clamp-Regulator
(Superseded to 690635)

$24.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 498287

Solenoid-Starter

$93.99

$

Usually ships in 2-12 days

0

931

Briggs & Stratton 690856

Battery

$150.99

$

Usually ships in 2-12 days

0

990

Briggs & Stratton 497399

Key Set

$

$

Not available

1092

Briggs & Stratton 497627

Module-Control

$

$

Not available

1093

Briggs & Stratton 498289

Motor-Electric Mower

$279.99

$

Usually ships in 2-12 days

0

1094

Briggs & Stratton 497392

Control-Deadman Assembly

$

$

Not available

1099

Briggs & Stratton 498665

Switch-Latch Assembly

$59.99

$

Usually ships in 2-12 days

0
