BE 550 (966997301) - Husqvarna Bed Edger (2008-07) Rear Wheel Parts Diagram

Bed Edger

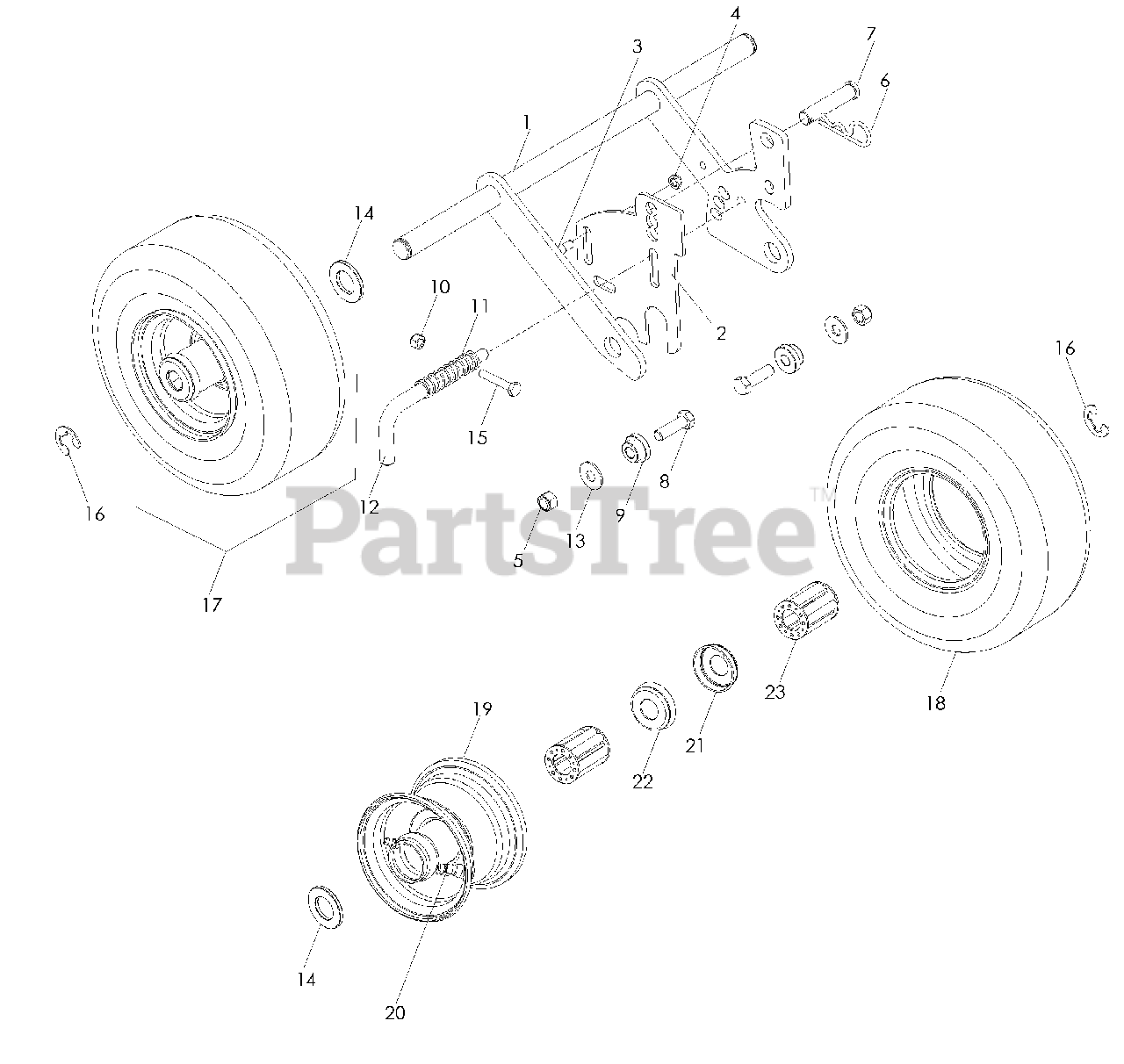

Rear Wheel Parts Diagram

  • Title

1

Husqvarna 510367001

AXLE, REAR

$

$

Not available

2

Husqvarna 539112282

PLATE, SLIDE

$24.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102828

BOLT 5/16 x 5/8

$

$

Not available

4

Husqvarna 539108120

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539976989

HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109226

PIN, CLEVIS 1/2 x 2 1/4

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, only 2 left!

0

9

Husqvarna 539106847

BUSHING

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 539020034

SPRING, COMPRESSION

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539109526

PIN, SPRING

$34.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990517

WASHER 3/8 STD FLT

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539109333

WASHER 3/4 FLAT SAE

$4.99

$

In Stock, Qty 19

0

15

Husqvarna 539990639

HCS 1/4-20 x 1 1/2

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102454

E-RING 3/4

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539104556

WHEEL ASSEMBLY

$157.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101905

TIRE

$66.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539104618

RIM ASSEMBLY

$46.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539912234

AIR VALV E

$6.49

$

In Stock, Qty 20+

0

21

Husqvarna 539923557

END CAP
(Superseded to 539977356)

$15.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539977356

END CAP, NOTCHED

$15.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539977353

BEARING, ROLLER

$13.99

$

In Stock, only 3 left!

0
