BE 550 (966997301) - Husqvarna Bed Edger (2008-07) Handle Parts Diagram

Bed Edger

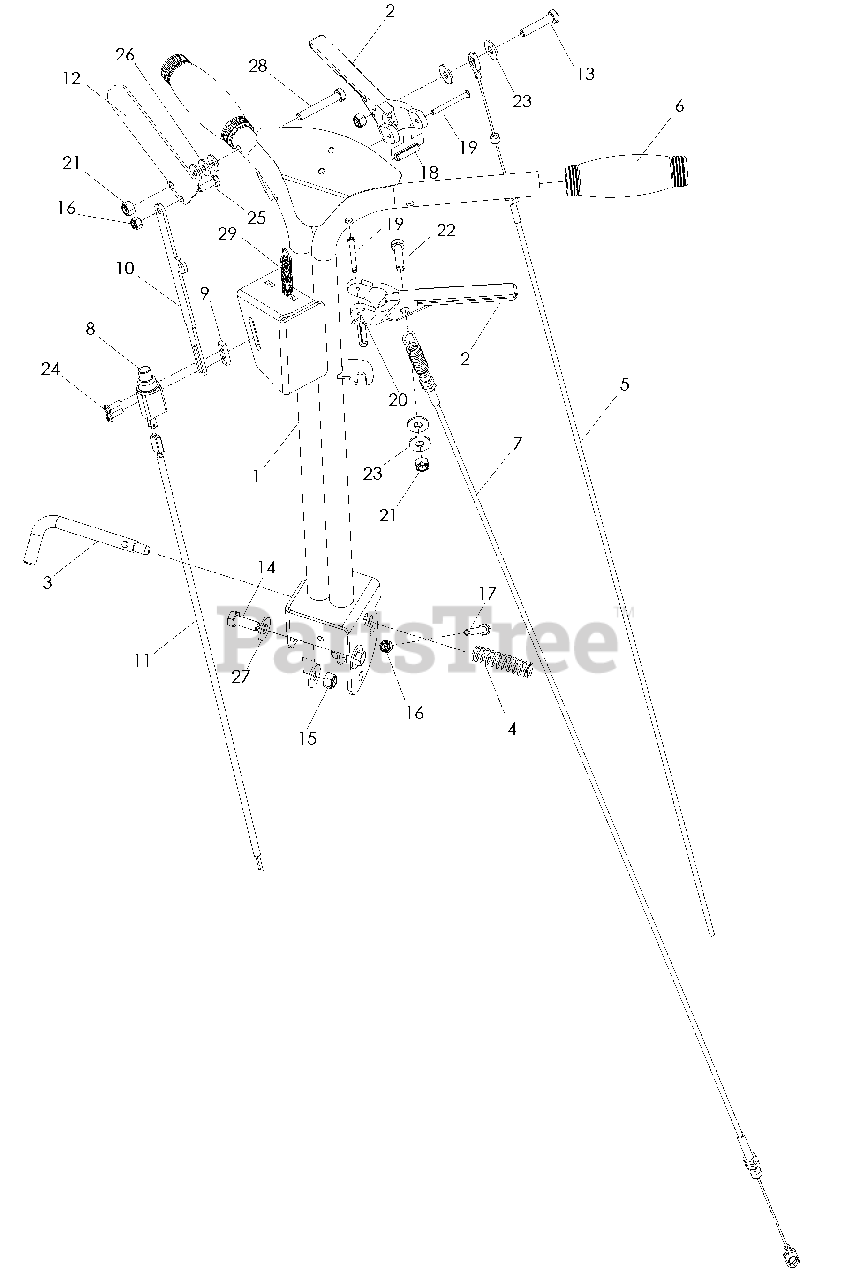

Handle Parts Diagram

  • Title

1

Husqvarna 510367201

HANDLE, ORANGE

$

$

Not available

2

Husqvarna 539131156

LEVER, DRIVE

$

$

Not available

3

Husqvarna 539109526

PIN, SPRING

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539020034

SPRING, COMPRESSION

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539109549

CABLE, THROTTLE

$17.99

$

In Stock, only 1 left!

0

6

Husqvarna 539976488

GRIP, HANDLE
(Superseded to 532427643)

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 539109509

CABLE, DEPTH

$37.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539020017

SWITCH, PLUNGER

$28.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102678

PLATE, TAPPED

$15.99

$

In Stock, Qty 9

0

10

Husqvarna 539109887

LINKAGE

$

$

Not available

11

Husqvarna 539109890

WIRE HARNESS

$45.99

$

Usually ships in 3-10 days

0

12

Husqvarna 510417401

LEVER, OP

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976935

HCS 5/16-18 x 1 1/2

$

$

Not available

14

Husqvarna 539990563

HCS 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 539101313

HCS 1/4-20 x 2

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539923313

ROLL PIN

$3.99

$

In Stock, Qty 8

0

19

Husqvarna 539101213

PIN, CLEVIS

$1.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990037

COTTER PIN 3/32 x 3/4

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 539976952

SCREW #10-24 x .625
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

25

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

27

Husqvarna 539990517

WASHER 3/8 STD FLT

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976937

HCS 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539977250

SPRING

$

$

Not available

Husqvarna 539976856

WIRE TIE

Note: NOT SHOWN

$5.99

$

Usually ships in 3-10 days

0
