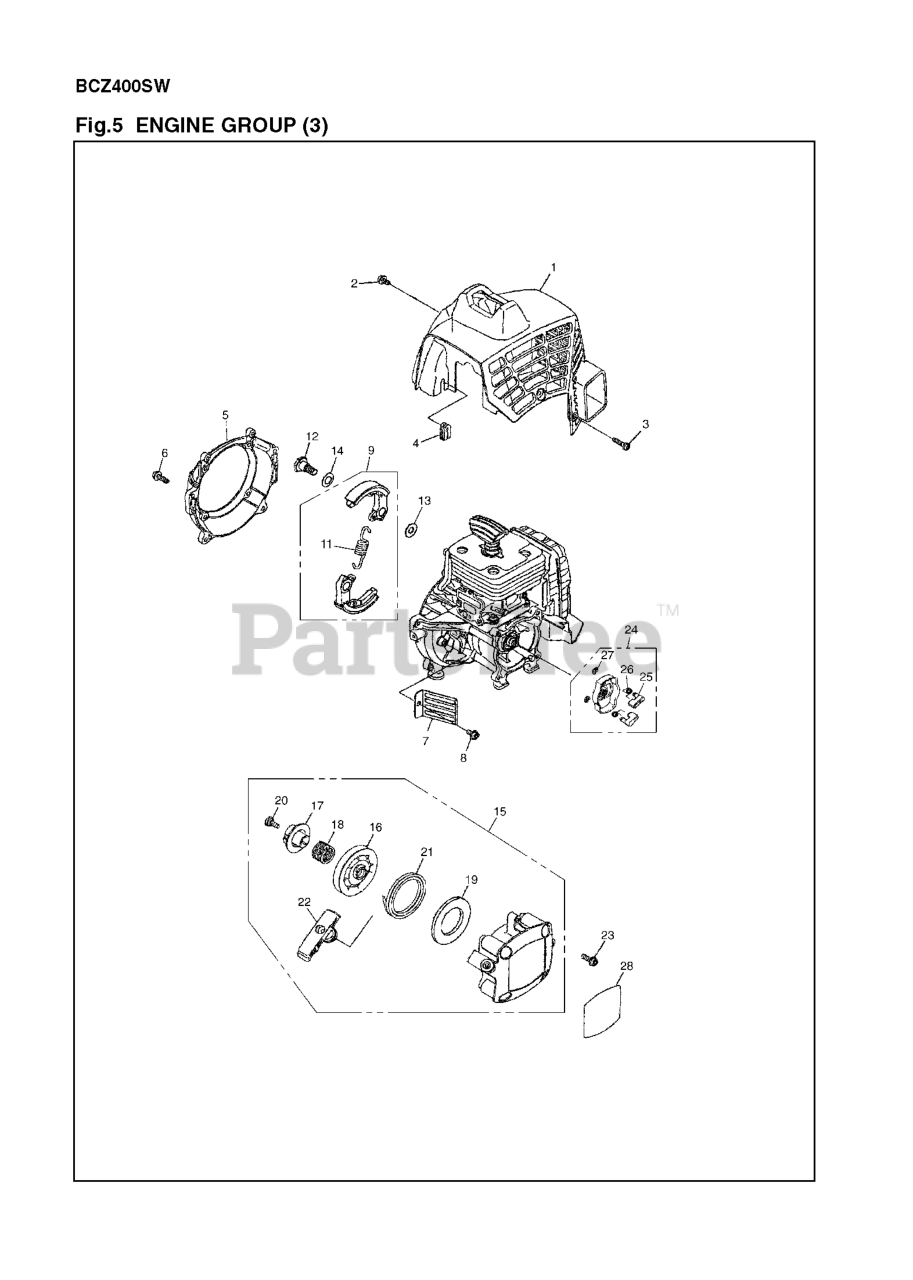

BCZ 400 SW (966785601) - RedMax Brushcutter (2012-08) ENGINE Parts Diagram

Brushcutter

ENGINE Parts Diagram

  • Title

1

RedMax 511438601

CYLINDER COVER

$27.99

$

Usually ships in 3-10 days

0

2

RedMax 521515901

BOLT (RPLS T495051010-11)

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 521863601

SCREW, TORX (RPLS T4970-52001)

$3.49

$

In Stock, only 4 left!

0

4

RedMax 506615901

GROMMET

$3.99

$

Usually ships in 3-10 days

0

5

RedMax 578854201

FAN COVER

$36.99

$

Usually ships in 3-10 days

0

6

RedMax 577942301

BOLT M5 X 16

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 515412601

GUARD

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 521515901

BOLT (RPLS T495051010-11)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 521636401

SHOE COMP

$56.99

$

In Stock, only 1 left!

0

11

RedMax 521523401

SPRING

$9.99

$

Usually ships in 3-10 days

0

12

RedMax 505297801

SCREW

$7.49

$

In Stock, only 2 left!

0

13

RedMax 505298001

WASHER
(Superseded to 516244001)

$3.99

$

In Stock, Qty 8

0

14

RedMax 505298101

WASHER

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 521624501

RECOIL ASSY

$120.99

$

Usually ships in 3-10 days

0

16

RedMax 521618301

REEL

$13.99

$

Usually ships in 3-10 days

0

17

RedMax 521618501

PLATE, CAM

$6.99

$

Usually ships in 3-10 days

0

18

RedMax 521618401

SPRING, DAMPER

$

$

Not available

19

RedMax 521618201

SPRING,SPIRAL

$21.99

$

Usually ships in 3-10 days

0

20

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

21

RedMax 521531701

ROPE

$6.99

$

Usually ships in 3-10 days

0

22

RedMax 521617901

KNOB

$27.99

$

Usually ships in 3-10 days

0

23

RedMax 506745601

BOLT

$3.99

$

In Stock, only 2 left!

0

24

RedMax 521624601

PULLEY ASSY

$30.99

$

Usually ships in 3-10 days

0

25

RedMax 521618601

RATCHET

$2.49

$

Usually ships in 3-10 days

0

26

RedMax 521618701

SPRING

$

$

Not available

27

RedMax 513167701

E-RING
(Superseded to 516155501)

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 578859601

LABEL, RECOIL

$2.49

$

Usually ships in 3-10 days

0
