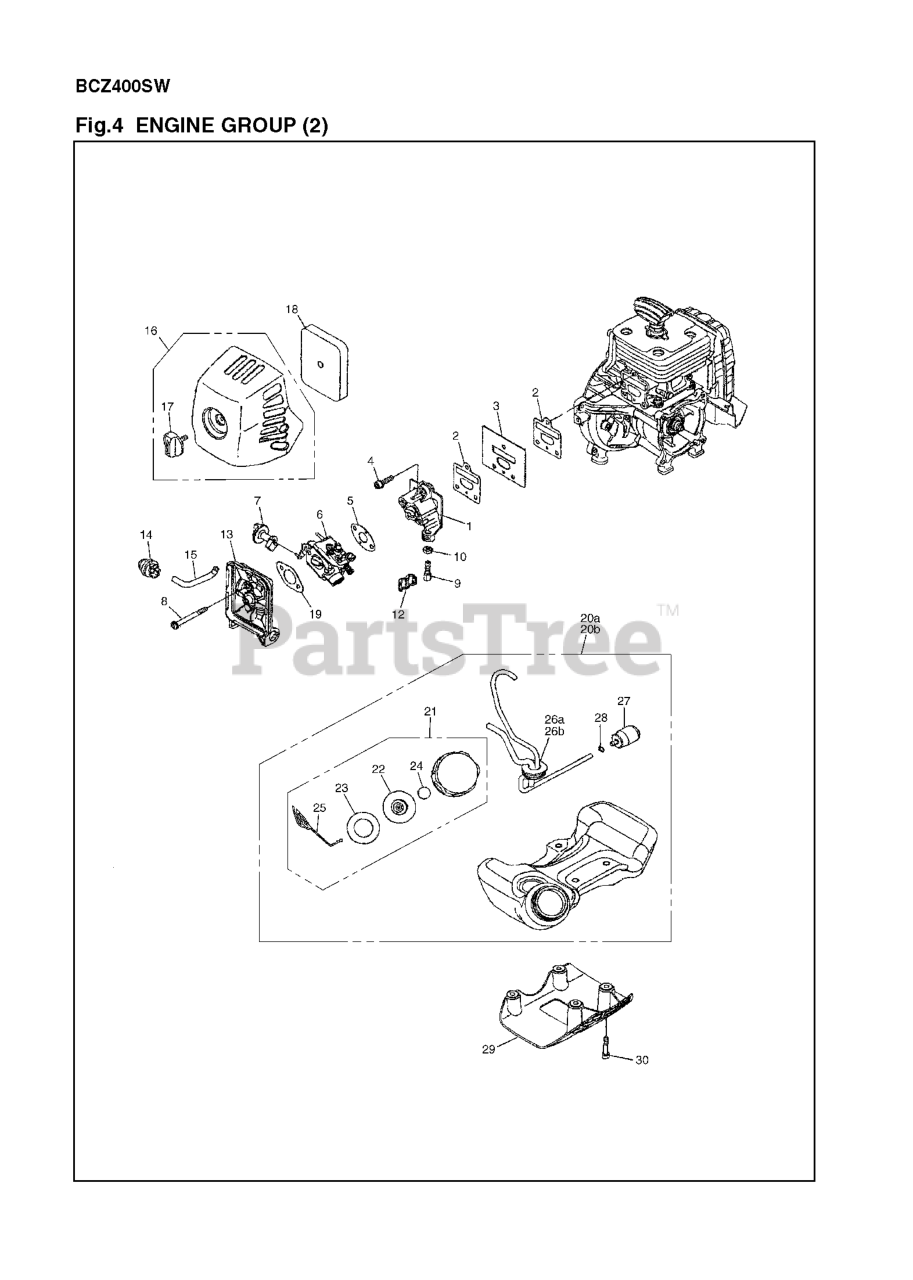

BCZ 400 SW (966785601) - RedMax Brushcutter (2012-08) ENGINE Parts Diagram

Brushcutter

ENGINE Parts Diagram

  • Title

1

RedMax 576685801

INSULATOR

$11.99

$

Usually ships in 3-10 days

0

2

RedMax 576785401

GASKET

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 578115301

PLATE

$3.49

$

Usually ships in 3-10 days

0

4

RedMax 506689001

BOLT TORX

$6.49

$

In Stock, only 2 left!

0

5

RedMax 577673801

GASKET

$6.49

$

Usually ships in 3-10 days

0

6

RedMax 577992801

CARBURETOR ASSY WTEA-4A
(Superseded to 577992802)

$157.99

$

Usually ships in 3-10 days

0

7

RedMax 577133101

KNOB

$4.99

$

Usually ships in 3-10 days

0

8

RedMax 521515501

BOLT TORX

$4.99

$

In Stock, only 2 left!

0

9

RedMax 577177201

ADJUSTER

$3.49

$

Usually ships in 3-10 days

0

10

RedMax 510487401

NUT
(Superseded to 516117901)

$4.99

$

Usually ships in 3-10 days

0

12

RedMax 577133201

JOINT

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 576685501

HOUSING

$12.99

$

Usually ships in 3-10 days

0

14

RedMax 513789301

PRIMARY BTN

$31.99

$

In Stock, only 2 left!

0

15

RedMax 577509501

PIPE L70

$6.49

$

Usually ships in 3-10 days

0

16

RedMax 577509601

COVER ASSY

$40.99

$

Usually ships in 3-10 days

0

17

RedMax 528074601

Cleaner Knob

$6.49

$

Usually ships in 3-10 days

0

18

RedMax 577926701

ELEMENT

$9.99

$

Usually ships in 3-10 days

0

19

RedMax 577882402

GASKET

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 578859301

TANK ASSY
(Superseded to 579210801)

Note: UP TO SN11299999

$79.99

$

Usually ships in 3-10 days

0

20

RedMax 579210801

TANK ASSY

Note: FROM SN20100001

$79.99

$

Usually ships in 3-10 days

0

21

RedMax 504117701

ASSY FUEL CAP

$30.99

$

In Stock, only 2 left!

0

22

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

23

RedMax 506744301

PACKING

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 506746801

FILTER

$6.49

$

In Stock, only 2 left!

0

25

RedMax 504117901

STOPPER

$3.49

$

Usually ships in 3-10 days

0

26

RedMax 577509901

PIPE ASSY
(Superseded to 579210301)

Note: UP TO SN11299999

$34.99

$

Usually ships in 3-10 days

0

26

RedMax 579210301

PIPE ASSY

Note: FROM SN20100001

$34.99

$

Usually ships in 3-10 days

0

27

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

28

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, only 4 left!

0

29

RedMax 521626101

GUARD

$8.99

$

Usually ships in 3-10 days

0

30

RedMax 521516901

BOLT M5X25

$4.99

$

In Stock, only 4 left!

0
