BCZ 400 SW (966785601) - RedMax Brushcutter (2012-08) ENGINE Parts Diagram

Brushcutter

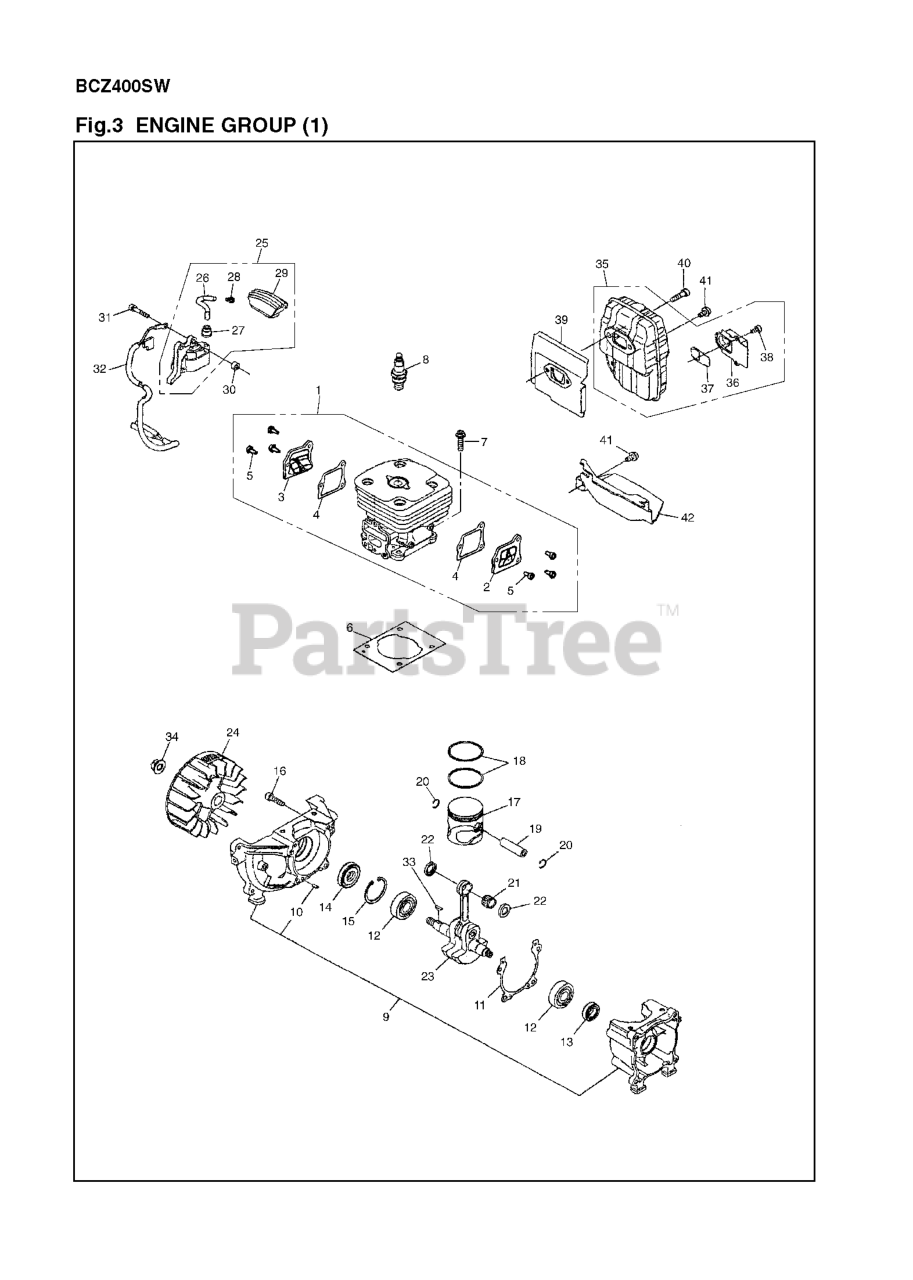

ENGINE Parts Diagram

  • Title

1

RedMax 577409501

CYLINDER ASSY
(Superseded to 577409502)

$79.99

$

Usually ships in 3-10 days

0

2

RedMax 521622101

COVER TRS STARTER SIDE

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 521622201

COVER,TRF FLYWHEEL SIDE

$5.76

$

Usually ships in 3-10 days

0

4

RedMax 521622001

GASKET TR

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 504119201

BOLT
(Superseded to 506616401)

$2.49

$

In Stock, Qty 8

0

6

RedMax 521622001

GASKET TR

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 3 left!

0

8

RedMax 578059501

SPARK PLUG CMR7H-10
(Superseded to 528074001)

$6.49

$

Usually ships in 3-10 days

0

9

RedMax 521623502

CRANKCASE ASSY

$51.99

$

Usually ships in 3-10 days

0

10

RedMax 505296101

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 521623601

GASKET

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 504121401

BEARING
(Superseded to 521521001)

$12.99

$

In Stock, only 4 left!

0

13

RedMax 504121501

SEAL

$9.99

$

In Stock, Qty 12

0

14

RedMax 505296701

SEAL

$7.99

$

In Stock, only 2 left!

0

15

RedMax 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 577942001

BOLT M5X20 T27

$4.99

$

In Stock, only 1 left!

0

17

RedMax 577639801

PISTON

$60.99

$

Usually ships in 3-10 days

0

18

RedMax 510918001

RING PISTON

$12.99

$

Usually ships in 3-10 days

0

19

RedMax 521522701

PIN

$7.49

$

Usually ships in 3-10 days

0

20

RedMax 516283001

RING

$4.99

$

In Stock, only 1 left!

0

21

RedMax 505297301

ROLLER BEARING
(Superseded to 521794701)

$9.99

$

In Stock, Qty 5

0

22

RedMax 513752401

WASHER
(Superseded to 574008001)

$6.99

$

In Stock, only 2 left!

0

23

RedMax 521623901

CRANK SHAFT ASSY

$121.16

$

Usually ships in 3-10 days

0

24

RedMax 577133801

ROTOR
(Superseded to 583918901)

$84.99

$

Usually ships in 3-10 days

0

25

RedMax 577133901

COIL ASSY
(Superseded to 577133902)

$60.99

$

Usually ships in 3-10 days

0

26

RedMax 577139501

CORD

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 506655201

SPRING

$3.49

$

Usually ships in 3-10 days

0

29

RedMax 521610001

CAP

$9.99

$

In Stock, only 2 left!

0

30

RedMax 521769701

SPACER
(Superseded to 588171401)

$6.49

$

Usually ships in 3-10 days

0

31

RedMax 521515801

BOLT M4 X 25

$3.99

$

Usually ships in 3-10 days

0

32

RedMax 577574901

CORD ASSY

$9.99

$

Usually ships in 3-10 days

0

33

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

35

RedMax 576785001

MUFFLER ASSY

$37.99

$

Usually ships in 3-10 days

0

36

RedMax 521623401

GUIDE

$8.99

$

Usually ships in 3-10 days

0

37

RedMax 521623001

ARRESTER

$15.99

$

In Stock, only 3 left!

0

38

RedMax 544362701

BOLT

$3.49

$

In Stock, Qty 10

0

39

RedMax 577804101

GASKET

$7.49

$

Usually ships in 3-10 days

0

40

RedMax 577942001

BOLT M5X20 T27

$4.99

$

In Stock, only 1 left!

0

41

RedMax 521515901

BOLT (RPLS T495051010-11)

$4.99

$

In Stock, only 1 left!

0

42

RedMax 521623301

PLATE

$7.49

$

Usually ships in 3-10 days

0
