BCZ 400 SW (966785601) - RedMax Brushcutter (2011-11) CUTTING EQUIPMENT Parts Diagram

Brushcutter

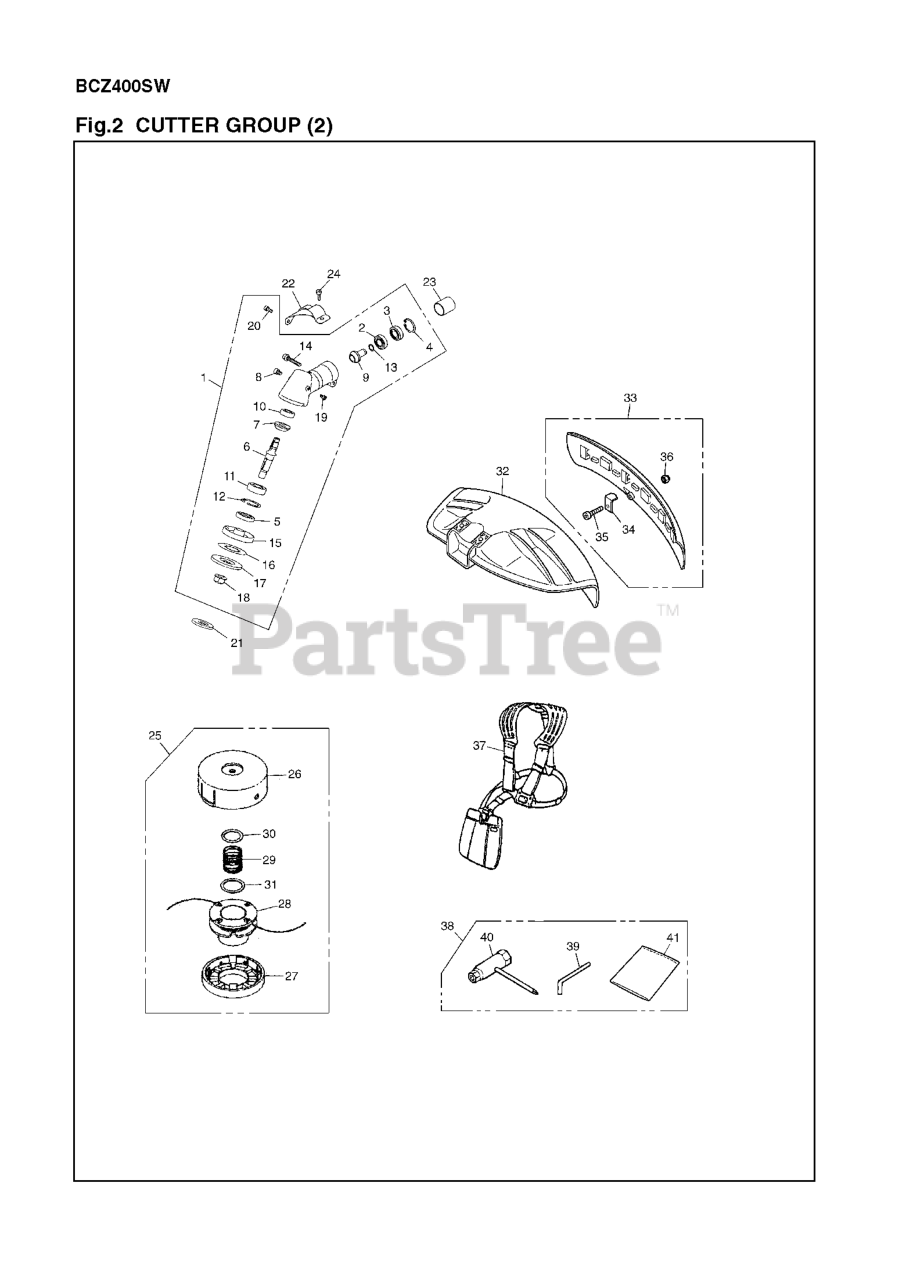

CUTTING EQUIPMENT Parts Diagram

  • Title

1

RedMax 521655301

GEAR CASE ASSY

$302.99

$

Usually ships in 3-10 days

0

2

RedMax 505170201

BEARING

$9.99

$

In Stock, only 3 left!

0

3

RedMax 516129901

BEARING,10MM ID,26MM OD,8MM W

$7.99

$

In Stock, only 1 left!

0

4

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 2 left!

0

5

RedMax 521522101

SEAL

$10.99

$

Usually ships in 3-10 days

0

6

RedMax 521655401

SHAFT

$

$

Not available

7

RedMax 521655501

GEAR

$31.29

$

Usually ships in 3-10 days

0

8

RedMax 521862001

BOLT,TORX M6X8

$3.49

$

In Stock, only 1 left!

0

9

RedMax 521655601

PINION

$36.92

$

Usually ships in 3-10 days

0

10

RedMax 505169201

BEARING

$9.99

$

In Stock, Qty 5

0

11

RedMax 516130001

BEARING,12MM ID,28MM OD, 8MM W

$15.99

$

Usually ships in 3-10 days

0

12

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

13

RedMax 516124001

RING, SNAP, M10 x 1.0

$

$

Not available

14

RedMax 521862401

BOLT,TORX

$3.49

$

Usually ships in 3-10 days

0

15

RedMax 521655701

HOLDER (A)

$72.99

$

Usually ships in 3-10 days

0

16

RedMax 521656001

PLATE

$8.99

$

Usually ships in 3-10 days

0

17

RedMax 521655801

HOLDER (B)

$34.99

$

Usually ships in 3-10 days

0

18

RedMax 521804001

NUT

$4.99

$

In Stock, only 3 left!

0

19

RedMax 544362701

BOLT

$3.49

$

In Stock, only 3 left!

0

20

RedMax 521746501

BOLT M5X14

$4.99

$

In Stock, only 3 left!

0

21

RedMax 578860201

HOLDER

$7.49

$

Usually ships in 3-10 days

0

22

RedMax 521656101

BRACKET

$8.99

$

Usually ships in 3-10 days

0

23

RedMax 521656201

SPACER

$3.49

$

Usually ships in 3-10 days

0

24

RedMax 521862301

BOLT,TORX M6X30

$3.49

$

Usually ships in 3-10 days

0

25

RedMax 515516101

6" TAP HEAD PT100

$

$

Not available

26

RedMax 515516601

CASE
(Superseded to 521404702)

$34.99

$

Usually ships in 3-10 days

0

27

RedMax 515516701

COVER

$60.99

$

Usually ships in 3-10 days

0

28

RedMax 515516901

CORD HOLDER

$74.99

$

Usually ships in 3-10 days

0

29

RedMax 515517001

SPRING

$9.99

$

Usually ships in 3-10 days

0

30

RedMax 514163201

PLATE

$

$

Not available

31

RedMax 514163501

PLATE

$6.49

$

Usually ships in 3-10 days

0

32

RedMax 511584801

GUARD

$48.99

$

Usually ships in 3-10 days

0

33

RedMax 528827001

GUARD ASSY

$48.99

$

Usually ships in 3-10 days

0

34

RedMax 521663001

BLADE

$4.99

$

Usually ships in 3-10 days

0

35

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 18

0

36

RedMax 514151801

NUT

$3.49

$

Usually ships in 3-10 days

0

37

RedMax 521433701

HARNESS ASSY (RPLS-17201) Acc

$

$

Not available

38

RedMax 521532701

TOOL SET (RPLS 848-8UD-0120)

$12.99

$

Usually ships in 3-10 days

0

39

RedMax 505312001

BAR

$3.49

$

Usually ships in 3-10 days

0

40

RedMax 521533101

SOCKET
(Superseded to 521532701)

$12.99

$

Usually ships in 3-10 days

0

41

RedMax 506744101

BAG

$4.99

$

Usually ships in 3-10 days

0
