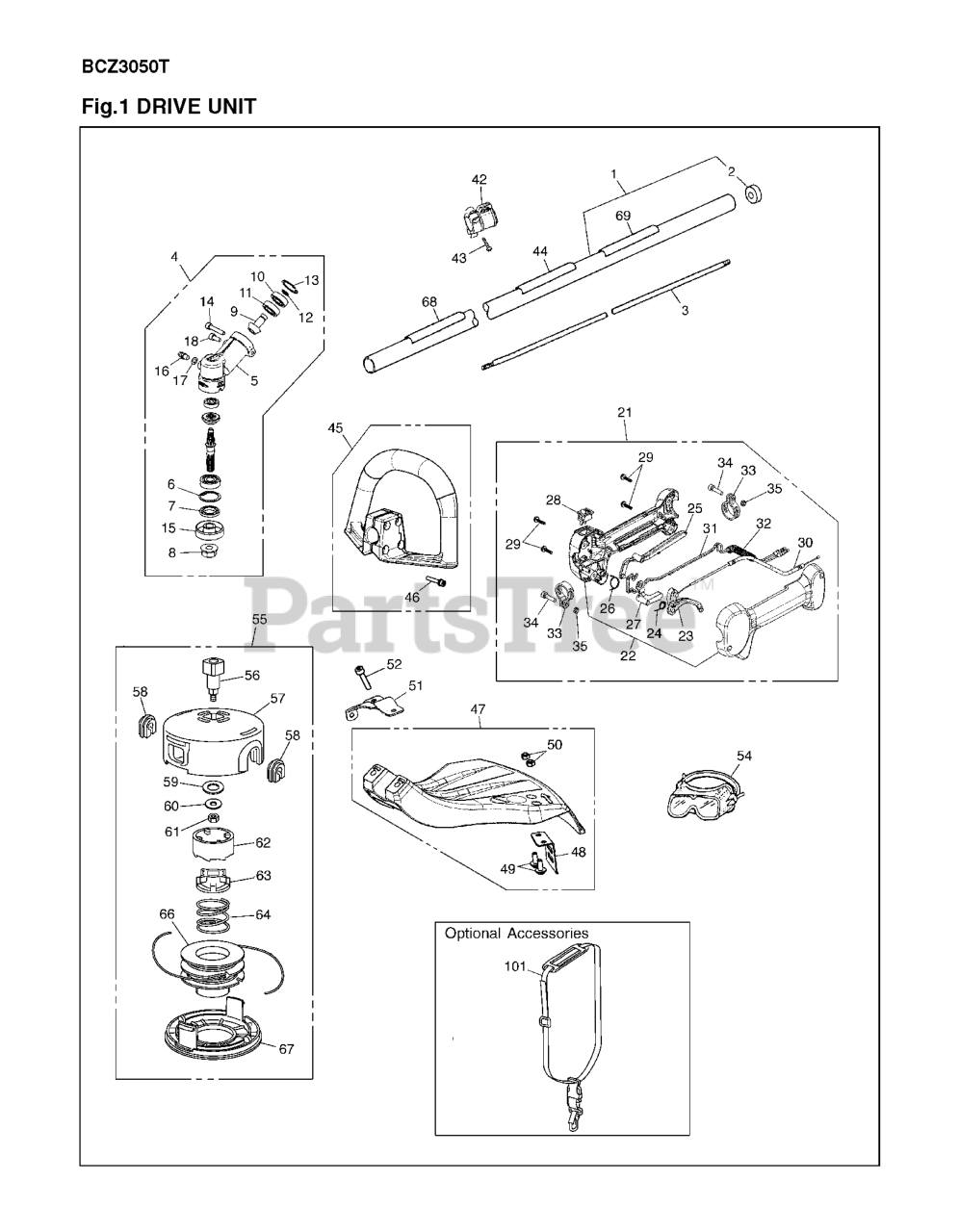

BCZ 3050 T - RedMax Brushcutter (SN: 91000101 - 91001000) DRIVE Parts Diagram

Brushcutter

DRIVE Parts Diagram

  • Title

1

RedMax 528868901

PIPE COMP

Note: . 2

$66.99

$

Usually ships in 3-10 days

0

2

RedMax 521825401

SEAL

$4.99

$

In Stock, only 2 left!

0

3

RedMax 576046601

DRIVESHAFT

$100.99

$

In Stock, only 1 left!

0

4

RedMax 576046901

GEARCASE ASSY

Note: . 5 6 7-35

$169.99

$

Usually ships in 3-10 days

0

5

RedMax 574498401

GEARCASE

$

$

Not available

6

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 2 left!

0

7

RedMax 514382501

SEAL

$7.49

$

In Stock, only 1 left!

0

8

RedMax 521804001

NUT

$4.99

$

In Stock, only 3 left!

0

9

RedMax 528840101

PINION

$78.99

$

Usually ships in 3-10 days

0

10

RedMax 521822001

BEARING

$15.99

$

In Stock, only 2 left!

0

11

RedMax 505169201

BEARING

$9.99

$

In Stock, Qty 5

0

12

RedMax 521821801

RING

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 505169401

RP_RING

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 512845701

BOLT TORX

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 515632501

HOLDER(A)

Note: A

$31.99

$

Usually ships in 3-10 days

0

16

RedMax 505171501

FITTING

$6.49

$

In Stock, only 3 left!

0

17

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 521861101

BOLT, TORX

$4.99

$

In Stock, Qty 20+

0

21

RedMax 574390301

GRIP ASSY
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

22

RedMax 576475201

GRIP HALF SET
(Superseded to 576475202)

$31.99

$

In Stock, only 2 left!

0

23

RedMax 529258801

LEVER, THROTTLE

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 2 left!

0

25

RedMax 529259001

LEVER FOR GRIP (RPLS -0600)
(Superseded to 578778001)

$4.99

$

In Stock, only 1 left!

0

26

RedMax 574390801

SPRING JOINT

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

28

RedMax 521851601

SWITCH

$11.99

$

In Stock, only 3 left!

0

29

RedMax 521517701

SCREW

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 529257101

CABLE-C

$12.99

$

In Stock, only 2 left!

0

31

RedMax 529256101

CORD - C

$7.49

$

Usually ships in 3-10 days

0

32

RedMax 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 529259401

BAND

$10.99

$

In Stock, only 1 left!

0

34

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

35

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

42

RedMax 521822101

HANGER COMP.

$

$

Not available

43

RedMax 521515301

SCREW

$4.99

$

In Stock, only 2 left!

0

44

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

45

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

Note: . 46

$26.99

$

In Stock, only 3 left!

0

46

RedMax 521863101

SCREW

$3.49

$

In Stock, Qty 11

0

47

RedMax 574395401

GUARD ASSY
(Superseded to 578403401)

Note: . 48 49 50

$34.99

$

In Stock, only 1 left!

0

48

RedMax 574395601

BLADE

$6.99

$

In Stock, only 1 left!

0

49

RedMax 502843901

SCREW

$6.49

$

In Stock, Qty 11

0

50

RedMax 970413901

NUT

$4.99

$

In Stock, Qty 6

0

51

RedMax 521653101

BRACKET

$6.99

$

Usually ships in 3-10 days

0

52

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, only 4 left!

0

54

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

55

RedMax 511010601

4" TAP TRIMMER HEAD PT104

Note: . 56 57 58-67

$58.99

$

In Stock, only 2 left!

0

56

RedMax 574101101

SHAFT BOLT

$

$

Not available

57

RedMax 574101201

HOUSING
(Superseded to 575355301)

$

$

Not available

58

RedMax 574101701

Eyelet Kit, 2-Pack

$6.49

$

In Stock, only 1 left!

0

59

RedMax 574102001

Flat Washer

$1.49

$

Usually ships in 3-10 days

0

60

RedMax 574102101

FLAT WASHER

$

$

Not available

61

RedMax 574101601

Lock Nut

$2.49

$

Usually ships in 3-10 days

0

62

RedMax 574101801

CAM FOLLOWER

$9.99

$

In Stock, only 3 left!

0

63

RedMax 574101901

INNER CAM

$9.99

$

In Stock, only 3 left!

0

64

RedMax 574101501

SPRING

$

$

Not available

66

RedMax 574101401

Spool

$14.99

$

Usually ships in 3-10 days

0

67

RedMax 574101301

BOTTOM COVER
(Superseded to 575355401)

$18.99

$

Usually ships in 3-10 days

0

68

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

69

RedMax 528840601

CAUTION LAEL

$

$

Not available

101

RedMax 521651101

STRAP ASSY

Note: OPTIONAL

$15.99

$

In Stock, only 2 left!

0
