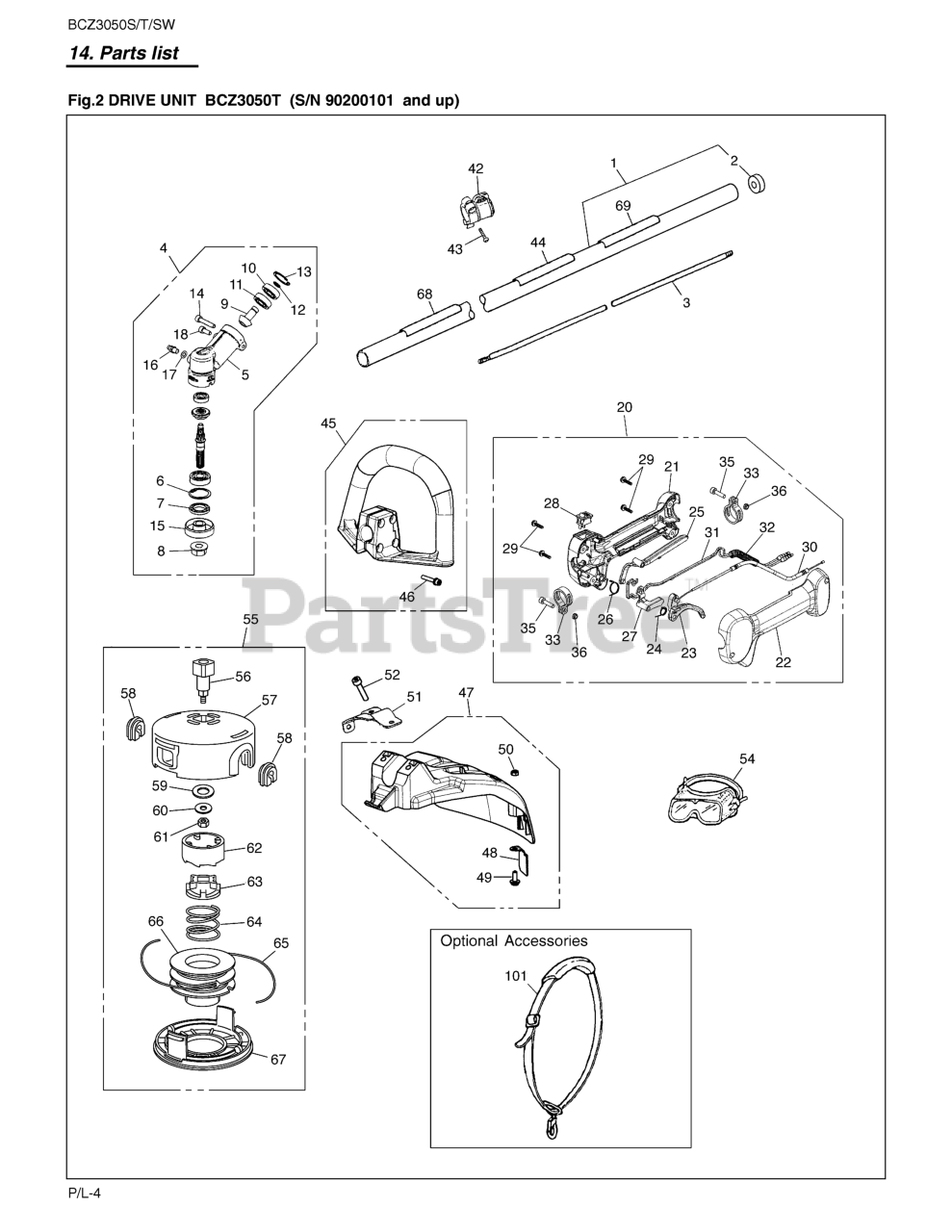

BCZ 3050 T - RedMax Brushcutter (SN: 90200101 - 91000100) (2009-03) 002 - DRIVE UNIT Parts Diagram

Brushcutter

002 - DRIVE UNIT Parts Diagram

  • Title
1

RedMax 848J8S5820

PIPE COMP.
(Superseded to 528868901)

$66.99

$

Usually ships in 3-10 days

0

2

RedMax T340012130

SEAL
(Superseded to 521825401)

$4.99

$

In Stock, only 2 left!

0

3

RedMax 848JR158E0

SHAFT
(Superseded to 528839601)

$48.99

$

Usually ships in 3-10 days

0

4

RedMax 848JR16100

GEARCASE ASSY
(Superseded to 576046901)

$182.99

$

In Stock, only 1 left!

0

5

$

$

Not available

6

RedMax 0406502612

SNAP RING
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

7

RedMax 356513130

SEAL
(Superseded to 521197001)

$7.49

$

In Stock, only 1 left!

0

8

RedMax T300213260

NUT
(Superseded to 521804001)

$4.99

$

In Stock, only 3 left!

0

$

$

Not available

10

RedMax T330013531

BEARING
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

11

RedMax T340313530

BEARING
(Superseded to 505169201)

$9.99

$

In Stock, Qty 5

0

12

RedMax T330013330

SNAP RING
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

13

RedMax 0406502412

SNAP RING
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax T495052500

BOLT, TORX
(Superseded to 512845701)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 848JR161F0

HOLDER (A)
(Superseded to 528840201)

$30.99

$

Usually ships in 3-10 days

0

16

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

17

RedMax 0164120608

WASHER, FITTING
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

18

RedMax T495051200

BOLT
(Superseded to 521861101)

$4.99

$

In Stock, Qty 20+

0

20

RedMax 8488R40600

GRIP ASSY
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

21

$

$

Not available

22

$

$

Not available

23

RedMax 8488RC0600

LEVER, THROTTLE
(Superseded to 529258801)

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 8488RJ0600

SPRING, THROTTLE
(Superseded to 529259601)

$7.49

$

In Stock, only 2 left!

0

25

RedMax 8488RD0600

LEVER, SAFETY
(Superseded to 578778001)

$4.99

$

In Stock, only 1 left!

0

26

$

$

Not available

27

RedMax 8488RE0600

LEVER, JOINT

$

$

Not available

28

RedMax T450652110

SWITCH
(Superseded to 521851601)

$11.99

$

In Stock, only 3 left!

0

29

RedMax 8488241600

SCREW
(Superseded to 521517701)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 8488P40550

CABLE COMP
(Superseded to 529257101)

$12.99

$

In Stock, only 2 left!

0

31

RedMax 8488M10820

CORD COMP
(Superseded to 529256101)

$7.49

$

Usually ships in 3-10 days

0

32

RedMax T300314510

TUBE
(Superseded to 521805501)

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

35

RedMax 482013180

BOLT TORX
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

$

$

Not available

42

RedMax T330017202

HANGER COMP.
(Superseded to 521822101)

$

$

Not available

43

RedMax 8488052000

SCREW
(Superseded to 521515301)

$4.99

$

In Stock, only 2 left!

0

44

RedMax 848JCT90R0

NAME PLATE

$

$

Not available

45

RedMax T319514002

HANDLE ASSY
(Superseded to 526056401)

$26.99

$

In Stock, only 3 left!

0

46

RedMax T496053030

SCREW
(Superseded to 521863101)

$3.49

$

In Stock, Qty 11

0

47

RedMax T324524100

GUARD COMP.
(Superseded to 521821401)

$44.99

$

In Stock, only 1 left!

0

48

RedMax T300224121

BLADE
(Superseded to 521804401)

$7.49

$

In Stock, only 3 left!

0

49

RedMax T496051431

SCREW TORX
(Superseded to 502843901)

$6.49

$

In Stock, Qty 11

0

50

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, Qty 6

0

51

RedMax 848JC066C1

BRACKET
(Superseded to 521653101)

$6.99

$

Usually ships in 3-10 days

0

52

RedMax T495063000

BOLT, TORX
(Superseded to 512846401)

$8.99

$

In Stock, only 4 left!

0

54

RedMax 848A5692C0

GOGGLE
(Superseded to 510989401)

$

$

Not available

55

RedMax MSL100

TAP HEAD COMP
(Superseded to 511010601)

$58.99

$

In Stock, only 2 left!

0

56

RedMax 848JR169L0

ARBOR BOLT
(Superseded to 574101101)

$

$

Not available

57

RedMax 848JR169M0

CASE
(Superseded to 575355301)

$

$

Not available

58

RedMax 848JR169U0

EYELET
(Superseded to 574101701)

$6.49

$

In Stock, only 1 left!

0

59

RedMax 848JR169Y0

WASHER
(Superseded to 574102001)

$1.49

$

Usually ships in 3-10 days

0

60

RedMax 848JR169Z0

WASHER
(Superseded to 574102101)

$

$

Not available

61

RedMax 848JR169T0

NUT
(Superseded to 574101601)

$2.49

$

Usually ships in 3-10 days

0

62

RedMax 848JR169W0

HOLDER
(Superseded to 574101801)

$9.99

$

In Stock, only 3 left!

0

63

RedMax 848JR169X0

RATCHET
(Superseded to 574101901)

$9.99

$

In Stock, only 3 left!

0

64

RedMax 848JR169R0

SPRING
(Superseded to 574101501)

$

$

Not available

$

$

Not available

66

RedMax 848JR169P0

CORD HOLDER
(Superseded to 574101401)

$14.99

$

Usually ships in 3-10 days

0

67

RedMax 848JR169N0

COVER
(Superseded to 575355401)

$18.99

$

Usually ships in 3-10 days

0

68

RedMax 8488X10040

LABEL, CAUTION
(Superseded to 510962901)

$7.49

$

Usually ships in 3-10 days

0

69

RedMax 848JR190S0

CAUTION LABEL

$

$

Not available

101

RedMax 848B503610

STRAP ASSY
(Superseded to 574101001)

$51.99

$

Usually ships in 3-10 days

0
