BCZ 3050 SW - RedMax Brushcutter (SN: 91000101 & Above) (2012-08) ENGINE Parts Diagram

Brushcutter

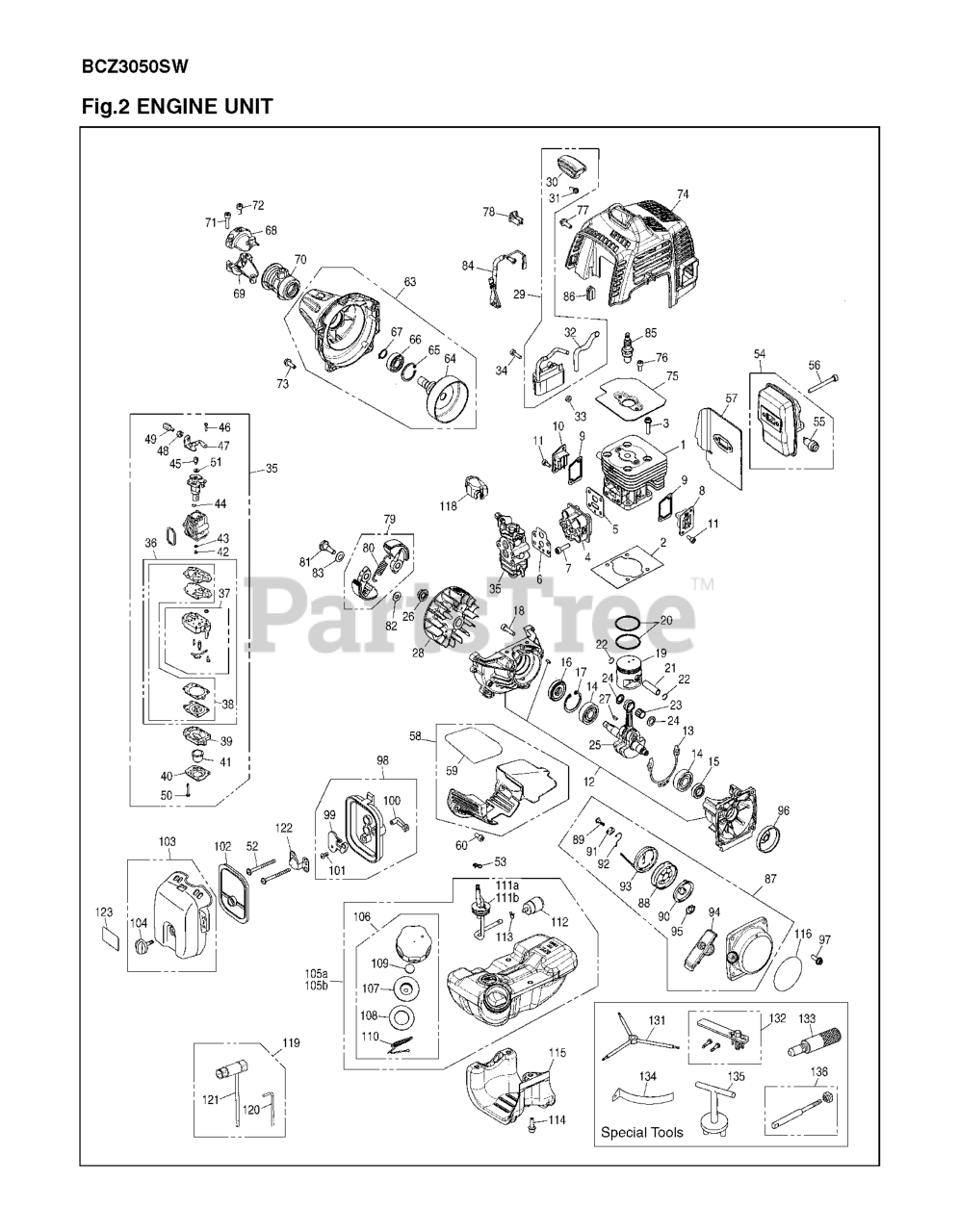

ENGINE Parts Diagram

  • Title

1

RedMax 528073301

CYLINDER

$62.99

$

In Stock, only 3 left!

0

2

RedMax 504119101

GASKET BASE

$5.99

$

In Stock, Qty 20+

0

3

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 2 left!

0

4

RedMax 528073701

INSULATOR

$18.99

$

Usually ships in 3-10 days

0

5

RedMax 528070201

GASKET, INSULATOR

$4.99

$

Usually ships in 3-10 days

0

6

RedMax 521755001

GASKET, CARB (RPLS T155113131)

$4.99

$

In Stock, Qty 7

0

7

RedMax 505040401

BOLT, TORX

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 521614501

COVER, TRS

$6.49

$

In Stock, only 1 left!

0

9

RedMax 521614801

GASKET, TR

$6.49

$

In Stock, only 4 left!

0

10

RedMax 521614701

COVER,TRF (RPLS 848F6012D1)

$6.49

$

In Stock, only 1 left!

0

11

RedMax 504119201

BOLT
(Superseded to 506616401)

$2.49

$

In Stock, Qty 8

0

12

RedMax 521615501

CRANKCASE-C

$37.99

$

Usually ships in 3-10 days

0

13

RedMax 504121201

GASKET CASE

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 504121401

BEARING
(Superseded to 521521001)

$12.99

$

In Stock, only 4 left!

0

15

RedMax 504121501

SEAL

$9.99

$

Usually ships in 3-10 days

0

16

RedMax 505296701

SEAL

$7.99

$

In Stock, only 2 left!

0

17

RedMax 504121001

RING

$3.99

$

In Stock, only 2 left!

0

18

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

19

RedMax 528073801

PISTON

$66.99

$

In Stock, only 4 left!

0

20

RedMax 521755401

RING
(Superseded to 510917801)

$11.99

$

In Stock, Qty 20+

0

21

RedMax 504120601

PIN
(Superseded to 521800501)

$10.99

$

In Stock, only 3 left!

0

22

RedMax 504120901

RING

$4.99

$

In Stock, Qty 5

0

23

RedMax 504120101

BEARING

$13.99

$

Usually ships in 3-10 days

0

24

RedMax 504120201

WASHER

$4.99

$

In Stock, only 2 left!

0

25

RedMax 521616001

CRANKSHAFT-C

$133.99

$

Usually ships in 3-10 days

0

26

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 521769301

ROTOR

$42.99

$

Usually ships in 3-10 days

0

29

RedMax 512332001

COIL-A

$121.99

$

Usually ships in 3-10 days

0

30

RedMax 521610001

CAP

$9.99

$

In Stock, only 1 left!

0

31

RedMax 521739501

SPRING
(Superseded to 515415201)

$4.99

$

Usually ships in 3-10 days

0

32

RedMax 513764701

TUBE

$3.99

$

In Stock, only 1 left!

0

33

RedMax 504118601

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 18

0

35

RedMax 528074101

CARBURETOR ASSY

$79.99

$

Usually ships in 3-10 days

0

36

RedMax 528070101

REBUILD KIT

$100.99

$

In Stock, Qty 20+

0

37

RedMax 502238401

CARBURETOR BODY

$53.99

$

In Stock, Qty 5

0

38

RedMax 515378701

GASKET KIT
(Superseded to 583983301)

$87.99

$

Usually ships in 3-10 days

0

39

RedMax 506740901

BODY

$34.99

$

Usually ships in 3-10 days

0

40

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

41

RedMax 505306701

PUMP

$9.49

$

Usually ships in 3-10 days

0

42

RedMax 515386201

JET

$7.99

$

Usually ships in 3-10 days

0

43

RedMax 505307501

O-RING

$6.49

$

In Stock, only 1 left!

0

44

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

46

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

48

RedMax 513401001

$

$

Not available

49

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

50

RedMax 506741101

SCREW

$4.99

$

In Stock, only 2 left!

0

51

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0

52

RedMax 521515501

BOLT TORX

$4.99

$

In Stock, only 2 left!

0

53

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

54

RedMax 521617801

MUFFLER ASSY

$14.99

$

Usually ships in 3-10 days

0

55

RedMax 506615601

ARRESTER

$9.99

$

In Stock, only 2 left!

0

56

RedMax 504116501

BOLT

$4.99

$

In Stock, Qty 10

0

57

RedMax 528070301

GASKET
(Superseded to 511378001)

$18.99

$

Usually ships in 3-10 days

0

58

RedMax 521615201

PLATE-A

$15.99

$

In Stock, only 1 left!

0

59

RedMax 521615401

SHEET

$3.49

$

Usually ships in 3-10 days

0

60

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

63

RedMax 528072801

HOUSING ASSY

$120.99

$

In Stock, only 1 left!

0

64

RedMax 521609801

DRUM (RPLS 481031120-22)

$47.99

$

In Stock, only 1 left!

0

65

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

66

RedMax 525953201

BEARING

$14.99

$

In Stock, only 2 left!

0

67

RedMax 516124101

RING

$4.99

$

In Stock, only 2 left!

0

68

RedMax 521768201

BRACKET (A) (RPLS T170031211)

$8.99

$

Usually ships in 3-10 days

0

69

RedMax 521768301

BRACKET (B)

$9.99

$

In Stock, only 1 left!

0

70

RedMax 512360501

CUSHION

$24.99

$

Usually ships in 3-10 days

0

71

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

72

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

73

RedMax 515391301

BOLT

$4.99

$

In Stock, only 3 left!

0

74

RedMax 528070801

COVER, ENGINE

$

$

Not available

75

RedMax 511377601

RP_PLATE
(Superseded to 575730901)

$7.99

$

Usually ships in 3-10 days

0

76

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

77

RedMax 506745601

BOLT

$3.99

$

In Stock, only 2 left!

0

78

RedMax 521758801

CLAMP

$

$

Not available

79

RedMax 515389101

SHOE-C

$40.99

$

In Stock, only 4 left!

0

80

RedMax 515389301

SPRING

$6.49

$

In Stock, only 2 left!

0

81

RedMax 513189601

SCREW

$4.99

$

In Stock, only 4 left!

0

82

RedMax 505054401

WASHER

$4.99

$

Usually ships in 3-10 days

0

83

RedMax 513189501

WASHER

$4.99

$

Usually ships in 3-10 days

0

84

RedMax 512328601

CORD-COMP

$10.99

$

In Stock, only 1 left!

0

85

RedMax 578059501

SPARK PLUG CMR7H-10
(Superseded to 528074001)

$4.99

$

Usually ships in 3-10 days

0

86

RedMax 506615901

GROMMET

$3.99

$

Usually ships in 3-10 days

0

87

RedMax 512328801

RECOIL ASSY

$66.99

$

Usually ships in 3-10 days

0

88

RedMax 504114701

REEL

$11.99

$

In Stock, Qty 12

0

89

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

90

RedMax 504115001

SPRING, SPIRAL
(Superseded to 516541701)

$11.99

$

In Stock, Qty 12

0

91

RedMax 504114601

COLLAR
(Superseded to 521327101)

$7.49

$

In Stock, Qty 10

0

92

RedMax 504114801

SWING ARM

$7.49

$

In Stock, Qty 10

0

93

RedMax 504114901

ROPE

$9.49

$

In Stock, only 1 left!

0

94

RedMax 506614701

KNOB

$6.99

$

In Stock, only 3 left!

0

95

RedMax 515385601

PLATE.STOPPER

$3.99

$

In Stock, only 1 left!

0

96

RedMax 504114401

PULLEY

$9.99

$

In Stock, only 2 left!

0

97

RedMax 506745601

BOLT

$3.99

$

In Stock, only 2 left!

0

98

RedMax 528074901

CLEANER BODY ASSY

$24.99

$

In Stock, only 2 left!

0

99

RedMax 528074301

PLATE, CHOKE

$4.99

$

Usually ships in 3-10 days

0

100

RedMax 528074401

LEVER

$4.99

$

In Stock, only 4 left!

0

101

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

102

RedMax 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

103

RedMax 575832701

COVER ASSY
(Superseded to 575331103)

$11.99

$

Usually ships in 3-10 days

0

104

RedMax 528074601

Cleaner Knob

$6.49

$

Usually ships in 3-10 days

0

105

RedMax 528068001

(Superseded to 579141301)

Note: UP TO SN11299999

$87.99

$

Usually ships in 3-10 days

0

105

RedMax 579141301

ASSY TANK EVP
(Superseded to 579141302)

Note: FROM SN20100001

$87.99

$

Usually ships in 3-10 days

0

106

RedMax 505309601

CAP A

$11.99

$

In Stock, only 2 left!

0

107

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

108

RedMax 506744301

PACKING

$4.99

$

In Stock, only 2 left!

0

109

RedMax 506746801

FILTER

$6.49

$

In Stock, only 1 left!

0

110

RedMax 506745801

STOPPER

$4.99

$

In Stock, only 3 left!

0

111

RedMax 521616601

PIPE-C
(Superseded to 579138305)

Note: UP TO SN11299999

$15.99

$

Usually ships in 3-10 days

0

111

RedMax 579138305

PIPE COMPLETE
(Superseded to 597967203)

Note: FROM SN20100001

$11.99

$

In Stock, only 1 left!

0

112

RedMax 506614601

FILTER
(Superseded to 520953501)

$10.99

$

Usually ships in 3-10 days

0

113

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 8

0

114

RedMax 512845601

BOLT

$6.49

$

In Stock, Qty 6

0

115

RedMax 521616701

GUARD, TANK

$9.99

$

Usually ships in 3-10 days

0

116

RedMax 528075101

LABEL, RECOIL

$4.99

$

In Stock, only 1 left!

0

118

RedMax 506744201

COVER

$9.99

$

In Stock, only 1 left!

0

119

RedMax 510959301

TOOL SET

$5.99

$

In Stock, only 3 left!

0

120

RedMax 505312001

BAR

$3.49

$

Usually ships in 3-10 days

0

121

RedMax 510960201

SOCKET

$8.49

$

Usually ships in 3-10 days

0

122

RedMax 528074801

PLATE

$4.99

$

Usually ships in 3-10 days

0

123

RedMax 523071401

LABEL

$7.49

$

Usually ships in 3-10 days

0

131

RedMax 513795101

WRENCH

$91.99

$

Usually ships in 3-10 days

0

132

RedMax 510138901

FLYWHEEL PULLER

$94.99

$

Usually ships in 3-10 days

0

133

RedMax 515387901

STOPPER

$32.99

$

Usually ships in 3-10 days

0

134

RedMax 514244101

GAUGE

$27.99

$

Usually ships in 3-10 days

0

135

RedMax 515369501

PULLER

$125.99

$

Usually ships in 3-10 days

0

136

RedMax 521533501

ROD-A

$145.99

$

Usually ships in 3-10 days

0
