BCZ 3050 SW - RedMax Brushcutter (SN: 90200101 & Above) (2009-06) 002 - ENGINE UNIT Parts Diagram

Brushcutter

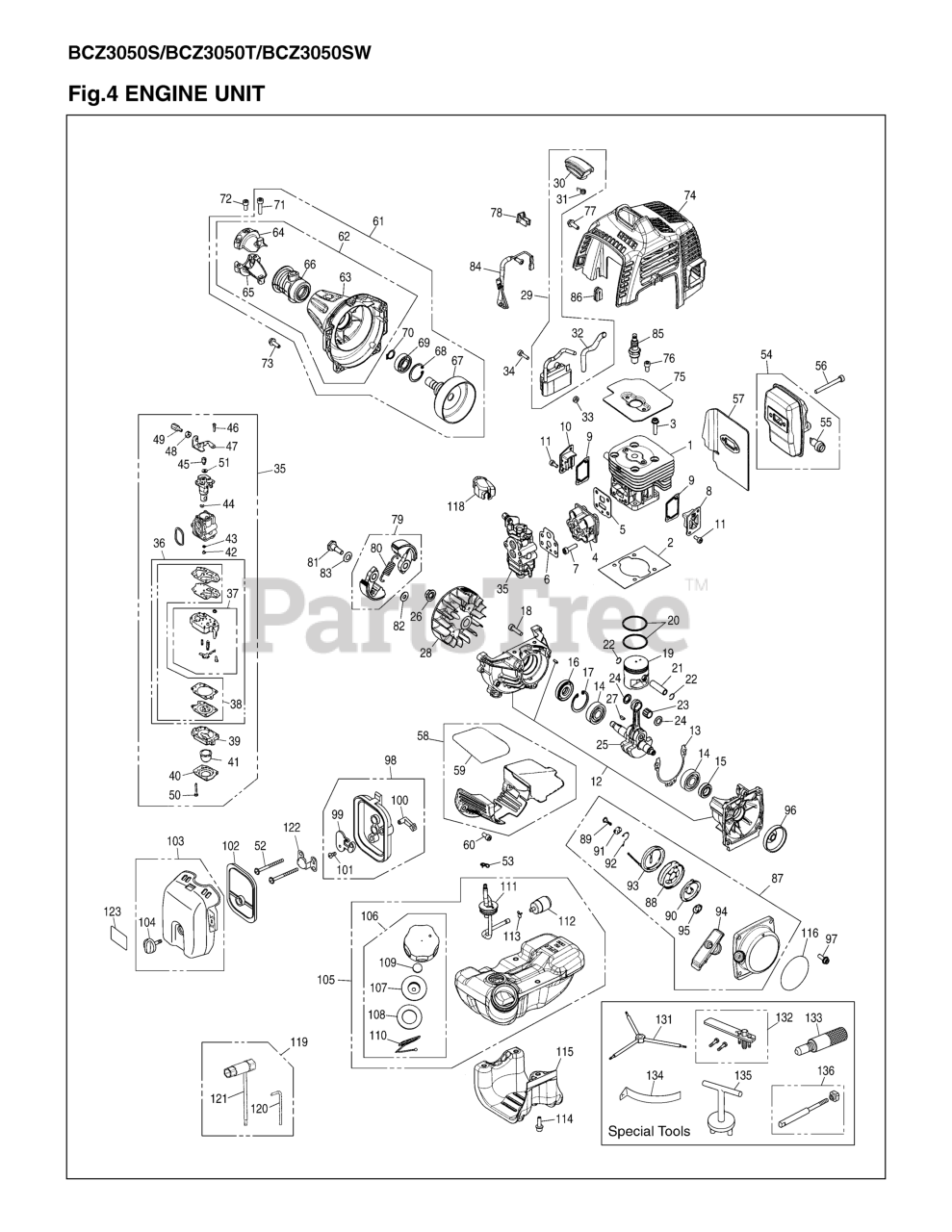

002 - ENGINE UNIT Parts Diagram

  • Title

1

RedMax 848F7012A0

CYLINDER

$

$

Not available

2

RedMax T159012210

GASKET, BASE
(Superseded to 504119101)

$5.99

$

In Stock, Qty 19

0

3

RedMax 482012130

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

4

RedMax 848F7014A0

INSULATOR
(Superseded to 528073701)

$18.99

$

Usually ships in 3-10 days

0

5

RedMax 848F6014B2

GASKET, INSULATOR

$

$

Not available

6

RedMax T159013130

GASKET
(Superseded to 521755001)

$4.99

$

In Stock, only 2 left!

0

7

RedMax T495052021

BOLT, TORX
(Superseded to 505040401)

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 848F6012C1

COVER, TRS
(Superseded to 521614501)

$6.49

$

In Stock, only 1 left!

0

9

RedMax 848F6012E1

GASKET, TR
(Superseded to 521614801)

$6.49

$

In Stock, only 4 left!

0

10

RedMax 848F6012D2

COVER, TRF
(Superseded to 521614701)

$6.49

$

In Stock, only 1 left!

0

11

RedMax 8488141000

BOLT
(Superseded to 504119201)

$2.49

$

In Stock, Qty 8

0

12

RedMax 848F602111

CRANKCASE COMP
(Superseded to 521615501)

$37.99

$

Usually ships in 3-10 days

0

13

RedMax 848F6021D1

GASKET, CASE
(Superseded to 504121201)

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 84889C3200

BEARING
(Superseded to 504121401)

$12.99

$

In Stock, only 3 left!

0

15

RedMax 481021210

SEAL
(Superseded to 504121501)

$9.99

$

Usually ships in 3-10 days

0

16

RedMax 165021220

SEAL
(Superseded to 505296701)

$7.99

$

In Stock, only 2 left!

0

17

RedMax 0406503212

SNAP RING
(Superseded to 504121001)

$3.99

$

In Stock, only 2 left!

0

18

RedMax 482013180

BOLT TORX
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

19

RedMax 848F7041A0

PISTON

$

$

Not available

20

RedMax T159041210

RING
(Superseded to 504120501)

$11.99

$

In Stock, Qty 20+

0

21

RedMax T220041310

PIN

$6.04

$

Usually ships in 3-10 days

0

22

RedMax 331041320

RING, SNAP
(Superseded to 504120901)

$4.99

$

In Stock, Qty 5

0

23

RedMax 331041410

BEARING
(Superseded to 504120101)

$13.99

$

Usually ships in 3-10 days

0

24

RedMax 165041510

WASHER
(Superseded to 516437201)

$4.99

$

In Stock, only 2 left!

0

25

RedMax 848F604201

CRANKSHAFT COMP
(Superseded to 521616001)

$133.99

$

Usually ships in 3-10 days

0

26

RedMax 165043230

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax T170071110

ROTOR
(Superseded to 521769301)

$42.99

$

Usually ships in 3-10 days

0

29

RedMax T159071200

COIL-A
(Superseded to 512332001)

$121.99

$

Usually ships in 3-10 days

0

30

RedMax 848F3071C2

CAP
(Superseded to 521610001)

$9.99

$

In Stock, only 2 left!

0

31

RedMax T110872120

SPRING
(Superseded to 521739501)

$4.99

$

Usually ships in 3-10 days

0

32

RedMax 285071320

TUBE

$1.19

$

Usually ships in 3-10 days

0

33

RedMax 126071261

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

35

RedMax 848F708100

CARBURETOR ASSY
(Superseded to 528074101)

$79.99

$

Usually ships in 3-10 days

0

36

RedMax 848F600631

REBUILD KIT

$

$

Not available

37

RedMax 185081450

BODY ASSY
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

38

RedMax 481006022

GASKET KIT

$

$

Not available

39

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

40

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 8

0

41

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

In Stock, only 1 left!

0

42

RedMax 481081251

JET
(Superseded to 521343601)

$7.99

$

Usually ships in 3-10 days

0

43

RedMax 175181240

O-RING
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

44

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

46

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 550081120

BRACKET

$7.42

$

Usually ships in 3-10 days

0

48

RedMax 175181180

NUT
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

49

RedMax 191881170

SCREW, CABLE ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

50

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

51

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

52

RedMax 8488055000

BOLT TORX
(Superseded to 521515501)

$4.99

$

In Stock, only 2 left!

0

53

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, Qty 10

0

54

RedMax 848F671510

MUFFLER ASSY
(Superseded to 521617801)

$14.99

$

Usually ships in 3-10 days

0

55

RedMax 481015140

ARRESTER
(Superseded to 506615601)

$9.99

$

In Stock, only 1 left!

0

56

RedMax 482015310

BOLT TORX
(Superseded to 504116501)

$4.99

$

In Stock, Qty 10

0

57

RedMax 848F6015C1

GASKET

$

$

Not available

58

RedMax 848F601530

PLATE ASSY
(Superseded to 521615201)

$15.99

$

In Stock, only 1 left!

0

59

RedMax 848F6015F0

SHEET
(Superseded to 521615401)

$3.49

$

Usually ships in 3-10 days

0

60

RedMax 482012350

BOLT TORX
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

61

RedMax 848F605302

HOUSING ASSY
(Superseded to 528071001)

$109.99

$

Usually ships in 3-10 days

0

62

RedMax T159031100

HOUSING COMP.
(Superseded to 521755101)

$

$

Not available

63

RedMax T159031110

HOUSING
(Superseded to 521755201)

$48.99

$

In Stock, only 1 left!

0

64

RedMax T170031212

BRACKET (A)
(Superseded to 521768201)

$8.99

$

Usually ships in 3-10 days

0

65

RedMax T170031221

BRACKET (B)
(Superseded to 521768301)

$9.99

$

In Stock, only 1 left!

0

66

RedMax T170031232

CUSHION
(Superseded to 512360501)

$24.99

$

Usually ships in 3-10 days

0

67

RedMax 848F3051A1

DRUM
(Superseded to 521609801)

$47.99

$

In Stock, only 1 left!

0

68

RedMax 0406502812

RING
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

69

RedMax T170131150

BEARING
(Superseded to 525953201)

$14.99

$

In Stock, only 1 left!

0

70

RedMax 0406401210

SNAP RING
(Superseded to 516124101)

$4.99

$

In Stock, only 3 left!

0

71

RedMax 482013180

BOLT TORX
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

72

RedMax 482012350

BOLT TORX
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

73

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

74

RedMax 848F6031A1

COVER, ENGINE
(Superseded to 528070801)

$

$

Not available

75

RedMax 848F6012G2

PLATE, CYL
(Superseded to 511377601)

$7.99

$

Usually ships in 3-10 days

0

76

RedMax 482012350

BOLT TORX
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

77

RedMax 482032120

BOLT, TORX
(Superseded to 506745601)

$3.99

$

In Stock, only 2 left!

0

78

RedMax T160072210

CLAMP
(Superseded to 521758801)

$

$

Not available

79

RedMax 482051100

SHOE
(Superseded to 515389101)

$40.99

$

In Stock, only 4 left!

0

80

RedMax 482051220

SPRING
(Superseded to 515389301)

$6.49

$

In Stock, only 2 left!

0

81

RedMax 114051250

SCREW
(Superseded to 513189601)

$4.99

$

In Stock, only 4 left!

0

82

RedMax 114051230

WASHER
(Superseded to 516207701)

$4.99

$

Usually ships in 3-10 days

0

83

RedMax 114051242

WASHER
(Superseded to 513189501)

$4.99

$

Usually ships in 3-10 days

0

84

RedMax T155173200

CORD COMP.
(Superseded to 512328601)

$10.99

$

In Stock, only 1 left!

0

85

RedMax 369991867

SPARK PLUG
(Superseded to 544260901)

$4.46

$

Usually ships in 3-10 days

0

86

RedMax 481072120

GROMMET
(Superseded to 521342501)

$3.99

$

Usually ships in 3-10 days

0

87

RedMax T155175100

RECOIL ASSY
(Superseded to 512328801)

$66.99

$

Usually ships in 3-10 days

0

88

RedMax 450075120

REEL
(Superseded to 504114701)

$18.99

$

In Stock, only 4 left!

0

89

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

90

RedMax 185075130

SPRING
(Superseded to 504115001)

$18.99

$

In Stock, only 4 left!

0

91

RedMax 450075180

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 10

0

92

RedMax 450075190

ARM
(Superseded to 504114801)

$7.49

$

In Stock, Qty 10

0

93

RedMax 481075160

ROPE
(Superseded to 504114901)

$9.49

$

In Stock, only 1 left!

0

94

RedMax 333075421

KNOB
(Superseded to 506614701)

$6.99

$

In Stock, only 2 left!

0

95

RedMax 481075170

PLATE
(Superseded to 521342901)

$3.99

$

In Stock, only 1 left!

0

96

RedMax 450075210

PULLEY
(Superseded to 504114401)

$9.99

$

In Stock, only 2 left!

0

97

RedMax 482032120

BOLT, TORX
(Superseded to 506745601)

$3.99

$

In Stock, only 2 left!

0

98

RedMax 848F708310

CLEANER BODY ASSY
(Superseded to 528074901)

$24.99

$

In Stock, only 2 left!

0

99

RedMax 848F7083C0

PLATE, CHOKE

$

$

Not available

100

RedMax 848F7083D0

LEVER
(Superseded to 528074401)

$4.99

$

In Stock, only 4 left!

0

101

RedMax T110882190

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

102

RedMax 848F7083T0

ELEMENT
(Superseded to 528074701)

$11.99

$

In Stock, Qty 20+

0

103

RedMax 848F708320

CLEANER COVER ASSY
(Superseded to 575832701)

$11.99

$

Usually ships in 3-10 days

0

104

RedMax 848F7083J0

CLEANER KNOB
(Superseded to 528074601)

$6.49

$

Usually ships in 3-10 days

0

105

RedMax 848F6R8502

TANK ASSY

$

$

Not available

106

RedMax T101585202

CAP ASSY
(Superseded to 504117701)

$30.99

$

In Stock, only 2 left!

0

107

RedMax 450085300

HOLDER ASSY
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

108

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

Usually ships in 3-10 days

0

109

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 2 left!

0

110

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

111

RedMax 848F608530

PIPE COMP

$6.06

$

Usually ships in 3-10 days

0

112

RedMax 330685401

FUEL FILTER (BLK SLEEVE)
(Superseded to 574081101)

$10.99

$

Usually ships in 3-10 days

0

113

RedMax 126085460

CLIP
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

114

RedMax T495052030

BOLT TORX
(Superseded to 521516501)

$6.49

$

In Stock, only 4 left!

0

115

RedMax 848F6085Z0

GUARD, TANK
(Superseded to 521616701)

$9.99

$

Usually ships in 3-10 days

0

116

RedMax 848F7090C0

LABEL, RECOIL

$

$

Not available

118

RedMax 450081910

COVER
(Superseded to 506744201)

$9.99

$

In Stock, only 1 left!

0

119

RedMax 8488U00120

TOOL SET
(Superseded to 521532701)

$12.99

$

Usually ships in 3-10 days

0

120

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

121

RedMax 8488U10040

SOCKET
(Superseded to 510958901)

$13.99

$

Usually ships in 3-10 days

0

122

RedMax 848F7083Y0

PLATE

$

$

Not available

123

RedMax 8488X10100

LABEL, CAUTION
(Superseded to 523071401)

$7.49

$

Usually ships in 3-10 days

0

131

RedMax 285096410

HEXAGON WRENCH
(Superseded to 513795101)

$133.99

$

Usually ships in 3-10 days

0

132

RedMax 289096100

PULLER ASSY
(Superseded to 520769301)

$94.99

$

Usually ships in 3-10 days

0

133

RedMax 481096220

STOPPER
(Superseded to 521345101)

$32.99

$

Usually ships in 3-10 days

0

134

RedMax 335096240

GAUGE

$17.91

$

Usually ships in 3-10 days

0

135

RedMax 450096100

PULLER
(Superseded to 515369501)

$125.99

$

Usually ships in 3-10 days

0

136

RedMax 8488W10000

ROD ASSY
(Superseded to 521533501)

$145.99

$

Usually ships in 3-10 days

0
