BCZ 3050 S - RedMax Brushcutter (2010-06) ENGINE Parts Diagram

Brushcutter

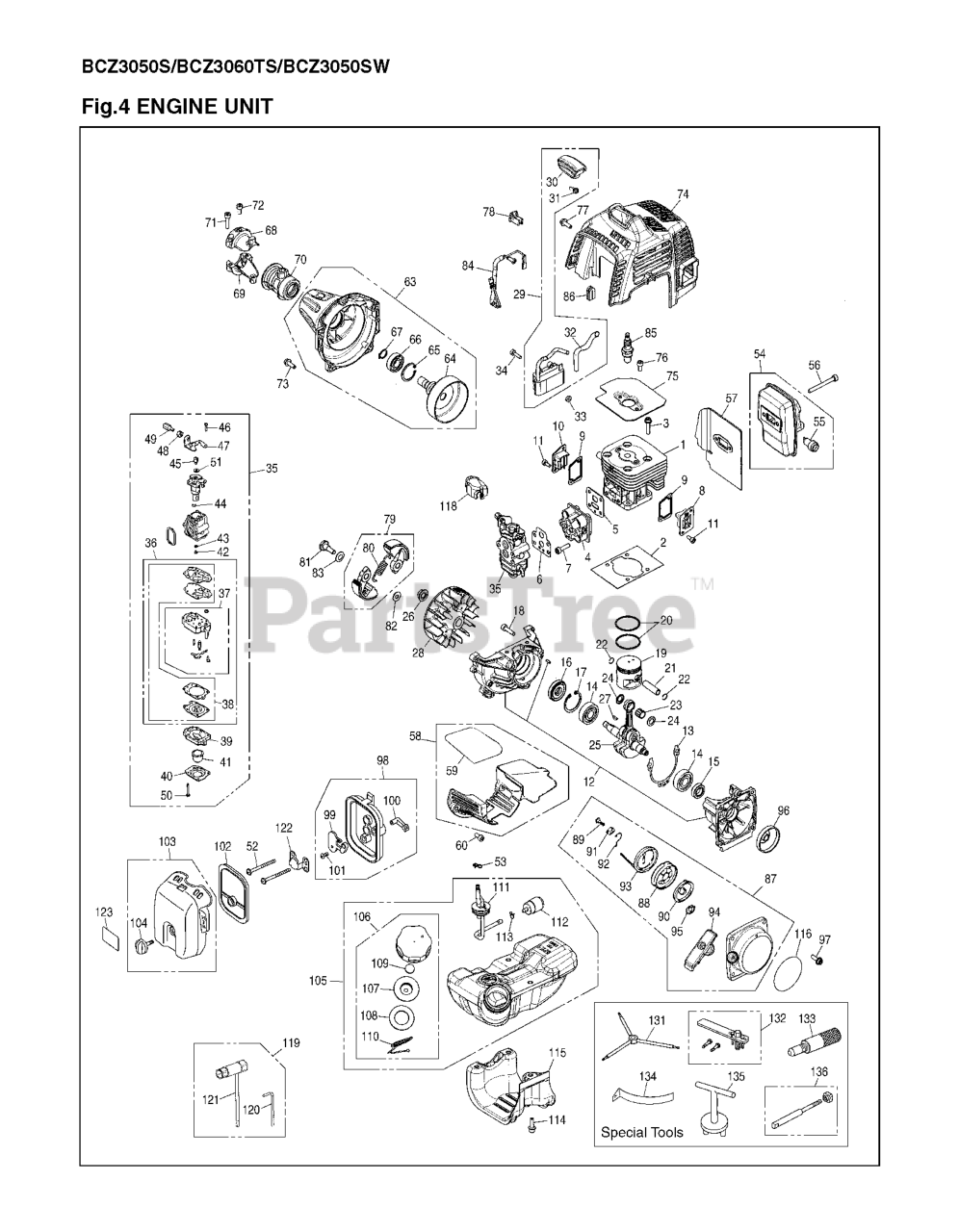

ENGINE Parts Diagram

  • Title

1

RedMax 528073301

CYLINDER

$62.99

$

In Stock, only 3 left!

0

2

RedMax 521754801

GASKET
(Superseded to 504119101)

Note: BASE

$5.99

$

In Stock, Qty 20+

0

3

RedMax 521345201

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 2 left!

0

4

RedMax 528073701

INSULATOR

$18.99

$

Usually ships in 3-10 days

0

5

RedMax 528070201

GASKET, INSULATOR

Note: INSU

$4.99

$

Usually ships in 3-10 days

0

6

RedMax 521755001

GASKET, CARB (RPLS T155113131)

Note: CARB

$4.99

$

In Stock, Qty 7

0

7

RedMax 505040401

BOLT, TORX

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 521614501

COVER, TRS

Note: TRS

$6.49

$

In Stock, only 1 left!

0

9

RedMax 521614801

GASKET, TR

Note: TRS

$6.49

$

In Stock, only 4 left!

0

10

RedMax 521614701

COVER,TRF (RPLS 848F6012D1)

Note: TRF

$6.49

$

In Stock, only 1 left!

0

11

RedMax 521515601

SCREW
(Superseded to 506616401)

$2.49

$

In Stock, Qty 8

0

12

RedMax 521615501

CRANKCASE-C

$37.99

$

Usually ships in 3-10 days

0

13

RedMax 521615601

GASKET
(Superseded to 504121201)

Note: CASE

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 521521001

BEARING
(Superseded to 504121401)

$12.99

$

In Stock, only 4 left!

0

15

RedMax 521340001

SEAL
(Superseded to 504121501)

$9.99

$

Usually ships in 3-10 days

0

16

RedMax 516436101

SEAL, OIL (RPLS 1200-21220)
(Superseded to 505296701)

$7.99

$

In Stock, only 2 left!

0

17

RedMax 504121001

RING

$3.99

$

In Stock, only 2 left!

0

18

RedMax 521345401

SCREW
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

19

RedMax 528073801

PISTON

$66.99

$

In Stock, only 4 left!

0

20

RedMax 521755401

RING
(Superseded to 510917801)

$11.99

$

In Stock, Qty 20+

0

21

RedMax 504120601

PIN
(Superseded to 521800501)

$10.99

$

In Stock, only 3 left!

0

22

RedMax 520965001

RING, SNAP
(Superseded to 504120901)

$4.99

$

In Stock, Qty 5

0

23

RedMax 520965301

BEARING
(Superseded to 504120101)

$13.99

$

Usually ships in 3-10 days

0

24

RedMax 516437201

WASHER (RPLS 331041341)
(Superseded to 504120201)

$4.99

$

In Stock, only 2 left!

0

25

RedMax 521616001

CRANKSHAFT-C

$133.99

$

Usually ships in 3-10 days

0

26

RedMax 516437401

NUT(RPLS 1140-43230&182301)

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 516147801

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 521769301

ROTOR

$42.99

$

Usually ships in 3-10 days

0

29

RedMax 521755601

COIL-A
(Superseded to 512332001)

Note: . 30-32

$121.99

$

Usually ships in 3-10 days

0

30

RedMax 521610001

CAP

$9.99

$

In Stock, only 1 left!

0

31

RedMax 521739501

SPRING
(Superseded to 515415201)

$4.99

$

Usually ships in 3-10 days

0

32

RedMax 516970101

TUBE (RPLS 261671510,1511)
(Superseded to 513764701)

$3.99

$

In Stock, only 1 left!

0

33

RedMax 516258101

RP_SPACER (RPLS 1260-71260)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 521346901

RP_BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

35

RedMax 528074101

CARBURETOR ASSY

Note: . 36-51

$79.99

$

Usually ships in 3-10 days

0

36

RedMax 528070101

REBUILD KIT

$100.99

$

In Stock, Qty 20+

0

37

RedMax 516543601

BODY, PUMP
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

38

RedMax 525313101

GASKET KIT
(Superseded to 515378701)

$87.99

$

Usually ships in 3-10 days

0

39

RedMax 516543801

BODY, PURGE

Note: PURGE

$7.99

$

In Stock, only 1 left!

0

40

RedMax 516543901

RP_COVER, PUMP

Note: PUMP

$6.49

$

In Stock, Qty 7

0

41

RedMax 516525801

RP PUMP, PRIMING
(Superseded to 505306701)

Note: PRIMING

$9.49

$

Usually ships in 3-10 days

0

42

RedMax 521343601

JET (RPLS 481081250)
(Superseded to 515386201)

$7.99

$

Usually ships in 3-10 days

0

43

RedMax 516524601

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

44

RedMax 516523601

RP_RING

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 516597701

RP_SWIVEL

$9.99

$

Usually ships in 3-10 days

0

46

RedMax 516528701

RP_SCREW

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 521359901

BRACKET

$12.99

$

Usually ships in 3-10 days

0

48

RedMax 516524101

%NUT CABLE 506612601***

Note: ADJUSTER

$4.99

$

Usually ships in 3-10 days

0

49

RedMax 516617201

%ADJUSTER 506613601***
(Superseded to 521756001)

Note: ADJUSTER

$7.49

$

In Stock, only 1 left!

0

50

RedMax 516544001

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 2 left!

0

51

RedMax 521360401

WASHER
(Superseded to 506746101)

$0.99

$

Usually ships in 3-10 days

0

52

RedMax 525515501

CABLE THROTTLE MC9114310002

$7.49

$

Usually ships in 3-10 days

0

53

RedMax 516624801

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

54

RedMax 521617801

MUFFLER ASSY

Note: . 55

$14.99

$

Usually ships in 3-10 days

0

55

RedMax 521338301

ARRESTER
(Superseded to 506615601)

$9.99

$

In Stock, only 2 left!

0

56

RedMax 521345501

BOLT
(Superseded to 504116501)

$4.99

$

In Stock, Qty 10

0

57

RedMax 528070301

GASKET
(Superseded to 511378001)

Note: MUFF

$18.99

$

Usually ships in 3-10 days

0

58

RedMax 521615201

PLATE-A

Note: . 59

$15.99

$

In Stock, only 1 left!

0

59

RedMax 521615401

SHEET

$3.49

$

Usually ships in 3-10 days

0

60

RedMax 521345301

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

63

RedMax 528072801

HOUSING ASSY

Note: . 64-67

$120.99

$

In Stock, only 1 left!

0

64

RedMax 521609801

DRUM (RPLS 481031120-22)

$47.99

$

In Stock, only 1 left!

0

65

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

66

RedMax 525953201

BEARING

$14.99

$

In Stock, only 2 left!

0

67

RedMax 516124101

RING

$4.99

$

In Stock, only 2 left!

0

68

RedMax 521768201

BRACKET (A) (RPLS T170031211)

Note: (A)

$8.99

$

Usually ships in 3-10 days

0

69

RedMax 521768301

BRACKET (B)

Note: (B)

$9.99

$

In Stock, only 1 left!

0

70

RedMax 521768501

CUSHION (RPLS T170031231)
(Superseded to 512360501)

$24.99

$

Usually ships in 3-10 days

0

71

RedMax 521345401

SCREW
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

72

RedMax 521345301

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

73

RedMax 521347901

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

74

RedMax 528070801

COVER, ENGINE

Note: ENGINE

$

$

Not available

75

RedMax 511377601

RP_PLATE
(Superseded to 575730901)

Note: CYL

$7.99

$

Usually ships in 3-10 days

0

76

RedMax 521345301

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

77

RedMax 521346501

BOLT, TORX
(Superseded to 506745601)

$3.99

$

In Stock, only 2 left!

0

78

RedMax 521758801

CLAMP

Note: . 80

$

$

Not available

79

RedMax 574014801

SHOE
(Superseded to 515389101)

$40.99

$

In Stock, only 4 left!

0

80

RedMax 521346701

SPRING
(Superseded to 515389301)

$6.49

$

In Stock, only 2 left!

0

81

RedMax 516207901

BOLT
(Superseded to 513189601)

$4.99

$

In Stock, only 4 left!

0

82

RedMax 516207701

WASHER
(Superseded to 505054401)

$4.99

$

Usually ships in 3-10 days

0

83

RedMax 516207801

WASHER (RPLS 1140-51241)
(Superseded to 513189501)

Note: WAVE

$4.99

$

Usually ships in 3-10 days

0

84

RedMax 521753801

CORD COMP.
(Superseded to 512328601)

$10.99

$

In Stock, only 1 left!

0

85

RedMax 528074001

SPARK PLUG CMR7H-10

Note: CMR7H

$4.99

$

Usually ships in 3-10 days

0

86

RedMax 521342501

GROMMET
(Superseded to 506615901)

$3.99

$

Usually ships in 3-10 days

0

87

RedMax 521753901

RECOIL-A
(Superseded to 512328801)

Note: . 88-95

$66.99

$

Usually ships in 3-10 days

0

88

RedMax 521326701

REEL
(Superseded to 504114701)

$11.99

$

In Stock, Qty 12

0

89

RedMax 521326801

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

90

RedMax 516541701

SPRING, SPIRAL
(Superseded to 521326701)

$18.99

$

In Stock, only 4 left!

0

91

RedMax 521327001

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 10

0

92

RedMax 521327101

ARM
(Superseded to 504114801)

$7.49

$

In Stock, Qty 10

0

93

RedMax 521342801

ROPE (RPLS 450075160)
(Superseded to 504114901)

$9.49

$

In Stock, only 1 left!

0

94

RedMax 521025501

KNOB (RPLS 3330-75420)
(Superseded to 506614701)

$6.99

$

In Stock, only 3 left!

0

95

RedMax 521342901

PLATE, STOPPER
(Superseded to 515385601)

$3.99

$

In Stock, only 1 left!

0

96

RedMax 521327201

PULLEY
(Superseded to 504114401)

$9.99

$

In Stock, only 2 left!

0

97

RedMax 521346501

BOLT, TORX
(Superseded to 506745601)

$3.99

$

In Stock, only 2 left!

0

98

RedMax 528074901

CLEANER BODY ASSY

Note: . 99-101

$24.99

$

In Stock, only 2 left!

0

99

RedMax 528074301

PLATE, CHOKE

Note: CHOKE

$4.99

$

Usually ships in 3-10 days

0

100

RedMax 528074401

LEVER

$4.99

$

In Stock, only 4 left!

0

101

RedMax 521740901

SCREW
(Superseded to 506673801)

$4.99

$

In Stock, Qty 9

0

102

RedMax 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

103

RedMax 528840601

CAUTION LAEL

Note: . 104

$

$

Not available

104

RedMax 528074601

Cleaner Knob

$6.49

$

Usually ships in 3-10 days

0

105

RedMax 528067701

TANK(EVAPO)
(Superseded to 579141301)

Note: . 106-113

$87.99

$

Usually ships in 3-10 days

0

106

RedMax 521732201

CAP ASSY
(Superseded to 505309601)

$11.99

$

In Stock, only 2 left!

0

107

RedMax 521329501

HOLDER (RPLS 450085230)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

108

RedMax 521329301

RP_PACKING
(Superseded to 506744301)

$4.99

$

In Stock, only 2 left!

0

109

RedMax 521377101

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 1 left!

0

110

RedMax 521347801

STOPPER***
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

111

RedMax 521616601

PIPE-C
(Superseded to 579138305)

$15.99

$

Usually ships in 3-10 days

0

112

RedMax 525313601

FILTER
(Superseded to 506614601)

$10.99

$

Usually ships in 3-10 days

0

113

RedMax 516262101

CLIP
(Superseded to 506707001)

$4.99

$

In Stock, Qty 8

0

114

RedMax 544272001

BOLT
(Superseded to 521861401)

$6.49

$

In Stock, Qty 6

0

115

RedMax 521616701

GUARD, TANK

Note: TANK

$9.99

$

Usually ships in 3-10 days

0

116

RedMax 528075101

LABEL, RECOIL

Note: RECOIL

$4.99

$

In Stock, only 1 left!

0

118

RedMax 521327901

COVER
(Superseded to 506744201)

$9.99

$

In Stock, only 1 left!

0

119

RedMax 510959301

TOOL SET

Note: . 120-121

$5.99

$

In Stock, only 3 left!

0

120

RedMax 521176101

BAR
(Superseded to 505312001)

$3.49

$

Usually ships in 3-10 days

0

121

RedMax 510960201

SOCKET

$8.49

$

Usually ships in 3-10 days

0

122

RedMax 528074801

PLATE

$4.99

$

Usually ships in 3-10 days

0

123

RedMax 523071401

LABEL

Note: CAUTION

$7.49

$

Usually ships in 3-10 days

0

131

RedMax 516974201

WRENCH (RPLS 267096410)
(Superseded to 513795101)

Note: SPECIAL TOOLS

$133.99

$

Usually ships in 3-10 days

0

132

RedMax 520769301

PULLER ASSY(R1075-,1140-,1600-
(Superseded to 510138901)

Note: SPECIAL TOOLS

$94.99

$

Usually ships in 3-10 days

0

133

RedMax 521345101

STOPPER (TOOL)
(Superseded to 515387901)

Note: SPECIAL TOOLS

$32.99

$

Usually ships in 3-10 days

0

134

RedMax 521068201

GAUGE, AIR GAP (TOOL)
(Superseded to 514244101)

Note: SPECIAL TOOLS

$27.99

$

Usually ships in 3-10 days

0

135

RedMax 521329601

PULLER, RECOIL (TOOL)
(Superseded to 515369501)

Note: SPECIAL TOOLS

$125.99

$

Usually ships in 3-10 days

0

136

RedMax 521533501

ROD-A

Note: SPECIAL TOOLS

$145.99

$

Usually ships in 3-10 days

0
