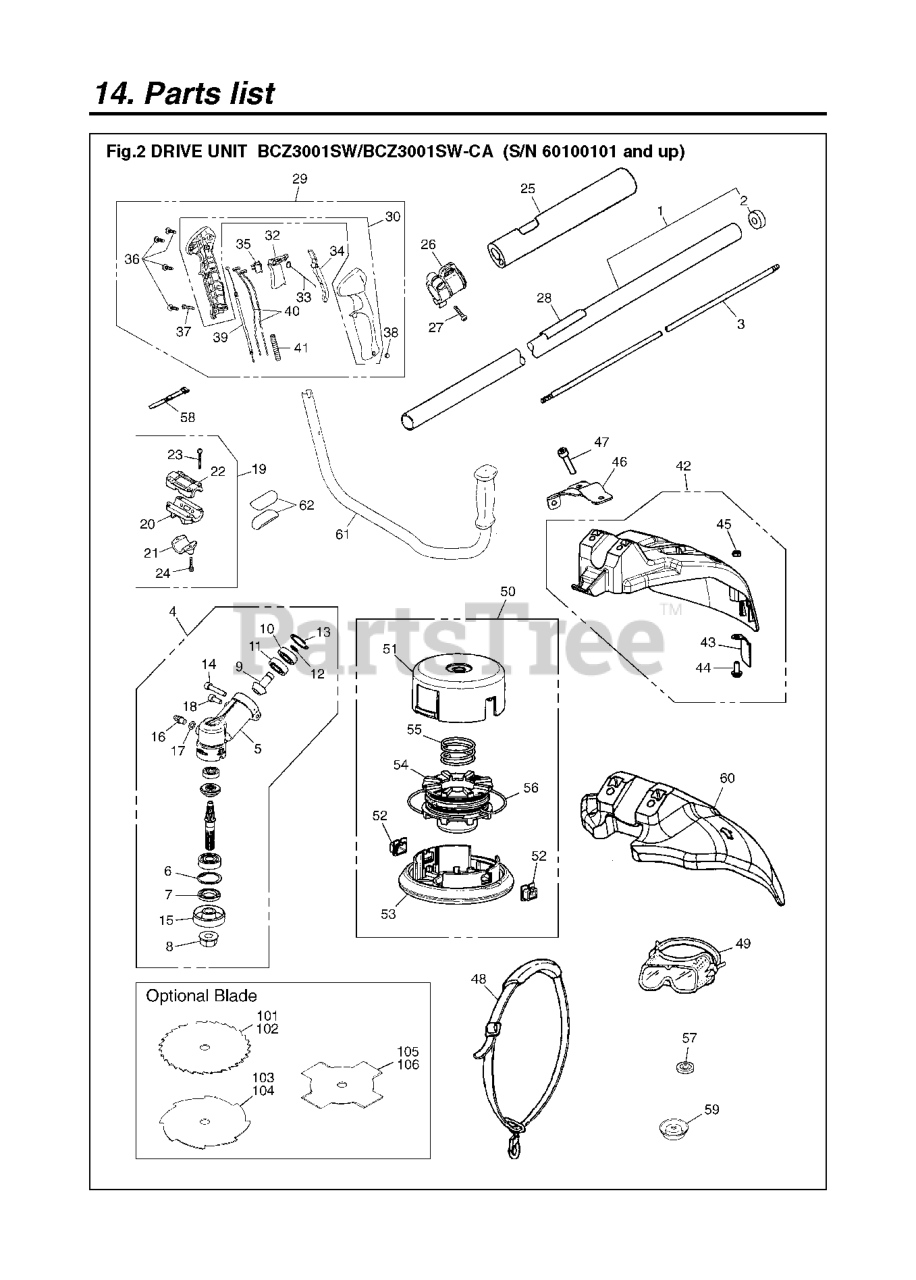

BCZ 3001 SW - RedMax Brushcutter (SN: 300001 & Above) DRIVE Parts Diagram

Brushcutter

DRIVE Parts Diagram

  • Title

1

RedMax 528868901

PIPE COMP

Note: . 2

$66.99

$

In Stock, only 1 left!

0

2

RedMax 521825401

SEAL

$4.99

$

In Stock, only 2 left!

0

3

RedMax 514344201

SHAFT

$53.99

$

Usually ships in 3-10 days

0

4

RedMax 528804901

RP_GEARCASE ASSY.
(Superseded to 574716301)

Note: . 5-10 11-18

$121.99

$

In Stock, only 1 left!

0

5

RedMax 515631801

GEARCASE
(Superseded to 515632001)

$

$

Not available

6

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 2 left!

0

7

RedMax 514382501

SEAL

$7.49

$

In Stock, only 1 left!

0

8

RedMax 521804001

NUT

$4.99

$

In Stock, only 2 left!

0

9

RedMax 521653001

PINION

$28.99

$

Usually ships in 3-10 days

0

10

RedMax 521822001

BEARING

$15.99

$

In Stock, only 2 left!

0

11

RedMax 521825701

BALL BEARING
(Superseded to 516127601)

Note: -600000609

$9.99

$

In Stock, Qty 5

0

12

RedMax 521821801

RING

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 505169401

RP_RING

Note: -243224120

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 512845701

BOLT TORX

Note: 5X25

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 515632501

HOLDER(A)

Note: (A)

$31.99

$

In Stock, only 1 left!

0

16

RedMax 505171501

FITTING

Note: -2087061640

$6.49

$

In Stock, only 3 left!

0

17

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 521861101

BOLT, TORX

Note: 5X12

$4.99

$

In Stock, Qty 20+

0

19

RedMax 528811401

BRACKET-ASSY***
(Superseded to 574423301)

Note: . 20-24

$20.99

$

Usually ships in 3-10 days

0

20

RedMax 521653901

Bracket

$

$

Not available

21

RedMax 514367301

CAP-L

Note: (L)

$

$

Not available

22

RedMax 521664601

BRACKET-UP

$9.49

$

In Stock, only 1 left!

0

23

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

24

RedMax 521861601

BOLT

$3.49

$

In Stock, only 3 left!

0

25

RedMax 512576301

PROTECTOR

$22.99

$

Usually ships in 3-10 days

0

26

RedMax 521822101

HANGER COMP.

$

$

Not available

27

RedMax 521515301

SCREW

Note: 5X20

$4.99

$

In Stock, only 2 left!

0

28

RedMax 511554801

$

$

Not available

29

RedMax 521653801

GRIP ASSY

Note: . 30-45

$39.99

$

In Stock, only 4 left!

0

30

RedMax 521658801

BODY-R
(Superseded to 576045301)

$31.99

$

In Stock, only 2 left!

0

32

RedMax 521659201

LEVER

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 521659401

SPRING

$

$

Not available

34

RedMax 521659601

LEVER-S

$3.49

$

Usually ships in 3-10 days

0

35

RedMax 521851601

SWITCH

$11.99

$

In Stock, only 3 left!

0

36

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 8

0

37

RedMax 512847401

SCREW

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 970413901

NUT

$4.99

$

In Stock, only 4 left!

0

39

RedMax 521527801

CABLE-C

$10.99

$

Usually ships in 3-10 days

0

40

RedMax 521526301

CORD-C

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 521805801

TUBE

$7.99

$

Usually ships in 3-10 days

0

42

RedMax 521821401

GUARD COMP

$44.99

$

In Stock, only 1 left!

0

43

RedMax 521804401

BLADE (RPLS T300224120)

$7.49

$

In Stock, only 1 left!

0

44

RedMax 502843901

SCREW

Note: 5X14

$6.49

$

In Stock, only 3 left!

0

45

RedMax 970413901

NUT

$4.99

$

In Stock, only 4 left!

0

46

RedMax 521653101

BRACKET

$6.99

$

Usually ships in 3-10 days

0

47

RedMax 512846401

BOLT, TORX

Note: 6X30

$8.99

$

In Stock, only 4 left!

0

48

RedMax 510997801

STRAP ASSY

Note: . 49-56

$51.99

$

Usually ships in 3-10 days

0

49

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

50

RedMax 511010601

4" TAP TRIMMER HEAD PT104

$58.99

$

Usually ships in 3-10 days

0

51

RedMax 521819301

CASE (RPLS T318915111)***
(Superseded to 521540701)

$20.99

$

Usually ships in 3-10 days

0

52

RedMax 512549801

EYELET

$5.99

$

In Stock, Qty 5

0

53

RedMax 521819401

COVER (RPLS T318915131)

$22.99

$

In Stock, only 4 left!

0

54

RedMax 521819501

HOLDER, CORD (RPLS T318915141)

$17.99

$

In Stock, Qty 10

0

55

RedMax 521819601

SPRING

$4.99

$

In Stock, only 4 left!

0

56

RedMax 521819701

CORD

$

$

Not available

57

RedMax 515511401

HOLDER (B)

Note: (B)

$13.99

$

Usually ships in 3-10 days

0

58

RedMax 514364001

BAND(KZC)

$6.49

$

Usually ships in 3-10 days

0

59

RedMax 514358301

COVER (10MM)

$10.99

$

In Stock, only 2 left!

0

60

RedMax 521821501

GUARD

$22.99

$

Usually ships in 3-10 days

0

61

RedMax 522898001

HANDLE COMP ***
(Superseded to 521658101)

$66.99

$

Usually ships in 3-10 days

0

62

RedMax 512569301

PLATE

$4.99

$

Usually ships in 3-10 days

0
