BCZ 3001 SW - RedMax Brushcutter (SN: 300001 & Above) (2010-01) 002 - DRIVE UNIT Parts Diagram

Brushcutter

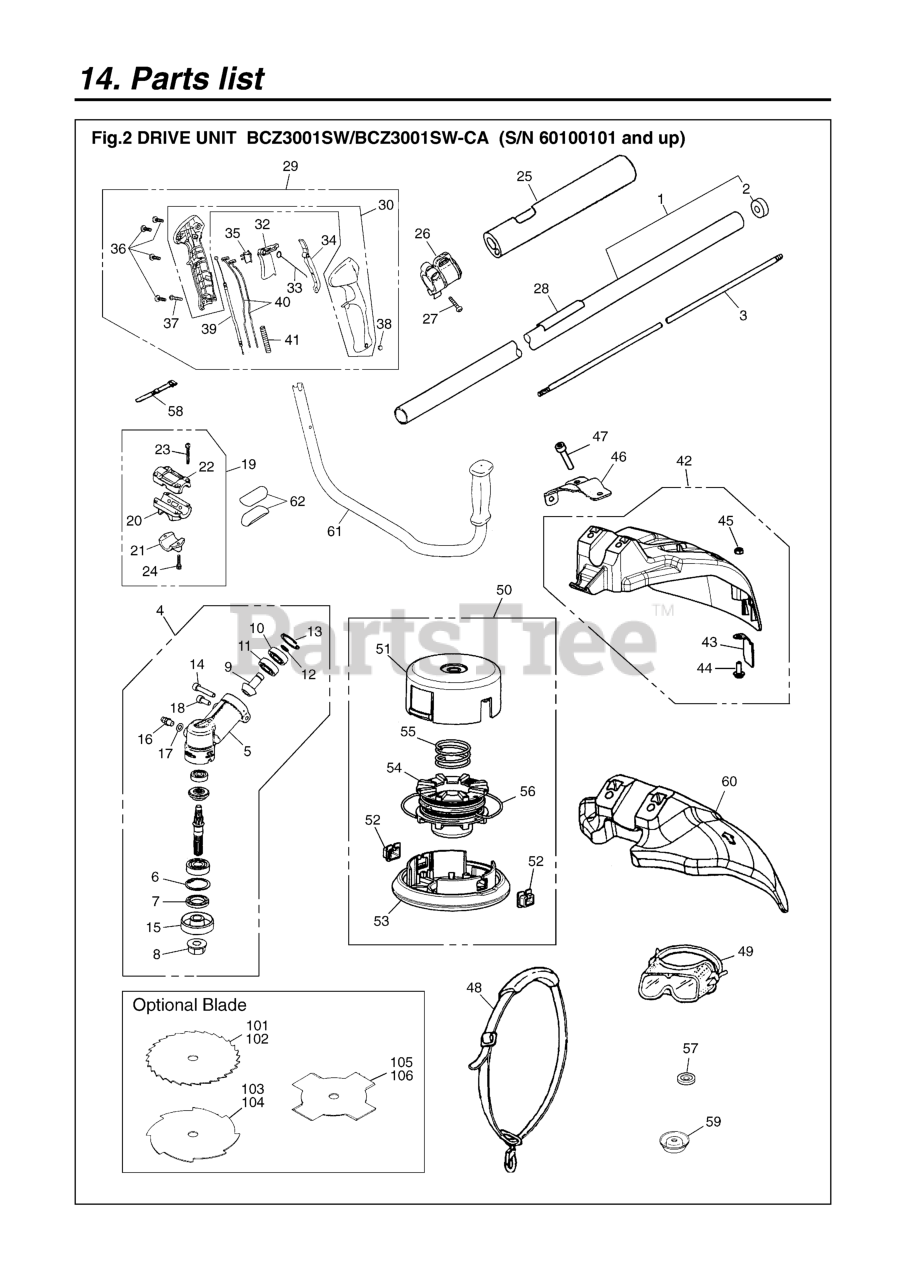

002 - DRIVE UNIT Parts Diagram

  • Title
1

RedMax 848J8S5820

PIPE COMP.
(Superseded to 528868901)

$66.99

$

Usually ships in 3-10 days

0

2

RedMax T340012130

SEAL
(Superseded to 521825401)

$4.99

$

In Stock, only 3 left!

0

3

RedMax 352012213

SHAFT (RPLS -12212)
(Superseded to 514344201)

$53.99

$

Usually ships in 3-10 days

0

4

RedMax 848JC06100

GEARCASE ASSY.
(Superseded to 574716301)

$121.99

$

In Stock, only 1 left!

0

5

RedMax 644013122

GEARCASE
(Superseded to 575477101)

$

$

Not available

6

RedMax 0406502612

RING, SNAP M26x1.2 R-318013340
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

7

RedMax 356513130

SEAL, OIL
(Superseded to 521197001)

$7.49

$

In Stock, only 1 left!

0

8

RedMax T300213260

NUT
(Superseded to 521804001)

$4.99

$

In Stock, Qty 7

0

9

RedMax 848JC061D0

PINION
(Superseded to 521653001)

$28.99

$

Usually ships in 3-10 days

0

10

RedMax T330013531

06001-00609
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

11

RedMax T340313530

06000-00609
(Superseded to 505169201)

$9.99

$

In Stock, Qty 5

0

12

RedMax T330013330

3210-13330
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

13

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax T495052500

BOLT, TORX
(Superseded to 512845701)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 644013242

HOLDER (A)
(Superseded to 515632501)

$31.99

$

Usually ships in 3-10 days

0

16

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

17

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

18

RedMax T495051200

BOLT, TORX
(Superseded to 521861101)

$4.99

$

In Stock, Qty 20+

0

19

RedMax 848JG03230

BRACKET ASSY
(Superseded to 574423301)

$20.99

$

Usually ships in 3-10 days

0

20

RedMax 848JG032B1

BRACKET
(Superseded to 521653901)

$

$

Not available

21

$3.91

$

Usually ships in 3-10 days

0

22

RedMax 848JL132K1

BRACKET-UP
(Superseded to 521664601)

$9.49

$

In Stock, only 1 left!

0

23

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

$0.62

$

Usually ships in 3-10 days

0

25

RedMax T331017111

PROTECTOR
(Superseded to 512576301)

$22.99

$

Usually ships in 3-10 days

0

26

RedMax T330017202

HANGER COMP.
(Superseded to 521822101)

$

$

Not available

27

RedMax 8488052000

SCREW
(Superseded to 521515301)

$4.99

$

In Stock, only 2 left!

0

28

RedMax 848JCK90R0

NAME PLATE
(Superseded to 511555201)

$7.49

$

Usually ships in 3-10 days

0

29

RedMax 848JCH3320

GRIP ASSY
(Superseded to 521653801)

$39.99

$

In Stock, only 4 left!

0

30

RedMax 576045301

HANDLE HALF SET
(Superseded to 576475202)

$31.99

$

In Stock, only 2 left!

0

32

RedMax 848JL033C3

LEVER
(Superseded to 521659201)

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 848JL033D2

SPRING
(Superseded to 521659401)

$

$

Not available

34

RedMax 848JL033E3

LEVER-S
(Superseded to 521659601)

$3.49

$

Usually ships in 3-10 days

0

35

RedMax T450652110

SWITCH
(Superseded to 521851601)

$11.99

$

In Stock, only 3 left!

0

36

RedMax 8488241600

SCREW
(Superseded to 521517701)

$4.99

$

Usually ships in 3-10 days

0

37

RedMax T496053010

SCREW TORX
(Superseded to 512847401)

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, Qty 6

0

39

RedMax 8488P00320

CABLE COMP
(Superseded to 521527801)

$10.99

$

Usually ships in 3-10 days

0

40

RedMax 8488M10450

CORD COMP
(Superseded to 521526301)

$4.99

$

Usually ships in 3-10 days

0

41

RedMax T300414810

TUBE
(Superseded to 521805801)

$7.99

$

Usually ships in 3-10 days

0

42

RedMax T324524100

GUARD COMP(RPLS 848JC06610)
(Superseded to 521821401)

$44.99

$

In Stock, only 1 left!

0

43

RedMax T300224121

BLADE (RPLS T3002-24120)
(Superseded to 521804401)

$7.49

$

In Stock, only 3 left!

0

44

RedMax T496051431

SCREW TORX
(Superseded to 502843901)

$6.49

$

In Stock, only 2 left!

0

45

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, Qty 6

0

46

RedMax 848JC066C1

BRACKET
(Superseded to 521653101)

$6.99

$

Usually ships in 3-10 days

0

47

RedMax T495063000

BOLT, TORX
(Superseded to 512846401)

$8.99

$

In Stock, only 4 left!

0

48

RedMax 848B503610

STRAP ASSY. (USE 848-JC0-3610)
(Superseded to 574101001)

$51.99

$

Usually ships in 3-10 days

0

49

RedMax 848A5692C0

GOGGLE
(Superseded to 510989401)

$

$

Not available

50

RedMax PT104 PLUS

TAP HEAD COMP.

$

$

Not available

51

RedMax T318915112

CASE (REPLACES -15111)
(Superseded to 521540701)

$20.99

$

In Stock, only 2 left!

0

52

RedMax T318915191

EYELET
(Superseded to 512549801)

$5.99

$

In Stock, Qty 5

0

53

RedMax T318915132

COVER (REPLACES -15131)
(Superseded to 521819401)

$22.99

$

In Stock, only 4 left!

0

54

RedMax T318915142

HOLDER, CORD (REPLACES-15141)
(Superseded to 521819501)

$17.99

$

In Stock, Qty 13

0

55

RedMax T318915160

SPRING
(Superseded to 521819601)

$4.99

$

In Stock, Qty 5

0

56

RedMax T318915180

CORD
(Superseded to 521819701)

$

$

Not available

57

RedMax 601913250

HOLDER (B)
(Superseded to 515511401)

$13.99

$

Usually ships in 3-10 days

0

58

RedMax 354093120

BAND
(Superseded to 514364001)

$6.49

$

Usually ships in 3-10 days

0

59

RedMax 354013283

COVER (10mm)
(Superseded to 514358301)

$10.99

$

In Stock, only 2 left!

0

60

RedMax T324624110

GUARD
(Superseded to 521821501)

$22.99

$

Usually ships in 3-10 days

0

61

RedMax 848JL03212

HANDLE COMP
(Superseded to 522898001)

$66.99

$

Usually ships in 3-10 days

0

62

RedMax T330014191

PLATE
(Superseded to 512569301)

$4.99

$

Usually ships in 3-10 days

0

101

RedMax SST229

BLADE, 9
(Superseded to 574159301)

$

$

Not available

102

RedMax SST249

BLADE, 9
(Superseded to 574159401)

$

$

Not available

103

RedMax SGB088

BLADE, 8
(Superseded to 574158501)

$

$

Not available

104

RedMax SGB089

BLADE, 9
(Superseded to 574158601)

$31.99

$

Usually ships in 3-10 days

0

105

RedMax SGB048

BLADE, 8
(Superseded to 574158301)

$

$

Not available

106

RedMax SGB049

BLADE, 9
(Superseded to 574158401)

$

$

Not available
