BCZ 2660 TS - RedMax Brushcutter (SN: 00400101 & Above) (2012-08) ENGINE Parts Diagram

Brushcutter

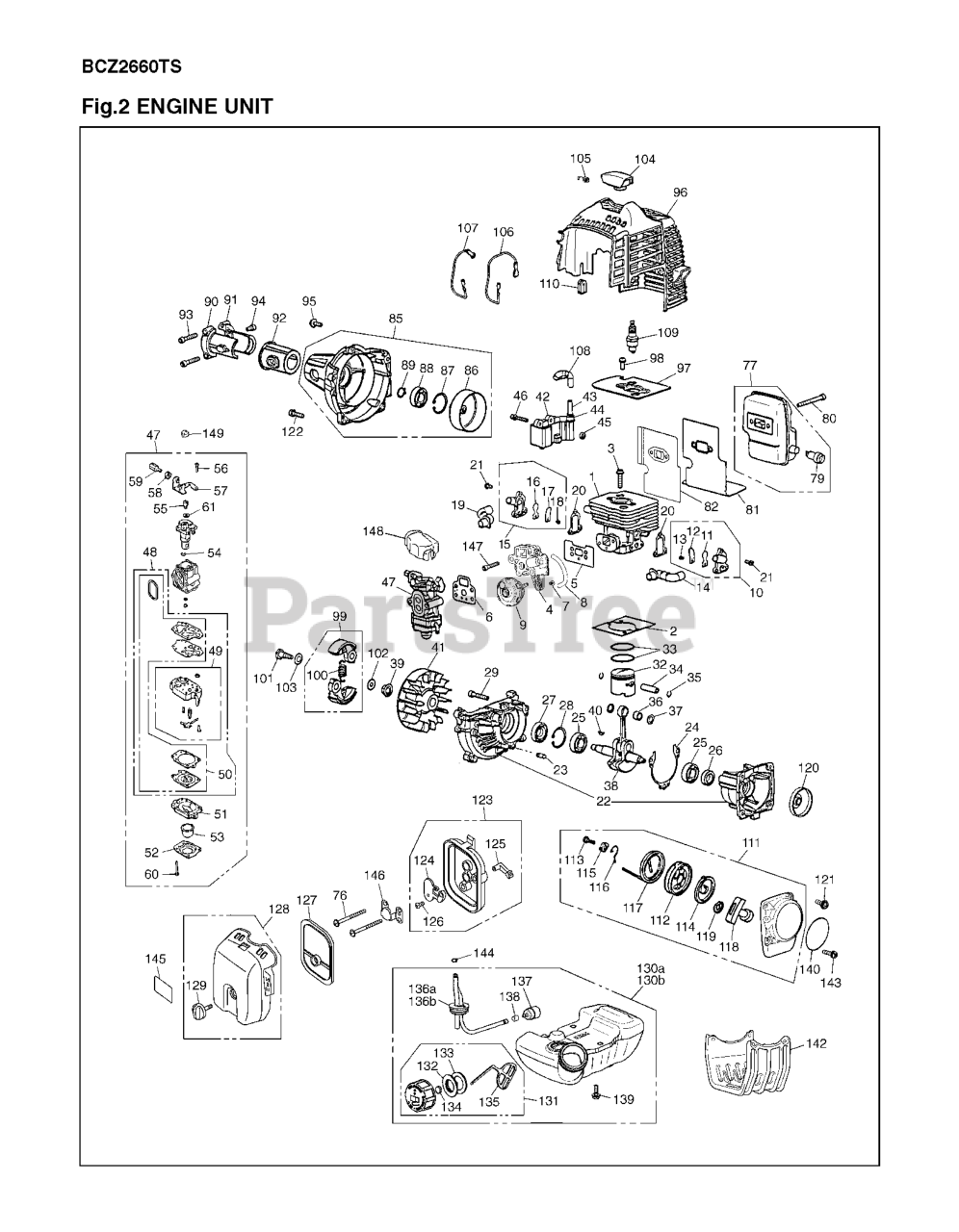

ENGINE Parts Diagram

  • Title
1

RedMax 521611601

CYLINDER

$56.99

$

In Stock, only 2 left!

0

2

RedMax 521611701

GASKET, BASE

$6.49

$

In Stock, only 1 left!

0

3

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 3 left!

0

4

RedMax 521613301

INSULATOR

$21.99

$

Usually ships in 3-10 days

0

5

RedMax 521613401

GASKET, INSULATOR

$6.49

$

In Stock, only 1 left!

0

6

RedMax 521755001

GASKET, CARB (RPLS T155113131)

$4.99

$

In Stock, only 2 left!

0

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

9

RedMax 521613901

PUMP ASSY

$44.99

$

Usually ships in 3-10 days

0

10

RedMax 521612301

AIR CHECKER (S) ASSY

$27.99

$

Usually ships in 3-10 days

0

11

RedMax 521612601

REEDVALVE

$12.99

$

Usually ships in 3-10 days

0

12

$4.99

$

Usually ships in 3-10 days

0

13

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 521612701

PIPE AIR (S)

$9.99

$

In Stock, Qty 6

0

15

RedMax 521612501

AIR CHECKER (F) ASSY

$36.99

$

Usually ships in 3-10 days

0

16

RedMax 521612601

REEDVALVE

$12.99

$

Usually ships in 3-10 days

0

17

$4.99

$

Usually ships in 3-10 days

0

18

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 521612801

PIPE AIR (F)

$8.99

$

In Stock, Qty 10

0

20

RedMax 521612901

GASKET, VALVE

$4.99

$

Usually ships in 3-10 days

0

21

$

$

Not available

22

RedMax 515381601

CRANKCASE-C

$21.99

$

Usually ships in 3-10 days

0

23

RedMax 505296101

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 515381801

GASKET.CASE

$6.49

$

Usually ships in 3-10 days

0

25

$12.99

$

In Stock, only 1 left!

0

$9.99

$

Usually ships in 3-10 days

0

27

RedMax 506612901

SEAL
(Superseded to 516539201)

$6.49

$

In Stock, only 2 left!

0

$4.99

$

In Stock, only 3 left!

0

$4.99

$

In Stock, only 3 left!

0

32

$53.99

$

Usually ships in 3-10 days

0

$11.99

$

In Stock, only 4 left!

0

34

RedMax 521522601

PIN (RPLS T151341310)

$6.49

$

In Stock, only 4 left!

0

$4.99

$

In Stock, Qty 11

0

36

$10.99

$

Usually ships in 3-10 days

0

37

$3.99

$

In Stock, only 2 left!

0

38

RedMax 521613201

CRANKSHAFT COMP(RPLS481042000)

$121.99

$

Usually ships in 3-10 days

0

39

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

41

$48.99

$

Usually ships in 3-10 days

0

42

$120.99

$

Usually ships in 3-10 days

0

$17.99

$

Usually ships in 3-10 days

0

44

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 504118601

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, Qty 18

0

47

RedMax 528062401

CARBURETOR ASSY

$136.99

$

Usually ships in 3-10 days

0

48

RedMax 506657901

REBUILD KIT

$100.99

$

In Stock, Qty 20+

0

49

RedMax 502238401

CARBURETOR BODY

$53.99

$

In Stock, Qty 5

0

50

RedMax 506615501

GASKET KIT

$74.99

$

Usually ships in 3-10 days

0

51

RedMax 521613701

BODY CARB

$42.99

$

Usually ships in 3-10 days

0

59

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

52

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 8

0

$9.49

$

Usually ships in 3-10 days

0

54

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

55

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

56

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

$

$

Not available

60

$4.99

$

In Stock, only 1 left!

0

61

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

77

$34.99

$

In Stock, only 2 left!

0

79

RedMax 506615601

ARRESTER

$9.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, Qty 10

0

81

$21.99

$

Usually ships in 3-10 days

0

82

RedMax 521612101

PLATE, MUFFLER

$15.99

$

In Stock, only 4 left!

0

85

RedMax 521340601

COVER COMP. (R-31100&31101)

$72.99

$

Usually ships in 3-10 days

0

86

RedMax 521609801

DRUM (RPLS 481031120-22)

$47.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 3 left!

0

88

$14.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 3 left!

0

90

RedMax 515649401

BRACKET(A)-24

$12.99

$

Usually ships in 3-10 days

0

91

RedMax 515649501

BRACKET(B)-24

$15.99

$

Usually ships in 3-10 days

0

92

$10.99

$

In Stock, only 4 left!

0

$4.99

$

In Stock, only 3 left!

0

$3.99

$

In Stock, only 2 left!

0

$3.99

$

In Stock, only 2 left!

0

96

RedMax 521613001

COVER, ENGINE

$37.99

$

In Stock, only 3 left!

0

97

$7.49

$

Usually ships in 3-10 days

0

98

$4.99

$

In Stock, Qty 5

0

99

$40.99

$

In Stock, only 4 left!

0

100

$6.49

$

In Stock, only 2 left!

0

101

$4.99

$

In Stock, only 4 left!

0

102

$4.99

$

Usually ships in 3-10 days

0

103

$4.99

$

Usually ships in 3-10 days

0

$9.99

$

In Stock, only 2 left!

0

105

$4.99

$

Usually ships in 3-10 days

0

106

$6.49

$

In Stock, only 1 left!

0

107

RedMax 515384901

CORD.EARTH

$6.49

$

In Stock, only 1 left!

0

108

RedMax 521749501

TUBE (RPLS 263072210)

$3.99

$

Usually ships in 3-10 days

0

109

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

110

$3.99

$

Usually ships in 3-10 days

0

111

RedMax 515385401

RECOIL-A

$66.99

$

In Stock, only 1 left!

0

112

$11.99

$

In Stock, only 2 left!

0

113

$4.99

$

In Stock, only 1 left!

0

114

RedMax 504115001

SPRING, SPIRAL
(Superseded to 516541701)

$11.99

$

In Stock, only 2 left!

0

115

RedMax 504114601

COLLAR
(Superseded to 521327101)

$7.49

$

In Stock, Qty 10

0

116

RedMax 504114801

SWING ARM

$7.49

$

In Stock, Qty 10

0

117

$9.49

$

In Stock, only 1 left!

0

118

$6.99

$

In Stock, only 2 left!

0

119

RedMax 515385601

PLATE.STOPPER

$3.99

$

In Stock, only 1 left!

0

120

$9.99

$

In Stock, only 2 left!

0

121

RedMax 521746501

BOLT M5X14

$4.99

$

In Stock, only 3 left!

0

122

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 3 left!

0

123

RedMax 528062601

BODY - A

$24.99

$

In Stock, only 3 left!

0

124

RedMax 528074301

PLATE, CHOKE

$4.99

$

Usually ships in 3-10 days

0

125

$4.99

$

In Stock, only 4 left!

0

126

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

127

RedMax 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

128

RedMax 575832701

COVER ASSY
(Superseded to 575331103)

$11.99

$

Usually ships in 3-10 days

0

129

RedMax 528074601

Cleaner Knob

$6.49

$

Usually ships in 3-10 days

0

130a

RedMax 528064401

(Superseded to 579141802)

Note: UP TO SN11299999

$96.99

$

In Stock, only 2 left!

0

130b

RedMax 579141801

TANK ASSY
(Superseded to 579141802)

Note: FROM SN20100001

$96.99

$

In Stock, only 2 left!

0

131

$11.99

$

In Stock, only 3 left!

0

132

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

133

$4.99

$

Usually ships in 3-10 days

0

134

$6.49

$

In Stock, only 2 left!

0

135

$4.99

$

In Stock, only 3 left!

0

136a

RedMax 515387201

PIPE-C
(Superseded to 579138306)

Note: UP TO SN11299999

$42.99

$

In Stock, only 4 left!

0

136b

RedMax 579138306

PIPE COMP
(Superseded to 597967207)

Note: FROM SN20100001

$42.99

$

In Stock, only 4 left!

0

137

RedMax 506614601

FILTER
(Superseded to 520953501)

$10.99

$

Usually ships in 3-10 days

0

138

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, only 4 left!

0

139

$4.99

$

In Stock, only 3 left!

0

140

RedMax 528062701

LABEL, RECOIL

$4.99

$

Usually ships in 3-10 days

0

142

$24.99

$

In Stock, only 3 left!

0

143

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 3 left!

0

144

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, Qty 10

0

145

$7.49

$

Usually ships in 3-10 days

0

146

$4.99

$

In Stock, only 2 left!

0

147

$6.49

$

In Stock, only 2 left!

0

148

$9.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, only 1 left!

0
