BCZ 2650 T - RedMax Brushcutter (SN: 91001001 & Above) ENGINE Parts Diagram

Brushcutter

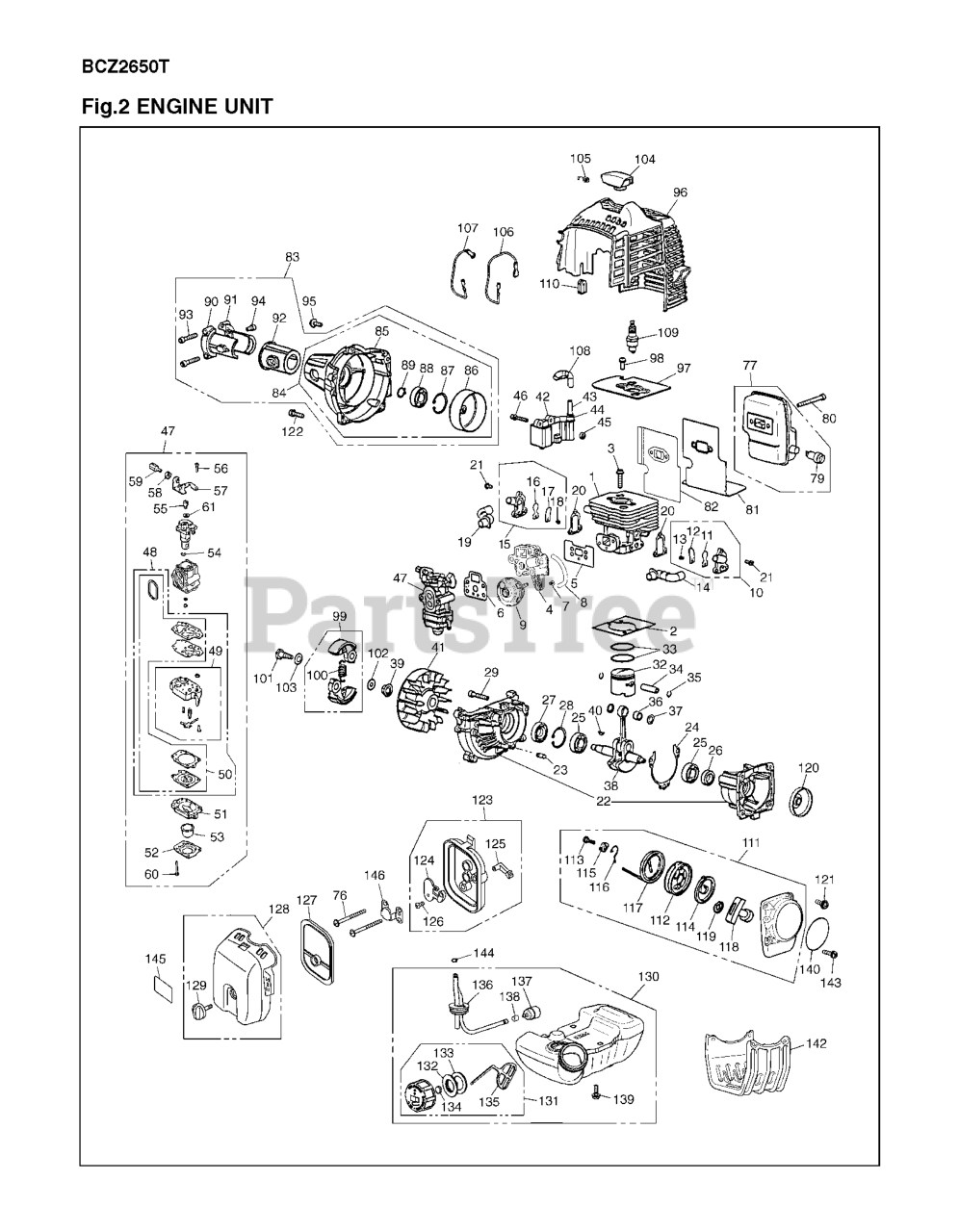

ENGINE Parts Diagram

  • Title

1

RedMax 521611601

CYLINDER

$56.99

$

In Stock, only 2 left!

0

2

RedMax 521611701

GASKET, BASE

$6.49

$

In Stock, only 1 left!

0

3

RedMax 506745201

BOLT
(Superseded to 521345201)

$5.99

$

In Stock, only 2 left!

0

4

RedMax 521613301

INSULATOR

$21.99

$

Usually ships in 3-10 days

0

5

RedMax 521613401

GASKET, INSULATOR

$6.49

$

In Stock, only 1 left!

0

6

RedMax 521755001

GASKET, CARB (RPLS T155113131)

$4.99

$

In Stock, Qty 7

0

7

RedMax 521519101

SCREW

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 521523601

TUBE

$6.49

$

Usually ships in 3-10 days

0

9

RedMax 521613901

PUMP ASSY

$44.99

$

Usually ships in 3-10 days

0

10

RedMax 521612301

AIR CHECKER (S) ASSY

Note: S. 11 12 13

$27.99

$

Usually ships in 3-10 days

0

11

RedMax 521612601

REEDVALVE

$12.99

$

Usually ships in 3-10 days

0

12

RedMax 515380701

STOPPER

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 515381101

SCREW

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 521612701

PIPE AIR (S)

Note: S

$9.99

$

In Stock, Qty 6

0

15

RedMax 521612501

AIR CHECKER (F) ASSY

Note: F. 16 17 18

$36.99

$

Usually ships in 3-10 days

0

16

RedMax 521612601

REEDVALVE

$12.99

$

Usually ships in 3-10 days

0

17

RedMax 515380701

STOPPER

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 515381101

SCREW

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 521612801

PIPE AIR (F)

$8.99

$

In Stock, Qty 10

0

20

RedMax 521612901

GASKET, VALVE

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 515381201

SCREW

$

$

Not available

22

RedMax 515381601

CRANKCASE-C

Note: . 23

$21.99

$

Usually ships in 3-10 days

0

23

RedMax 505296101

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 515381801

GASKET.CASE

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 523071701

BEARING

$12.99

$

In Stock, only 1 left!

0

26

RedMax 504121501

SEAL

$9.99

$

Usually ships in 3-10 days

0

27

RedMax 506612901

SEAL
(Superseded to 516539201)

$6.49

$

In Stock, only 2 left!

0

28

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

29

RedMax 515388101

BOLT

$4.99

$

In Stock, only 3 left!

0

32

RedMax 521613601

PISTON

$53.99

$

Usually ships in 3-10 days

0

33

RedMax 506618101

RING

$11.99

$

In Stock, only 3 left!

0

34

RedMax 521522601

PIN (RPLS T151341310)

$6.49

$

In Stock, only 4 left!

0

35

RedMax 505045201

RING

$4.99

$

In Stock, Qty 11

0

36

RedMax 506685001

BEARING

$10.99

$

Usually ships in 3-10 days

0

37

RedMax 521520401

WASHER

$3.99

$

In Stock, only 2 left!

0

38

RedMax 521613201

CRANKSHAFT COMP(RPLS481042000)

$121.99

$

Usually ships in 3-10 days

0

39

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 515384501

ROTOR

$48.99

$

Usually ships in 3-10 days

0

42

RedMax 512320001

COIL-A

Note: . 43 44

$120.99

$

Usually ships in 3-10 days

0

43

RedMax 521749201

CORD

$17.99

$

Usually ships in 3-10 days

0

44

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

45

RedMax 504118601

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 18

0

47

RedMax 528062401

CARBURETOR ASSY

Note: . 48 49 50-61

$136.99

$

Usually ships in 3-10 days

0

48

RedMax 506657901

REBUILD KIT

Note: . 49 50

$100.99

$

In Stock, Qty 20+

0

49

RedMax 502238401

CARBURETOR BODY

$53.99

$

In Stock, Qty 5

0

50

RedMax 506615501

GASKET KIT

$74.99

$

In Stock, only 1 left!

0

51

RedMax 521613701

BODY CARB

$42.99

$

Usually ships in 3-10 days

0

52

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

53

RedMax 505306701

PUMP

$9.49

$

Usually ships in 3-10 days

0

54

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

55

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

56

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

58

RedMax 506612601

NUT
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

59

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

60

RedMax 506741101

SCREW

$4.99

$

In Stock, only 2 left!

0

61

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0

76

RedMax 529268001

BOLT

$3.99

$

Usually ships in 3-10 days

0

77

RedMax 521613501

MUFFLER

Note: . 79

$34.99

$

In Stock, only 3 left!

0

79

RedMax 506615601

ARRESTER

$9.99

$

In Stock, only 2 left!

0

80

RedMax 504116501

BOLT

$4.99

$

In Stock, Qty 10

0

81

RedMax 521612001

GASKET

$21.99

$

Usually ships in 3-10 days

0

82

RedMax 521612101

PLATE, MUFFLER

$15.99

$

In Stock, only 4 left!

0

83

RedMax 528061401

COVER ASSY
(Superseded to 521609901)

Note: . 84 85 86-94

$

$

Not available

84

RedMax 521340601

COVER COMP. (R-31100&31101)

Note: . 85 86 87-89

$72.99

$

Usually ships in 3-10 days

0

85

RedMax 515382601

COVER.FAN

$48.99

$

Usually ships in 3-10 days

0

86

RedMax 521609801

DRUM (RPLS 481031120-22)

$47.99

$

In Stock, only 1 left!

0

87

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

88

RedMax 521770801

BEARING
(Superseded to 525953201)

$14.99

$

In Stock, only 2 left!

0

89

RedMax 516124101

RING

$4.99

$

In Stock, only 2 left!

0

90

RedMax 515649401

BRACKET(A)-24

Note: A

$12.99

$

Usually ships in 3-10 days

0

91

RedMax 515649501

BRACKET(B)-24

Note: B

$15.99

$

Usually ships in 3-10 days

0

92

RedMax 515649601

CUSHION

$10.99

$

In Stock, only 4 left!

0

93

RedMax 515388101

BOLT

$4.99

$

In Stock, only 3 left!

0

94

RedMax 521746501

BOLT M5X14

$4.99

$

In Stock, only 3 left!

0

95

RedMax 506745601

BOLT

$3.99

$

In Stock, only 2 left!

0

96

RedMax 521613001

COVER, ENGINE

$37.99

$

In Stock, only 3 left!

0

97

RedMax 521611801

PLATE

$7.49

$

Usually ships in 3-10 days

0

98

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

99

RedMax 515389101

SHOE-C

Note: . 100

$40.99

$

In Stock, only 4 left!

0

100

RedMax 515389301

SPRING

$6.49

$

In Stock, only 2 left!

0

101

RedMax 513189601

SCREW

$4.99

$

In Stock, only 4 left!

0

102

RedMax 505054401

WASHER

$4.99

$

Usually ships in 3-10 days

0

103

RedMax 513189501

WASHER

$4.99

$

Usually ships in 3-10 days

0

104

RedMax 521610001

CAP

$9.99

$

In Stock, only 1 left!

0

105

RedMax 505298901

SPRING

$4.99

$

Usually ships in 3-10 days

0

106

RedMax 515384801

CORD

$6.49

$

In Stock, only 1 left!

0

107

RedMax 515384901

CORD.EARTH

$6.49

$

In Stock, only 1 left!

0

108

RedMax 521749501

TUBE (RPLS 263072210)

$3.99

$

Usually ships in 3-10 days

0

109

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

110

RedMax 506615901

GROMMET

$3.99

$

Usually ships in 3-10 days

0

111

RedMax 515385401

RECOIL-A

Note: . 112 113 114-119

$66.99

$

In Stock, only 1 left!

0

112

RedMax 504114701

REEL

$11.99

$

In Stock, Qty 12

0

113

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

114

RedMax 504115001

SPRING, SPIRAL
(Superseded to 516541701)

$11.99

$

In Stock, Qty 12

0

115

RedMax 504114601

COLLAR
(Superseded to 521327101)

$7.49

$

In Stock, Qty 10

0

116

RedMax 504114801

SWING ARM

$7.49

$

In Stock, Qty 10

0

117

RedMax 504114901

ROPE

$9.49

$

In Stock, only 1 left!

0

118

RedMax 506614701

KNOB

$6.99

$

In Stock, only 3 left!

0

119

RedMax 515385601

PLATE.STOPPER

$3.99

$

In Stock, only 1 left!

0

120

RedMax 504114401

PULLEY

$9.99

$

In Stock, only 2 left!

0

121

RedMax 521746501

BOLT M5X14

$4.99

$

In Stock, only 3 left!

0

122

RedMax 521345201

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 2 left!

0

123

RedMax 528062601

BODY - A

Note: . 124 125 126

$24.99

$

In Stock, only 3 left!

0

124

RedMax 528074301

PLATE, CHOKE

$4.99

$

Usually ships in 3-10 days

0

125

RedMax 528074401

LEVER

$4.99

$

In Stock, only 4 left!

0

126

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

127

RedMax 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

128

RedMax 528075001

%CLEANER COVER ASSY
(Superseded to 575832701)

Note: . 129

$11.99

$

Usually ships in 3-10 days

0

129

RedMax 528074601

Cleaner Knob

$6.49

$

Usually ships in 3-10 days

0

130

RedMax 528064401

(Superseded to 579141802)

Note: . 131 132 133-138

$96.99

$

In Stock, only 2 left!

0

131

RedMax 505309601

CAP A

Note: . 132 133 134 135

$11.99

$

In Stock, only 2 left!

0

132

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

133

RedMax 506744301

PACKING

$4.99

$

In Stock, only 2 left!

0

134

RedMax 506746801

FILTER

$6.49

$

In Stock, only 1 left!

0

135

RedMax 506745801

STOPPER

$4.99

$

In Stock, only 3 left!

0

136

RedMax 515387201

PIPE-C
(Superseded to 579138306)

$42.99

$

In Stock, only 4 left!

0

137

RedMax 514176501

$

$

Not available

138

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, Qty 8

0

139

RedMax 515391301

BOLT

$4.99

$

In Stock, only 3 left!

0

140

RedMax 528062701

LABEL, RECOIL

$4.99

$

Usually ships in 3-10 days

0

142

RedMax 511371201

GUARD

$24.99

$

In Stock, only 3 left!

0

143

RedMax 521345201

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 2 left!

0

144

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, only 2 left!

0

145

RedMax 523071401

LABEL

$7.49

$

Usually ships in 3-10 days

0

146

RedMax 528074801

PLATE

$4.99

$

Usually ships in 3-10 days

0
