BCZ 2650 T - RedMax Brushcutter (SN: 91001001 & Above) (2010-04) 003 - ENGINE UNIT Parts Diagram

Brushcutter

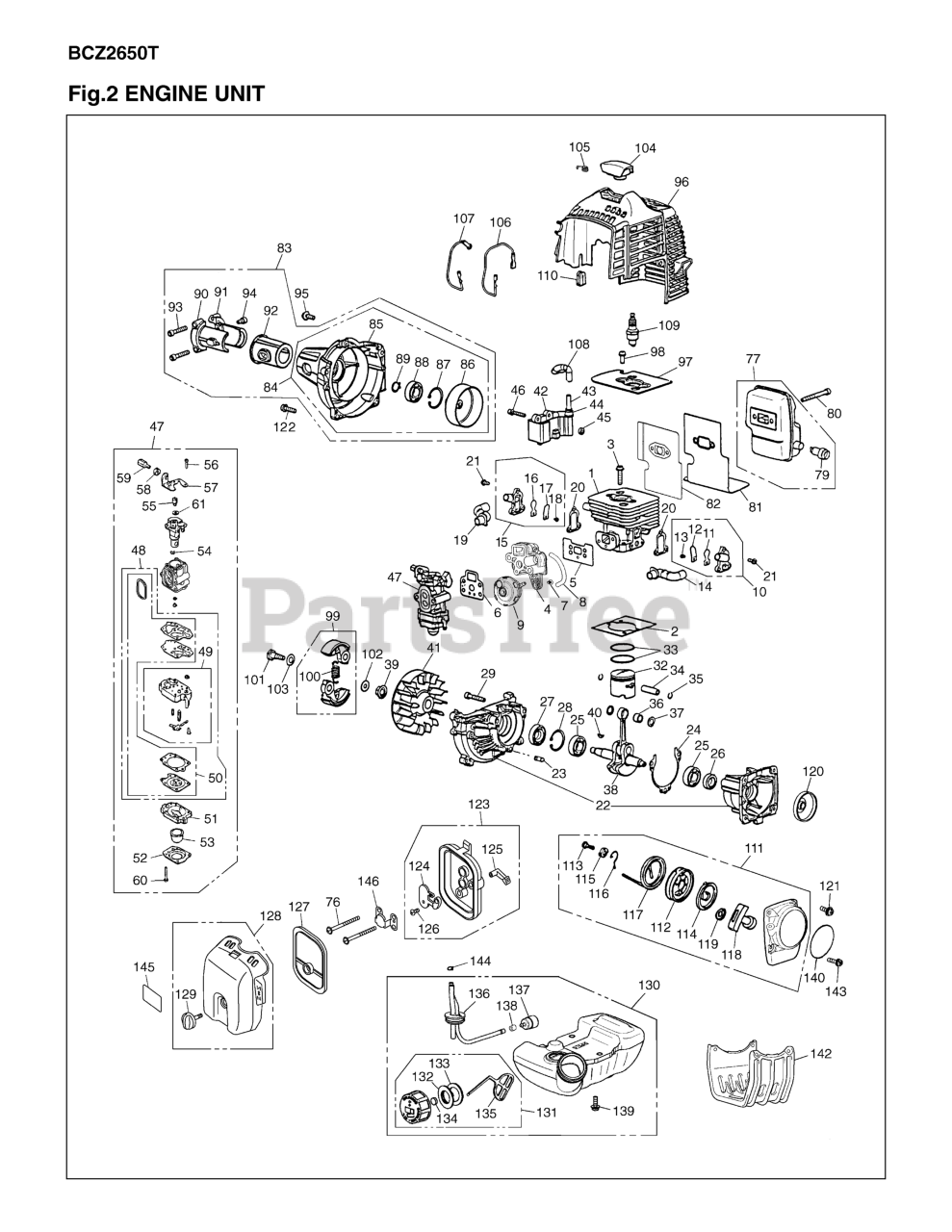

003 - ENGINE UNIT Parts Diagram

  • Title
1

RedMax 521611601

CYLINDER

$56.99

$

In Stock, only 2 left!

0

2

RedMax 521611701

GASKET, BASE

$6.49

$

In Stock, only 1 left!

0

3

RedMax 521345101

STOPPER (TOOL)
(Superseded to 515387901)

$32.99

$

Usually ships in 3-10 days

0

4

RedMax 521613301

INSULATOR

$21.99

$

Usually ships in 3-10 days

0

5

RedMax 521613401

GASKET, INSULATO

$6.49

$

In Stock, only 1 left!

0

6

RedMax 521755001

GASKET, CARB (RP

$4.99

$

In Stock, only 2 left!

0

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

9

RedMax 521613901

PUMP ASSY

$44.99

$

Usually ships in 3-10 days

0

10

RedMax 521612301

REED VALE (S) ASSY

$27.99

$

Usually ships in 3-10 days

0

11

RedMax 521612601

REEDVALVE

$12.99

$

Usually ships in 3-10 days

0

12

RedMax 521338901

STOPPER
(Superseded to 515380701)

$4.99

$

Usually ships in 3-10 days

0

13

RedMax 521339301

SCREW, M3 x 8
(Superseded to 515381101)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 521612701

PIPE AIR (S)

$9.99

$

In Stock, Qty 6

0

15

RedMax 521612501

REEDVALVE (F) ASSY

$36.99

$

Usually ships in 3-10 days

0

16

RedMax 521612601

REEDVALVE

$12.99

$

Usually ships in 3-10 days

0

17

RedMax 521338901

STOPPER
(Superseded to 515380701)

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 521339301

SCREW, M3 x 8
(Superseded to 515381101)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 521612801

PIPE AIR (F)

$8.99

$

In Stock, Qty 10

0

20

RedMax 521612901

GASKET, VALVE

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 521339401

SCREW
(Superseded to 515381201)

$

$

Not available

22

RedMax 521339801

CRANKCASE-C (RPL
(Superseded to 515381601)

$21.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 521339901

GASKET
(Superseded to 515381801)

$6.49

$

Usually ships in 3-10 days

0

25

RedMax 523071701

BEARING MAIN

$12.99

$

In Stock, only 1 left!

0

26

RedMax 521340001

SEAL
(Superseded to 504121501)

$9.99

$

Usually ships in 3-10 days

0

27

RedMax 516539201

SEAL, OIL (RPLS
(Superseded to 506612901)

$6.49

$

In Stock, only 2 left!

0

$4.99

$

In Stock, only 3 left!

0

29

RedMax 521345701

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

32

$53.99

$

Usually ships in 3-10 days

0

33

RedMax 506618101

RING, PISTON

$11.99

$

In Stock, only 4 left!

0

34

RedMax 521522601

PIN (RPLS T15134

$6.49

$

In Stock, only 4 left!

0

35

RedMax 516255701

RING, SNAP (RPLS
(Superseded to 505045201)

$4.99

$

In Stock, Qty 11

0

36

$10.99

$

Usually ships in 3-10 days

0

37

$3.99

$

In Stock, only 2 left!

0

38

RedMax 521613201

CRANKSHAFT COMP(

$121.99

$

Usually ships in 3-10 days

0

39

RedMax 516437401

NUT (RPLS 1140-4

$3.99

$

Usually ships in 3-10 days

0

40

RedMax 516147801

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

41

RedMax 521341801

ROTOR
(Superseded to 515384501)

$48.99

$

Usually ships in 3-10 days

0

42

RedMax 521749101

COIL-A
(Superseded to 512320001)

$120.99

$

Usually ships in 3-10 days

0

$17.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

45

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 521346901

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

47

RedMax 528062401

CARBURETOR ASSY

$136.99

$

Usually ships in 3-10 days

0

48

RedMax 506657901

REBUILD KITxxx

$100.99

$

In Stock, Qty 20+

0

49

RedMax 516543601

BODY, PUMP
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

50

RedMax 521337101

KIT, GASKET (RPL
(Superseded to 506615501)

$74.99

$

Usually ships in 3-10 days

0

51

RedMax 511370901

BODY
(Superseded to 521613701)

$42.99

$

Usually ships in 3-10 days

0

52

RedMax 516543901

COVER, PUMP

$6.49

$

In Stock, Qty 8

0

53

RedMax 516525801

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

55

$9.99

$

Usually ships in 3-10 days

0

56

$3.99

$

Usually ships in 3-10 days

0

57

$12.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

59

RedMax 516617201

SCREW
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

60

RedMax 516544001

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

61

RedMax 521360401

WASHER
(Superseded to 506746101)

$0.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

77

$34.99

$

In Stock, only 2 left!

0

79

RedMax 521338301

ARRESTER
(Superseded to 506615601)

$9.99

$

In Stock, only 1 left!

0

80

RedMax 521345501

BOLT
(Superseded to 504116501)

$4.99

$

In Stock, Qty 10

0

81

$21.99

$

Usually ships in 3-10 days

0

82

RedMax 521612101

PLATE, MUFFLER

$15.99

$

In Stock, only 4 left!

0

83

RedMax 528061401

COVER ASSY
(Superseded to 521609901)

$

$

Not available

84

RedMax 521340601

COVER COMP. (R-3

$72.99

$

Usually ships in 3-10 days

0

85

RedMax 521340801

COVER, FAN (RPLS
(Superseded to 515382601)

$48.99

$

Usually ships in 3-10 days

0

86

RedMax 521609801

DRUM (RPLS 48103

$47.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 3 left!

0

88

RedMax 521770801

BEARING
(Superseded to 525953201)

$14.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 3 left!

0

90

RedMax 521478201

BRACKET (A) (RPL
(Superseded to 515649401)

$12.99

$

Usually ships in 3-10 days

0

91

RedMax 521478401

BRACKET (B) (RPL
(Superseded to 515649501)

$15.99

$

Usually ships in 3-10 days

0

92

RedMax 521478501

CUSHION
(Superseded to 515649601)

$10.99

$

In Stock, only 4 left!

0

93

RedMax 521345701

BOLT
(Superseded to 515388101)

$4.99

$

In Stock, only 3 left!

0

94

RedMax 521746501

BOLT M5X14

$4.99

$

In Stock, only 3 left!

0

95

RedMax 521346501

BOLT, TORX
(Superseded to 506745601)

$3.99

$

In Stock, only 2 left!

0

96

RedMax 521613001

COVER, ENGINE

$37.99

$

In Stock, only 3 left!

0

97

$7.49

$

Usually ships in 3-10 days

0

98

RedMax 521345301

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

99

RedMax 574014801

SHOE
(Superseded to 515389101)

$40.99

$

In Stock, only 4 left!

0

100

RedMax 521346701

SPRING
(Superseded to 515389301)

$6.49

$

In Stock, only 2 left!

0

101

RedMax 516207901

BOLT
(Superseded to 513189601)

$4.99

$

In Stock, only 4 left!

0

102

RedMax 516207701

WASHER
(Superseded to 505054401)

$4.99

$

Usually ships in 3-10 days

0

103

RedMax 516207801

WASHER (RPLS 114
(Superseded to 513189501)

$4.99

$

Usually ships in 3-10 days

0

104

RedMax 521610001

CAP(RPLS 4810721

$9.99

$

In Stock, only 2 left!

0

105

RedMax 516610301

SPRING(RP-500302
(Superseded to 505298901)

$4.99

$

Usually ships in 3-10 days

0

106

RedMax 521342101

CORD (BLACK)
(Superseded to 515384801)

$6.49

$

In Stock, only 1 left!

0

107

RedMax 521342201

CORD, EARTH (RED
(Superseded to 515384901)

$6.49

$

In Stock, only 1 left!

0

108

RedMax 521749501

TUBE (RPLS 26307

$3.99

$

Usually ships in 3-10 days

0

109

RedMax 506615101

SPKPLUG(CMR7H)(R
(Superseded to CMR-7H)

$4.46

$

Usually ships in 3-10 days

0

110

RedMax 521342501

GROMMET
(Superseded to 506615901)

$3.99

$

Usually ships in 3-10 days

0

111

RedMax 521342701

RECOIL ASSEMBLY
(Superseded to 515385401)

$66.99

$

In Stock, only 1 left!

0

112

RedMax 521326701

REEL
(Superseded to 504114701)

$11.99

$

In Stock, only 2 left!

0

113

RedMax 521326801

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

114

RedMax 516541701

SPRING, SPIRAL
(Superseded to 521326701)

$18.99

$

In Stock, Qty 10

0

115

RedMax 521327001

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 10

0

116

RedMax 521327101

ARM
(Superseded to 504114801)

$7.49

$

In Stock, Qty 10

0

117

RedMax 521342801

ROPE (RPLS 45007
(Superseded to 504114901)

$9.49

$

In Stock, only 1 left!

0

118

RedMax 521025501

KNOB (RPLS 3330-
(Superseded to 506614701)

$6.99

$

In Stock, only 2 left!

0

119

RedMax 521342901

PLATE, STOPPER
(Superseded to 515385601)

$3.99

$

In Stock, only 1 left!

0

120

RedMax 521327201

PULLEY
(Superseded to 504114401)

$9.99

$

In Stock, only 2 left!

0

121

RedMax 521746501

BOLT M5X14

$4.99

$

In Stock, only 3 left!

0

122

RedMax 521345201

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

123

RedMax 528062601

BODY - A

$24.99

$

In Stock, only 3 left!

0

124

RedMax 528074301

PLATE, CHOKE

$4.99

$

Usually ships in 3-10 days

0

125

$4.99

$

In Stock, only 4 left!

0

126

RedMax 521740901

SCREW
(Superseded to 506673801)

$4.99

$

In Stock, Qty 9

0

127

RedMax 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

128

RedMax 528075001

CLEANER COVER AS
(Superseded to 575832701)

$11.99

$

Usually ships in 3-10 days

0

129

RedMax 528074601

CLEANER KNOB

$6.49

$

Usually ships in 3-10 days

0

130

RedMax 528064401

TANK ASSY
(Superseded to 579141802)

$96.99

$

In Stock, only 2 left!

0

131

RedMax 521732201

CAP ASSY
(Superseded to 505309601)

$11.99

$

In Stock, only 3 left!

0

132

RedMax 521329501

HOLDER (RPLS 450
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

133

RedMax 521329301

PACKING
(Superseded to 506744301)

$4.99

$

Usually ships in 3-10 days

0

134

RedMax 521377101

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 2 left!

0

135

RedMax 521347801

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

136

RedMax 521344701

PIPE COMPLETE
(Superseded to 579138306)

$42.99

$

In Stock, only 4 left!

0

137

RedMax 574081101

FUEL FILTER
(Superseded to 525313601)

$10.99

$

Usually ships in 3-10 days

0

138

RedMax 516262101

CLIP (RPLS 28413
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

139

RedMax 521347901

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

140

RedMax 528062701

LABEL, RECOIL

$4.99

$

Usually ships in 3-10 days

0

142

$24.99

$

In Stock, only 3 left!

0

143

RedMax 521345201

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

144

RedMax 516624801

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, Qty 10

0

145

$7.49

$

Usually ships in 3-10 days

0

146

$4.99

$

Usually ships in 3-10 days

0
