BCZ 2500 S - RedMax Brushcutter (SN: 35208 & Above) (2002-05) 034 - FIG. 1 DRIVE UNIT Parts Diagram

Brushcutter

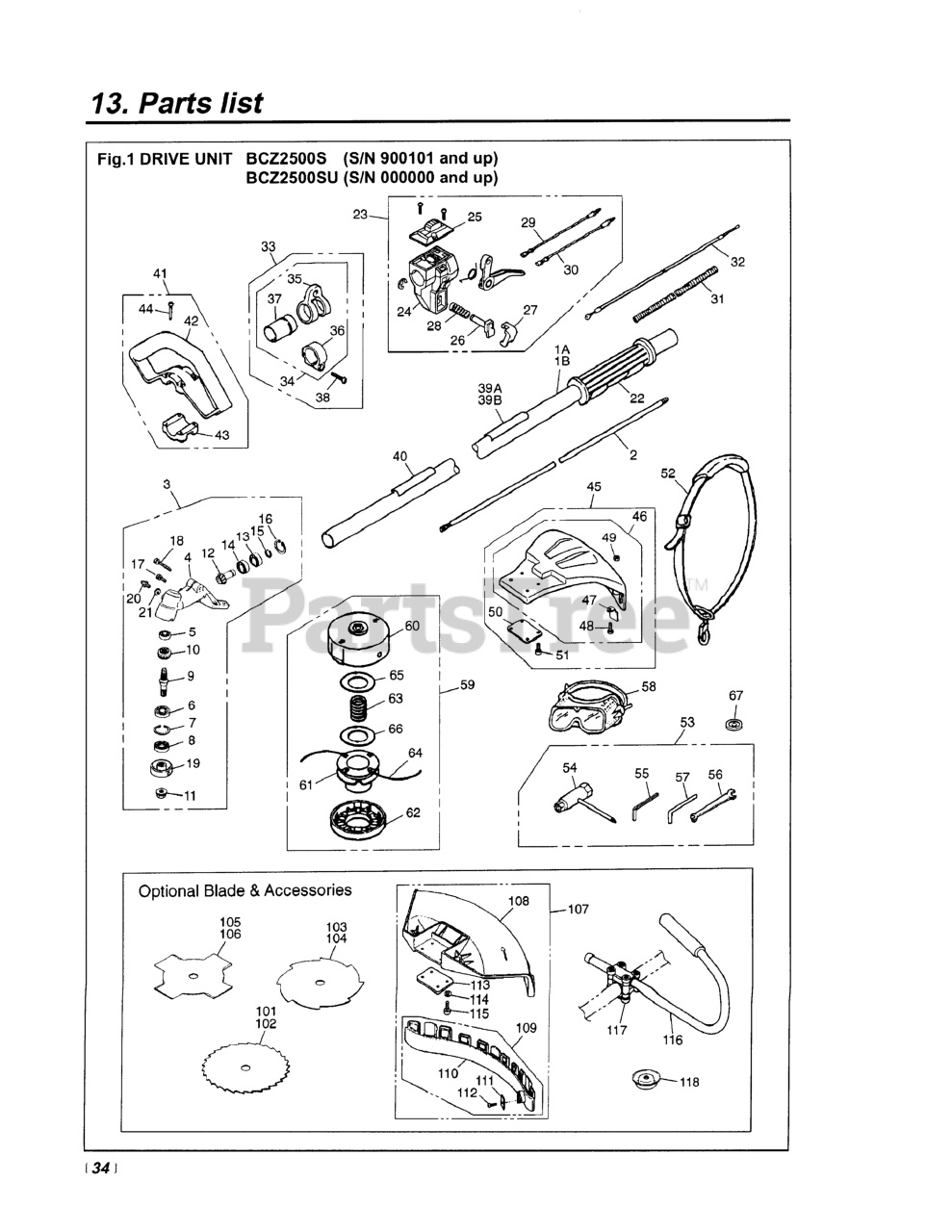

034 - FIG. 1 DRIVE UNIT Parts Diagram

  • Title
1A

RedMax T300212101

PIPE COMP (REPLACES -12100)
(Superseded to 521803001)

$

$

Not available

1B

RedMax T306412100

PIPE COMPLETE

$397.29

$

Usually ships in 3-10 days

0

2

RedMax 352012213

SHAFT (RPLS -12212)
(Superseded to 514344201)

$53.99

$

Usually ships in 3-10 days

0

3

RedMax T300213001

GEARCASE ASSY (RPLS -13000)
(Superseded to 512497401)

$125.99

$

Usually ships in 3-10 days

0

4

RedMax 648913110

GEARCASE
(Superseded to 521479101)

$

$

Not available

5

RedMax T330013521

06000-00626
(Superseded to 516127701)

$7.99

$

Usually ships in 3-10 days

0

6

RedMax T340313510

06000-06000
(Superseded to 505170201)

$9.99

$

In Stock, only 3 left!

0

7

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

8

RedMax 356513130

SEAL, OIL
(Superseded to 521197001)

$7.49

$

In Stock, only 1 left!

0

9

RedMax T300213210

SHAFT
(Superseded to 512497501)

$

$

Not available

10

RedMax 644013220

GEAR
(Superseded to 515632401)

$

$

Not available

11

RedMax T300213260

NUT
(Superseded to 521804001)

$4.99

$

In Stock, only 3 left!

0

12

RedMax T300213310

PINION
(Superseded to 512497801)

$

$

Not available

13

RedMax T330013531

06001-00609
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

14

RedMax T340313530

06000-00609
(Superseded to 505169201)

$9.99

$

In Stock, Qty 5

0

15

RedMax T330013330

3210-13330
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

16

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

18

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 644013242

HOLDER (A)
(Superseded to 515632501)

$31.99

$

Usually ships in 3-10 days

0

20

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

21

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 357732141

GRIP (RPLS 3577-32140 & 3220-
(Superseded to 521651001)

$

$

Not available

23

RedMax T300212202

T3002-12203
(Superseded to 521529701)

$

$

Not available

24

RedMax 611014412

LEVER (USE 848-8R2-0313)
(Superseded to 521529601)

$

$

Not available

25

RedMax 611014410020

6110-14410-02

$

$

Not available

26

RedMax 611014410060

6110-14410-06

$

$

Not available

27

RedMax 611014410090

6110-14410-09

$

$

Not available

28

RedMax 611014410080

6110-14410-08

$

$

Not available

29

RedMax T300212220

CORD (A), BLACK
(Superseded to 521803401)

$8.49

$

In Stock, only 1 left!

0

30

RedMax T300212230

CORD (B), RED
(Superseded to 521803501)

$5.99

$

Usually ships in 3-10 days

0

31

RedMax T300212240

TUBE (RPLS 4900-72141)
(Superseded to 512497101)

$4.99

$

Usually ships in 3-10 days

0

32

RedMax T300283100

CABLE (RPLS 5580-83100)
(Superseded to 512498601)

$18.99

$

Usually ships in 3-10 days

0

33

RedMax 642017300

HANGER ASSEMBLY
(Superseded to 521466301)

$

$

Not available

34

RedMax 642017400

HANGER COMPLETE
(Superseded to 521466401)

$14.99

$

Usually ships in 3-10 days

0

35

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

36

RedMax 936617120

CLAMP
(Superseded to 515903701)

$

$

Not available

37

RedMax 642017410

SLEEVE
(Superseded to 515626001)

$2.49

$

Usually ships in 3-10 days

0

38

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

39A

RedMax T300212511

NAMEPLATE

$

$

Not available

39B

RedMax T306412511

NAMEPLATE

$

$

Not available

40

RedMax 642512552

PLATE, CAUTION

$2.96

$

Usually ships in 3-10 days

0

41

RedMax 642014100

HANDLE ASSEMBLY
(Superseded to 521465701)

$

$

Not available

42

RedMax 642014311

HANDLE
(Superseded to 515625501)

$

$

Not available

43

$

$

Not available

44

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

45

RedMax T300224001

GUARD ASSY (RPLS -24000)
(Superseded to 521804201)

$

$

Not available

46

RedMax T300224101

GUARD COMP (RPLS. -24100)
(Superseded to 521804301)

$

$

Not available

47

RedMax T300224121

BLADE (RPLS T3002-24120)
(Superseded to 521804401)

$7.49

$

In Stock, only 3 left!

0

48

RedMax 026390516

SCREW
(Superseded to 510482201)

$3.49

$

Usually ships in 3-10 days

0

49

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, Qty 6

0

50

RedMax 648924120

PLATE
(Superseded to 521479701)

$2.49

$

Usually ships in 3-10 days

0

51

RedMax 0125230514

BOLT (USE 3310-31720)
(Superseded to 520961501)

$4.99

$

In Stock, only 1 left!

0

52

RedMax T330017100

STRAP ASSY.
(Superseded to 521651101)

$15.99

$

In Stock, only 2 left!

0

53

$15.97

$

Usually ships in 3-10 days

0

54

RedMax T300291310

SOCKET
(Superseded to 521804801)

$

$

Not available

55

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

56

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

57

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

58

RedMax T300291190

GOGGLE
(Superseded to 510989401)

$

$

Not available

59

RedMax PT104

4
(Superseded to 511010601)

$58.99

$

In Stock, only 2 left!

0

60

RedMax 646015113

CASE (RPLS -15112)
(Superseded to 515639101)

$28.99

$

Usually ships in 3-10 days

0

61

RedMax 646015142

HOLDER, CORD (RPLS -15141)
(Superseded to 515639501)

$11.99

$

In Stock, only 1 left!

0

62

RedMax 646015131

COVER (RPLS -15130)
(Superseded to 515639401)

$11.99

$

Usually ships in 3-10 days

0

63

RedMax 604199162

SPRING (RPLS -99161)
(Superseded to 515517001)

$9.99

$

Usually ships in 3-10 days

0

64

RedMax 646015180

CORD
(Superseded to 521472601)

$

$

Not available

65

RedMax 326815150

PLATE, LARGE
(Superseded to 520939401)

$

$

Not available

66

RedMax 326815170

PLATE, SMALL
(Superseded to 520939801)

$6.49

$

Usually ships in 3-10 days

0

67

RedMax 601913250

HOLDER (B)
(Superseded to 515511401)

$13.99

$

Usually ships in 3-10 days

0

101

RedMax SST229

BLADE, 9
(Superseded to 574159301)

$

$

Not available

102

RedMax SST249

BLADE, 9
(Superseded to 574159401)

$

$

Not available

103

RedMax SGB088

BLADE, 8
(Superseded to 574158501)

$

$

Not available

104

RedMax SGB089

BLADE, 9
(Superseded to 574158601)

$31.99

$

Usually ships in 3-10 days

0

105

RedMax SGB048

BLADE, 8
(Superseded to 574158301)

$

$

Not available

106

RedMax SGB049

BLADE, 9
(Superseded to 574158401)

$

$

Not available

107

RedMax 648924000

GUARD ASSEMBLY
(Superseded to 521479501)

$60.99

$

Usually ships in 3-10 days

0

108

RedMax 648924110

GUARD
(Superseded to 521479601)

$

$

Not available

109

RedMax 648924200

PLATE COMPLETE
(Superseded to 521479801)

$40.99

$

Usually ships in 3-10 days

0

110

RedMax 648924210

PLATE
(Superseded to 521479901)

$20.99

$

Usually ships in 3-10 days

0

111

RedMax 648924220

BLADE
(Superseded to 515654601)

$

$

Not available

112

$0.07

$

Usually ships in 3-10 days

0

113

RedMax 648924120

PLATE
(Superseded to 521479701)

$2.49

$

Usually ships in 3-10 days

0

114

RedMax 0160120513

WASHER, SPRING M4 x 1.3
(Superseded to 516076301)

$3.49

$

Usually ships in 3-10 days

0

115

RedMax 0125230516

BOLT, M5 X 16
(Superseded to 516070601)

$1.49

$

Usually ships in 3-10 days

0

116

RedMax 636714200

HANDLE, J

$

$

Not available

117

RedMax 358314101

BRACKET ASSY (REPLACES -14100)
(Superseded to 521210301)

$22.99

$

Usually ships in 3-10 days

0

118

RedMax 354013283

COVER
(Superseded to 514358301)

$10.99

$

In Stock, only 2 left!

0
