BCZ 250 S (967668801) - RedMax Brushcutter (2017-06) ENGINE 2 Parts Diagram

Brushcutter

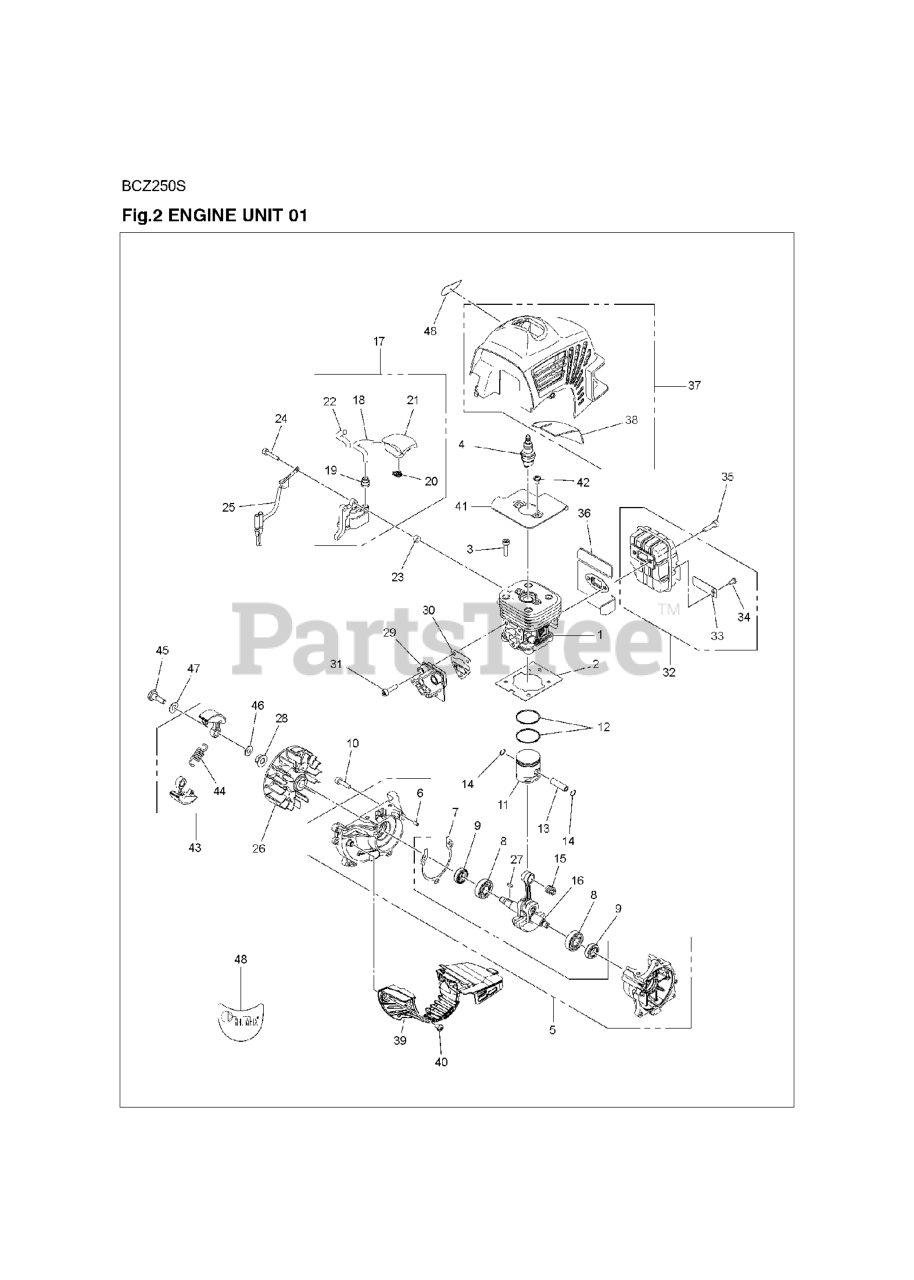

ENGINE 2 Parts Diagram

  • Title

1

RedMax 577979001

CYLINDER COMP

$68.99

$

Usually ships in 3-10 days

0

2

RedMax 576398702

GASKET BASE

$6.49

$

In Stock, Qty 11

0

3

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

4

RedMax 584703101

SPARK PLUG, BPMR8Y

$14.99

$

Usually ships in 3-10 days

0

5

RedMax 578066001

CRANKCASE ASSY

$56.99

$

Usually ships in 3-10 days

0

6

RedMax 577167401

PIN

$4.99

$

Usually ships in 3-10 days

0

7

RedMax 576399502

GASKET CASE

$8.99

$

In Stock, Qty 6

0

8

RedMax 506610301

BEARING

$12.99

$

In Stock, only 3 left!

0

9

RedMax 504121501

SEAL

$9.99

$

In Stock, Qty 12

0

10

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

11

RedMax 577917401

PISTON

$93.99

$

In Stock, only 1 left!

0

12

RedMax 506618101

RING, PISTON

$11.99

$

In Stock, Qty 5

0

13

RedMax 505040701

PIN
(Superseded to 516385601)

$10.99

$

In Stock, only 1 left!

0

14

RedMax 505045201

RING

$4.99

$

In Stock, Qty 11

0

15

RedMax 576402701

BEARING

$10.99

$

In Stock, only 1 left!

0

16

RedMax 586656601

CRANKSHAFT COMP
(Superseded to 579223201)

$145.99

$

Usually ships in 3-10 days

0

17

RedMax 578967901

IGNITION MODULE
(Superseded to 588088101)

$120.99

$

In Stock, only 1 left!

0

18

RedMax 584826601

IGNITION CABLE
(Superseded to 576882701)

$24.99

$

In Stock, only 2 left!

0

19

RedMax 511398301

HUB CAP 848F6L71E0

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 577884701

SPRING

$4.99

$

In Stock, only 4 left!

0

21

RedMax 581942701

SPARK PLUG CAP

$7.99

$

Usually ships in 3-10 days

0

22

RedMax 521749501

TUBE (RPLS 263072210)

$3.99

$

Usually ships in 3-10 days

0

23

RedMax 588171401

SPACER

$6.49

$

Usually ships in 3-10 days

0

24

RedMax 521515801

BOLT M4 X 25

$3.99

$

Usually ships in 3-10 days

0

25

RedMax 578934501

SHORT CIRCUIT CABLE

$6.99

$

Usually ships in 3-10 days

0

26

RedMax 578967801

FLYWHEEL

$68.99

$

Usually ships in 3-10 days

0

27

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 585809001

INSULATOR

$11.99

$

Usually ships in 3-10 days

0

30

RedMax 576398901

GASKET

$7.49

$

In Stock, only 1 left!

0

31

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

32

RedMax 585818201

MUFFLER ASSY

$72.99

$

In Stock, only 1 left!

0

33

RedMax 580514401

SPARK ARRESTER

$5.99

$

Usually ships in 3-10 days

0

34

RedMax 729577405

SCREW CRPANT TYPE F ST4.2X9.5

$3.49

$

In Stock, only 3 left!

0

35

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

36

RedMax 581209001

GASKET MUFFLER

$11.99

$

In Stock, only 1 left!

0

37

RedMax 586055701

CYLINDER COVER COMP

$27.99

$

Usually ships in 3-10 days

0

38

RedMax 586054101

SHEET HEAT INSULATION

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 589577401

GUARD,COOLING AIR INTAKE

$7.99

$

Usually ships in 3-10 days

0

40

RedMax 544256801

SCREW

$3.49

$

Usually ships in 3-10 days

0

41

RedMax 581264201

PLATE CYLINDER

$5.99

$

Usually ships in 3-10 days

0

42

RedMax 544256801

SCREW

$3.49

$

Usually ships in 3-10 days

0

43

RedMax 585834701

CLUTCH ASSY

$43.99

$

In Stock, only 1 left!

0

44

RedMax 576400701

CLUTCH SPRING

$6.99

$

In Stock, only 1 left!

0

45

RedMax 513189601

SCREW

$4.99

$

In Stock, Qty 5

0

46

RedMax 505054401

WASHER

$4.99

$

Usually ships in 3-10 days

0

47

RedMax 513189501

WASHER

$4.99

$

Usually ships in 3-10 days

0

48

RedMax 587382701

DECAL BRAND

$3.49

$

Usually ships in 3-10 days
