BCZ 2460 S - RedMax Brushcutter (SN: 00001001 - 00400100) (2010-04) 001 - DRIVE UNIT Parts Diagram

Brushcutter

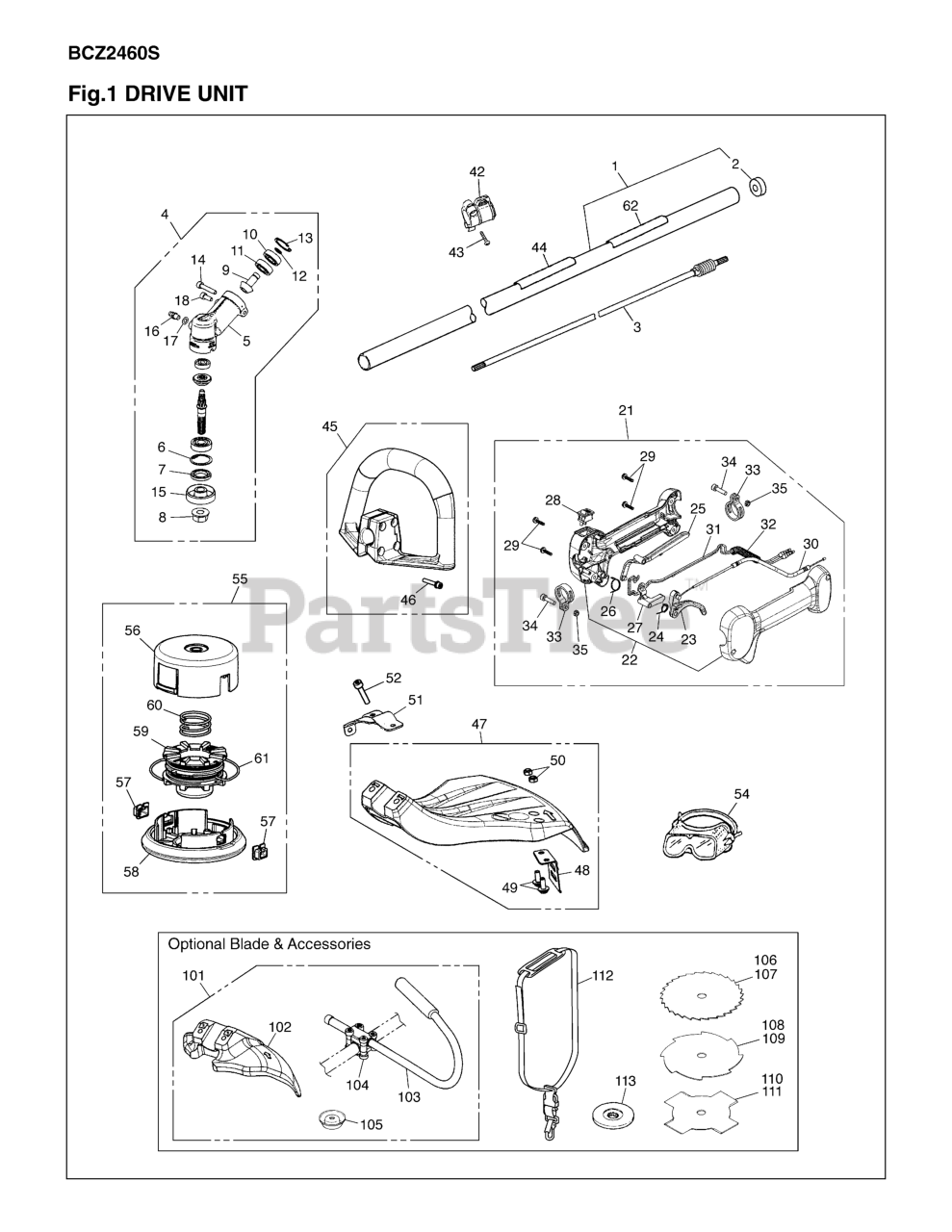

001 - DRIVE UNIT Parts Diagram

  • Title
1

RedMax 528868901

PIPE COMP.

$66.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 2 left!

0

$120.99

$

Usually ships in 3-10 days

0

4

RedMax 574716301

GEARCASE ASSY

$121.99

$

In Stock, only 1 left!

0

5

RedMax 574267501

GEARCASE

$37.99

$

Usually ships in 3-10 days

0

6

RedMax 516125501

RING,SNAP M26x1.

$4.99

$

In Stock, only 2 left!

0

7

RedMax 521197001

SEAL, OIL(RPLS 3
(Superseded to 514382501)

$7.49

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 2 left!

0

9

$28.99

$

Usually ships in 3-10 days

0

10

$15.99

$

In Stock, only 2 left!

0

11

RedMax 516127601

BEARING
(Superseded to 505169201)

$9.99

$

In Stock, Qty 5

0

12

RedMax 521821801

SNAP RING

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 505169401

RING, SNAP, M24

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 521861501

BOLT, TORX
(Superseded to 512845701)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 521470501

HOLDER (A)
(Superseded to 515632501)

$31.99

$

In Stock, only 1 left!

0

16

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

17

RedMax 505171601

WASHER, M6 x .8

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 521861101

BOLT, TORX

$4.99

$

In Stock, Qty 20+

0

21

RedMax 574390301

GRIP ASSY
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

22

RedMax 576475201

GRIP, HALF SET
(Superseded to 576475202)

$31.99

$

In Stock, only 2 left!

0

23

RedMax 529258801

LEVER, THROTTLE

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 2 left!

0

25

RedMax 529259001

LEVER FOR GRIP (
(Superseded to 578778001)

$4.99

$

In Stock, only 1 left!

0

26

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

28

$11.99

$

In Stock, only 3 left!

0

29

$4.99

$

In Stock, Qty 8

0

30

$12.99

$

In Stock, only 2 left!

0

31

RedMax 529256101

CORD - C

$7.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$10.99

$

In Stock, only 1 left!

0

34

RedMax 521345401

BOLT (RPLS 28501
(Superseded to 504114301)

$6.49

$

Usually ships in 3-10 days

0

35

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

42

RedMax 521822101

HANGER COMP.

$

$

Not available

43

$4.99

$

In Stock, only 2 left!

0

44

RedMax 510962901

LABEL CAUTON FOR

$7.49

$

Usually ships in 3-10 days

0

45

RedMax 526056401

HANDLE ASSY. (RP

$26.99

$

In Stock, only 3 left!

0

46

$3.49

$

In Stock, Qty 11

0

47

RedMax 574395401

GUARD ASSY
(Superseded to 578403401)

$34.99

$

In Stock, only 2 left!

0

48

$6.99

$

In Stock, Qty 5

0

49

RedMax 521862901

SCREW
(Superseded to 502843901)

$6.49

$

In Stock, only 3 left!

0

$4.99

$

In Stock, only 4 left!

0

51

$6.99

$

Usually ships in 3-10 days

0

52

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, only 4 left!

0

54

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

55

RedMax 970370901

4
(Superseded to 511010601)

$58.99

$

Usually ships in 3-10 days

0

$20.99

$

Usually ships in 3-10 days

0

57

RedMax 521819801

EYELET
(Superseded to 512549801)

$5.99

$

In Stock, Qty 5

0

58

RedMax 521819401

COVER (RPLS T318

$22.99

$

In Stock, only 4 left!

0

59

RedMax 521819501

HOLDER, CORD (RP

$17.99

$

In Stock, Qty 10

0

60

$4.99

$

In Stock, only 4 left!

0

61

RedMax 511011401

CORD
(Superseded to 521819701)

$

$

Not available

62

RedMax 576251301

NAME PLATE
(Superseded to 580261102)

$

$

Not available

101

RedMax 574205701

BLADE KIT
(Superseded to 966424001)

$

$

Not available

102

$22.99

$

Usually ships in 3-10 days

0

103

RedMax 521452901

HANDLE, JACC.
(Superseded to 515590601)

$26.99

$

In Stock, only 1 left!

0

104

RedMax 521653201

BRACKET ASSY.

$20.99

$

Usually ships in 3-10 days

0

105

RedMax 521172201

COVER(10mm)(RPL2
(Superseded to 514358301)

$10.99

$

In Stock, only 2 left!

0

106

RedMax 574159301

BLADE, 9

$

$

Not available

107

RedMax 574159401

BLADE, 9

$

$

Not available

108

RedMax 574158501

BLADE, 8

$

$

Not available

109

RedMax 574158601

BLADE, 9

$31.99

$

Usually ships in 3-10 days

0

110

RedMax 574158301

BLADE, 8

$

$

Not available

111

RedMax 574158401

BLADE, 9

$

$

Not available

112

RedMax 521651101

STRAP ASSY

$15.99

$

In Stock, only 2 left!

0

113

RedMax 521401701

HOLDER (B)
(Superseded to 515511401)

$13.99

$

Usually ships in 3-10 days

0
