BCZ 2450 T (966326101) - RedMax Brushcutter (SN: 91101001 & Above) (2010-04) 002 - DRIVE UNIT Parts Diagram

Brushcutter

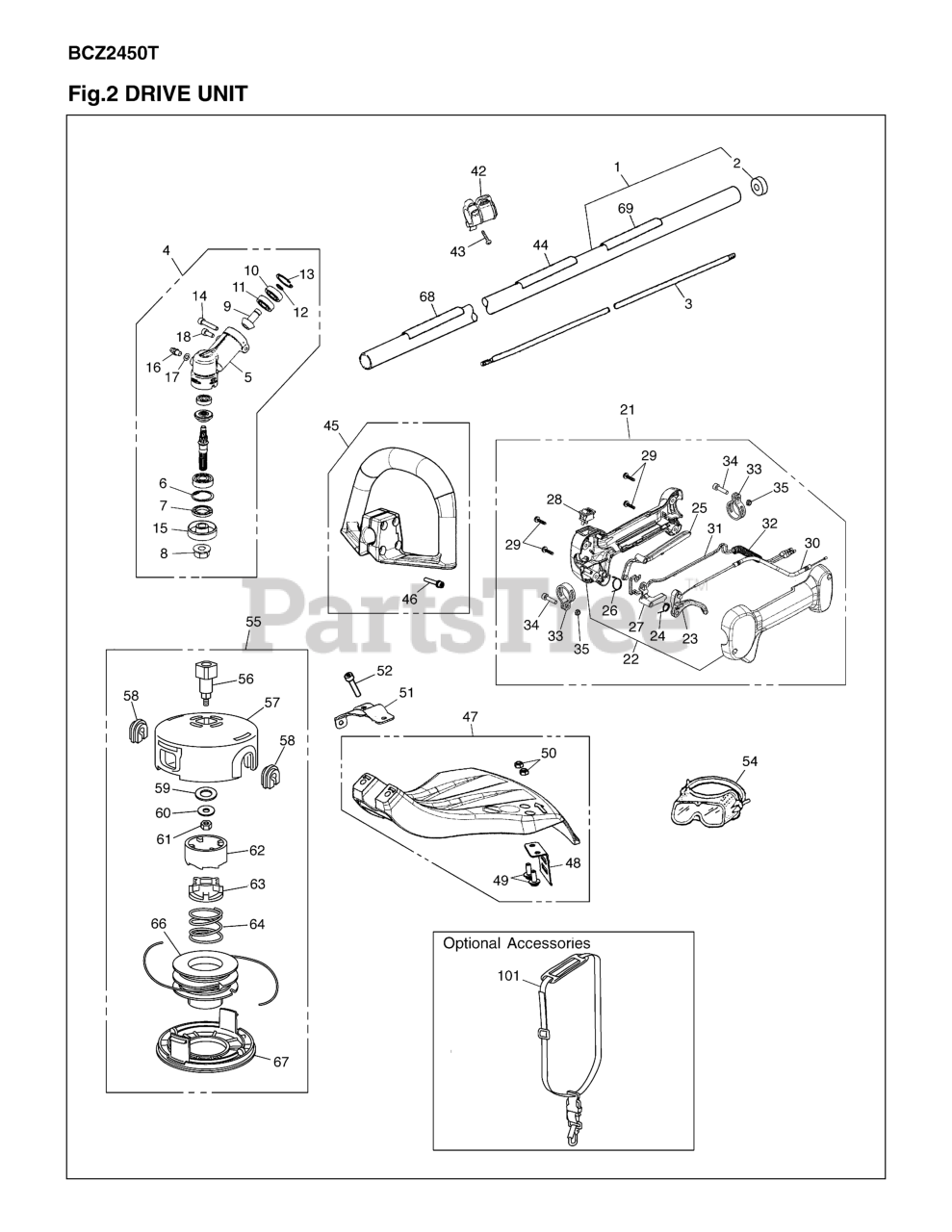

002 - DRIVE UNIT Parts Diagram

  • Title
1

RedMax 528868901

PIPE COMP.

$66.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-10 days

0

4

RedMax 528840301

GEAR CASE ASSY
(Superseded to 584928801)

$182.99

$

In Stock, only 1 left!

0

5

RedMax 528839701

GEAR CASE

$51.92

$

Usually ships in 3-10 days

0

6

RedMax 516125501

RING,SNAP M26x1.

$4.99

$

In Stock, only 2 left!

0

7

RedMax 521197001

SEAL, OIL(RPLS 3
(Superseded to 514382501)

$7.49

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 3 left!

0

9

$78.99

$

Usually ships in 3-10 days

0

10

$15.99

$

In Stock, only 2 left!

0

11

RedMax 516127801

BEARING (RPLS 06
(Superseded to 505170201)

$9.99

$

In Stock, only 3 left!

0

12

RedMax 521821801

SNAP RING

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 505169401

RING, SNAP, M24

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 521861501

BOLT, TORX
(Superseded to 512845701)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 528840201

HOLDER-A

$30.99

$

Usually ships in 3-10 days

0

16

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

17

RedMax 505171601

WASHER, M6 x .8

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 521861101

BOLT, TORX

$4.99

$

In Stock, Qty 20+

0

21

RedMax 529262501

GRIP-A
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

22

RedMax 576475201

GRIP, HALF SET
(Superseded to 576475202)

$31.99

$

In Stock, only 2 left!

0

23

RedMax 529258801

LEVER, THROTTLE

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 2 left!

0

25

RedMax 529258901

LEVER SAFETY
(Superseded to 578778001)

$4.99

$

In Stock, only 1 left!

0

26

RedMax 521667501

SPRING
(Superseded to 511591801)

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 529259101

LEVER, JOINT

$

$

Not available

28

$11.99

$

In Stock, only 3 left!

0

29

$4.99

$

Usually ships in 3-10 days

0

30

$12.99

$

In Stock, only 2 left!

0

31

RedMax 529256101

CORD - C

$7.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

$10.99

$

In Stock, only 1 left!

0

34

RedMax 521345401

BOLT (RPLS 28501
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

35

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

In Stock, only 1 left!

0

42

RedMax 521822101

HANGER COMP.

$

$

Not available

43

$4.99

$

In Stock, only 2 left!

0

44

RedMax 528873701

PLATE, NAME

$3.34

$

Usually ships in 3-10 days

0

45

RedMax 526056401

HANDLE ASSY. (RP

$26.99

$

In Stock, only 3 left!

0

46

$3.49

$

In Stock, Qty 11

0

47

RedMax 574395401

GUARD ASSY
(Superseded to 578403401)

$34.99

$

In Stock, only 2 left!

0

48

$6.99

$

In Stock, only 1 left!

0

49

RedMax 521862901

SCREW
(Superseded to 502843901)

$6.49

$

In Stock, Qty 9

0

$4.99

$

In Stock, Qty 6

0

51

$6.99

$

Usually ships in 3-10 days

0

52

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, only 4 left!

0

54

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

55

RedMax 574143501

TAP HEAD COMPLET
(Superseded to 537388306)

$31.99

$

In Stock, Qty 10

0

56

RedMax 574101101

SHAFT BOLT

$

$

Not available

57

RedMax 574101201

CASE
(Superseded to 575355301)

$

$

Not available

58

RedMax 574101701

EYELET KIT (2/ba

$6.49

$

In Stock, only 1 left!

0

59

RedMax 574102001

FLAT WASHER

$1.49

$

Usually ships in 3-10 days

0

60

RedMax 574102101

FLAT WASHER

$

$

Not available

61

RedMax 574101601

LOCK NUT

$2.49

$

Usually ships in 3-10 days

0

62

RedMax 574101801

CAM FOLLOWER

$9.99

$

In Stock, only 3 left!

0

63

RedMax 574101901

INNER CAM

$9.99

$

In Stock, only 3 left!

0

64

$

$

Not available

66

RedMax 574101401

CORD HOLDER

$14.99

$

Usually ships in 3-10 days

0

67

RedMax 574101301

COVER
(Superseded to 575355401)

$18.99

$

Usually ships in 3-10 days

0

68

RedMax 510962901

LABEL CAUTON FOR

$7.49

$

Usually ships in 3-10 days

0

69

RedMax 528840601

CAUTION LAEL

$

$

Not available

101

RedMax 521651101

STRAP ASSY

$15.99

$

In Stock, only 2 left!

0
