BCZ 2450 S - RedMax Brushcutter (SN: 91101001 & Above) ENGINE Parts Diagram

Brushcutter

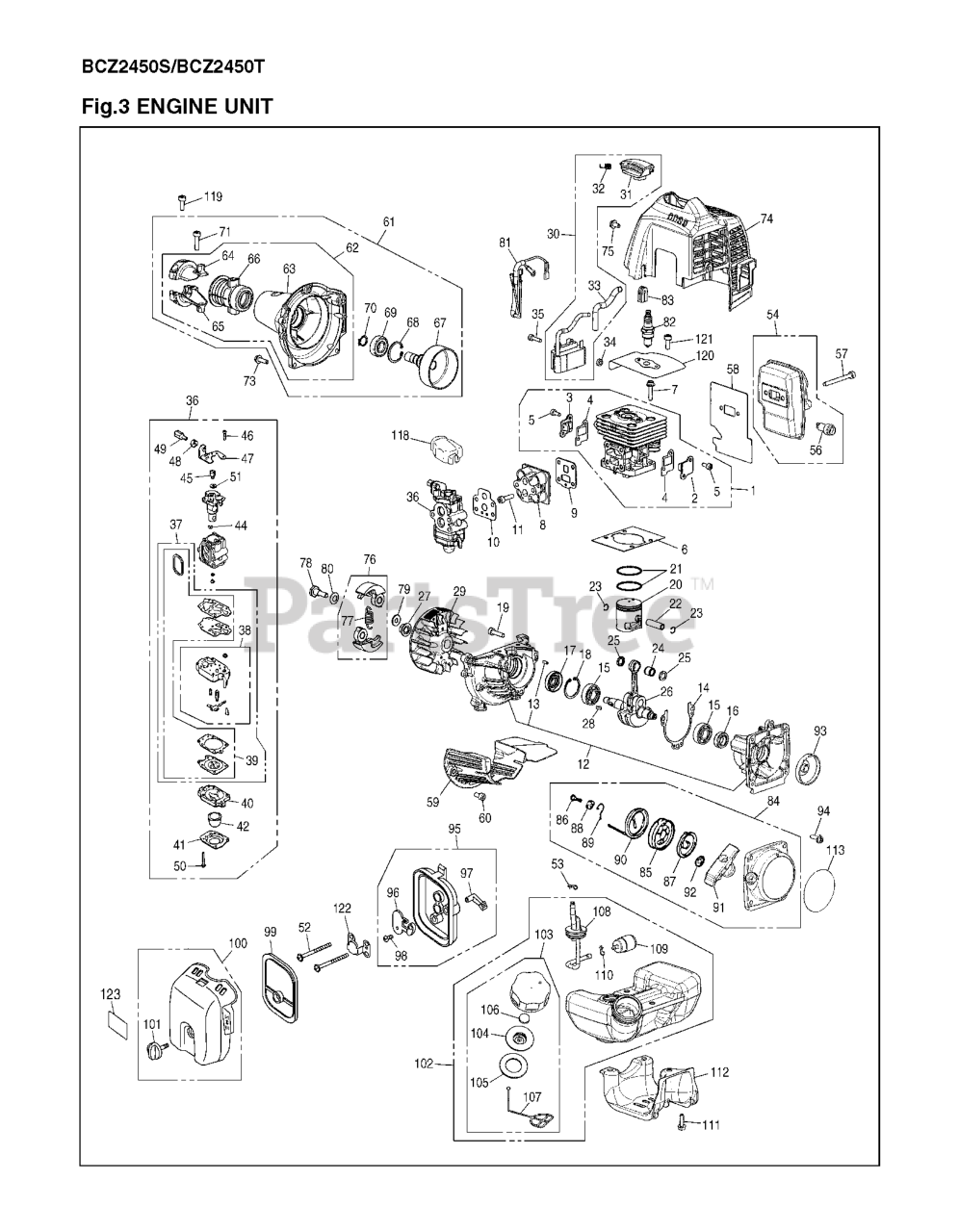

ENGINE Parts Diagram

  • Title

1

RedMax 528052101

CYLINDER COMP

Note: . 2 3 4 5

$74.99

$

Usually ships in 3-10 days

0

2

RedMax 506654101

COVER, TR-S

Note: TR-S

$5.99

$

Usually ships in 3-10 days

0

3

RedMax 506654201

COVER, TR-F

Note: TR-F

$5.99

$

Usually ships in 3-10 days

0

4

RedMax 506654301

GASKET, TR

Note: TR

$4.99

$

In Stock, Qty 8

0

5

RedMax 504119201

BOLT
(Superseded to 506616401)

$2.49

$

In Stock, Qty 8

0

6

RedMax 521751901

GASKET, BASE

$6.49

$

In Stock, only 4 left!

0

7

RedMax 521345201

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

8

RedMax 511349701

INSULATOR

$13.99

$

In Stock, only 4 left!

0

9

RedMax 511350001

INSULATOR GASKET(R-848F0814B0)

$6.99

$

Usually ships in 3-10 days

0

10

RedMax 506654801

GASKET, CARB
(Superseded to 521755001)

$4.99

$

In Stock, only 2 left!

0

11

RedMax 506689001

BOLT TORX

$6.49

$

In Stock, only 2 left!

0

12

RedMax 512325801

CRANKCASE-C

Note: . 13

$13.99

$

Usually ships in 3-10 days

0

13

RedMax 505296101

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 506684801

GASKET, CASE

$3.49

$

Usually ships in 3-10 days

0

15

RedMax 506610301

BEARING

$12.99

$

In Stock, only 1 left!

0

16

RedMax 504121501

SEAL

$9.99

$

Usually ships in 3-10 days

0

17

RedMax 506612901

SEAL
(Superseded to 516539201)

$6.49

$

In Stock, only 2 left!

0

18

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

19

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

20

RedMax 506655001

PISTON

$31.99

$

In Stock, only 1 left!

0

21

RedMax 506618101

RING

$11.99

$

In Stock, only 4 left!

0

22

RedMax 505040701

PIN
(Superseded to 516385601)

$10.99

$

In Stock, only 1 left!

0

23

RedMax 505045201

RING

$4.99

$

In Stock, Qty 11

0

24

RedMax 506685001

BEARING

$10.99

$

Usually ships in 3-10 days

0

25

RedMax 505041001

WASHER

$4.99

$

In Stock, only 2 left!

0

26

RedMax 528058401

CRANKSHAFT-C

$85.99

$

Usually ships in 3-10 days

0

27

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

29

RedMax 515384501

ROTOR

$48.99

$

Usually ships in 3-10 days

0

30

RedMax 511351101

COIL-A

Note: . 31 32 33

$96.99

$

Usually ships in 3-10 days

0

31

RedMax 521610001

CAP

$9.99

$

In Stock, only 2 left!

0

32

RedMax 506655201

SPRING

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 506618201

TUBE

$3.49

$

In Stock, only 1 left!

0

34

RedMax 504118601

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

35

RedMax 506745701

BOLT

$3.99

$

In Stock, Qty 18

0

36

RedMax 511351601

CARBURETOR (RPLS 848F088100)

Note: . 37 38 39-51

$

$

Not available

37

RedMax 528070101

REBUILD KIT

Note: . 38 39

$100.99

$

In Stock, Qty 20+

0

38

RedMax 502238401

CARBURETOR BODY

$53.99

$

In Stock, Qty 5

0

39

RedMax 515378701

GASKET KIT
(Superseded to 583983301)

$87.99

$

Usually ships in 3-10 days

0

40

RedMax 506740901

BODY

$34.99

$

Usually ships in 3-10 days

0

41

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 8

0

42

RedMax 505306701

PUMP

$9.49

$

In Stock, only 1 left!

0

44

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

46

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

47

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

48

RedMax 506612601

NUT
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

49

RedMax 506741301

ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

50

RedMax 506741101

SCREW

$4.99

$

In Stock, only 1 left!

0

51

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0

52

RedMax 521515501

BOLT TORX

$4.99

$

In Stock, only 2 left!

0

53

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, Qty 10

0

54

RedMax 521613501

MUFFLER

Note: . 56

$34.99

$

In Stock, only 3 left!

0

56

RedMax 506615601

ARRESTER

$9.99

$

In Stock, only 1 left!

0

57

RedMax 504116501

BOLT

$4.99

$

In Stock, Qty 10

0

58

RedMax 511350401

GASKET, MUFFLER

$6.99

$

In Stock, only 2 left!

0

59

RedMax 506629601

PLATE

$5.99

$

In Stock, only 1 left!

0

60

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

61

RedMax 528053101

HOUSING ASSY (RPLS T155131000)

Note: . 62 63 64-71

$68.99

$

In Stock, only 1 left!

0

62

RedMax 512326201

HOUSING

$

$

Not available

63

RedMax 512326301

HOUSING

$

$

Not available

64

RedMax 521768201

BRACKET (A) (RPLS T170031211)

Note: A

$8.99

$

Usually ships in 3-10 days

0

65

RedMax 521768301

BRACKET (B)

Note: B

$9.99

$

In Stock, only 1 left!

0

66

RedMax 512360501

CUSHION

$24.99

$

Usually ships in 3-10 days

0

67

RedMax 521609801

DRUM (RPLS 481031120-22)

$47.99

$

In Stock, only 1 left!

0

68

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

69

RedMax 521770801

BEARING
(Superseded to 525953201)

$14.99

$

In Stock, only 1 left!

0

70

RedMax 516124101

RING

$4.99

$

In Stock, only 3 left!

0

71

RedMax 504114301

BOLT

$6.49

$

In Stock, only 2 left!

0

73

RedMax 515391301

BOLT

$4.99

$

In Stock, only 3 left!

0

74

RedMax 511350501

COVER, ENGINE

$10.99

$

In Stock, only 4 left!

0

75

RedMax 521515901

BOLT (RPLS T495051010-11)

$4.99

$

Usually ships in 3-10 days

0

76

RedMax 512328301

SHOE COMP

Note: . 77

$28.99

$

Usually ships in 3-10 days

0

77

RedMax 515389301

SPRING

$6.49

$

In Stock, only 2 left!

0

78

RedMax 513189601

SCREW

$4.99

$

In Stock, only 4 left!

0

79

RedMax 505054401

WASHER

$4.99

$

Usually ships in 3-10 days

0

80

RedMax 513189501

WASHER

$4.99

$

Usually ships in 3-10 days

0

81

RedMax 512328601

CORD-COMP

$10.99

$

In Stock, only 1 left!

0

82

RedMax 521233401

PLUG CMR7H

$4.46

$

Usually ships in 3-10 days

0

83

RedMax 506615901

GROMMET

$3.99

$

Usually ships in 3-10 days

0

84

RedMax 512328801

RECOIL ASSY

Note: . 84 85 86-92

$66.99

$

Usually ships in 3-10 days

0

85

RedMax 504114701

REEL

$11.99

$

In Stock, only 2 left!

0

86

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

87

RedMax 504115001

SPRING, SPIRAL
(Superseded to 516541701)

$11.99

$

In Stock, only 2 left!

0

88

RedMax 504114601

COLLAR
(Superseded to 521327101)

$7.49

$

In Stock, Qty 10

0

89

RedMax 504114801

SWING ARM

$7.49

$

In Stock, Qty 10

0

90

RedMax 504114901

ROPE

$9.49

$

In Stock, only 1 left!

0

91

RedMax 506614701

KNOB

$6.99

$

In Stock, only 2 left!

0

92

RedMax 515385601

PLATE.STOPPER

$3.99

$

In Stock, only 1 left!

0

93

RedMax 504114401

PULLEY

$9.99

$

In Stock, only 2 left!

0

94

RedMax 506745601

BOLT

$3.99

$

In Stock, only 2 left!

0

95

RedMax 528074901

CLEANER BODY ASSY

Note: . 96 97 98

$24.99

$

In Stock, only 2 left!

0

96

RedMax 528074301

PLATE, CHOKE

$4.99

$

Usually ships in 3-10 days

0

97

RedMax 528074401

LEVER

$4.99

$

In Stock, only 4 left!

0

98

RedMax 506673801

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

99

RedMax 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

100

RedMax 528075001

%CLEANER COVER ASSY
(Superseded to 575832701)

Note: . 101

$11.99

$

Usually ships in 3-10 days

0

101

RedMax 528074601

Cleaner Knob

$6.49

$

Usually ships in 3-10 days

0

102

RedMax 528050101

TANK ASSY
(Superseded to 581493301)

Note: . 103 104 105-110

$87.99

$

In Stock, only 1 left!

0

103

RedMax 505309601

CAP A

Note: . 104 105 106 107

$11.99

$

In Stock, only 3 left!

0

104

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

105

RedMax 506744301

PACKING

$4.99

$

Usually ships in 3-10 days

0

106

RedMax 506746801

FILTER

$6.49

$

In Stock, only 2 left!

0

107

RedMax 506745801

STOPPER

$4.99

$

In Stock, only 3 left!

0

108

RedMax 521754601

PIPE-C
(Superseded to 579138307)

$

$

Not available

109

RedMax 506614601

FILTER
(Superseded to 520953501)

$10.99

$

Usually ships in 3-10 days

0

110

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, only 4 left!

0

111

RedMax 515391301

BOLT

$4.99

$

In Stock, only 3 left!

0

112

RedMax 512326501

GUARD

$

$

Not available

113

RedMax 528052501

LABEL, RECOIL

$4.99

$

In Stock, only 2 left!

0

118

RedMax 506744201

COVER

$9.99

$

In Stock, only 1 left!

0

119

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

120

RedMax 511349501

Plate

$6.49

$

Usually ships in 3-10 days

0

121

RedMax 504119601

BOLT 08

$4.99

$

In Stock, Qty 5

0

122

RedMax 528074801

PLATE

$4.99

$

Usually ships in 3-10 days

0

123

RedMax 523071401

LABEL

$7.49

$

Usually ships in 3-10 days

0
