BCZ 2400 S - RedMax Brushcutter (SN: 200101 & Above) (2003-07) 032 - ENGINE UNIT Parts Diagram

Brushcutter

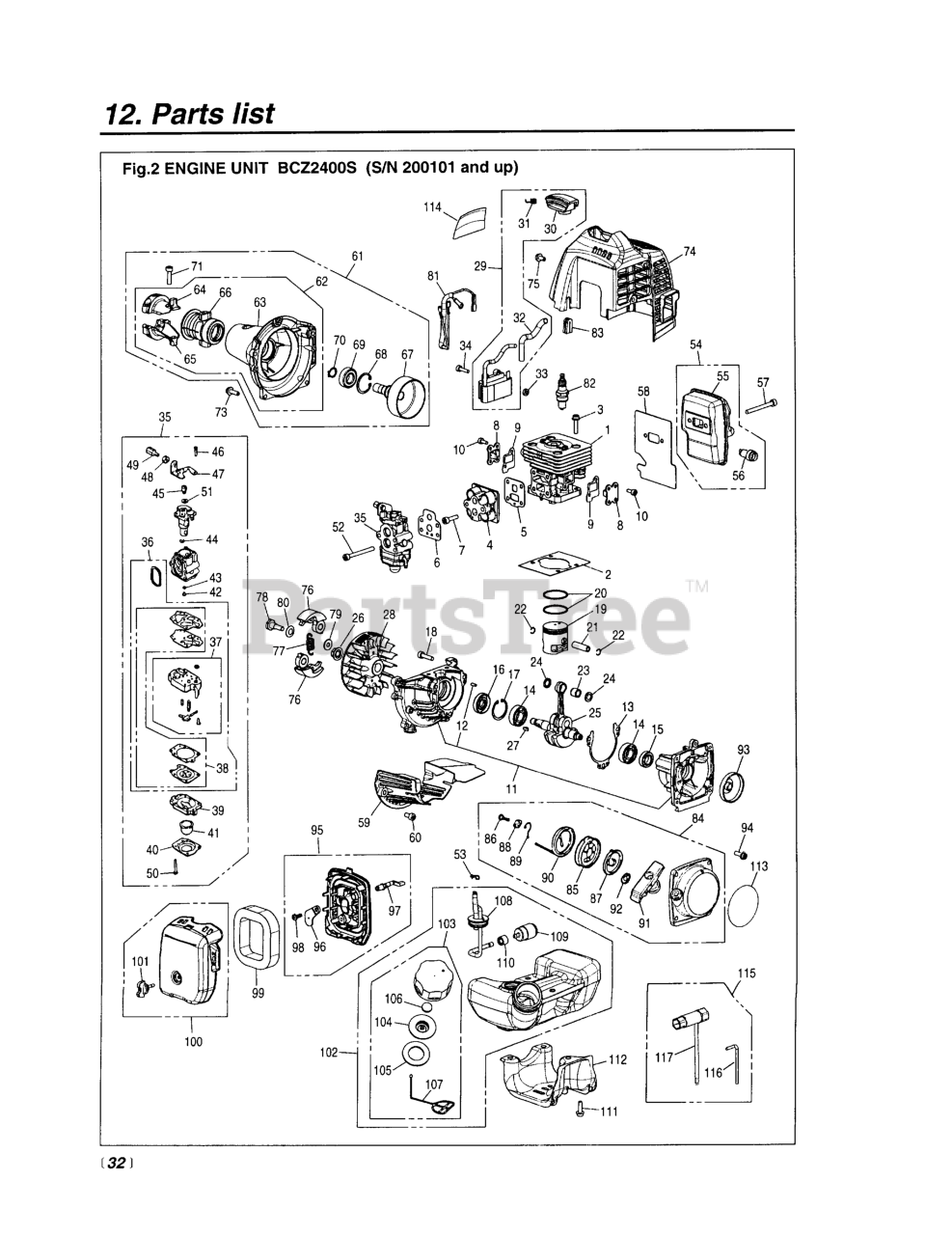

032 - ENGINE UNIT Parts Diagram

  • Title
1

RedMax T155112110

CYLINDER
(Superseded to 512324801)

$39.99

$

Usually ships in 3-10 days

0

2

RedMax T155112211

GASKET, BASE
(Superseded to 521751901)

$6.49

$

In Stock, only 4 left!

0

3

RedMax 482012130

BOLT
(Superseded to 506616001)

$5.99

$

In Stock, only 3 left!

0

4

RedMax T155113161

INSULATOR
(Superseded to 521604601)

$

$

Not available

5

RedMax T155113121

GASKET, INSULATOR
(Superseded to 512325101)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax T155113131

GASKET, CARB.
(Superseded to 521755001)

$4.99

$

In Stock, only 2 left!

0

7

RedMax T495052001

BOLT, TORX
(Superseded to 506689001)

$6.49

$

In Stock, only 2 left!

0

8

RedMax T155116110

COVER, TR
(Superseded to 512325601)

$3.49

$

Usually ships in 3-10 days

0

9

RedMax T155116142

GASKET, TR
(Superseded to 521752601)

$

$

Not available

10

RedMax 482016310

BOLT, TORX
(Superseded to 521345601)

$2.49

$

In Stock, Qty 8

0

11

RedMax T155121101

CRANKCASE-C
(Superseded to 512325801)

$13.99

$

Usually ships in 3-10 days

0

12

RedMax 262921130

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

13

RedMax T155121141

GASKET, CASE
(Superseded to 506684801)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 0603006001

BEARING
(Superseded to 523071701)

$12.99

$

In Stock, only 1 left!

0

15

RedMax 481021210

SEAL
(Superseded to 504121501)

$9.99

$

Usually ships in 3-10 days

0

16

RedMax 185021220

SEAL, OIL (RPLS 1140-21220)
(Superseded to 506612901)

$6.49

$

In Stock, only 2 left!

0

17

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

18

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

19

RedMax T155141110

848-F00-41A1
(Superseded to 521604901)

$

$

Not available

20

RedMax 591041210

RING, PISTON
(Superseded to 529251001)

$7.49

$

In Stock, only 4 left!

0

21

RedMax 160041310

PIN, PISTON
(Superseded to 516385601)

$10.99

$

In Stock, only 1 left!

0

22

RedMax 126041320

RING, SNAP (RPLS 1101-41320)
(Superseded to 505045201)

$4.99

$

In Stock, Qty 11

0

23

RedMax T155141410

BEARING
(Superseded to 506685001)

$10.99

$

Usually ships in 3-10 days

0

24

RedMax 110141340

WASHER
(Superseded to 516181201)

$

$

Not available

25

RedMax T155142000

CRANKSHAFT COMP.

$116.40

$

Usually ships in 3-10 days

0

26

RedMax 165043230

182301
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

27

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 481071110

ROTOR
(Superseded to 515384501)

$48.99

$

Usually ships in 3-10 days

0

29

RedMax T155171200

COIL-A
(Superseded to 512328501)

$68.99

$

In Stock, only 1 left!

0

30

RedMax 481072111

CAP (RPLS 4810-72110)
(Superseded to 521610001)

$9.99

$

In Stock, only 2 left!

0

31

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

Usually ships in 3-10 days

0

$1.19

$

Usually ships in 3-10 days

0

33

RedMax 126071261

SPACER (RPLS -71260)
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 482072150

BOLT TORX
(Superseded to 506745701)

$3.99

$

In Stock, Qty 18

0

35

RedMax T155181001

848-F00-8102
(Superseded to 511341501)

$

$

Not available

36

RedMax T155106030

REBUILD KIT
(Superseded to 521751701)

$

$

Not available

37

RedMax T155181450

BODY-A
(Superseded to 521754201)

$

$

Not available

38

RedMax 481006021

KIT, GASKET (REPLACES-06020)
(Superseded to 506615501)

$74.99

$

Usually ships in 3-10 days

0

39

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

40

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 8

0

41

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

42

RedMax T150581250

JET
(Superseded to 521748401)

$14.99

$

Usually ships in 3-10 days

0

43

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

44

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

46

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

47

$7.42

$

Usually ships in 3-10 days

0

48

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

49

RedMax 191881170

SCREW, CABLE ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

50

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

51

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

52

RedMax 482015310

BOLT
(Superseded to 504116501)

$4.99

$

In Stock, Qty 10

0

53

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, Qty 10

0

54

RedMax 481015100

MUFFLER ASSEMBLY
(Superseded to 515379901)

$

$

Not available

55

RedMax 481015111

MUFFLER (REPLACES -15110)
(Superseded to 515379901)

$

$

Not available

56

RedMax 481015140

ARRESTER
(Superseded to 506615601)

$9.99

$

In Stock, only 1 left!

0

57

RedMax 482015310

BOLT
(Superseded to 504116501)

$4.99

$

In Stock, Qty 10

0

58

RedMax T155115210

GASKET, MUFFLER
(Superseded to 512325401)

$8.99

$

Usually ships in 3-10 days

0

59

RedMax T155115220

PLATE
(Superseded to 506629601)

$5.99

$

In Stock, only 1 left!

0

60

RedMax 482012350

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

61

RedMax 848F0041A1

PISTON (RPLS T1551-41110)
(Superseded to 521604901)

$

$

Not available

62

RedMax T155131100

HOUSING COMP (RPLS. -31110)
(Superseded to 512326201)

$

$

Not available

63

RedMax T155131110

T1551-31100

$

$

Not available

64

RedMax T170031212

BRACKET (A) (RPLS -31211)
(Superseded to 521768201)

$8.99

$

Usually ships in 3-10 days

0

65

RedMax T170031221

BRACKET (B)
(Superseded to 521768301)

$9.99

$

In Stock, only 1 left!

0

66

RedMax T170031232

CUSHION (RPLS -31231)
(Superseded to 512360501)

$24.99

$

Usually ships in 3-10 days

0

67

RedMax 481031122

848-F30-51A1
(Superseded to 521609801)

$47.99

$

In Stock, only 1 left!

0

68

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

69

RedMax T170131150

BEARING
(Superseded to 525953201)

$14.99

$

In Stock, only 1 left!

0

70

RedMax 0406401210

RING, SNAP (RPLS 3130-13270)
(Superseded to 516124101)

$4.99

$

In Stock, only 3 left!

0

71

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

73

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

74

RedMax T155132111

COVER, ENGINE
(Superseded to 512326601)

$15.99

$

Usually ships in 3-10 days

0

75

RedMax T495051011

848-815-1002
(Superseded to 521515901)

$4.99

$

Usually ships in 3-10 days

0

76

RedMax T155151111

SHOE
(Superseded to 512328401)

$

$

Not available

77

RedMax 482051220

SPRING
(Superseded to 515389301)

$6.49

$

In Stock, only 2 left!

0

78

RedMax 114051250

BOLT
(Superseded to 513189601)

$4.99

$

In Stock, only 4 left!

0

79

RedMax 114051230

WASHER, FLAT (USE 182303)
(Superseded to 516207701)

$4.99

$

Usually ships in 3-10 days

0

80

RedMax 114051242

WASHER (RPLS -51241)
(Superseded to 513189501)

$4.99

$

Usually ships in 3-10 days

0

81

RedMax T155173200

CORD COMP.
(Superseded to 512328601)

$10.99

$

In Stock, only 1 left!

0

82

RedMax T110873110

SPARK PLUG (CMR7H)
(Superseded to 544260901)

$4.46

$

Usually ships in 3-10 days

0

83

RedMax 481072120

GROMMET
(Superseded to 521342501)

$3.99

$

Usually ships in 3-10 days

0

84

RedMax T155175100

RECOIL-A
(Superseded to 512328801)

$66.99

$

Usually ships in 3-10 days

0

85

RedMax 450075120

REEL
(Superseded to 504114701)

$18.99

$

In Stock, Qty 10

0

86

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

87

RedMax 185075130

SPRING, SPIRAL
(Superseded to 504115001)

$18.99

$

In Stock, Qty 10

0

88

RedMax 450075180

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 10

0

89

RedMax 450075190

ARM
(Superseded to 504114801)

$7.49

$

In Stock, Qty 10

0

90

RedMax 481075160

ROPE (REPLACES 4500-75160)
(Superseded to 504114901)

$9.49

$

In Stock, only 1 left!

0

91

RedMax 333075421

KNOB (RPLS -75420)
(Superseded to 506614701)

$6.99

$

In Stock, only 2 left!

0

92

RedMax 481075170

PLATE, STOPPER
(Superseded to 521342901)

$3.99

$

In Stock, only 1 left!

0

93

RedMax 450075210

PULLEY
(Superseded to 504114401)

$9.99

$

In Stock, only 2 left!

0

94

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

95

RedMax T155182100

848-F00-8310
(Superseded to 521605001)

$14.99

$

Usually ships in 3-10 days

0

96

RedMax T151282130

PLATE, CHOKE
(Superseded to 521750101)

$3.49

$

Usually ships in 3-10 days

0

97

RedMax T160082140

LEVER
(Superseded to 521760501)

$4.99

$

In Stock, only 4 left!

0

98

RedMax T110882190

SCREW
(Superseded to 521740901)

$4.99

$

In Stock, Qty 9

0

99

RedMax T155182170

ELEMENT
(Superseded to 512329601)

$7.49

$

Usually ships in 3-10 days

0

100

RedMax T155182200

848-F62-8320
(Superseded to 521617701)

$

$

Not available

101

RedMax T110882220

KNOB
(Superseded to 506673901)

$3.49

$

In Stock, Qty 6

0

102

RedMax T155185001

TANK-A
(Superseded to 581493301)

$87.99

$

In Stock, only 1 left!

0

103

RedMax T101585202

CAP ASSY (RPLS -85201)
(Superseded to 504117701)

$30.99

$

In Stock, only 2 left!

0

104

RedMax 450085300

HOLDER (REPLACES -85230)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

105

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

Usually ships in 3-10 days

0

106

RedMax 560185260

FILTER
(Superseded to 506746801)

$6.49

$

In Stock, only 2 left!

0

107

RedMax 482085260

STOPPER
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

108

$

$

Not available

109

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

110

RedMax 284131280

1260-85460
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

111

RedMax 482085510

BOLT
(Superseded to 515391301)

$4.99

$

In Stock, only 3 left!

0

112

RedMax T155131910

GUARD, TANK
(Superseded to 512326501)

$

$

Not available

113

RedMax T155175410

LABEL, RECOIL
(Superseded to 521754001)

$

$

Not available

114

RedMax T155131130

LABEL, COVER

$

$

Not available

115

$11.09

$

Usually ships in 3-10 days

0

116

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

117

$11.01

$

Usually ships in 3-10 days

0
