BCZ 2400 S - RedMax Brushcutter (SN: 200101 & Above) (2002-09) 030 - DRIVE/BLADE/ACCESSORIES Parts Diagram

Brushcutter

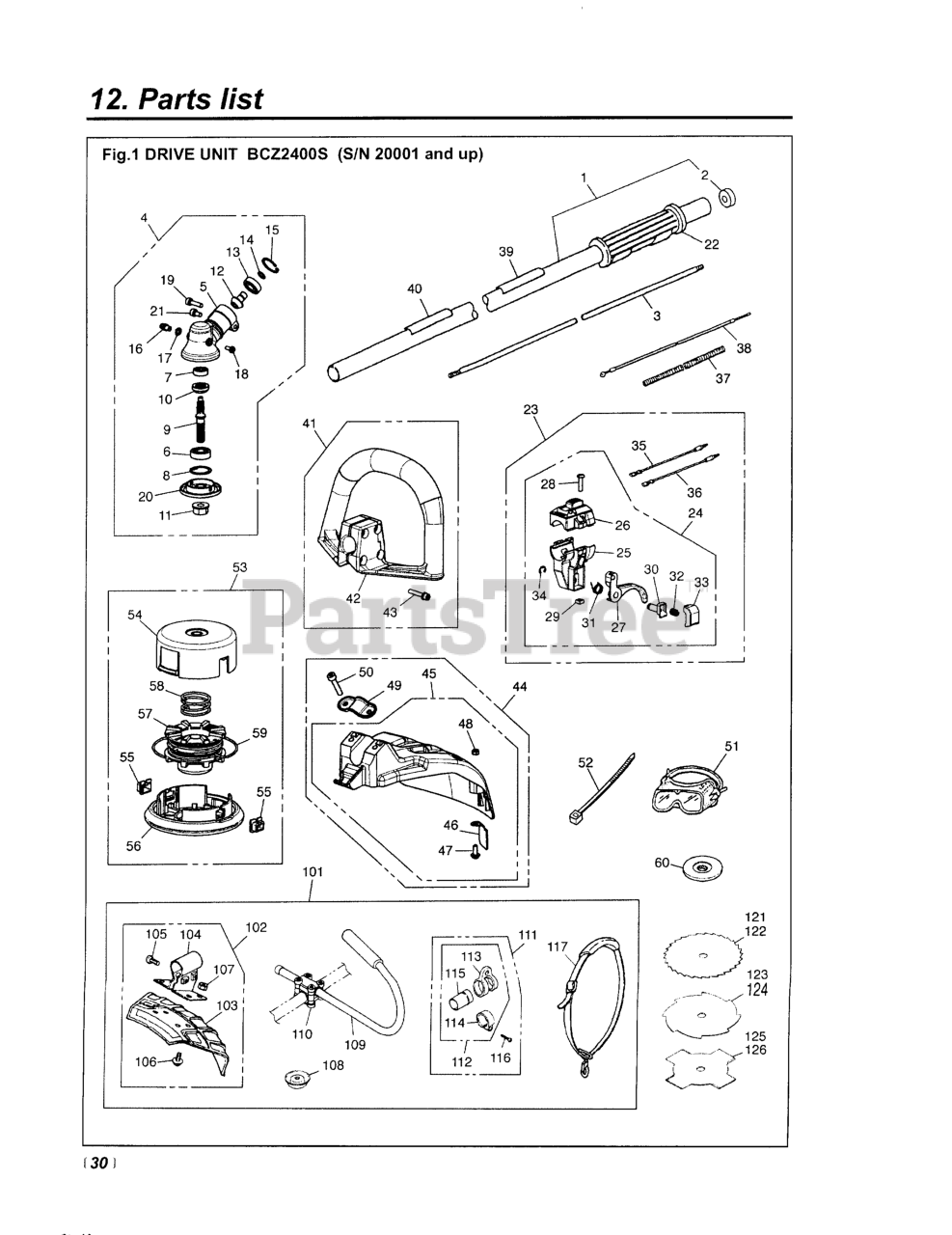

030 - DRIVE/BLADE/ACCESSORIES Parts Diagram

  • Title
1

RedMax T310812100

PIPE COMP
(Superseded to 512530401)

$66.99

$

Usually ships in 3-10 days

0

2

RedMax T340012130

SEAL
(Superseded to 521825401)

$4.99

$

In Stock, only 3 left!

0

3

RedMax 352012213

SHAFT (RPLS -12212)
(Superseded to 514344201)

$53.99

$

Usually ships in 3-10 days

0

4

RedMax T319531001

GEARCASE ASSY.
(Superseded to 526056701)

$

$

Not available

5

RedMax T330091320

GEARCASE
(Superseded to 526056701)

$

$

Not available

6

RedMax 0600406000

BEARING
(Superseded to 516131201)

$18.99

$

Usually ships in 3-10 days

0

7

RedMax 0600000626

BEARING (RPLS T3300-13521)
(Superseded to 516127701)

$7.99

$

Usually ships in 3-10 days

0

8

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

9

RedMax T319513210

SHAFT
(Superseded to 512553301)

$27.99

$

Usually ships in 3-10 days

0

10

RedMax T330093250

GEAR
(Superseded to 512574101)

$40.99

$

Usually ships in 3-10 days

0

11

RedMax T300213260

NUT
(Superseded to 521804001)

$4.99

$

In Stock, Qty 7

0

12

RedMax T319513310

PINION
(Superseded to 510997501)

$42.99

$

Usually ships in 3-10 days

0

13

RedMax 0600100609

BEARING (RPLS T3300-13531)
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

14

RedMax 321013330

RING, SNAP (RPLS T3300-13330)
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

15

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

17

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

$0.17

$

Usually ships in 3-10 days

0

19

RedMax 482013180

BOLT (RPLS 2850-14220)
(Superseded to 504114301)

$6.49

$

In Stock, only 2 left!

0

20

RedMax T330091340

HOLDER (A)
(Superseded to 512573801)

$

$

Not available

21

RedMax 482012350

BOLT
(Superseded to 504119601)

$4.99

$

In Stock, Qty 5

0

22

RedMax 357732141

GRIP (RPLS 3577-32140 & 3220-
(Superseded to 521651001)

$

$

Not available

23

RedMax T300212202

T3002-12203
(Superseded to 521529701)

$

$

Not available

24

RedMax 611014412

LEVER (USE 848-8R2-0313)
(Superseded to 521529601)

$

$

Not available

$

$

Not available

26

RedMax 61101441002

COVER (USE 848-8RA-0340)

$

$

Not available

27

RedMax T30021220203

FLEX, TRIGGER
(Superseded to 570907201)

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

31

$

$

Not available

32

$

$

Not available

$4.10

$

Usually ships in 3-10 days

0

34

$

$

Not available

35

RedMax T300212220

CORD (A), BLACK
(Superseded to 521803401)

$8.49

$

In Stock, only 1 left!

0

36

RedMax T300212230

CORD (B), RED
(Superseded to 521803501)

$5.99

$

Usually ships in 3-10 days

0

37

RedMax T300314510

TUBE
(Superseded to 521805501)

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 185582100

CABLE COMP (RPLS 1633-83100)
(Superseded to 513422001)

$

$

Not available

39

RedMax T319512510

PLATE, NAME
(Superseded to 574161101)

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 642512552

PLATE, CAUTION

$2.96

$

Usually ships in 3-10 days

0

41

RedMax T319514002

HANDLE ASSY. (REPLACES -14001)
(Superseded to 526056401)

$26.99

$

In Stock, only 3 left!

0

42

RedMax T319514102

HANDLE T
(Superseded to 512553501)

$

$

Not available

43

RedMax T496053030

SCREW
(Superseded to 521863101)

$3.49

$

In Stock, Qty 11

0

44

RedMax T319524003

GUARD ASSY. (RPLS -24002)
(Superseded to 512553601)

$

$

Not available

45

RedMax T319524103

GUARD COMP.
(Superseded to 521820101)

$

$

Not available

46

RedMax T300224121

BLADE (RPLS T3002-24120)
(Superseded to 521804401)

$7.49

$

In Stock, only 3 left!

0

47

RedMax T496051431

SCREW TORX
(Superseded to 502843901)

$6.49

$

In Stock, only 2 left!

0

48

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, Qty 6

0

49

RedMax 352024120

CLAMP (REPLACES 5807-24120)
(Superseded to 521160201)

$

$

Not available

50

RedMax T495063000

BOLT, TORX
(Superseded to 512846401)

$8.99

$

In Stock, only 4 left!

0

51

RedMax T300291190

GOGGLE
(Superseded to 510989401)

$

$

Not available

$0.00

$

Usually ships in 3-10 days

0

53

RedMax PT104 PLUS

TAP HEAD COMP.

$

$

Not available

54

RedMax T318915112

CASE (REPLACES -15111)
(Superseded to 521540701)

$20.99

$

In Stock, only 2 left!

0

55

RedMax T318915191

EYELET
(Superseded to 512549801)

$5.99

$

In Stock, Qty 5

0

56

RedMax T318915132

COVER (REPLACES -15131)
(Superseded to 521819401)

$22.99

$

In Stock, only 4 left!

0

57

RedMax T318915142

HOLDER, CORD (REPLACES-15141)
(Superseded to 521819501)

$17.99

$

In Stock, Qty 13

0

58

RedMax T318915160

SPRING
(Superseded to 521819601)

$4.99

$

In Stock, Qty 5

0

59

RedMax T318915180

CORD
(Superseded to 521819701)

$

$

Not available

60

RedMax 601913250

HOLDER (B)
(Superseded to 515511401)

$13.99

$

Usually ships in 3-10 days

0

101

RedMax T319594000

BLADE KIT (BC00090)
(Superseded to BC00090)

$

$

Not available

102

RedMax 576424000

GUARD ASSY.
(Superseded to 521387001)

$

$

Not available

103

RedMax 576624110

GUARD (ACC.)
(Superseded to 515476201)

$11.99

$

Usually ships in 3-10 days

0

104

$6.80

$

Usually ships in 3-10 days

0

105

RedMax 022510620

BOLT
(Superseded to 516089301)

$3.49

$

Usually ships in 3-10 days

0

106

RedMax 026330614

SCREW
(Superseded to 516111001)

$

$

Not available

107

RedMax 028010605

NUT, M6 X 5
(Superseded to 510486101)

$3.49

$

In Stock, Qty 5

0

108

RedMax 354013283

COVER
(Superseded to 514358301)

$10.99

$

In Stock, only 2 left!

0

109

RedMax 636714200

HANDLE, J

$

$

Not available

110

RedMax 358314101

BRACKET ASSY (REPLACES -14100)
(Superseded to 521210301)

$22.99

$

Usually ships in 3-10 days

0

111

RedMax 642017300

HANGER ASSEMBLY
(Superseded to 521466301)

$

$

Not available

112

RedMax 642017400

HANGER COMPLETE
(Superseded to 521466401)

$14.99

$

Usually ships in 3-10 days

0

113

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

114

RedMax 936617120

CLAMP
(Superseded to 515903701)

$

$

Not available

115

RedMax 642017410

SLEEVE
(Superseded to 515626001)

$2.49

$

Usually ships in 3-10 days

0

116

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

117

RedMax T330017100

STRAP ASSY.
(Superseded to 521651101)

$15.99

$

In Stock, only 2 left!

0

121

RedMax SST229

BLADE, 9
(Superseded to 574159301)

$

$

Not available

122

RedMax SST249

BLADE, 9
(Superseded to 574159401)

$

$

Not available

123

RedMax SGB088

BLADE, 8
(Superseded to 574158501)

$

$

Not available

124

RedMax SGB089

BLADE, 9
(Superseded to 574158601)

$31.99

$

Usually ships in 3-10 days

0

125

RedMax SGB048

BLADE, 8
(Superseded to 574158301)

$

$

Not available

126

RedMax SGB049

BLADE, 9
(Superseded to 574158401)

$

$

Not available
