BCZ 230 TS (967194202) - RedMax Brushcutter (2014-09) ENGINE Parts Diagram

Brushcutter

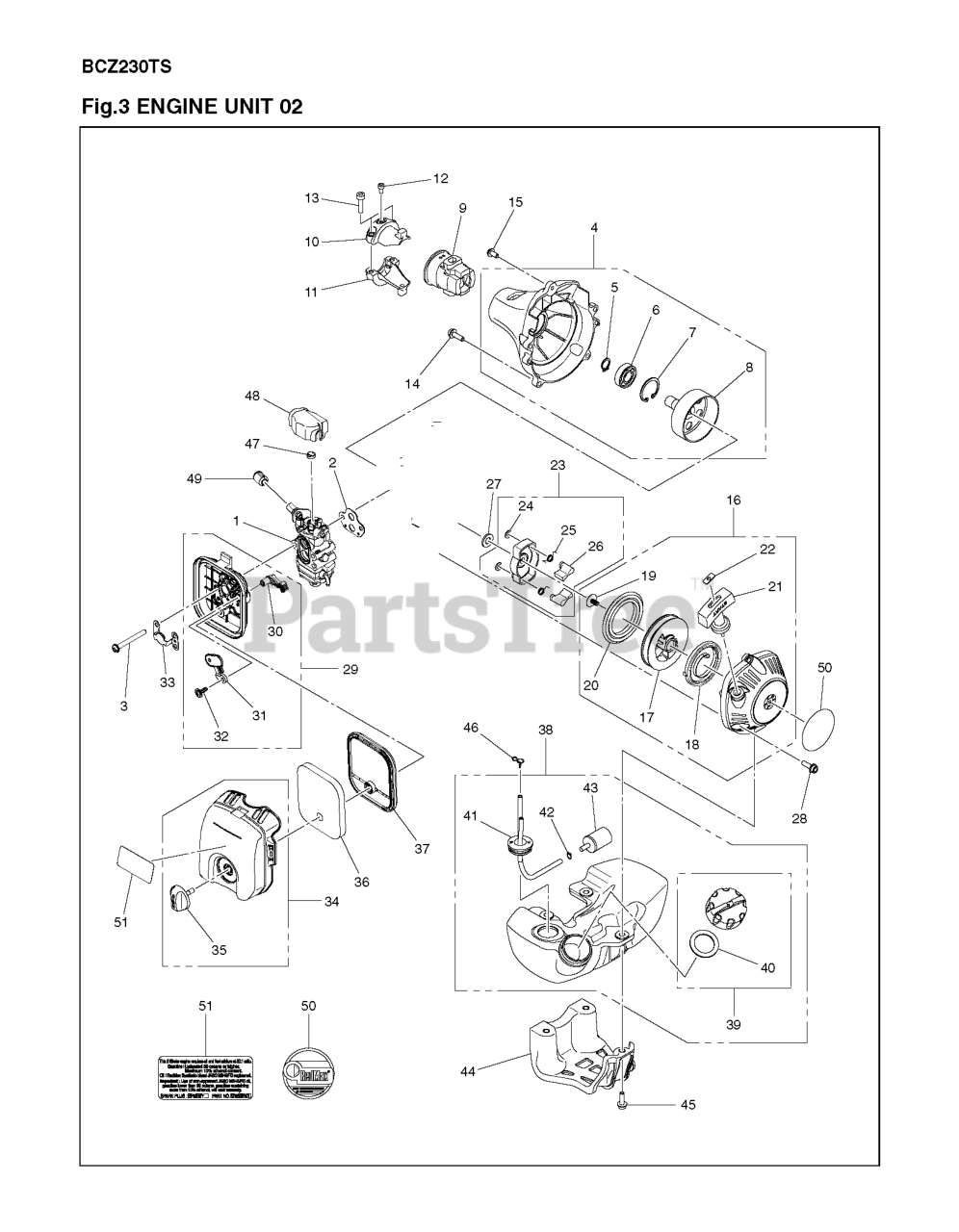

ENGINE Parts Diagram

  • Title

1

RedMax TBD

$

$

Not available

2

RedMax 585809101

GASKET CARBURETOR

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 581241001

SCREW

$4.99

$

In Stock, only 1 left!

0

4

RedMax 581440001

HOUSING ASSY
(Superseded to 581440002)

$56.99

$

Usually ships in 3-10 days

0

5

RedMax 516124101

RING

$4.99

$

In Stock, only 3 left!

0

6

RedMax 525953201

BEARING

$14.99

$

In Stock, only 1 left!

0

7

RedMax 506609901

RING

$4.99

$

In Stock, only 3 left!

0

8

RedMax 581142001

CLUTCH DRUM

$42.99

$

In Stock, Qty 10

0

9

RedMax 576420501

CUSHION UPPER

$17.99

$

In Stock, only 2 left!

0

10

RedMax 576420702

BRACKET UPPER M5X0.8

$10.99

$

In Stock, only 1 left!

0

11

RedMax 576420802

BRACKET LOWER

$17.99

$

In Stock, only 1 left!

0

12

RedMax 529268101

BOLT

$6.49

$

Usually ships in 3-10 days

0

13

RedMax 577942001

BOLT M5X20 T27

$4.99

$

In Stock, only 1 left!

0

14

RedMax 577942301

BOLT M5 X 16

$4.99

$

Usually ships in 3-10 days

0

15

RedMax 578473502

SCREW

$3.49

$

Usually ships in 3-10 days

0

16

RedMax 581209501

STARTER ASSY

$56.99

$

Usually ships in 3-10 days

0

17

RedMax 579064801

STARTER PULLEY

$14.99

$

In Stock, only 2 left!

0

18

RedMax 504115001

SPRING, SPIRAL
(Superseded to 516541701)

$11.99

$

In Stock, only 2 left!

0

19

RedMax 506613001

SCREW
(Superseded to 516541801)

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 581863001

ROPE
(Superseded to 579064601)

$9.49

$

In Stock, only 1 left!

0

21

RedMax 505303401

KNOB

$7.99

$

In Stock, only 1 left!

0

22

RedMax 504114001

KNOB

$

$

Not available

23

RedMax 581146501

STARTER PULLEY ASSY

$18.99

$

Usually ships in 3-10 days

0

24

RedMax 521600401

E-RING

$6.49

$

In Stock, only 2 left!

0

25

RedMax 521600301

SPRING

$7.49

$

In Stock, only 2 left!

0

26

RedMax 521600201

RATCHET

$7.49

$

In Stock, Qty 8

0

27

RedMax 586883501

WASHER T2.0MM

$3.49

$

Usually ships in 3-10 days

0

28

RedMax 510904101

BOLT TORX 8488151600

$4.99

$

Usually ships in 3-10 days

0

29

RedMax 585126401

FILTER HOUSING ASSY

$13.99

$

Usually ships in 3-10 days

0

30

RedMax 528074401

LEVER

$4.99

$

In Stock, only 4 left!

0

31

RedMax 585126301

PLATE
(Superseded to 585126401)

$13.99

$

Usually ships in 3-10 days

0

32

RedMax 581736201

SCREW

$6.49

$

Usually ships in 3-10 days

0

33

RedMax 575750401

PLATE

$4.99

$

In Stock, only 2 left!

0

34

RedMax 575832701

COVER ASSY
(Superseded to 575331103)

$11.99

$

Usually ships in 3-10 days

0

35

RedMax 528074601

Cleaner Knob

$6.49

$

Usually ships in 3-10 days

0

36

RedMax 577633001

AIR FILTER

$6.49

$

In Stock, Qty 5

0

37

RedMax 528074701

ELEMENT
(Superseded to 587930701)

$11.99

$

In Stock, Qty 20+

0

38

RedMax 581470401

ASSY TANK EVAP
(Superseded to 588171114)

$

$

Not available

39

RedMax 576403702

TANK CAP

$

$

Not available

40

RedMax 577048701

GASKET

$4.99

$

In Stock, only 3 left!

0

41

RedMax 579138307

PIPE ASSY

$

$

Not available

42

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, only 4 left!

0

43

RedMax 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

44

RedMax 581463001

SKID PLATE

$5.99

$

In Stock, only 1 left!

0

45

RedMax 521516901

BOLT M5X25

$4.99

$

In Stock, only 4 left!

0

46

RedMax 506741501

CLIP
(Superseded to 513178901)

$4.99

$

In Stock, Qty 10

0

47

RedMax 513352401

CAP

$3.49

$

In Stock, only 1 left!

0

48

RedMax 506744201

COVER

$9.99

$

In Stock, only 1 left!

0

49

RedMax 577133201

JOINT

$4.99

$

Usually ships in 3-10 days

0

50

RedMax 585497801

DECAL STARTER

$4.99

$

Usually ships in 3-10 days

0

51

RedMax 585497601

DECAL , GASOLINE

$3.49

$

Usually ships in 3-10 days

0
