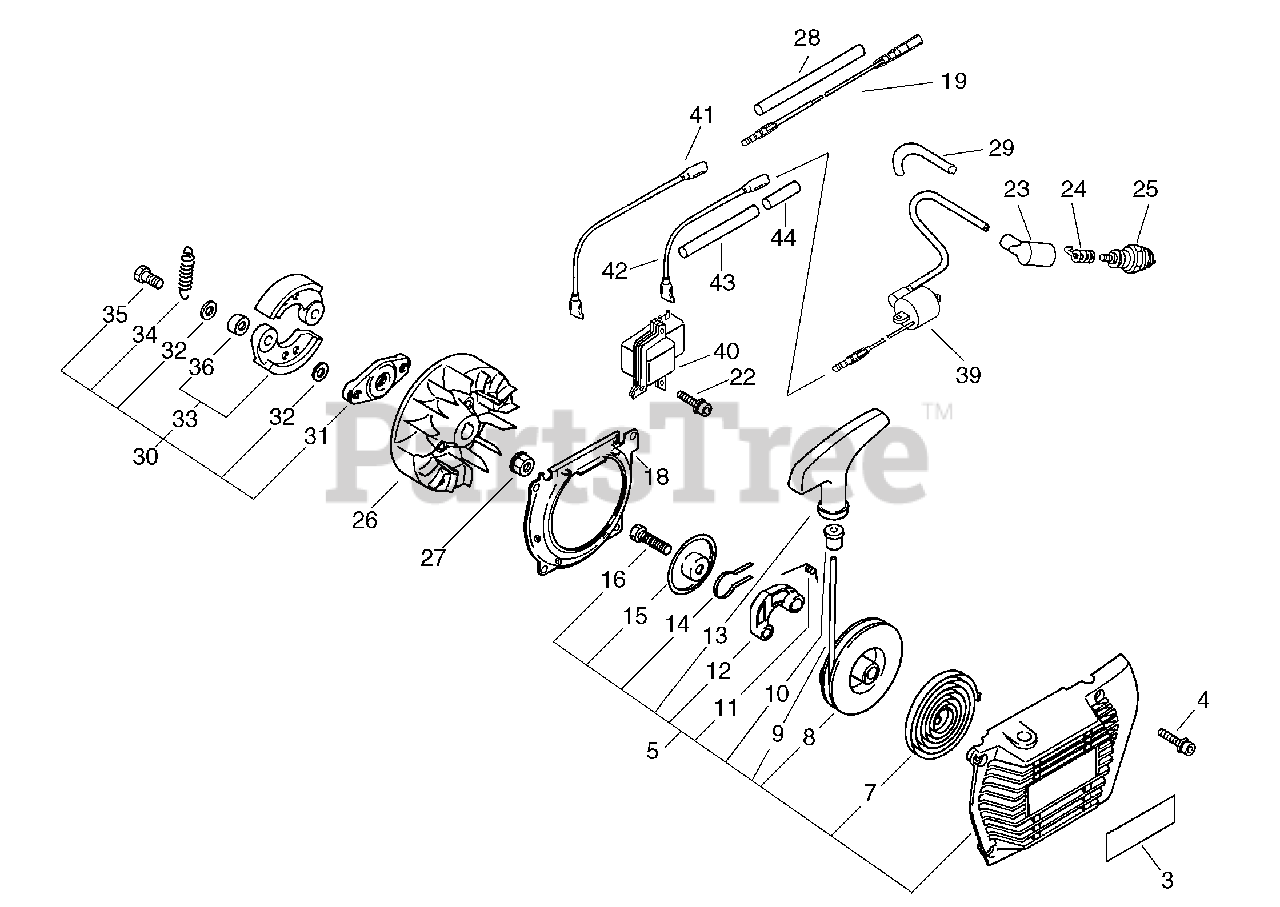

BCLS-580 - Echo Brush Clearing Saw Starter, Magneto, Clutch Parts Diagram

Brush Clearing Saw

Starter, Magneto, Clutch Parts Diagram

  • Title
3

Echo X502000640

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

4

Echo 9111805022

SCREW - 5X22

$1.49

$

Usually ships in 2-4 days

0

5

Echo 17720054432

STARTER ASSY

$97.99

$

Usually ships in 2-4 days

0

7

Echo 17722006230

SPRING, REWIND
(Superseded to 17722000220)

$17.99

$

Usually ships in 2-4 days

0

8

Echo 17721506230

REEL, ROPE

$17.99

$

Usually ships in 2-4 days

0

9

Echo 17722606230

ROPE, STARTER

$6.99

$

Usually ships in 2-4 days

0

10

Echo 17722705530

GUIDE, ROPE

$3.99

$

In Stock, Qty 10

0

11

Echo 17723454430

SPRING, RETURN

$5.49

$

Usually ships in 2-4 days

0

12

Echo 17721854430

PAWL, STARTER

$10.99

$

Usually ships in 2-4 days

0

13

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

14

Echo 17723354430

SPRING, FRICTION

$4.99

$

Usually ships in 2-4 days

0

15

Echo 17721106230

PLATE, FRICTION

$8.49

$

Usually ships in 2-4 days

0

16

Echo 90010006012

SCREW - 6X12

$0.99

$

Usually ships in 2-4 days

0

18

Echo 10151154431

COVER, FAN

$14.99

$

Usually ships in 2-4 days

0

19

$6.99

$

Usually ships in 2-4 days

0

22

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

23

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

25

Echo A425000000

SPARK PLUG -- BPMR-8Y

$3.99

$

In Stock, Qty 20+

0

26

Echo A409000221

FLYWHEEL

$69.99

$

Usually ships in 2-4 days

0

$2.49

$

Usually ships in 2-4 days

0

28

Echo V475001610

TUBE, INSULATOR

$1.99

$

In Stock, only 2 left!

0

$1.49

$

Usually ships in 2-4 days

0

30

Echo 17500054431

CLUTCH ASSY
(Superseded to P021035610)

$116.99

$

Usually ships in 2-4 days

0

31

Echo 17501654430

HUB, CLUTCH

$44.99

$

Usually ships in 2-4 days

0

32

Echo 17501411231

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

33

Echo 17500954430

SHOE, CLUTCH
(Superseded to P021041870)

$32.99

$

Usually ships in 2-4 days

0

34

Echo 17501854430

SPRING, CLUTCH

$5.49

$

Usually ships in 2-4 days

0

35

Echo 17504654430

BOLT, CLUTCH

$8.99

$

Usually ships in 2-4 days

0

36

$5.49

$

Usually ships in 2-4 days

0

39

Echo A411000191

COIL, IGNITION

$66.99

$

Usually ships in 2-4 days

0

40

Echo A410000000

COIL, IGNITION

$132.99

$

Usually ships in 2-4 days

0

41

Echo 16201004561

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

42

Echo V485000510

LEAD - IGNITION

$4.49

$

Usually ships in 2-4 days

0

43

$1.49

$

Usually ships in 2-4 days

0

44

Echo 17801647430

TUBE
(Superseded to Discontinued)

$

$

Not available
