BCLS-580 - Echo Brush Clearing Saw Carburetor Parts Diagram

Brush Clearing Saw

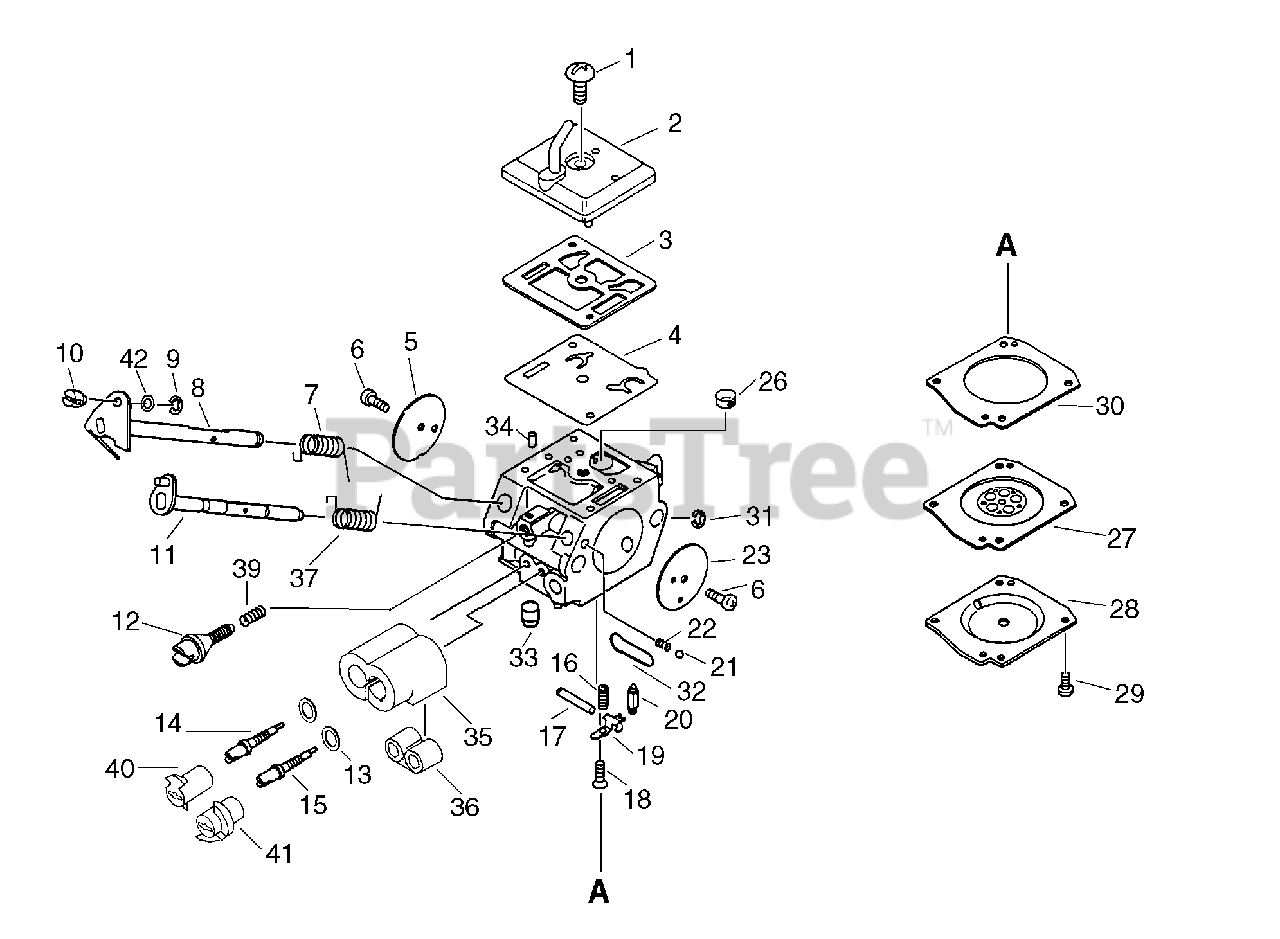

Carburetor Parts Diagram

  • Title

Echo A021000951

CARBURETOR
(Superseded to A021000952)

$160.99

$

Usually ships in 2-4 days

0

1

Echo 12531013930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

2

Echo 12532454430

COVER, PUMP

$18.99

$

Usually ships in 2-4 days

0

3

Echo P005001430

GASKET, PUMP

$3.99

$

Usually ships in 2-4 days

0

4

Echo P005001420

DIAPHRAGM, PUMP

$3.99

$

Usually ships in 2-4 days

0

5

Echo 12531654430

VALVE, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, only 1 left!

0

7

Echo 12531354430

SPRING, RETURN

$4.99

$

Usually ships in 2-4 days

0

8

Echo P005001610

SHAFT, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

9

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

10

P005-001860

SWIVEL

$

$

Not available

11

Echo P005001490

SHAFT, CHOKE

$28.99

$

Usually ships in 2-4 days

0

12

Echo P005001480

SCREW, THROTTLE ADJUST

$6.99

$

Usually ships in 2-4 days

0

13

$0.99

$

Usually ships in 2-4 days

0

14

Echo P005001460

NEEDLE - LOW SPEED

$7.49

$

Usually ships in 2-4 days

0

15

Echo P005001450

NEEDLE - HIGH SPEED

$6.99

$

Usually ships in 2-4 days

0

16

$1.49

$

Usually ships in 2-4 days

0

17

Echo 12533813930

PIN, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

18

Echo 12533913930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 4 left!

0

19

Echo 12532308260

LEVER, METERING

$6.49

$

Usually ships in 2-4 days

0

20

Echo 12533708260

VALVE, INLET NEEDLE

$16.99

$

Usually ships in 2-4 days

0

21

Echo 12533633330

BALL, CHOKE

$1.49

$

Usually ships in 2-4 days

0

22

Echo 12533533330

SPRING
(Superseded to Discontinued)

$

$

Not available

23

Echo 12533233330

VALVE, CHOKE

$5.49

$

Usually ships in 2-4 days

0

26

Echo 12532608360

STRAINER

$3.49

$

Usually ships in 2-4 days

0

27

Echo 12534154430

DIAPHRAGM

$39.99

$

Usually ships in 2-4 days

0

28

Echo P005001850

COVER, DIAPHRAGM

$8.49

$

Usually ships in 2-4 days

0

29

$0.99

$

In Stock, Qty 8

0

30

Echo P005001440

GASKET, METERING

$2.99

$

Usually ships in 2-4 days

0

31

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

32

Echo 12534515130

PLUG, WELCH
(Superseded to 12530015130)

$12.99

$

In Stock, only 1 left!

0

33

Echo P005001470

NOZZLE, CHECK VALVE

$4.49

$

Usually ships in 2-4 days

0

34

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

35

Echo P005001510

RETAINER, LIMITER CAP

$4.99

$

Usually ships in 2-4 days

0

36

Echo P005001500

SCREW, BOOT ADJUST

$7.99

$

Usually ships in 2-4 days

0

37

Echo P005001560

SPRING, CHOKE RETURN

$2.49

$

Usually ships in 2-4 days

0

39

Echo 12533308560

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 9

0

40

Echo P005001530

CAP, LIMITER

$6.99

$

Usually ships in 2-4 days

0

41

Echo P005001520

CAP, LIMITER

$6.49

$

Usually ships in 2-4 days

0

42

$2.49

$

Usually ships in 2-4 days

0
