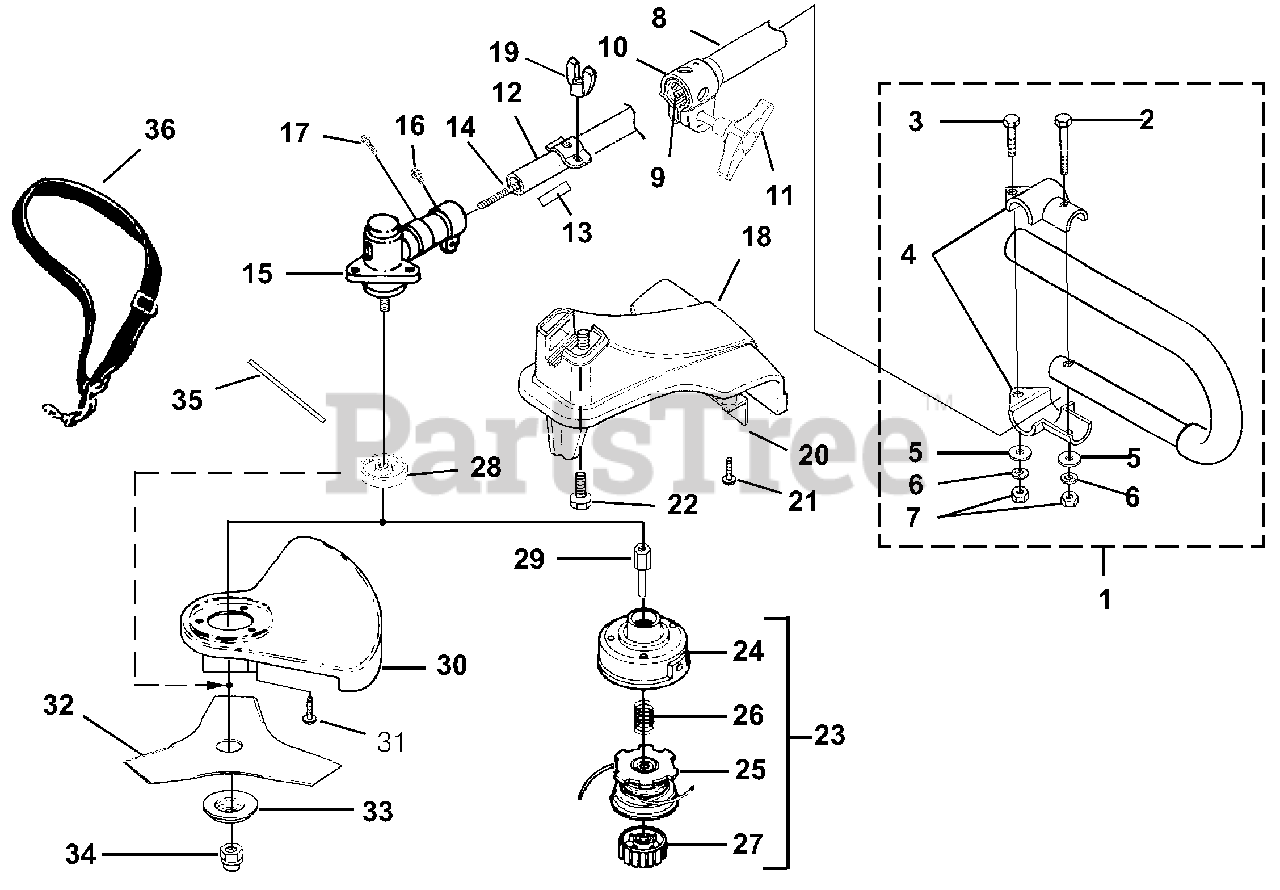

BC 900 (UT-15166) - Homelite Brush Cutter Shaft - Spool & String - Grass Deflector Parts Diagram

Brush Cutter

Shaft - Spool & String - Grass Deflector Parts Diagram

  • Title

1

Homelite UP06534

HANDLE("J")

$

$

Not available

2

Homelite UP04154

SCREW-Hex Hd. (1/4-20 X 1 1/2")
(Superseded to 82278)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite UP04158

SCREW-Hex Hd. (1/4-20 X 1")
(Superseded to 82496)

$

$

Not available

4

Homelite UP04105

CLAMP-Handle Bar
(Superseded to 00422)

$1.49

$

In Stock, only 1 left!

0

5

Homelite UP04251

WASHER-Flat (1/4")
(Superseded to 84004)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite UP03409

WASHER-Lock (1/4")
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

7

Homelite UP03399

NUT-Hex (1/4-20)
(Superseded to 81242)

Note: Torque Spec 90 - 100 in/lbs (10.2 - 11.3 Nm)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite UP05136

DRIVESHAFT HOUSING (Upper)
(Superseded to UP05136A)

$79.99

$

Usually ships in 3-7 days

0

9

Homelite A07667

FLEXSHAFT-w/Collar & Liner
(Superseded to A07667A)

$

$

Not available

10

Homelite UP03839

COUPLER KIT
(Superseded to UP03839A)

$

$

Not available

11

Homelite UP05137

KNOB
(Superseded to PS02071)

$

$

Not available

12

Homelite UP03956

DRIVESHAFT HOUSING (Lower)
(Superseded to UP03956A)

$

$

Not available

13

Homelite UP04116

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

14

Homelite UP04369

SHAFT-Flexible
(Superseded to A07679)

$12.99

$

Usually ships in 3-7 days

0

15

Homelite UP04124

GEAR HEAD
(Superseded to PA01364)

$

$

Not available

16

Homelite UP05572

Screw, Cap Hd. (1/4-20 X 7/8")
(Superseded to 82586)

Note: Torque Spec 15 - 20 in/lbs (1.7 - 2.3 Nm)

$4.99

$

Usually ships in 3-7 days

0

17

Homelite UP04254

Screw-Hex Hd. (10-24 x 1/2")
(Superseded to 88049)

Note: Torque Spec 40 - 50 in/lbs (4.5 - 5.6 Nm)

$

$

Not available

18

Homelite UP05086

GRASS DEFLECTOR KIT
(Superseded to 984821001)

$5.49

$

Usually ships in 3-7 days

0

19

Homelite UP04893

WING NUT
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

20

Homelite UP04890

BLADE-Cut-Off

$

$

Not available

21

Homelite UP03898

SCREW, Thread Form. (10-24 X 3/4")
(Superseded to 82546)

Note: Torque Spec 30 - 50 in/lbs (3.4 - 5.6 Nm)

$1.99

$

In Stock, only 1 left!

0

22

Homelite UP04892

SCREW-Square Head
(Superseded to PS02435)

$3.99

$

In Stock, only 1 left!

0

23

Homelite DA04592A

STRINGHEAD-Complete (.080")
(Superseded to 986797001)

$

$

Not available

24

Homelite UP06567

HOUSING & EYELET (Dual Line)
(Superseded to A98231A)

$

$

Not available

25

Homelite UP00145

SPOOL & STRING (.080")
(Superseded to 308044002)

$

$

Not available

26

Homelite UP06526

SPRING-Compression
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

27

Homelite UP00104

RETAINER-Spool (L.H. Thread, Red)
(Superseded to UP04666)

$7.49

$

In Stock, Qty 5

0

28

Homelite UP04126

WASHER-Flanged
(Superseded to 04168A)

$10.99

$

Usually ships in 3-7 days

0

29

Homelite UP04269

ADAPTER-Shaft
(Superseded to 9855141)

Note: Torque Spec 100 - 120 in/lbs (11.3 - 13.6 Nm)

$

$

Not available

30

Homelite UP05070

BLADE GUARD
(Superseded to 988472)

$32.99

$

Usually ships in 3-7 days

0

31

Homelite UP04254

SCREW
(Superseded to 88049)

Note: Torque Spec 15 - 20 in/lbs (1.7 - 2.3 Nm)

$

$

Not available

32

Homelite D98717C

BLADE-Tri-Arc(TM)
(Superseded to 638006004)

$21.99

$

In Stock, only 1 left!

0

33

Homelite UP04129

WASHER-Cupped (Lower)
(Superseded to 04409)

$3.99

$

In Stock, only 1 left!

0

34

Homelite UP04127

NUT-Hex (L.H.)
(Superseded to 04277)

Note: Torque Spec 100 - 120 in/lbs (11.3 - 13.6 Nm)

$

$

Not available

35

Homelite UP04100

TOOL-Holding Pin
(Superseded to 099078001040)

$2.49

$

In Stock, only 4 left!

0

36

Homelite UP00108

HARNESS
(Superseded to 944701)

$11.99

$

In Stock, only 1 left!

0
