BC 720 (41AJBC-C954) - Cub Cadet Trimmer Plus Brush Cutter Attachment att General Assembly Parts Diagram

Trimmer Plus Brush Cutter Attachment

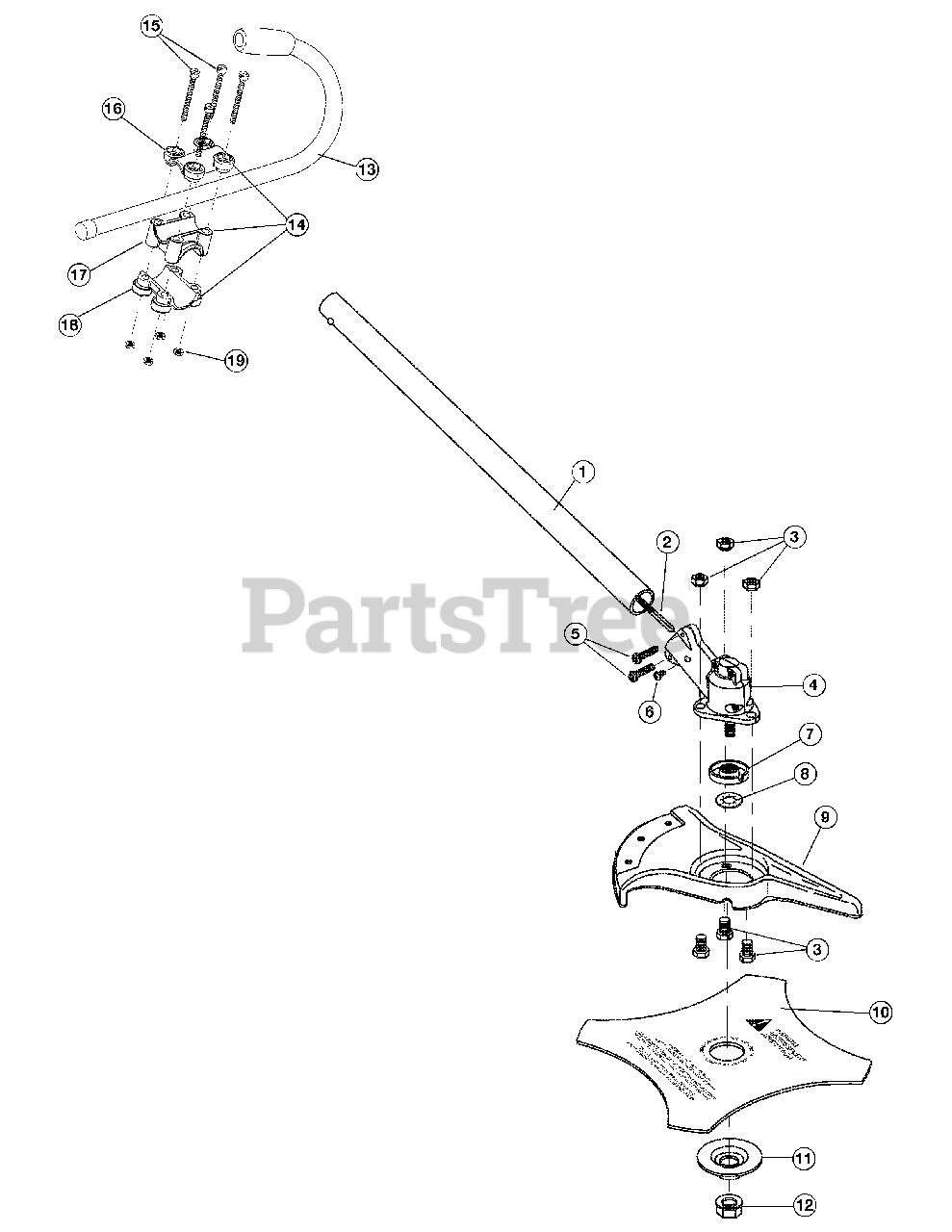

General Assembly Parts Diagram

  • Title

1

Cub Cadet 791-180804

Lower Drive Shaft Housing Assembly

$

$

Not available

2

Cub Cadet 791-613300

Lower Flexible Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

4

Cub Cadet 791-182193

2 Piece Gearbox Assembly

Note: (Incl Ref # 5-6)

$99.99

$

In Stock, only 2 left!

0

5

Cub Cadet 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, only 1 left!

0

6

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

7

Cub Cadet 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-04348

Palnut

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-145873

4-Tooth Blade
(Superseded to 791-145873B)

$42.99

$

In Stock, only 3 left!

0

11

Cub Cadet 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

12

Cub Cadet 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 791-181099

J-Handle Assembly

$

$

Not available

14

Cub Cadet 791-683295

Handle Bracket Assembly

Note: (Incl Ref # 13-18)

$45.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 791-181802

Upper Handle Clamp

$

$

Not available

17

Cub Cadet 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 791-180014B

Blade Retaining Kit

Note: (Incl Ref # 11 & 12) (Not Shown)

$12.99

$

In Stock, only 1 left!

0

Cub Cadet 791-613226

Locking Rod Tool

Note: (Not Shown)

$14.99

$

In Stock, only 1 left!

0

Cub Cadet 791-682075B

Shoulder Harness

Note: (Not Shown)

$38.99

$

Usually ships in 3-6 days

0

Cub Cadet 791-180194

Clamp Shoulder Strap

Note: (Not Shown)

$

$

Not available

Cub Cadet 791-612605

Hanger
(Superseded to 731-08926)

Note: (Not Shown)

$2.99

$

In Stock, only 3 left!

0
