BC 720 (41AJBC-C902) - TrimmerPlus Brush Cutter Attachment General Assembly Parts Diagram

Brush Cutter Attachment

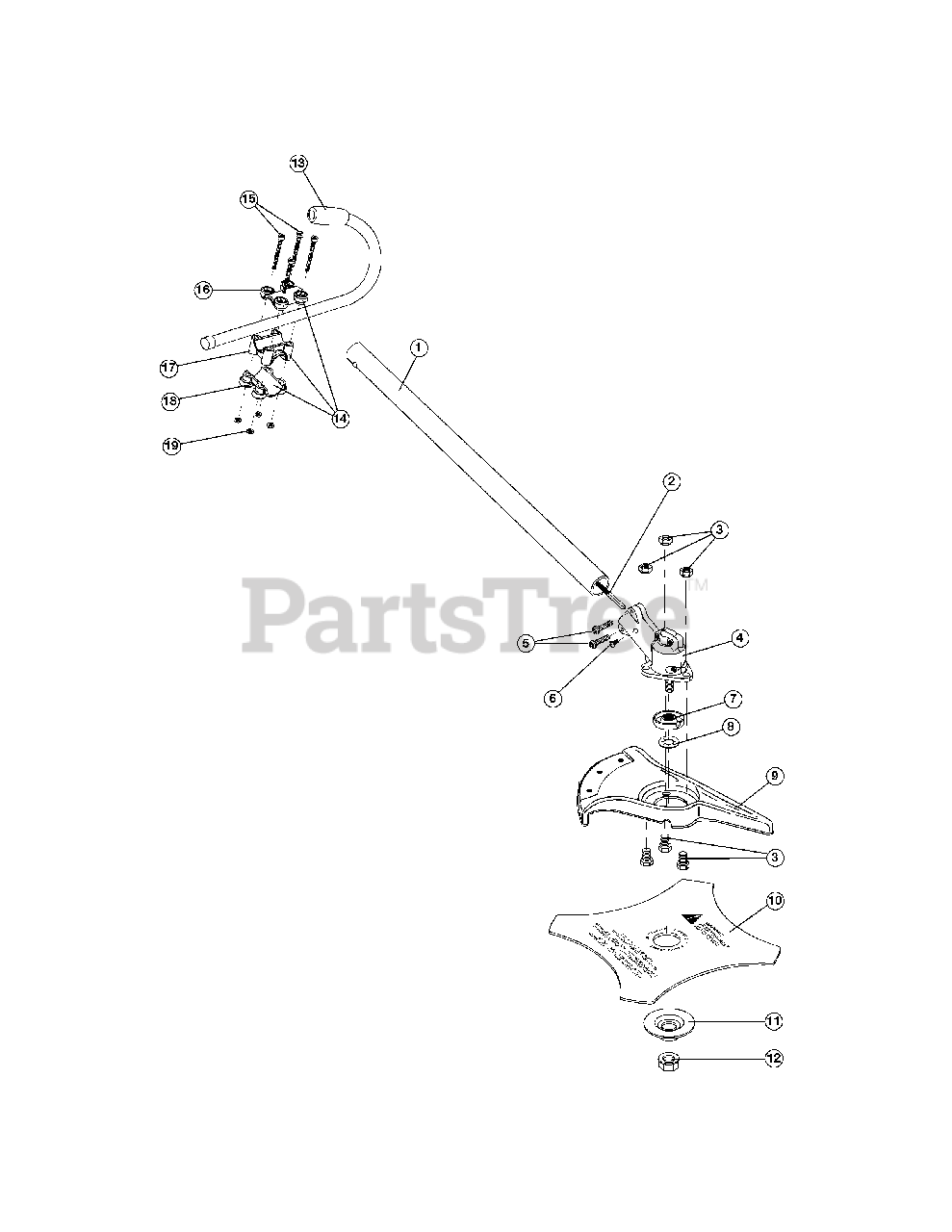

General Assembly Parts Diagram

  • Title
1

MTD 791-180804

Lower Drive Shaft Housing Assembly

$

$

Not available

2

MTD 791-613300

Lower Flexible Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

3

MTD 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

4

MTD 791-182193

2 piece Gearbox Assembly (Incl. Ref No. 5-6)

$99.99

$

In Stock, only 2 left!

0

5

MTD 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

6

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

7

MTD 791-182196

Blade Driver

$22.99

$

In Stock, only 2 left!

0

8

MTD 753-04348

Palnut

$6.99

$

Usually ships in 3-6 days

0

9

MTD 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

10

MTD 791-145873B

4-Tooth Blade

$42.99

$

In Stock, only 4 left!

0

11

MTD 791-147490

Retaining Washer

$11.99

$

In Stock, only 2 left!

0

12

$10.99

$

Usually ships in 3-6 days

0

13

MTD 791-181099

J-Handle Assembly

$

$

Not available

14

MTD 791-683295

Handle Bracket Assembly (Incl. Ref No. 15-18)

$45.99

$

Usually ships in 3-6 days

0

15

$4.99

$

Usually ships in 3-6 days

0

16

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

17

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

18

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0

MTD 791-180014B

Blade Retaining Kit (Incl. Ref No. 11 & 12)

Note: Not Shown

$12.99

$

In Stock, only 1 left!

0

MTD 791-613226

Locking Rod Tool

Note: Not Shown

$14.99

$

In Stock, only 1 left!

0

MTD 791-682075B

Shoulder Harness

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-180194

Clamp Shoulder Strap

Note: Not Shown

$

$

Not available

MTD 791-612605

Hanger
(Superseded to 731-08926)

Note: Not Shown

$2.99

$

In Stock, only 3 left!

0
