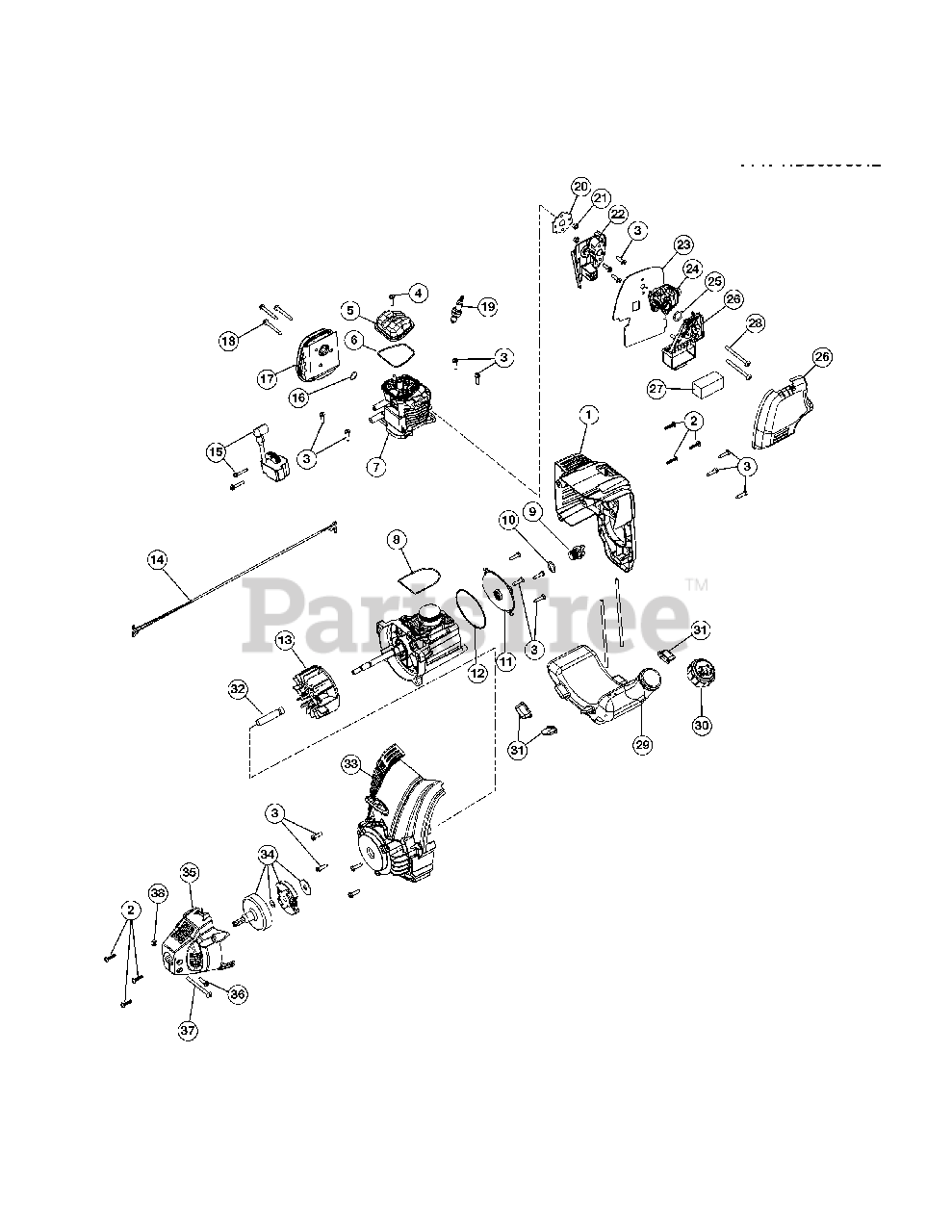

BC 5090 (41BD590C912) - Cub Cadet Brush Cutter (2011) Engine Assembly Parts Diagram

Brush Cutter

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06517

Engine Cover Assembly

Note: (Incl. 2 & 3)

$

$

Not available

2

Cub Cadet 710-04194

Cover Screw

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04604

Housing Screw

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 791-181025

Rocker Cover Screw

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-05901

Rocker Cover

$8.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-05902

Rocker Cover O-Ring

$5.49

$

In Stock, Qty 11

0

7

Cub Cadet 753-06311

Cylinder Assembly

Note: (Incl. 3-6 & 8)

$42.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-05910

Cylinder O-Ring

$3.49

$

In Stock, only 1 left!

0

9

Cub Cadet 753-05408

Oil Plug

Note: (Incl. 10)

$29.99

$

In Stock, only 1 left!

0

10

Cub Cadet 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 9

0

11

Cub Cadet 753-06259

Crankcase Cover

$8.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-05238

Crankcase Cover O-ring

$10.99

$

In Stock, only 1 left!

0

13

Cub Cadet 753-06221

Flywheel Assembly

$21.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-05264

Lead Wires

$16.99

$

In Stock, only 1 left!

0

15

Cub Cadet 753-05301

Module Assembly

$113.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 9

0

17

Cub Cadet 753-05245

Muffler Assembly

Note: (Incl. 16 & 18)

$92.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

19

Cub Cadet 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 7

0

20

Cub Cadet 753-05247

Insulator Gasket

$

$

Not available

21

Cub Cadet 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-05249

Insulator

$18.99

$

In Stock, only 1 left!

0

23

Cub Cadet 753-05366

Carburetor Gasket

$19.99

$

In Stock, Qty 6

0

24

Cub Cadet 753-06220

Carburetor
(Superseded to 753-06220B)

$47.99

$

In Stock, Qty 7

0

25

Cub Cadet 791-181751

O-Ring

$4.49

$

In Stock, Qty 19

0

26

Cub Cadet 753-05252

Air Cleaner Cover Assembly

Note: (Incl. 27)

$27.99

$

In Stock, only 3 left!

0

27

Cub Cadet 753-05254

Air Filter

$5.99

$

In Stock, only 4 left!

0

28

Cub Cadet 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

29

Cub Cadet 753-06240

Fuel Tank Assembly w/Fuel Lines

Note: (Incl. 30)

$29.99

$

In Stock, only 4 left!

0

30

Cub Cadet 753-1229

Fuel Cap

$22.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

32

Cub Cadet 750-04434

Spacer

$6.99

$

In Stock, Qty 14

0

33

Cub Cadet 753-06681

Starter Housing Assembly

Note: (Incl. 3)

$24.99

$

In Stock, only 2 left!

0

34

Cub Cadet 753-06281

Clutch Assembly

$22.99

$

In Stock, only 4 left!

0

35

Cub Cadet 753-05263

Clutch Cover

Note: (Incl. 2)

$27.99

$

In Stock, Qty 5

0

36

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

37

Cub Cadet 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

38

Cub Cadet 712-0161

Nut

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 753-06674

Shortblock Assembly

Note: (Incl. 3-10 & 19)

$95.99

$

In Stock, only 3 left!

0
