BC 441 DWM - RedMax Brushcutter (1992-09) 018 - TRIMMER UNIT Parts Diagram

Brushcutter

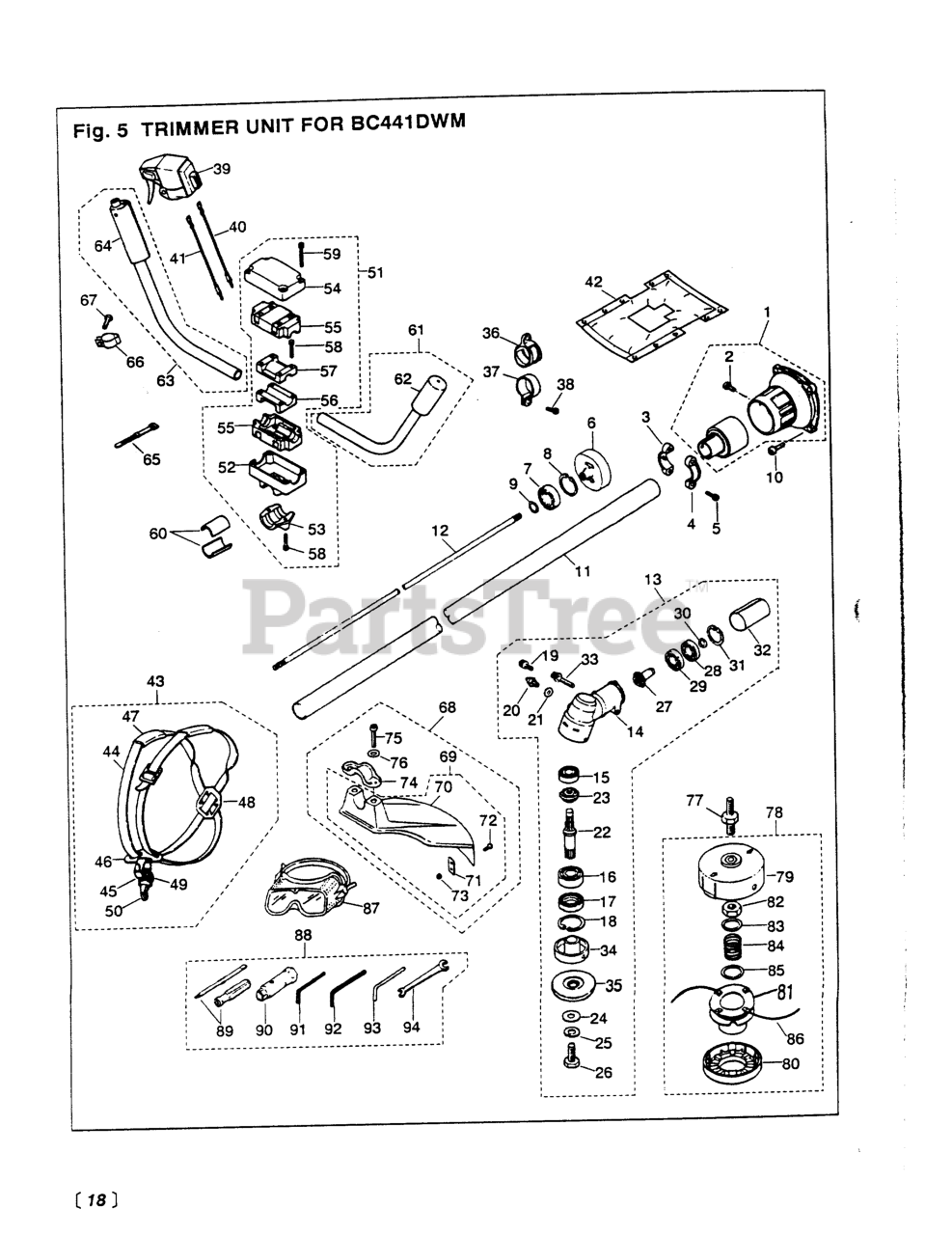

018 - TRIMMER UNIT Parts Diagram

  • Title
1

RedMax 353111100

3531-11101
(Superseded to 521165901)

$116.99

$

Usually ships in 3-10 days

0

2

RedMax 026000610

SCREW, M6 x 10

$0.07

$

Usually ships in 3-10 days

0

3

RedMax 353111130

3531-11131
(Superseded to 521166301)

$

$

Not available

4

RedMax 353111140

3531-11141
(Superseded to 521166501)

$

$

Not available

5

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 354011311

DRUM, SPLINED
(Superseded to 521169401)

$

$

Not available

7

RedMax 0600406202

BEARING
(Superseded to 516131701)

$9.49

$

In Stock, only 1 left!

0

8

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$2.49

$

Usually ships in 3-10 days

0

9

RedMax 0406401510

RING, SNAP, M15 X 1.0

$0.43

$

Usually ships in 3-10 days

0

$

$

Not available

11

RedMax 624212100

PIPE (USE -12101)
(Superseded to 624212101)

$99.99

$

Usually ships in 3-10 days

0

12

RedMax 354012211

SHAFT (USE -12212)

$

$

Not available

13

RedMax 635913000

6359-13001

$

$

Not available

14

RedMax 354013113

3540-13114
(Superseded to 354013114)

$72.97

$

Usually ships in 3-10 days

0

15

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.99

$

In Stock, only 4 left!

0

16

$9.68

$

Usually ships in 3-10 days

0

$5.08

$

Usually ships in 3-10 days

0

18

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$2.49

$

Usually ships in 3-10 days

0

19

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 2 left!

0

20

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

In Stock, only 3 left!

0

21

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 354013212

SHAFT (RPLS -13211)

$28.74

$

Usually ships in 3-10 days

0

$30.54

$

Usually ships in 3-10 days

0

24

RedMax 0164331032

WASHER, M10 x 3.2
(Superseded to 516079201)

$

$

Not available

25

RedMax 354413280

WASHER
(Superseded to 521182601)

$1.49

$

Usually ships in 3-10 days

0

26

RedMax 354013290

BOLT (REPLACES 3130-13260)
(Superseded to 521172301)

$3.49

$

Usually ships in 3-10 days

0

27

$27.63

$

Usually ships in 3-10 days

0

28

RedMax 0600106001

BEARING
(Superseded to 516129901)

$7.99

$

In Stock, only 1 left!

0

29

RedMax 0600006001

BEARING
(Superseded to 516127901)

$6.99

$

In Stock, only 1 left!

0

30

RedMax 313013270

04064-01210
(Superseded to 516124101)

$4.99

$

In Stock, Qty 20+

0

31

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, Qty 6

0

32

$1.42

$

Usually ships in 3-10 days

0

33

RedMax 354013260

BOLT, M6 x 1.35
(Superseded to 521171901)

$3.99

$

Usually ships in 3-10 days

0

34

RedMax 354013241

HOLDER (A) (RPLS -13240)

$23.44

$

Usually ships in 3-10 days

0

35

RedMax 354013251

HOLDER (B)
(Superseded to 521171801)

$

$

Not available

36

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

37

RedMax 936617120

CLAMP
(Superseded to 515903701)

$

$

Not available

38

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

39

RedMax 623414601

LEVER ASSEMBLY
(Superseded to 515555201)

$

$

Not available

40

RedMax 624214711

CORD A (RED)
(Superseded to 574015901)

$

$

Not available

41

RedMax 624214721

CORD (RPLS -14720)
(Superseded to 574086301)

$4.99

$

Usually ships in 3-10 days

0

42

RedMax 352317111

3523-17112

$

$

Not available

43

RedMax 354017203

3540-17204

$

$

Not available

$25.48

$

Usually ships in 3-10 days

0

$2.35

$

Usually ships in 3-10 days

0

46

$5.70

$

Usually ships in 3-10 days

0

47

RedMax 32601720003

PROTECTOR

$3.85

$

Usually ships in 3-10 days

0

$4.42

$

Usually ships in 3-10 days

0

49

$2.87

$

Usually ships in 3-10 days

0

50

RedMax 352096414

3520-96415
(Superseded to 352096415)

$7.35

$

Usually ships in 3-10 days

0

51

RedMax 354014100

3540-14900

$

$

Not available

52

RedMax 354014111

3540-14910

$

$

Not available

53

RedMax 354014122

CAP, LOWER

$11.33

$

Usually ships in 3-10 days

0

54

RedMax 354014130

CAP, UPPER

$14.90

$

Usually ships in 3-10 days

0

55

RedMax 354014140

ABSORBER

$5.70

$

Usually ships in 3-10 days

0

56

RedMax 354014150

CLAMP (A)

$8.08

$

Usually ships in 3-10 days

0

57

RedMax 354014160

CLAMP (B)

$5.08

$

Usually ships in 3-10 days

0

58

RedMax 0125230525

BOLT, M5 X 25
(Superseded to 516071001)

$3.49

$

Usually ships in 3-10 days

0

59

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

60

$1.57

$

Usually ships in 3-10 days

0

61

RedMax 354014200

HANDLE COMPL, LEFT
(Superseded to 515360801)

$

$

Not available

$10.86

$

Usually ships in 3-10 days

0

63

RedMax 624214400

HANDLE COMPL, RIGHT
(Superseded to 521437001)

$

$

Not available

64

RedMax 354014321

GRIP
(Superseded to 521173701)

$22.99

$

Usually ships in 3-10 days

0

65

RedMax 354093120

BAND
(Superseded to 514364001)

$6.49

$

Usually ships in 3-10 days

0

66

RedMax 326014251

CLAMP
(Superseded to 520936801)

$3.99

$

Usually ships in 3-10 days

0

67

RedMax 026000516

SCREW, M5 X 16
(Superseded to 516095201)

$1.49

$

Usually ships in 3-10 days

0

68

RedMax 623024001

6358-24002
(Superseded to 574016201)

$30.99

$

Usually ships in 3-10 days

0

69

RedMax 635824100

6358-24001
(Superseded to 574016201)

$30.99

$

Usually ships in 3-10 days

0

70

RedMax 623024112

6358-24001
(Superseded to 574016201)

$30.99

$

Usually ships in 3-10 days

0

71

RedMax 635724150

BLADE
(Superseded to 574016101)

$

$

Not available

72

RedMax 026330512

SCREW, M5 x 12
(Superseded to 510478301)

$3.99

$

Usually ships in 3-10 days

0

73

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, only 4 left!

0

74

RedMax 354124121

CLAMP
(Superseded to 514368601)

$6.49

$

Usually ships in 3-10 days

0

75

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

In Stock, only 2 left!

0

76

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

77

RedMax PTA010

ARBOR, 10MM

$

$

Not available

78

RedMax PT100

6
(Superseded to 515516101)

$

$

Not available

79

RedMax 604199110

6041-99111
(Superseded to 521404702)

$34.99

$

Usually ships in 3-10 days

0

80

RedMax 604199130

COVER
(Superseded to 521404801)

$60.99

$

Usually ships in 3-10 days

0

81

RedMax 604199140

6041-99141
(Superseded to 515516901)

$74.99

$

Usually ships in 3-10 days

0

82

RedMax 355099120

NUT (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

83

RedMax 326815150

PLATE, LARGE
(Superseded to 520939401)

$

$

Not available

84

RedMax 604199160

6041-99162
(Superseded to 515517001)

$9.99

$

In Stock, only 2 left!

0

85

RedMax 326815170

PLATE, SMALL
(Superseded to 520939801)

$6.49

$

In Stock, Qty 11

0

$

$

Not available

87

RedMax 624292110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$6.72

$

Usually ships in 3-10 days

0

88

RedMax 354291000

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

89

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

90

$4.42

$

Usually ships in 3-10 days

0

91

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

92

RedMax 0900700528

WRENCH (TOOL)
(Superseded to 516144701)

$4.99

$

Usually ships in 3-10 days

0

93

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

94

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0
