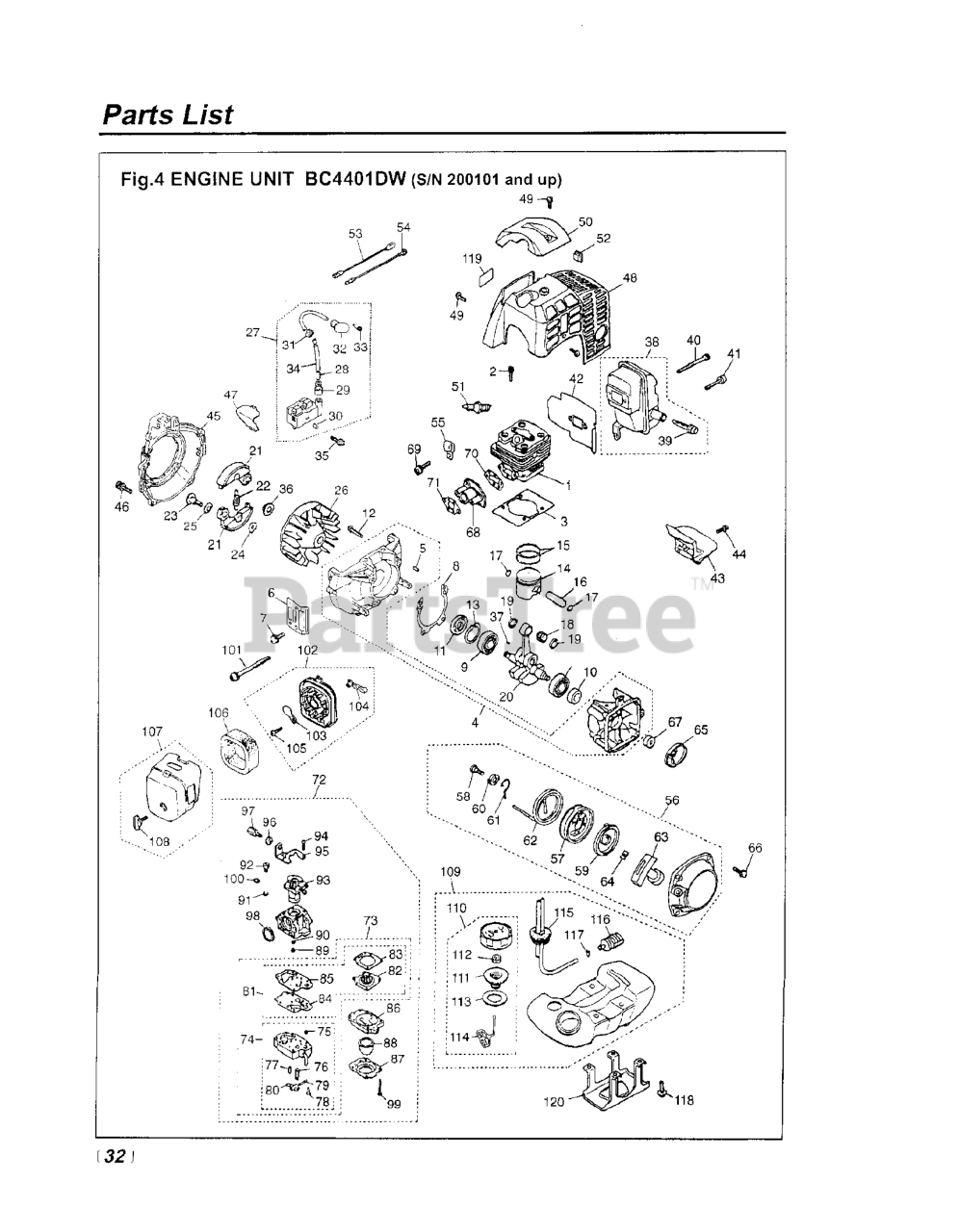

BC 4401 DW - RedMax Brushcutter (SN: 200101 & Above) ENGINE Parts Diagram

Brushcutter

ENGINE Parts Diagram

  • Title

1

RedMax 515361401

CYLINDER

$40.99

$

Usually ships in 3-10 days

0

2

RedMax 513412501

BOLT

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 510064301

GASKET

$6.49

$

Usually ships in 3-10 days

0

4

RedMax 505296001

CRANKCASE

Note: . 5

$

$

Not available

5

RedMax 505296101

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 505296201

GUARD

$

$

Not available

7

RedMax 505299801

SCREW

$2.23

$

Usually ships in 3-10 days

0

8

RedMax 505296401

GASKET

$3.99

$

Usually ships in 3-10 days

0

9

RedMax 505296501

BEARING

$12.99

$

Usually ships in 3-10 days

0

10

RedMax 504121501

SEAL

$9.99

$

Usually ships in 3-10 days

0

11

RedMax 505296701

SEAL

$7.99

$

In Stock, only 2 left!

0

12

RedMax 506609401

BOLT

$3.49

$

In Stock, only 4 left!

0

13

RedMax 504121001

RING

$3.99

$

In Stock, only 2 left!

0

14

RedMax 505296901

PISTON

$42.99

$

Usually ships in 3-10 days

0

15

RedMax 505297001

RING
(Superseded to 516313201)

$9.99

$

In Stock, only 1 left!

0

16

RedMax 505297101

PISTON PIN

$6.49

$

Usually ships in 3-10 days

0

17

RedMax 516283001

RING

$4.99

$

In Stock, only 1 left!

0

18

RedMax 505297301

ROLLER BEARING
(Superseded to 521794701)

$9.99

$

In Stock, Qty 5

0

19

RedMax 513752401

WASHER
(Superseded to 574008001)

$6.99

$

In Stock, only 2 left!

0

20

RedMax 521325201

CRANKSHAFT COMPL

$157.99

$

Usually ships in 3-10 days

0

21

RedMax 515365601

SHOE

$37.99

$

Usually ships in 3-10 days

0

22

RedMax 505297701

SPRING

$7.49

$

Usually ships in 3-10 days

0

23

RedMax 505297801

SCREW

$7.49

$

In Stock, only 2 left!

0

24

RedMax 505298001

WASHER
(Superseded to 516244001)

$3.99

$

In Stock, Qty 8

0

25

RedMax 505298101

WASHER

$3.99

$

Usually ships in 3-10 days

0

26

RedMax 521743401

ROTOR

$60.99

$

Usually ships in 3-10 days

0

27

RedMax 512274001

COIL-A

Note: . 28 29 30-34

$109.99

$

Usually ships in 3-10 days

0

28

RedMax 505298401

CORD.HIGH

$3.49

$

Usually ships in 3-10 days

0

29

RedMax 505042801

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 521743701

PIN

$2.49

$

Usually ships in 3-10 days

0

31

RedMax 515415301

GROMMET
(Superseded to 521358801)

$3.99

$

Usually ships in 3-10 days

0

32

RedMax 505298801

CAP

$7.49

$

In Stock, Qty 5

0

33

RedMax 515415201

SPRING

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 521749501

TUBE (RPLS 263072210)

$3.99

$

Usually ships in 3-10 days

0

35

RedMax 514233801

$

$

Not available

36

RedMax 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

37

RedMax 506689401

KEY
(Superseded to 516147801)

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 570734401

MUFFLER ASSY

Note: . 39

$72.99

$

Usually ships in 3-10 days

0

39

RedMax 513351501

ARRESTER

$10.99

$

Usually ships in 3-10 days

0

40

RedMax 505299401

$

$

Not available

41

RedMax 505299501

BOLT

$4.99

$

In Stock, only 1 left!

0

42

RedMax 505299601

GASKET
(Superseded to 526522801)

$6.99

$

Usually ships in 3-10 days

0

43

RedMax 505299701

PLATE.MUFFLER

$

$

Not available

44

RedMax 505299801

SCREW

$2.23

$

Usually ships in 3-10 days

0

45

RedMax 512261901

COVER

$

$

Not available

46

RedMax 505300201

$

$

Not available

47

RedMax 505300401

PLATE

$

$

Not available

48

RedMax 515363601

COVER.ENGINE

$

$

Not available

49

RedMax 505300601

SCREW

$3.99

$

In Stock, Qty 14

0

50

RedMax 515363801

GUARD

$8.99

$

In Stock, only 1 left!

0

51

RedMax 521231501

$

$

Not available

52

RedMax 505301301

GROMMET

$3.99

$

Usually ships in 3-10 days

0

53

RedMax 521743601

CORD

$6.49

$

Usually ships in 3-10 days

0

54

RedMax 512224501

CORD

$4.99

$

Usually ships in 3-10 days

0

55

RedMax 513190301

$

$

Not available

56

RedMax 515366901

RECOIL ASSY

Note: . 57 58 59-64

$66.99

$

Usually ships in 3-10 days

0

57

RedMax 504114701

REEL

$11.99

$

In Stock, only 2 left!

0

58

RedMax 515367101

SCREW

$4.99

$

In Stock, only 1 left!

0

59

RedMax 504115001

SPRING, SPIRAL
(Superseded to 516541701)

$11.99

$

In Stock, only 2 left!

0

60

RedMax 504114601

COLLAR
(Superseded to 521327101)

$7.49

$

In Stock, Qty 10

0

61

RedMax 504114801

SWING ARM

$7.49

$

In Stock, Qty 10

0

62

RedMax 505302801

$

$

Not available

63

RedMax 505303401

KNOB

$7.99

$

In Stock, only 1 left!

0

64

RedMax 504114001

KNOB

$

$

Not available

65

RedMax 504114401

PULLEY

$9.99

$

In Stock, only 2 left!

0

66

RedMax 505304401

SCREW

$3.99

$

Usually ships in 3-10 days

0

67

RedMax 505304601

COLLAR

$

$

Not available

68

RedMax 505304701

INSULATOR
(Superseded to 526520501)

$27.99

$

Usually ships in 3-10 days

0

69

RedMax 505304801

SCREW

$3.49

$

Usually ships in 3-10 days

0

70

RedMax 515361801

$

$

Not available

71

RedMax 505305001

GASKET

$4.99

$

Usually ships in 3-10 days

0

72

RedMax 512225701

Note: . 73 74 75-100

$

$

Not available

73

RedMax 515448201

REBUILD KIT

Note: . 74 75 76-85

$102.85

$

Usually ships in 3-10 days

0

74

RedMax 502238401

CARBURETOR BODY

Note: . 75 76 77-80

$53.99

$

In Stock, Qty 5

0

75

RedMax TBD

$

$

Not available

76

RedMax TBD

$

$

Not available

78

RedMax TBD

$

$

Not available

79

RedMax TBD

$

$

Not available

80

RedMax TBD

$

$

Not available

81

RedMax 506745001

Note: . 82 83 84 85

$

$

Not available

82

RedMax TBD

$

$

Not available

83

RedMax TBD

$

$

Not available

84

RedMax TBD

$

$

Not available

85

RedMax TBD

$

$

Not available

86

RedMax 506740901

BODY

$34.99

$

Usually ships in 3-10 days

0

87

RedMax 506741001

1OVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 8

0

88

RedMax 505306701

PUMP

$9.49

$

In Stock, only 1 left!

0

89

RedMax 505307401

$

$

Not available

90

RedMax 505307501

O-RING

$6.49

$

In Stock, only 1 left!

0

91

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

92

RedMax 506741201

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

93

RedMax TBD

$

$

Not available

94

RedMax 505307901

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

95

RedMax 506746001

BRACKET
(Superseded to 521359901)

$12.99

$

Usually ships in 3-10 days

0

96

RedMax 506612601

NUT
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

97

RedMax 515466101

SCREW

$

$

Not available

98

RedMax 505308401

RING PACKING

$4.99

$

Usually ships in 3-10 days

0

99

RedMax 506741101

SCREW

$4.99

$

In Stock, only 1 left!

0

100

RedMax 506746101

WASHER
(Superseded to 521360401)

$0.99

$

Usually ships in 3-10 days

0

101

RedMax 505308701

SCREW

$3.99

$

In Stock, only 1 left!

0

102

RedMax 505308801

BODY ASSY.

Note: . 103 104 105

$15.99

$

Usually ships in 3-10 days

0

103

RedMax 505308901

PLATE, CHOKE

$

$

Not available

104

RedMax 505309001

LEVER.CHOKE

$

$

Not available

105

RedMax 506614001

SCREW
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

106

RedMax 505309201

ELEMENT

$6.49

$

In Stock, Qty 18

0

107

RedMax 515368901

COVER-A

Note: . 108

$10.99

$

In Stock, only 1 left!

0

108

RedMax 504115101

KNOB

$4.99

$

Usually ships in 3-10 days

0

109

RedMax 521731801

Note: T101585003. 110 111 112-116

$

$

Not available

110

RedMax 505309601

CAP A

Note: . 111 112 113 114

$11.99

$

In Stock, only 3 left!

0

111

RedMax 515369401

HOLDER-A
(Superseded to 521329501)

$10.99

$

Usually ships in 3-10 days

0

112

RedMax 506746801

FILTER

$6.49

$

In Stock, only 2 left!

0

113

RedMax 506744301

PACKING

$4.99

$

Usually ships in 3-10 days

0

114

RedMax 506745801

STOPPER

$4.99

$

In Stock, only 3 left!

0

115

RedMax 505310301

PIPE COMP.

$17.99

$

Usually ships in 3-10 days

0

116

RedMax 506742601

FILTER ASSY

$10.99

$

Usually ships in 3-10 days

0

117

RedMax 506707001

CLIP
(Superseded to 516262101)

$4.99

$

In Stock, only 4 left!

0

118

RedMax 505311001

SCREW

$

$

Not available

119

RedMax 521771601

LABEL
(Superseded to 512369101)

$3.49

$

Usually ships in 3-10 days

0

120

RedMax 505310901

TANK GUARD

$34.99

$

Usually ships in 3-10 days

0
