BC 4400 DW - RedMax Brushcutter (1998-08) 032 - ENGINE GROUP Parts Diagram

Brushcutter

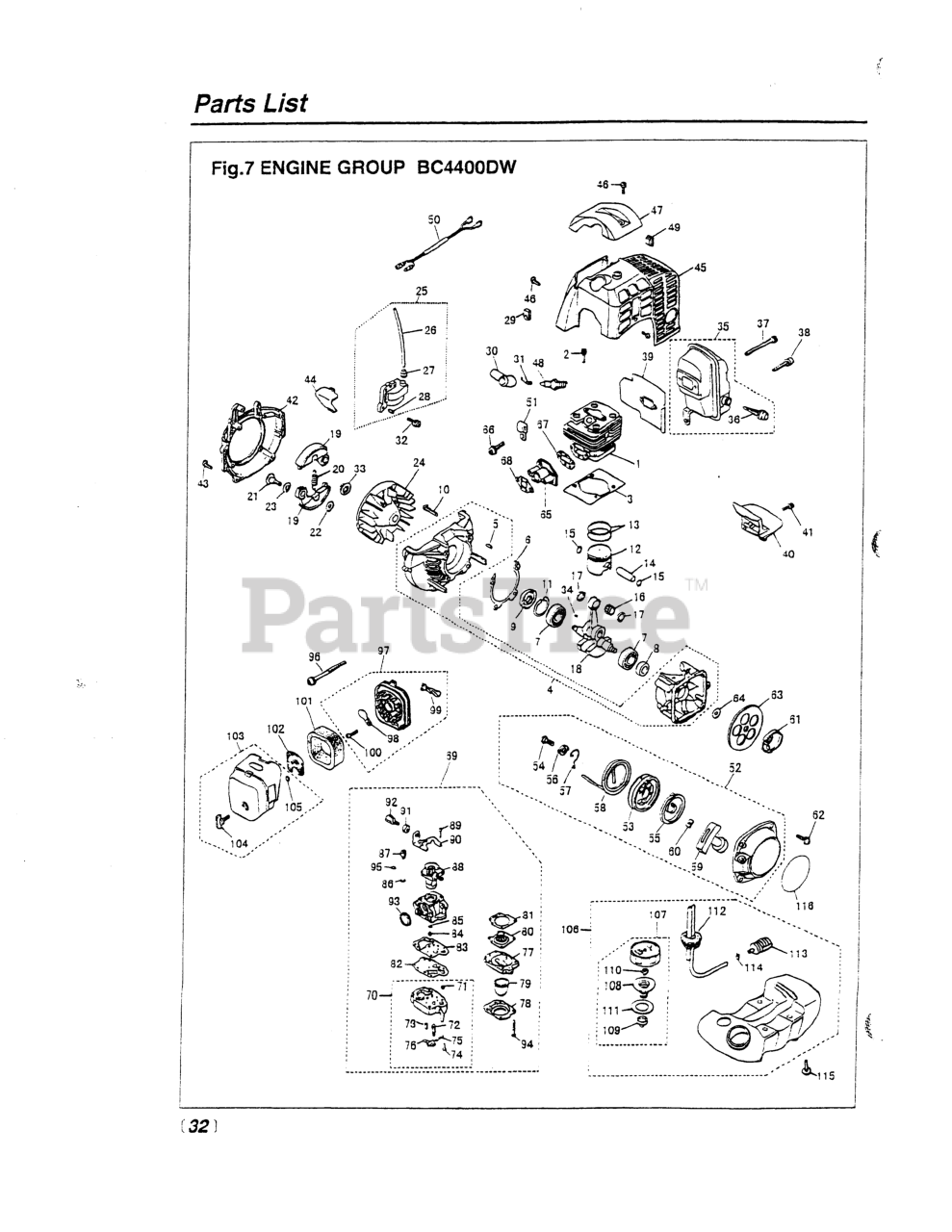

032 - ENGINE GROUP Parts Diagram

  • Title
1

RedMax 450012110

CYLINDER
(Superseded to 515361401)

$40.99

$

Usually ships in 3-10 days

0

2

RedMax 331012281

BOLT M5 x 20 (RPLS -12280)
(Superseded to 520959101)

$3.49

$

Usually ships in 3-10 days

0

3

RedMax 450013120

GASKET, BASE
(Superseded to 510064301)

$6.49

$

Usually ships in 3-10 days

0

4

RedMax 450021100

CRANKCASE COMPL (USE -21101)
(Superseded to 521324301)

$

$

Not available

5

RedMax 262921130

PIN
(Superseded to 516762801)

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 450021140

GASKET
(Superseded to 505296401)

$3.99

$

Usually ships in 3-10 days

0

7

$

$

Not available

8

RedMax 216921210

SEAL, OIL (RPLS 1100-21210)
(Superseded to 513488701)

$4.99

$

Usually ships in 3-10 days

0

9

RedMax 165021220

SEAL, OIL (RPLS 1200-21220)
(Superseded to 505296701)

$7.99

$

In Stock, only 2 left!

0

10

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

11

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$3.99

$

In Stock, only 2 left!

0

12

$26.33

$

Usually ships in 3-10 days

0

13

RedMax 140041210

1400-41220

$

$

Not available

14

RedMax 285041310

PIN, PISTON
(Superseded to 505297101)

$6.49

$

Usually ships in 3-10 days

0

15

RedMax 130041320

RING, SNAP
(Superseded to 516283001)

$4.99

$

In Stock, only 1 left!

0

16

RedMax 285041410

BEARING
(Superseded to 516965601)

$

$

Not available

17

RedMax 285041510

WASHER
(Superseded to 513752401)

$6.99

$

In Stock, only 2 left!

0

18

RedMax 450042000

CRANKSHAFT COMPL
(Superseded to 521325201)

$157.99

$

Usually ships in 3-10 days

0

19

RedMax 450051110

4500-51111
(Superseded to 515365601)

$37.99

$

Usually ships in 3-10 days

0

20

RedMax 450051220

SPRING
(Superseded to 521325601)

$7.49

$

Usually ships in 3-10 days

0

21

RedMax 120051211

SCREW
(Superseded to 516243901)

$7.49

$

In Stock, only 2 left!

0

22

RedMax 120051230

WASHER
(Superseded to 516244001)

$3.99

$

In Stock, Qty 8

0

23

RedMax 120051241

WASHER (RPLS. -51240)
(Superseded to 516244101)

$

$

Not available

24

RedMax 450071110

ROTOR
(Superseded to 521325701)

$

$

Not available

25

RedMax 450071200

COIL ASSEMBLY
(Superseded to 521325801)

$79.99

$

Usually ships in 3-10 days

0

26

RedMax 450071220

CORD (RPLS 4700- )
(Superseded to 521325901)

$3.49

$

Usually ships in 3-10 days

0

27

RedMax 261671320

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

$0.41

$

Usually ships in 3-10 days

0

29

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.49

$

Usually ships in 3-10 days

0

30

RedMax 190072111

1900-72112
(Superseded to 513443401)

$6.49

$

Usually ships in 3-10 days

0

31

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

Usually ships in 3-10 days

0

32

RedMax 450072150

BOLT, M4 x 22
(Superseded to 521326001)

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 165043230

182301
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

34

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

35

RedMax T100715100

MUFFLER ASSEMBLY
(Superseded to 570734401)

$72.99

$

Usually ships in 3-10 days

0

36

RedMax 160115120

ARRESTER (RPLS 5850-15140)
(Superseded to 513351501)

$10.99

$

Usually ships in 3-10 days

0

37

RedMax 0125230565

BOLT, M5 x 65
(Superseded to 516071601)

$3.49

$

Usually ships in 3-10 days

0

38

RedMax 331031720

BOLT (REPLACES 01252-30514)
(Superseded to 520961501)

$4.99

$

In Stock, only 1 left!

0

39

RedMax 470015210

4700-15211
(Superseded to 521334201)

$6.99

$

Usually ships in 3-10 days

0

40

RedMax 450015220

PLATE (USE-15221)
(Superseded to 450015221)

$2.84

$

Usually ships in 3-10 days

0

41

RedMax 026390514

SCREW,M5 X 14 (RPLS 1400-15510
(Superseded to 516113101)

$2.23

$

Usually ships in 3-10 days

0

42

RedMax 450031110

COVER
(Superseded to 515363101)

$54.99

$

Usually ships in 3-10 days

0

43

RedMax 331012281

BOLT M5 x 20 (RPLS -12280)
(Superseded to 520959101)

$3.49

$

Usually ships in 3-10 days

0

44

$

$

Not available

45

RedMax 450032110

COVER
(Superseded to 515363601)

$

$

Not available

46

RedMax 450032120

SCREW M5 x 12
(Superseded to 521324901)

$3.99

$

In Stock, Qty 14

0

47

RedMax 450032210

GUARD
(Superseded to 515363801)

$8.99

$

In Stock, only 1 left!

0

48

RedMax 560273110

3699-90419-10
(Superseded to 514441301)

$18.99

$

Usually ships in 3-10 days

0

49

$

$

Not available

50

RedMax T100773200

CORD COMPLETE

$5.91

$

Usually ships in 3-10 days

0

51

RedMax 114072231

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

52

RedMax 450075100

RECOIL ASSEMBLY
(Superseded to 521326601)

$66.99

$

Usually ships in 3-10 days

0

53

RedMax 450075120

REEL
(Superseded to 504114701)

$18.99

$

In Stock, only 4 left!

0

54

RedMax 450075150

SCREW
(Superseded to 515367101)

$4.99

$

In Stock, only 1 left!

0

55

RedMax 185075130

SPRING, SPIRAL
(Superseded to 504115001)

$18.99

$

In Stock, only 4 left!

0

56

RedMax 450075180

COLLAR
(Superseded to 504114601)

$7.49

$

In Stock, Qty 10

0

57

RedMax 450075190

ARM
(Superseded to 504114801)

$7.49

$

In Stock, Qty 10

0

58

RedMax 450075160

ROPE (USE 4810-75160)
(Superseded to 504114901)

$9.49

$

In Stock, only 1 left!

0

59

RedMax 114075320

KNOB
(Superseded to 504114001)

$4.99

$

Usually ships in 3-10 days

0

60

RedMax 550075170

PLATE, STOPPER
(Superseded to 521359601)

$2.49

$

Usually ships in 3-10 days

0

61

RedMax 450075210

PULLEY
(Superseded to 504114401)

$9.99

$

In Stock, only 2 left!

0

62

RedMax 450075511

SCREW, M6 x 14
(Superseded to 521327501)

$3.99

$

Usually ships in 3-10 days

0

63

$3.44

$

Usually ships in 3-10 days

0

64

RedMax 0164320823

01643-30823

$

$

Not available

65

RedMax 450013160

4500-13161
(Superseded to 526520501)

$27.99

$

Usually ships in 3-10 days

0

66

RedMax 450013180

SCREW, M5 X 20 (USE 5516-85510
(Superseded to 521370101)

$

$

Not available

67

RedMax 450013150

GASKET, INSULATOR
(Superseded to 505304901)

$4.99

$

Usually ships in 3-10 days

0

68

RedMax 450013130

GASKET, CARBURETOR
(Superseded to 505305001)

$4.99

$

Usually ships in 3-10 days

0

69

RedMax T100781000

CARBURETOR ASSEMBLY
(Superseded to 521730101)

$

$

Not available

70

RedMax 185081450

BODY, PUMP
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

71

$1.22

$

Usually ships in 3-10 days

0

72

RedMax 335681310

VALVE, INLET
(Superseded to 574024901)

$

$

Not available

73

RedMax 185081270

SPRING, METERING LEVER

$2.54

$

Usually ships in 3-10 days

0

74

RedMax 185081220

SCREW, METERING LEVER PIN

$2.54

$

Usually ships in 3-10 days

0

75

RedMax 331081250

PIN, METERING LEVER
(Superseded to 520977401)

$6.49

$

Usually ships in 3-10 days

0

76

RedMax 331081230

LEVER
(Superseded to 574024401)

$7.49

$

Usually ships in 3-10 days

0

77

RedMax 185081490

BODY, PURGE
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

78

RedMax 185081520

COVER, PUMP
(Superseded to 516543901)

$6.49

$

In Stock, Qty 8

0

79

RedMax 175181510

PUMP, PRIMING
(Superseded to 505306701)

$9.49

$

Usually ships in 3-10 days

0

80

RedMax 331081260

DIAPHRAGM (USE 4810-81260)
(Superseded to 505056401)

$17.99

$

In Stock, only 2 left!

0

81

RedMax 185081470

GASKET, DIAPHRAGM
(Superseded to 506740801)

$10.99

$

In Stock, only 2 left!

0

82

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$6.49

$

Usually ships in 3-10 days

0

83

RedMax 106581410

GASKET, PUMP
(Superseded to 516160601)

$

$

Not available

84

$9.28

$

Usually ships in 3-10 days

0

85

RedMax 175181240

RING, O
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

86

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

87

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

88

VALVE ASSY

$

$

Not available

89

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

90

$7.42

$

Usually ships in 3-10 days

0

91

RedMax 175181180

NUT, CABLE ADJUSTER
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

92

RedMax 191881170

SCREW, CABLE ADJUSTER
(Superseded to 521756001)

$7.49

$

In Stock, only 2 left!

0

93

RedMax 188181130

RING, PACKING
(Superseded to 505308401)

$4.99

$

Usually ships in 3-10 days

0

94

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 2 left!

0

95

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

96

RedMax 026330550

0263-90550
(Superseded to 516113801)

$3.99

$

In Stock, only 1 left!

0

97

RedMax 450082100

BODY ASSEMBLY
(Superseded to 515368201)

$9.49

$

Usually ships in 3-10 days

0

98

RedMax 450082130

PLATE, CHOKE
(Superseded to 521328101)

$

$

Not available

99

RedMax 450082140

LEVER, CHOKE
(Superseded to 521328201)

$

$

Not available

100

RedMax 263033610

SCREW (REPLACES 50030272)
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

101

RedMax 450082170

ELEMENT
(Superseded to 505309201)

$6.49

$

In Stock, Qty 18

0

102

RedMax 450082180

SCREEN
(Superseded to 521328401)

$3.49

$

Usually ships in 3-10 days

0

103

RedMax 450082200

4500-82201
(Superseded to 515368901)

$10.99

$

In Stock, only 1 left!

0

104

RedMax 550082221

KNOB (RPLS -82220)
(Superseded to 504115101)

$4.99

$

Usually ships in 3-10 days

0

105

RedMax 550082230

RING
(Superseded to 515417701)

$

$

Not available

106

RedMax 450085000

4500-85001
(Superseded to 525898501)

$85.99

$

Usually ships in 3-10 days

0

107

RedMax 450085200

T1015-85202
(Superseded to 504117701)

$30.99

$

In Stock, only 3 left!

0

108

RedMax 450085230

HOLDER (USE -85300)
(Superseded to 515369401)

$10.99

$

Usually ships in 3-10 days

0

109

RedMax 560085240

HOLDER, CAP

$1.24

$

Usually ships in 3-10 days

0

110

RedMax 560085250

VALVE (NLA WHEN OUT)
(Superseded to 521376101)

Note: Context Note: @ÿ

$

$

Not available

111

RedMax 450085220

PACKING
(Superseded to 506744301)

$4.99

$

In Stock, only 2 left!

0

112

RedMax 550085300

PIPE COMPLETE
(Superseded to 579138309)

$27.99

$

Usually ships in 3-10 days

0

113

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

114

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, Qty 9

0

115

RedMax 160086120

SCREW, M5 X 22
(Superseded to 516398901)

$0.99

$

Usually ships in 3-10 days

0

116

RedMax T100775410

LABEL, RECOIL

$1.34

$

Usually ships in 3-10 days

0
