BC 435 (866009) - Briggs & Stratton Brush Cutter (2010) Main Unit (866008_866009) Parts Diagram

Brush Cutter

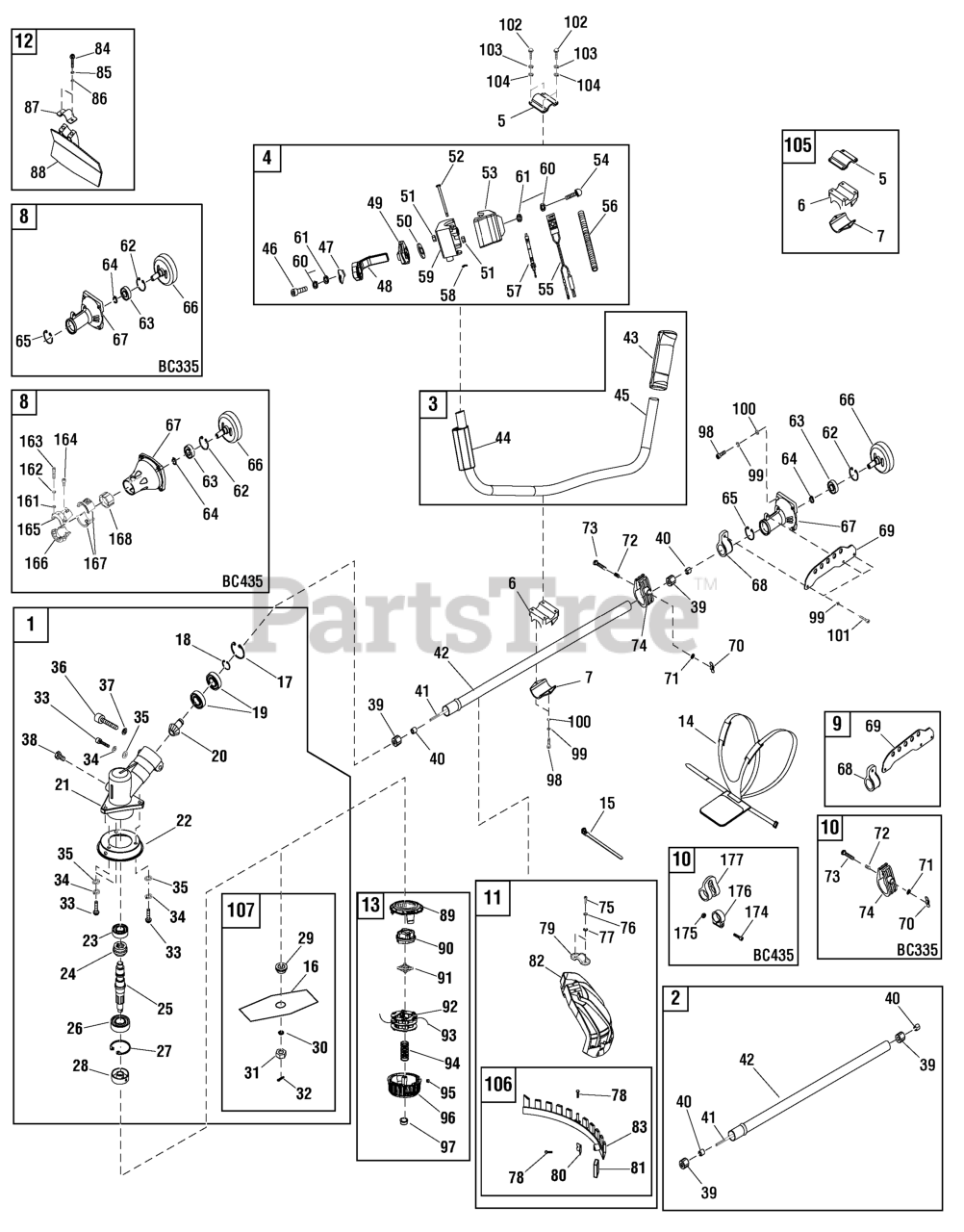

Main Unit (866008_866009) Parts Diagram

  • Title

1

Murray 700392

KIT, Gear Box Assembly

Note: (Includes Ref. Nos. 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 33, 34, 35, 36, 37, 38 & 107)

$

$

Currently unavailable

2

Murray 700405

KIT, Drive Shaft Assembly, BC335

Note: (Includes Ref. Nos. 39, 40, 41 & 42)

$

$

Currently unavailable

2

Murray 700887

KIT, Drive Shaft Assembly, BC435

Note: (Includes Ref. Nos. 39, 40, 41 & 42)

$

$

Currently unavailable

3

Murray 700410

KIT, Handle Assembly

Note: (Includes Ref. Nos. 43, 44 & 45)

$

$

Not available

4

Murray 700414

KIT, Throttle Control Switch

Note: (Includes Ref. Nos. 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60 & 61)

$

$

Not available

5

Murray 700415

CAP, Upper

$

$

Currently unavailable

6

Murray 700416

BRACKET, Handle

$

$

Not available

7

Murray 700417

CAP, Lower

$24.99

$

Usually ships in 3-10 days

0

8

Murray 700418

KIT, Clutch Assembly, BC335

Note: (Includes Ref. Nos. 62, 63, 64, 65, 66 & 67)

$

$

Currently unavailable

8

Murray 700889

KIT, Clutch Assembly, BC435

Note: (Includes Ref. Nos. 61, 62, 63, 64, 66, 67, 161, 162, 163, 164, 165, 166, 167 &168)

$

$

Currently unavailable

9

Murray 700419

KIT, Hang Ring, BC335

Note: (Includes Ref. Nos. 68 & 69)

$8.99

$

Usually ships in 2-12 days

0

10

Murray 700422

KIT, Ring for Limit, BC335

Note: (Includes Ref. Nos. 70, 71, 72, 73 & 74)

$

$

Not available

10

Murray 700897

KIT, Ring for Limit, BC435

Note: (Includes Ref. Nos. 174, 175, 176 & 177)

$

$

Currently unavailable

11

Murray 700423

KIT, Guard Assembly

Note: (Includes Ref. Nos. 75, 76, 77, 79, 82, & 106)

$

$

Currently unavailable

12

Murray 700432

KIT, Safety Guard Assembly

Note: (Includes Ref. Nos. 84, 85, 86, 87 & 88)

$

$

Currently unavailable

13

Murray 700437

KIT, Bump Head Assembly

Note: (Includes Ref. Nos. 89, 90, 91, 92, 93, 94, 95, 96 & 97)

$30.99

$

Usually ships in 2-12 days

0

14

Murray 700438

SHOULDER HARNESS

$

$

Currently unavailable

15

Murray 700439

BAND, Wire Clamp

$

$

Currently unavailable

16

Murray 700440

BLADE

$

$

Currently unavailable

17

RING, Stop, 26

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

18

RING, Stop, 10

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

19

BEARING, 6000/P6

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

20

PINION

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

21

GEAR BOX

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

22

Murray 700393

COVER, Blade

$5.99

$

Usually ships in 2-12 days

0

23

BEARING

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

24

GEAR

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

25

SPLINE SHAFT

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

26

BEARING, 6002-2RS/P6

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

27

RING, Stop, 32

Note: (Not a serviceable part. Order Kit Ref. No 1)

$

$

Not available

28

Murray 700394

GASKET, Spline

$6.49

$

Usually ships in 2-12 days

0

29

Murray 700395

HOLDER

$6.49

$

Usually ships in 2-12 days

0

30

Murray 700396

WASHER, 10

$

$

Currently unavailable

31

Murray 700397

NUT

$3.99

$

Usually ships in 2-12 days

0

32

Murray 700398

SPLIT PIN

$

$

Currently unavailable

33

Murray 700399

BOLT, M5 x 12

$3.49

$

Usually ships in 2-12 days

0

34

Murray 700400

WASHER, Spring, 5

$2.99

$

Usually ships in 2-12 days

0

35

Murray 700401

WASHER, Flat, 5

$2.99

$

Usually ships in 2-12 days

0

36

Murray 700402

BOLT, M6 x 20

$2.99

$

Usually ships in 2-12 days

0

37

Murray 700403

WASHER, Spring, 6

$2.99

$

Usually ships in 2-12 days

0

38

Murray 700404

BOLT

$2.99

$

Usually ships in 2-12 days

0

39

Murray 700406

COVER, Rubber

$4.49

$

Usually ships in 2-12 days

0

40

Murray 700407

BEARING, Oil

$3.49

$

Usually ships in 2-12 days

0

41

Murray 700408

SHAFT, Drive

$38.99

$

Usually ships in 2-12 days

0

42

Murray 700888

SHAFT, Straight, BC335

$2.49

$

Usually ships in 3-10 days

0

42

Murray 700409

SHAFT, Straight, BC435

$12.99

$

Usually ships in 3-10 days

0

43

Murray 700411

COVER, Handle, LH

$

$

Not available

44

Murray 700412

COVER, Handle, RH, Rubber

$

$

Not available

45

Murray 700413

HANDLE

$

$

Not available

46

Murray 700375

BOLT, M5 x 16

$2.49

$

Usually ships in 2-12 days

0

47

WASHER, Wave

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

48

LEVER, Throttle

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

49

CONTROL BASE

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

50

SPACER, Plastic

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

51

NUT, Hex, M5

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

52

SHAFT

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

53

CONTROL BOX, Up

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

54

Murray 700374

BOLT, M5 x 20

$3.49

$

Usually ships in 2-12 days

0

55

STOP BUTTON, Complete

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

56

TUBE

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

57

CABLE, Complete

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

58

RING, Stop, 2.5

Note: (Not a serviceable part. Order Kit Ref. No 4)

$

$

Not available

59

CONTROL BOX, Down

Note: (Not a serviceable part. Order Kit Ref. No. 4)

$

$

Not available

60

Murray 700372

WASHER, Spring, 5

$2.49

$

Usually ships in 2-12 days

0

61

Murray 700373

WASHER, Flat, 5

$2.49

$

Usually ships in 2-12 days

0

62

RING, Stop, 35

Note: (Not a serviceable part. Order Kit Ref. No 8)

$

$

Not available

63

BEARING, 6202-2Rz/P6

Note: (Not a serviceable part. Order Kit Ref. No 8)

$

$

Not available

64

RING, Stop, 15

Note: (Not a serviceable part. Order Kit Ref. No 8)

$

$

Not available

65

RING, Stop, 37

Note: (Used on BC335) (Not a serviceable part. Order Kit Ref. No 8)

$

$

Not available

66

Murray 701471

CLUTCH DRUM, Complete

$21.99

$

Usually ships in 2-12 days

0

67

CASE, Clutch, BC335

Note: (Not a serviceable part. Order Kit Ref. No 8)

$

$

Not available

67

Murray 700896

CASE, Clutch, BC435

$

$

Currently unavailable

68

Murray 700420

RING, Hang

Note: (Used on BC335)

$5.49

$

Usually ships in 2-12 days

0

69

Murray 700421

HANDLE, Hang

Note: (Used on BC335)

$11.99

$

Usually ships in 2-12 days

0

70

NUT, M6

Note: (Used on BC335) (Not a serviceable part. Order Kit Ref. No. 10)

$

$

Not available

71

WASHER, 6

Note: (Used on BC335) (Not a serviceable part. Order Kit Ref. No. 10)

$

$

Not available

72

SPRING

Note: (Used on BC335) (Not a serviceable part. Order Kit Ref. No. 10)

$

$

Not available

73

BOLT, M6 x 20

Note: (Used on BC335) (Not a serviceable part. Order Kit Ref. No. 10)

$

$

Not available

74

RING FOR LIMIT

Note: (Used on BC335) (Not a serviceable part. Order Kit Ref. No. 10)

$

$

Not available

75

Murray 700424

SCREW, M5 x16

$

$

Currently unavailable

76

Murray 700400

WASHER, Spring, 5

$2.99

$

Usually ships in 2-12 days

0

77

Murray 700401

WASHER, Flat, 5

$2.99

$

Usually ships in 2-12 days

0

78

Murray 700425

SCREW, Self Tapping, ST4.2 x 16

$

$

Currently unavailable

79

Murray 700426

BRACKET, Safety Guard

$

$

Currently unavailable

80

Murray 700427

BLADE

$4.99

$

Usually ships in 2-12 days

0

81

Murray 700428

COVER, Blade

$3.49

$

Usually ships in 2-12 days

0

82

Murray 700429

SAFETY GUARD

$

$

Not available

83

Murray 700431

SECURING SADDLE

$

$

Currently unavailable

84

Murray 700430

BOLT, M6 x 20

$

$

Currently unavailable

85

Murray 700433

WASHER, Spring, 6

$

$

Currently unavailable

86

Murray 700434

WASHER, Flat, 6

$

$

Currently unavailable

87

Murray 700435

HOLDER

$

$

Currently unavailable

88

Murray 700436

SAFETY GUARD

$

$

Currently unavailable

89

COVER, Bump Head

Note: (Not a serviceable part. Order Kit Ref. No. 13)

$

$

Not available

90

BUMP HEAD

Note: (Not a serviceable part. Order Kit Ref. No. 13)

$

$

Not available

91

COVER, Rope

Note: (Not a serviceable part. Order Kit Ref. No. 13)

$

$

Not available

92

SEAT, Rope

Note: (Not a serviceable part. Order Kit Ref. No. 13)

$

$

Not available

93

ROPE

Note: (Not a serviceable part. Order Kit Ref. No. 13)

$

$

Not available

94

SPRING, Bump Head

Note: (Not a serviceable part. Order Kit Ref. No. 13)

$

$

Not available

95

COVER, Rope

Note: (Not a serviceable part. Order Kit Ref. No. 13)

$

$

Not available

96

BOX, Bump Head

Note: (Not a serviceable part. Order Kit Ref. No. 13)

$

$

Not available

97

NUT

Note: (Not a serviceable part. Order Kit Ref. No. 13)

$

$

Not available

98

Murray 700402

BOLT, M6 x 20

$2.99

$

Usually ships in 2-12 days

0

99

Murray 700403

WASHER, Spring, 6

$2.99

$

Usually ships in 2-12 days

0

100

Murray 700443

WASHER, Flat, 6

$2.49

$

Usually ships in 2-12 days

0

101

Murray 700444

SCREW, M6 x 16

Note: (Used on BC335)

$2.49

$

Usually ships in 2-12 days

0

102

Murray 700424

SCREW, M5 x 16

$

$

Currently unavailable

103

Murray 700400

WASHER, Spring, 5

$2.99

$

Usually ships in 2-12 days

0

104

Murray 700401

WASHER, Flat, 5

$2.99

$

Usually ships in 2-12 days

0

105

Murray 701811

KIT, Handle Bracket Assembly

Note: (Includes Ref. Nos. 5, 6 & 7)

$

$

Currently unavailable

106

Murray 701812

KIT, Securing Saddle Assembly

Note: (Includes Ref. Nos. 78, 80, 81 & 83)

$

$

Currently unavailable

107

Murray 701813

KIT, Blade Assembly

Note: (Includes Ref. Nos. 29, 30, 31 & 32)

$

$

Currently unavailable

161

Murray 700401

WASHER, Flat, 5

Note: (Used on BC435)

$2.99

$

Usually ships in 2-12 days

0

162

Murray 700400

WASHER, Spring, 5

Note: (Used on BC435)

$2.99

$

Usually ships in 2-12 days

0

163

Murray 700890

BOLT, M5 x 20

Note: (Used on BC435)

$

$

Not available

164

Murray 700891

BOLT, M5 x 10

Note: (Used on BC435)

$

$

Currently unavailable

165

Murray 700892

SEMICIRCULAR BOARD A

Note: (Used on BC435)

$

$

Not available

166

Murray 700893

SEMICIRCULAR BOARD B

Note: (Used on BC435)

$

$

Currently unavailable

167

Murray 700894

BOOT, Rubber, A

Note: (Used on BC435)

$

$

Currently unavailable

168

Murray 700895

BOOT, Rubber, B

Note: (Used on BC435)

$

$

Currently unavailable

174

Murray 700890

BOLT, M5 x 20

Note: (Used on BC435)

$

$

Not available

175

Murray 700899

NUT, M5

Note: (Used on BC435)

$

$

Currently unavailable

176

Murray 700900

RING FOR LIMIT, 28

Note: (Used on BC435)

$

$

Currently unavailable

177

Murray 700901

HANG RING, 28

Note: (Used on BC435)

$

$

Currently unavailable
