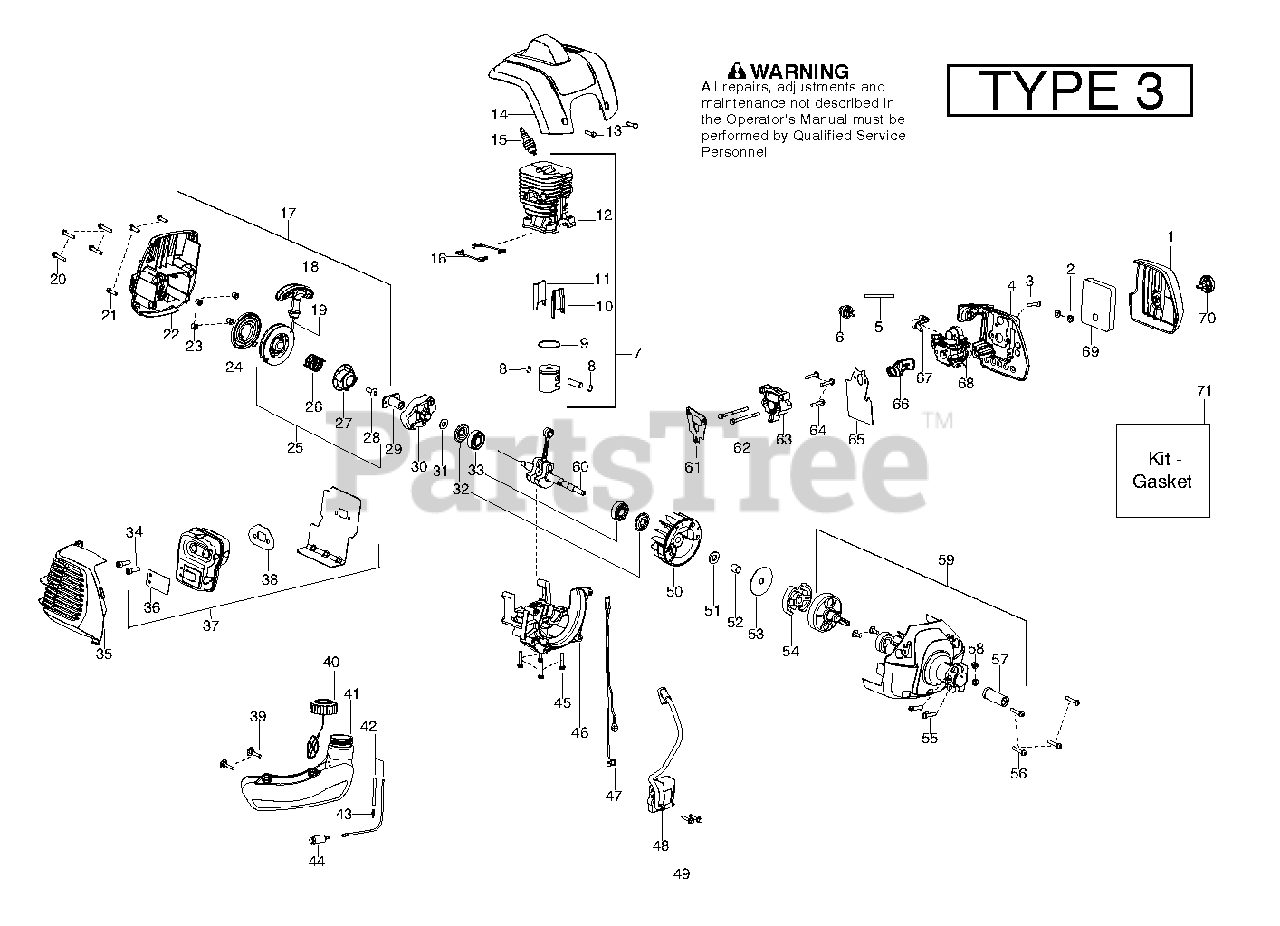

BC 433 B - Electrolux/AYP String Trimmer (2010-03) ENGINE Parts Diagram

String Trimmer

ENGINE Parts Diagram

  • Title
1

$

$

Not available

$6.49

$

In Stock, only 2 left!

0

$6.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 545176901

BASE AIRBOX BLACK

$

$

Not available

5

Electrolux/AYP TBD

TBD

Note: Line-Fuel (ref 42)

$

$

Not available

$9.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 576018201

KIT

Note: . 8-12

$66.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 545194801

RETAINER PISTON PIN

$3.99

$

In Stock, only 1 left!

0

9

$6.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 575391901

INSERT FRONT TRANSFER PORT

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 576014501

CYLINDER CHROME 33CC

$

$

Not available

13

Electrolux/AYP 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

14

Electrolux/AYP 545156401

CYLINDER COVER

$6.91

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 545008044

GASKET KIT 33CC

$10.99

$

In Stock, only 1 left!

0

17

$

$

Not available

18

Electrolux/AYP 545208401

STARTER HANDLE

$7.99

$

Usually ships in 3-10 days

0

$14.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 530015897

B0LT, C/SHAFT 36/41

$6.49

$

In Stock, Qty 19

0

21

Electrolux/AYP 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 545190601

STARTER HOUSING

$20.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 545008013

SPRING STARTER

$6.99

$

In Stock, only 4 left!

0

25

Electrolux/AYP 545008049

KIT STARTER PULLEY

$31.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

27

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 3 left!

0

29

Electrolux/AYP 545188201

SLEEVE COUPLING

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 545188701

STARTER CUP ASSY

$7.49

$

In Stock, only 3 left!

0

31

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 545008044

GASKET KIT 33CC

$10.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 545013401

BEARING RADIAL BALL (6201)

$10.99

$

Usually ships in 3-10 days

0

34

$4.99

$

In Stock, Qty 7

0

35

Electrolux/AYP 545156301

MUFFLER COVER

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 545008070

SPARK ARRESTER
(Superseded to 545224001)

$4.99

$

In Stock, only 1 left!

0

37

$18.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 545008044

GASKET KIT 33CC

$10.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 530016445

SCREW FUEL TANK RETAINER

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 545215901

ASSY FUEL CAP W/RETAINER
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 545182102

ASSY FUEL TANK W/RETAINER
(Superseded to 578942701)

$

$

Not available

42

Electrolux/AYP 530069599

KIT-LINE(FUEL)

$7.49

$

In Stock, Qty 5

0

43

Electrolux/AYP 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 18

0

44

Electrolux/AYP 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

45

Electrolux/AYP 530015897

B0LT, C/SHAFT 36/41

$6.49

$

In Stock, Qty 19

0

$21.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 545189701

IGNITION MODULE

$37.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 4 left!

0

50

Electrolux/AYP 545120401

FLYWHEEL ASSY

$14.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530016463

WASHER CLUTCH

$6.99

$

In Stock, only 3 left!

0

52

Electrolux/AYP 530057852

SPACER FLYWHEEL

$10.99

$

In Stock, only 2 left!

0

53

Electrolux/AYP 530094189

WASHER-CLUTCH

$6.99

$

In Stock, only 1 left!

0

54

Electrolux/AYP 545008038

CLUTCH ASSY
(Superseded to 530055122)

$20.99

$

In Stock, Qty 5

0

55

Electrolux/AYP 530015774

SCREW-10-24 X 1" (UNC)

$6.49

$

In Stock, only 1 left!

0

56

Electrolux/AYP 530015897

B0LT, C/SHAFT 36/41

$6.49

$

In Stock, Qty 19

0

57

Electrolux/AYP 545186401

GUIDE CLUTCH DRUM/FLEXSHAFT

$

$

Not available

58

Electrolux/AYP 530015768

LOCKNUT-HEX 10-24

$6.49

$

In Stock, only 2 left!

0

59

Electrolux/AYP 545190801

CLUTCH COVER ASSY

$42.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 545008047

CRANKSHAFT
(Superseded to 545194001)

$39.22

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 545008044

GASKET KIT 33CC

$10.99

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 575391501

ADAPTER, CARBURETOR

$10.99

$

In Stock, only 1 left!

0

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 545008044

GASKET KIT 33CC

$10.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 545190501

CARB BOOT ADAPTER

$4.99

$

In Stock, only 1 left!

0

67

Electrolux/AYP 574719701

Choke Control Lever

$11.99

$

In Stock, only 2 left!

0

68

Electrolux/AYP 545008042

CARBURETOR
(Superseded to 545189502)

$74.99

$

Usually ships in 3-10 days

0

69

$4.99

$

In Stock, only 1 left!

0

70

Electrolux/AYP 545188801

AIRBOX KNOB ASSY BLACK

$3.99

$

In Stock, only 1 left!

0

71

Electrolux/AYP 545008044

GASKET KIT 33CC

$10.99

$

In Stock, only 1 left!

0
