BC 430 WE - RedMax Brushcutter (1997-09) 001 - CUTTER GROUP Parts Diagram

Brushcutter

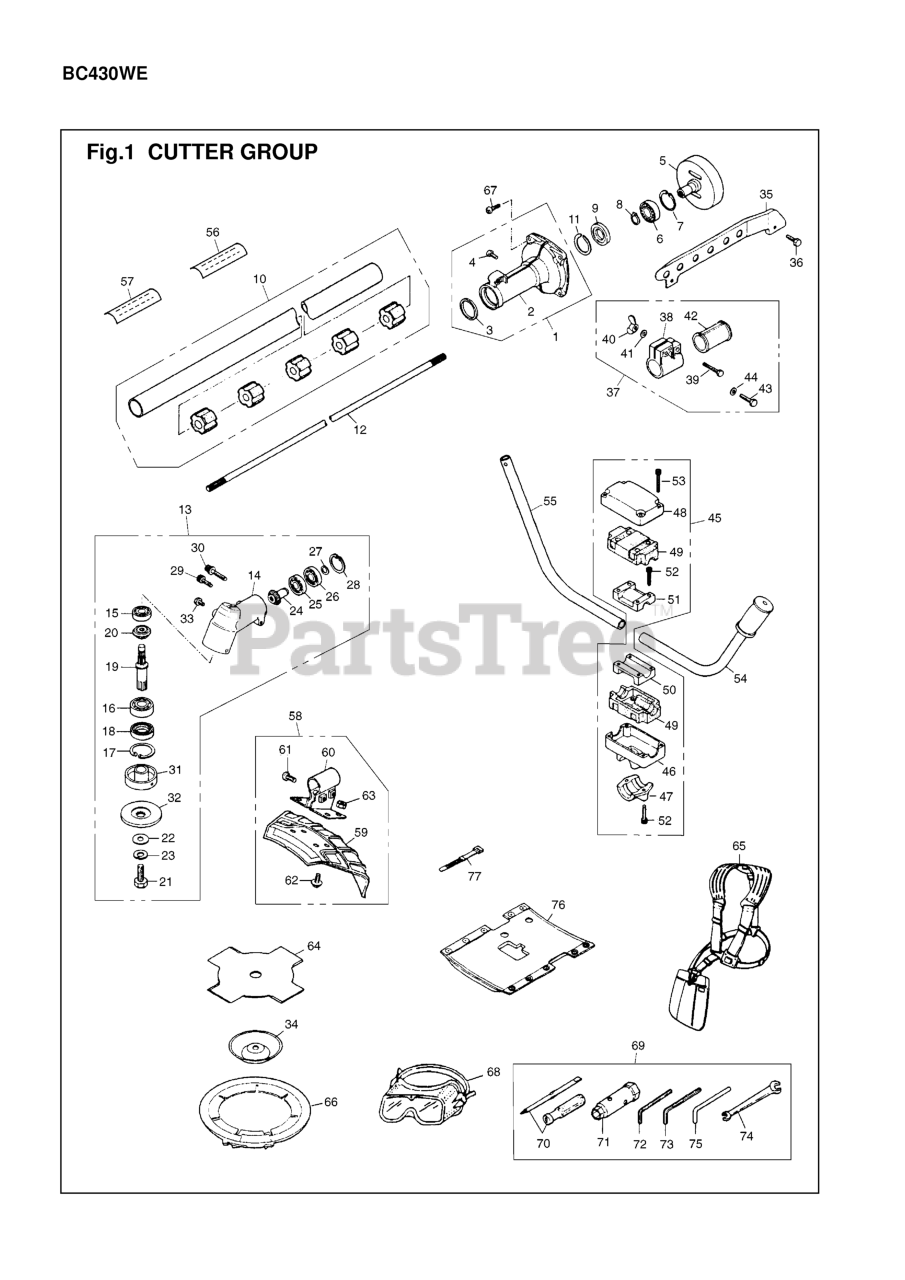

001 - CUTTER GROUP Parts Diagram

  • Title
1

RedMax 354011102

HOUSING (RPLS -11101)

$61.49

$

Usually ships in 3-10 days

0

2

$

$

Not available

3

RedMax 314411150

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

$

$

Not available

5

RedMax 354011311

DRUM, SPLINED
(Superseded to 521169401)

$

$

Not available

6

RedMax 0600406202

BEARING
(Superseded to 516131701)

$9.49

$

Usually ships in 3-10 days

0

7

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$2.49

$

Usually ships in 3-10 days

0

8

RedMax 0406401510

RING, SNAP, M15 X 1.0

$0.43

$

Usually ships in 3-10 days

0

9

$1.71

$

Usually ships in 3-10 days

0

10

RedMax 634012101

PIPE COMP

$

$

Not available

$2.30

$

Usually ships in 3-10 days

0

12

RedMax 634012210

SHAFT (USE 6340-12211)
(Superseded to 521447801)

$

$

Not available

13

RedMax 576613000

GEARCASE ASSY

$169.69

$

Usually ships in 3-10 days

0

14

RedMax 576613110

GEARCASE

$

$

Not available

15

RedMax 0600006000

BEARING
(Superseded to 505170201)

$9.99

$

In Stock, only 3 left!

0

16

$9.68

$

Usually ships in 3-10 days

0

17

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$2.49

$

Usually ships in 3-10 days

0

$5.08

$

Usually ships in 3-10 days

0

19

RedMax 354013212

SHAFT (RPLS -13211)

$28.74

$

Usually ships in 3-10 days

0

$30.54

$

Usually ships in 3-10 days

0

21

RedMax 354013290

BOLT (REPLACES 3130-13260)
(Superseded to 521172301)

$3.49

$

Usually ships in 3-10 days

0

22

RedMax 0164331032

WASHER, M10 x 3.2
(Superseded to 516079201)

$

$

Not available

23

RedMax 354413280

WASHER
(Superseded to 521182601)

$1.49

$

Usually ships in 3-10 days

0

24

$27.63

$

Usually ships in 3-10 days

0

25

RedMax 0600006001

BEARING
(Superseded to 516127901)

$6.99

$

In Stock, only 1 left!

0

26

RedMax 0600106001

BEARING
(Superseded to 516129901)

$7.99

$

In Stock, only 1 left!

0

27

RedMax 313013270

04064-01210
(Superseded to 516124101)

$4.99

$

In Stock, only 2 left!

0

28

RedMax 0406502812

RING
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

29

RedMax 0125230510

BOLT
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

30

RedMax 354013260

BOLT
(Superseded to 521171901)

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 354013241

HOLDER (A) (RPLS -13240)

$23.44

$

Usually ships in 3-10 days

0

32

RedMax 354013251

HOLDER (B)
(Superseded to 521171801)

$

$

Not available

$

$

Not available

34

RedMax 354013283

COVER
(Superseded to 514358301)

$10.99

$

In Stock, only 2 left!

0

35

$

$

Not available

$

$

Not available

37

$14.14

$

Usually ships in 3-10 days

0

38

$11.77

$

Usually ships in 3-10 days

0

$

$

Not available

40

RedMax 354011460

NUT (RPLS 01540-20632)

$0.65

$

Usually ships in 3-10 days

0

41

RedMax 0164220608

WASHER, M6 x .8
(Superseded to 516078601)

$

$

Not available

42

$3.03

$

Usually ships in 3-10 days

0

$

$

Not available

44

RedMax 0164220608

WASHER, M6 x .8
(Superseded to 516078601)

$

$

Not available

45

RedMax 354014900

NLA

Note: Context Note: @ÿ

$67.30

$

Usually ships in 3-10 days

0

46

RedMax 354014910

BRACKET (RPLS -14111)

$13.14

$

Usually ships in 3-10 days

0

47

$7.33

$

Usually ships in 3-10 days

0

48

$11.80

$

Usually ships in 3-10 days

0

49

RedMax 354014140

ABSORBER

$5.70

$

Usually ships in 3-10 days

0

50

$

$

Not available

51

RedMax 354014160

CLAMP (B)

$5.08

$

Usually ships in 3-10 days

0

52

RedMax 0125230525

BOLT, M5 X 25
(Superseded to 516071001)

$3.49

$

Usually ships in 3-10 days

0

53

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

54

RedMax 646514200

HANDLE L

$16.09

$

Usually ships in 3-10 days

0

55

$15.40

$

Usually ships in 3-10 days

0

56

RedMax 576612510

PLATE, NAME

$

$

Not available

57

RedMax 642512552

PLATE, CAUTION

$2.96

$

Usually ships in 3-10 days

0

58

RedMax 576624000

GUARD ASSY

$

$

Not available

59

RedMax 576624110

GUARD
(Superseded to 515476201)

$11.99

$

Usually ships in 3-10 days

0

60

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

64

RedMax 629814343

SAW BLADE

$17.70

$

Usually ships in 3-10 days

0

65

RedMax 622017201

HARNESS ASSEMBLY
(Superseded to 521433701)

$

$

Not available

66

RedMax 625115910

COVER (REPLACES D0041) ACC.

$9.86

$

Usually ships in 3-10 days

0

67

RedMax 646891150

BOLT, M6 x 20

$0.39

$

Usually ships in 3-10 days

0

68

RedMax 624292110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$6.72

$

Usually ships in 3-10 days

0

69

RedMax 354291000

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

70

RedMax 103091340

DRIVER
(Superseded to 516153801)

$

$

Not available

71

$4.42

$

Usually ships in 3-10 days

0

72

$0.75

$

Usually ships in 3-10 days

0

73

RedMax 0900700528

WRENCH (TOOL)
(Superseded to 516144701)

$4.99

$

Usually ships in 3-10 days

0

74

RedMax 354091120

SPANNER
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

75

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

76

RedMax 352317112

PROTECTOR (RPLS-17111)

$

$

Not available

77

RedMax 354093120

BAND
(Superseded to 514364001)

$6.49

$

Usually ships in 3-10 days

0
