BC 340 WE - RedMax Brushcutter (1997-09) 001 - CUTTER GROUP Parts Diagram

Brushcutter

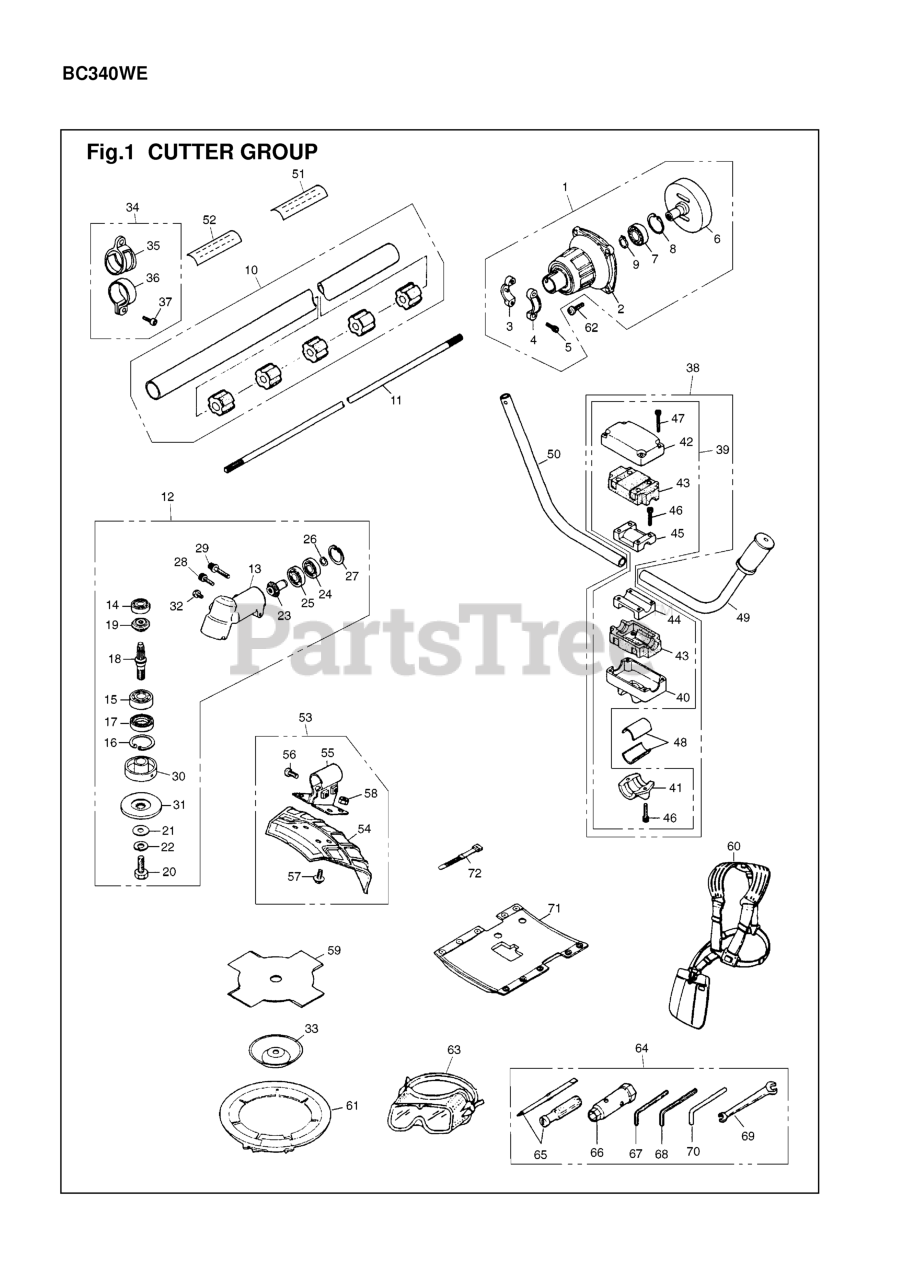

001 - CUTTER GROUP Parts Diagram

  • Title
1

RedMax 353111001

HOUSING ASSY

$145.45

$

Usually ships in 3-10 days

0

2

RedMax 353111101

HOUSING ASSY (RPLS-11100)
(Superseded to 521165901)

$116.99

$

Usually ships in 3-10 days

0

3

RedMax 353111131

CLAMP, RIGHT (RPLS -11130)
(Superseded to 521166301)

$

$

Not available

4

RedMax 353111141

CLAMP, LEFT (RPLS-11140)
(Superseded to 521166501)

$

$

Not available

5

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 353011310

DRUM, CLUTCH
(Superseded to 521162501)

$

$

Not available

7

RedMax 0600406202

BEARING
(Superseded to 516131701)

$9.49

$

In Stock, only 1 left!

0

8

RedMax 0406503515

SNAP RING
(Superseded to 516126001)

$2.49

$

Usually ships in 3-10 days

0

9

RedMax 0406401510

RING, SNAP, M15 X 1.0

$0.43

$

Usually ships in 3-10 days

0

10

RedMax 603911300

PIPE COMP

$

$

Not available

11

RedMax 352012212

3520-12213

$

$

Not available

12

RedMax 353013906

GEARCASE ASSY

$

$

Not available

13

RedMax 354113194

GEARCASE
(Superseded to 521178701)

$

$

Not available

14

RedMax 0600006000

BEARING
(Superseded to 505170201)

$9.99

$

In Stock, only 3 left!

0

15

$

$

Not available

16

RedMax 0406503212

SNAP RING
(Superseded to 504121001)

$3.99

$

In Stock, only 2 left!

0

17

RedMax 318013141

SEAL
(Superseded to 520889801)

$6.49

$

In Stock, only 3 left!

0

18

RedMax 354113212

SHAFT
(Superseded to 514366401)

$22.99

$

Usually ships in 3-10 days

0

19

RedMax 318013220

GEAR, BEVEL
(Superseded to 578122701)

$60.99

$

Usually ships in 3-10 days

0

20

RedMax 357933260

BOLT
(Superseded to 505169601)

$7.49

$

In Stock, Qty 6

0

21

RedMax 0164330823

WASHER
(Superseded to 505169801)

$4.99

$

In Stock, only 1 left!

0

22

RedMax 331043210

WASHER
(Superseded to 505169701)

$4.99

$

In Stock, only 2 left!

0

23

$30.54

$

Usually ships in 3-10 days

0

24

$

$

Not available

25

RedMax 0600006000

BEARING
(Superseded to 505170201)

$9.99

$

In Stock, only 3 left!

0

26

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, only 3 left!

0

27

RedMax 0406502612

SNAP RING
(Superseded to 516125501)

$4.99

$

In Stock, only 2 left!

0

28

RedMax 0125230510

BOLT
(Superseded to 505169901)

$4.99

$

In Stock, only 1 left!

0

29

RedMax 354013260

BOLT
(Superseded to 521171901)

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 354113241

HOLDER (A)
(Superseded to 514366601)

$20.99

$

In Stock, only 2 left!

0

31

RedMax 354113251

HOLDER (B)
(Superseded to 505171401)

$13.99

$

In Stock, only 4 left!

0

$

$

Not available

33

RedMax 352013284

COVER
(Superseded to 514345301)

$9.99

$

Usually ships in 3-10 days

0

34

RedMax 936617100

HANGER ASSY. (NLA)

Note: Context Note: @ÿ

$

$

Not available

35

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

36

RedMax 936617120

CLAMP
(Superseded to 515903701)

$

$

Not available

37

RedMax 0026390525

0263-90525

$

$

Not available

38

RedMax 353014900

BRACKET ASSY

$

$

Not available

39

RedMax 354014900

NLA

Note: Context Note: @ÿ

$67.30

$

Usually ships in 3-10 days

0

40

RedMax 354014910

BRACKET (RPLS -14111)

$13.14

$

Usually ships in 3-10 days

0

41

$7.33

$

Usually ships in 3-10 days

0

42

$11.80

$

Usually ships in 3-10 days

0

43

RedMax 354014140

ABSORBER

$5.70

$

Usually ships in 3-10 days

0

44

RedMax 354014150

CLAMP (A)

$8.08

$

Usually ships in 3-10 days

0

45

RedMax 354014160

CLAMP (B)

$5.08

$

Usually ships in 3-10 days

0

46

RedMax 0125230525

BOLT, M5 X 25
(Superseded to 516071001)

$3.49

$

Usually ships in 3-10 days

0

47

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

48

$1.57

$

Usually ships in 3-10 days

0

49

RedMax 646514200

HANDLE L

$16.09

$

Usually ships in 3-10 days

0

50

$15.40

$

Usually ships in 3-10 days

0

51

RedMax 576512510

PLATE, NAME

$

$

Not available

52

RedMax 642512552

PLATE, CAUTION

$2.96

$

Usually ships in 3-10 days

0

53

RedMax 576524000

GUARD ASSY

$

$

Not available

54

RedMax 576624110

GUARD
(Superseded to 515476201)

$11.99

$

Usually ships in 3-10 days

0

55

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

60

RedMax 622017201

HARNESS ASSEMBLY
(Superseded to 521433701)

$

$

Not available

61

RedMax 625115910

COVER (REPLACES D0041) ACC.

$9.86

$

Usually ships in 3-10 days

0

62

RedMax 646891150

BOLT, M6 x 20

$0.39

$

Usually ships in 3-10 days

0

63

RedMax 624292110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$6.72

$

Usually ships in 3-10 days

0

64

RedMax 353291000

TOOL SET
(Superseded to 514248101)

$2.49

$

Usually ships in 3-10 days

0

65

RedMax 103091340

DRIVER
(Superseded to 516153801)

$

$

Not available

66

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

67

$0.75

$

Usually ships in 3-10 days

0

68

RedMax 0900700528

WRENCH (TOOL)
(Superseded to 516144701)

$4.99

$

Usually ships in 3-10 days

0

69

RedMax 354091120

SPANNER
(Superseded to 506615001)

$4.99

$

In Stock, Qty 10

0

70

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

71

RedMax 352317112

PROTECTOR (RPLS-17111)

$

$

Not available

72

RedMax 354093120

BAND
(Superseded to 514364001)

$6.49

$

Usually ships in 3-10 days

0
