BC 3150 - Poulan String Trimmer (2007-02) Handle & Controls Parts Diagram

String Trimmer

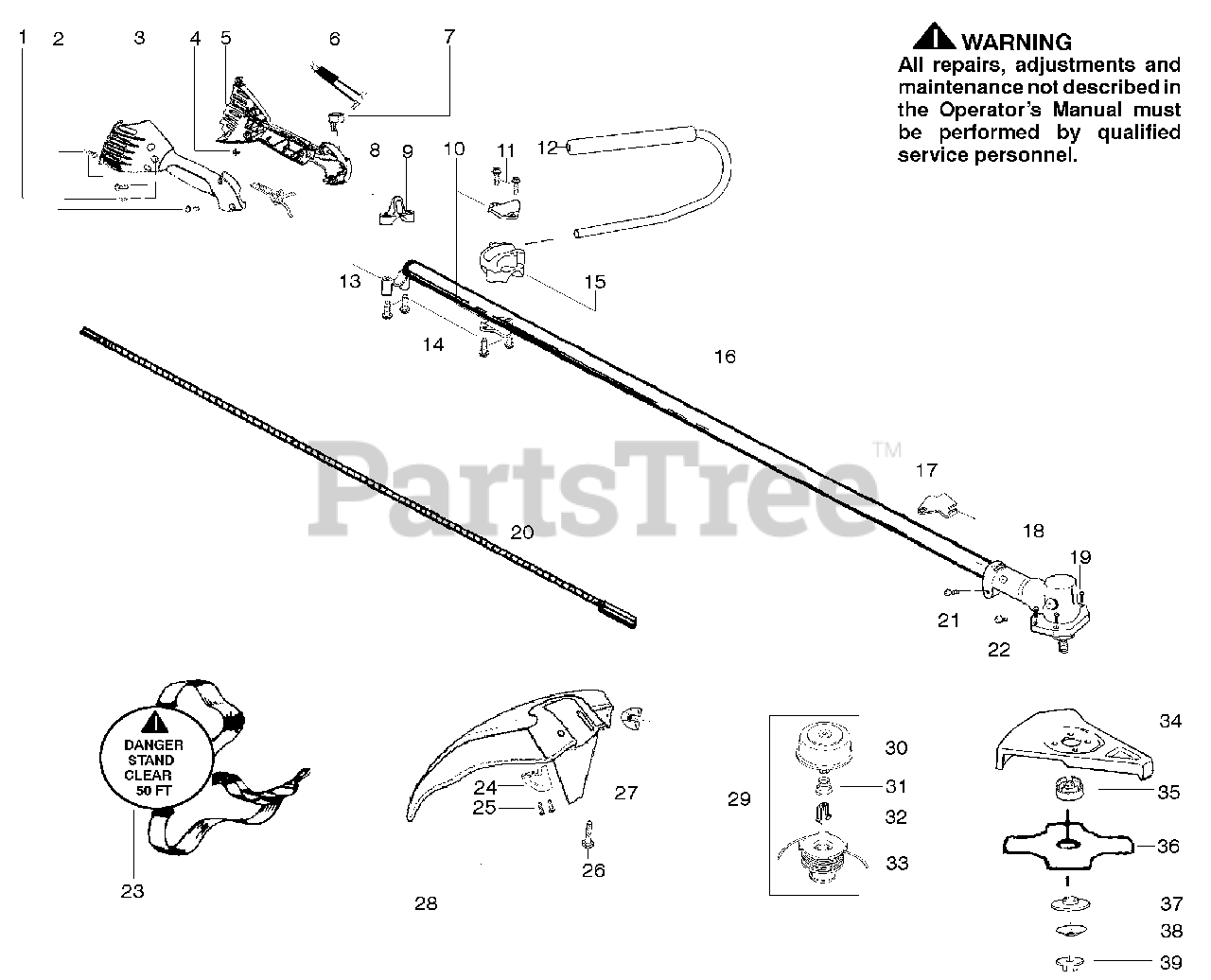

Handle & Controls Parts Diagram

  • Title

1

Electrolux/AYP 530015805

Screw-alignment
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

2

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 545019001

Hsg.-Throttle-right

$9.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530016326

Screw-Cable Ret.

$

$

Not available

5

Electrolux/AYP 545018801

Hsg.-Throttle-left

$9.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530058843

Assy-Wire

$

$

Not available

7

Electrolux/AYP 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

8

Electrolux/AYP 545017702

Trigger-Throttle

$

$

Not available

9

Electrolux/AYP 530057986

Clamp-Harness (upper)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530058563

Clamp-Bracket

$4.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530071993

Kit-Handlebar Assy.

Note: (Incl. grip,cap,decal)

$19.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530057987

Clamp-Harness (lower)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 8

0

15

Electrolux/AYP 530058765

Clamp-Handlebar

$

$

Not available

16

Electrolux/AYP 530071992

Kit-Shaft Assy.

$40.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530057554

Bracket-Shield

$6.49

$

In Stock, only 2 left!

0

18

Electrolux/AYP 530096100

Gearbox

$62.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530096203

Shaft-Flex

$15.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

22

Electrolux/AYP 530016224

Screw

$4.99

$

In Stock, Qty 5

0

23

Electrolux/AYP 530094408

Shoulder Strap
(Superseded to 530094417)

$

$

Not available

24

Electrolux/AYP 530052285

Limiter-Line

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 17

0

26

Electrolux/AYP 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 530071823

Kit-Shield Assy.

Note: (Incl. 24,25)

$

$

Not available

29

Electrolux/AYP 952711550

Accy-Cutting Head

Note: (Incl. 30,31,32,33)

$

$

Not available

30

Electrolux/AYP 530095772

Assy-Hub

$

$

Not available

31

Electrolux/AYP 530053241

Spring

$

$

Not available

32

Electrolux/AYP 530401957

Retainer

$4.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 952711551

Accy-Wound Spool

$

$

Not available

34

Electrolux/AYP 530071383

Kit-Metal Shield

$14.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530095815

Dust cup

$11.99

$

In Stock, Qty 6

0

36

Electrolux/AYP 952701611

Accy.-Weed Blade
(Superseded to 952711585)

$

$

Not available

37

Electrolux/AYP 530095816

Washer

$10.99

$

In Stock, Qty 5

0

38

Electrolux/AYP 530016240

Washer-Belleville

$6.49

$

In Stock, only 1 left!

0

39

Electrolux/AYP 530015793

Nut-Flange

$6.49

$

In Stock, Qty 6

0

39

Electrolux/AYP 545117593

Operator Manual

Note: Not Shown

$

$

Not available

39

Electrolux/AYP 530055349

Decal-Shaft Warning

Note: Not Shown

$

$

Not available

39

Electrolux/AYP 530031159

Wrench-Hex 5/32"

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
