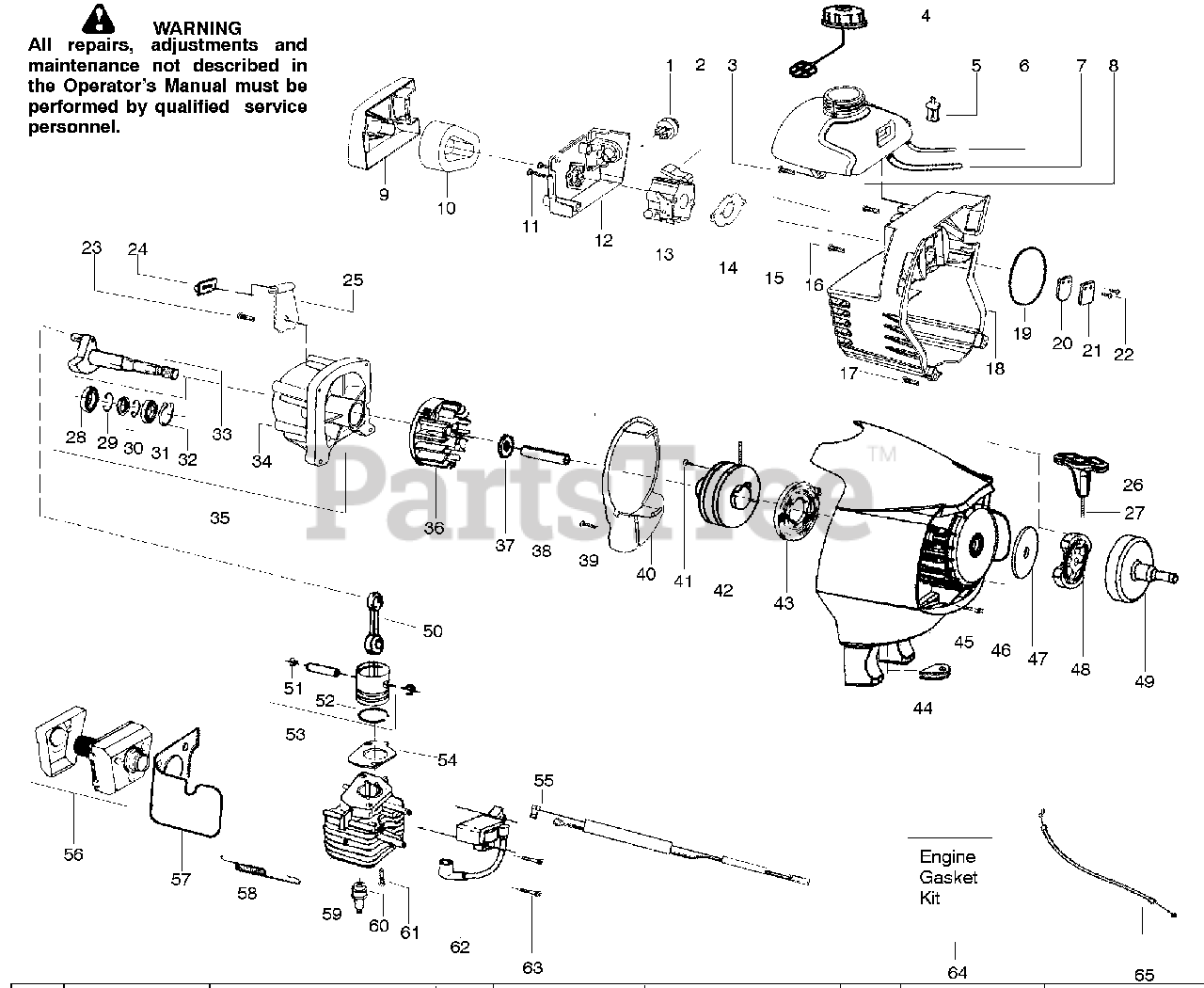

BC 3150 - Poulan String Trimmer (2007-02) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

$9.49

$

In Stock, Qty 5

0

2

Electrolux/AYP 530071717

Kit-Choke Lever

$10.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530057736

Cap-Fuel w/ret.

$

$

Not available

5

Electrolux/AYP 530095646

Assy-Fuel pickup

$6.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530069247

Kit-Fuel line

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530069216

Kit-Fuel/Purge line

$11.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 530150088

Cover-Air box

$

$

Not available

10

$30.99

$

In Stock, Qty 12

0

11

$6.49

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530071637

Assy-Carb(WT628)

$87.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 530071401

Gasket-Carb.(kit)

$

$

Not available

15

Electrolux/AYP 545075305

Assy-Fuel Tank

$

$

Not available

16

Electrolux/AYP 530015771

Screw-Crankcase

$6.49

$

In Stock, Qty 6

0

17

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

19

Electrolux/AYP 530071401

O-ring-Shroud (kit)

$

$

Not available

20

$6.49

$

In Stock, only 3 left!

0

$

$

Not available

22

Electrolux/AYP 530016064

Screw-Reed stop

$4.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 530015875

Screw-Retainer

$4.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 530055492

Isolator-Tank

$

$

Not available

$

$

Not available

26

Electrolux/AYP 530058742

Handle-Starter

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530032103

Bearing-Inner
(Superseded to 545081601)

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530032102

Bearing-Outer

$

$

Not available

32

Electrolux/AYP 530015789

Ret.-Crankshaft

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530028807

Assy-Crankshaft

$37.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 530012514

Assy-Crankcase
(Superseded to 545081901)

Note: (Incl. 28-31)

$

$

Not available

35

Electrolux/AYP 530071685

Assy-C'case/C'shaft
(Superseded to 545006037)

Note: (Incl. 32,33,34)

$

$

Not available

36

Electrolux/AYP 530055524

Assy-Flywheel

$34.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

39

$6.49

$

In Stock, only 2 left!

0

40

Electrolux/AYP 530054939

Plate-Baffle
(Superseded to 545115201)

$4.99

$

In Stock, only 1 left!

0

41

$2.23

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530071399

Kit-Pulley

Note: (Incl.41)

$10.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 8

0

$3.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530015810

Screw-F/hsg.
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 530056226

Assy.-Fan Housing

$

$

Not available

47

Electrolux/AYP 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

48

$20.99

$

In Stock, Qty 5

0

49

Electrolux/AYP 530028799

Drum-Clutch
(Superseded to 530150247)

$28.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530010960

Assy-Conn. Rod

$18.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530015162

Ret.-Piston pin

$6.49

$

In Stock, only 2 left!

0

52

$

$

Not available

53

Electrolux/AYP 530071998

Kit-Piston

Note: (Incl. 51,52)

$26.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 530071401

Gasket-Cylinder(kit)

$

$

Not available

55

Electrolux/AYP 530058846

Assy-Leadwire

$7.49

$

Usually ships in 3-10 days

0

56

$

$

Not available

$6.49

$

In Stock, only 2 left!

0

58

Electrolux/AYP 530036409

Spring-Muffler

$

$

Not available

59

Electrolux/AYP 530012488

Cylinder
(Superseded to 530071582)

$

$

Not available

60

Electrolux/AYP 952030249

Plug-Spark(RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

61

Electrolux/AYP 530001624

Bolt-Cyl. 1/4-20"

$3.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 530039218

Module-Ignition

$

$

Not available

63

$6.49

$

In Stock, only 4 left!

0

64

Electrolux/AYP 530071401

Kit-Gasket

Note: (Incl. 14,19, 54)

$

$

Not available

65

Electrolux/AYP 530058962

Assy-Throttle cable
(Superseded to 545026801)

$18.99

$

Usually ships in 3-10 days

0
