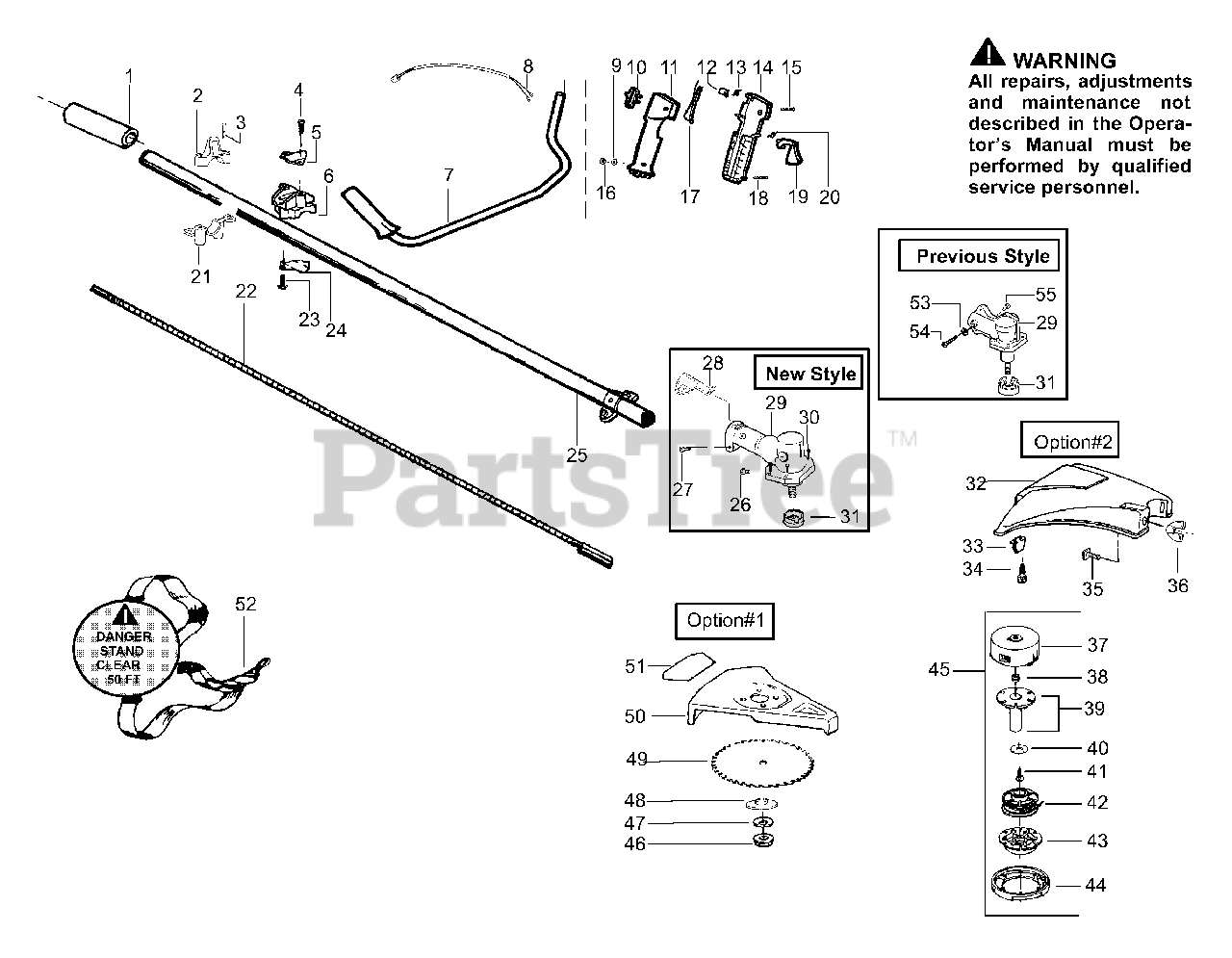

BC 3100 - Weed Eater Brushcutter Handle & Shaft Assembly Parts Diagram

Brushcutter

Handle & Shaft Assembly Parts Diagram

  • Title

1

Poulan 530054652

Pad-Drive Shaft

$

$

Not available

2

Poulan 530055392

Clamp-(upper)
(Superseded to 530071605)

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 530015770

Screw

$

$

Not available

4

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530094572

Bracket-Handlebar

$3.99

$

In Stock, only 1 left!

0

6

Poulan 530012207

Clamp-Handlebar

$

$

Not available

7

Poulan 530047139

Assy-Handlebar

$

$

Not available

8

Poulan 530053255

Assy-Wire Harness

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 530016285

Washer, Split Lock

$

$

Not available

10

Poulan 503718201

Switch-Rocker

$13.99

$

In Stock, Qty 5

0

11

Poulan 502208607

Throttle Hsg. Right

$

$

Not available

12

Poulan 502209602

Throttle Lock

$2.49

$

Usually ships in 3-10 days

0

13

Poulan 530403152

Spring-Throttle Lock

$3.99

$

In Stock, only 2 left!

0

14

Poulan 502208507

Throttle Hsg. Left

$24.99

$

Usually ships in 3-10 days

0

15

Poulan 503210719

Screw

$2.49

$

In Stock, only 1 left!

0

16

Poulan 530016284

Nut

$4.99

$

In Stock, only 4 left!

0

17

Poulan 502199403

Throttle Lockout

$

$

Not available

18

Poulan 530015933

Screw

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 502199203

Trigger-Throttle

$

$

Not available

20

Poulan 502199301

Spring-Trigger
(Superseded to 503794101)

$4.99

$

In Stock, Qty 5

0

21

Poulan 530055394

Clamp-(lower)

$

$

Not available

22

Flex-Shaft-57"

Note: Refer To The Service Reference Indicated For More Information. (Located At End Of IPL)

$

$

Not available

23

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530094572

Bracket-Handlebar

$3.99

$

In Stock, only 1 left!

0

25

Assy-Drive Shaft

Note: Refer To The Service Reference Indicated For More Information. (Located At End Of IPL)

$

$

Not available

26

Poulan 530016371

Screw

$

$

Not available

27

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

28

Poulan 530095812

Bracket-Shield

$4.99

$

Usually ships in 3-10 days

0

29

Kit-Gear Box Ass'y.

Note: Refer To The Service Reference Indicated For More Information. (Located At End Of IPL)

$

$

Not available

30

Poulan 530016312

Screw

$6.49

$

In Stock, only 3 left!

0

31

Dust Cup

$

$

Not available

32

Poulan 530069779

Kit-Shield Ass'y.

Note: (Incls. 33-36)

$

$

Not available

33

Poulan 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

35

Poulan 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

36

Poulan 530016118

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

37

Poulan 530094931

Assy-Hub
(Superseded to 952701643)

$

$

Not available

38

Poulan 530094956

Spring

$0.99

$

Usually ships in 3-10 days

0

39

Poulan 530069312

Kit-Locking Plate

$

$

Not available

40

Poulan 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

41

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

42

Poulan 952711564

Spool w/Line

$

$

Not available

43

Poulan 530094522

Release Button

$

$

Not available

44

Poulan 530094521

Cover

$10.99

$

Usually ships in 3-10 days

0

45

Poulan 952711565

Accy-Cutting Head

Note: (Incls. 37-44)

$

$

Not available

46

Poulan 530015793

Nut-Flange

$6.49

$

In Stock, Qty 5

0

47

Poulan 530016240

Washer-Spring Beve

$6.49

$

In Stock, only 1 left!

0

48

Washer-Blade Ret.

Note: Refer To The Service Reference Indicated For More Information. (Located At End Of IPL)

$

$

Not available

49

Poulan 952711585

Brush Blade
(Superseded to 530054867)

$

$

Not available

50

Poulan 530071383

Kit-Blade Shield

$14.99

$

Usually ships in 3-10 days

0

51

Poulan 530056335

Decal Blade Direction

$2.23

$

Usually ships in 3-10 days

0

52

Poulan 530094417

Shoulder Strap

$

$

Not available

53

Poulan 530015328

Washer (Type 1,2,3)

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 530016140

Screw (Type 1,2,3)

$2.49

$

Usually ships in 3-10 days

0

55

Poulan 530015650

Screw (Type 1,2,3)

$

$

Not available

Poulan 530088776

Manual

Note: Not Shown

$

$

Not available

Poulan 530163107

Manual (Current)

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530088132

Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530031098

Hex Wrench (3/16)

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

Poulan 530031159

Hex Wrench (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0

Poulan 530055349

Shaft Warning Decal

Note: Not Shown

$

$

Not available
