BC 30 B - Weed Eater Brushcutter Engine Parts Diagram

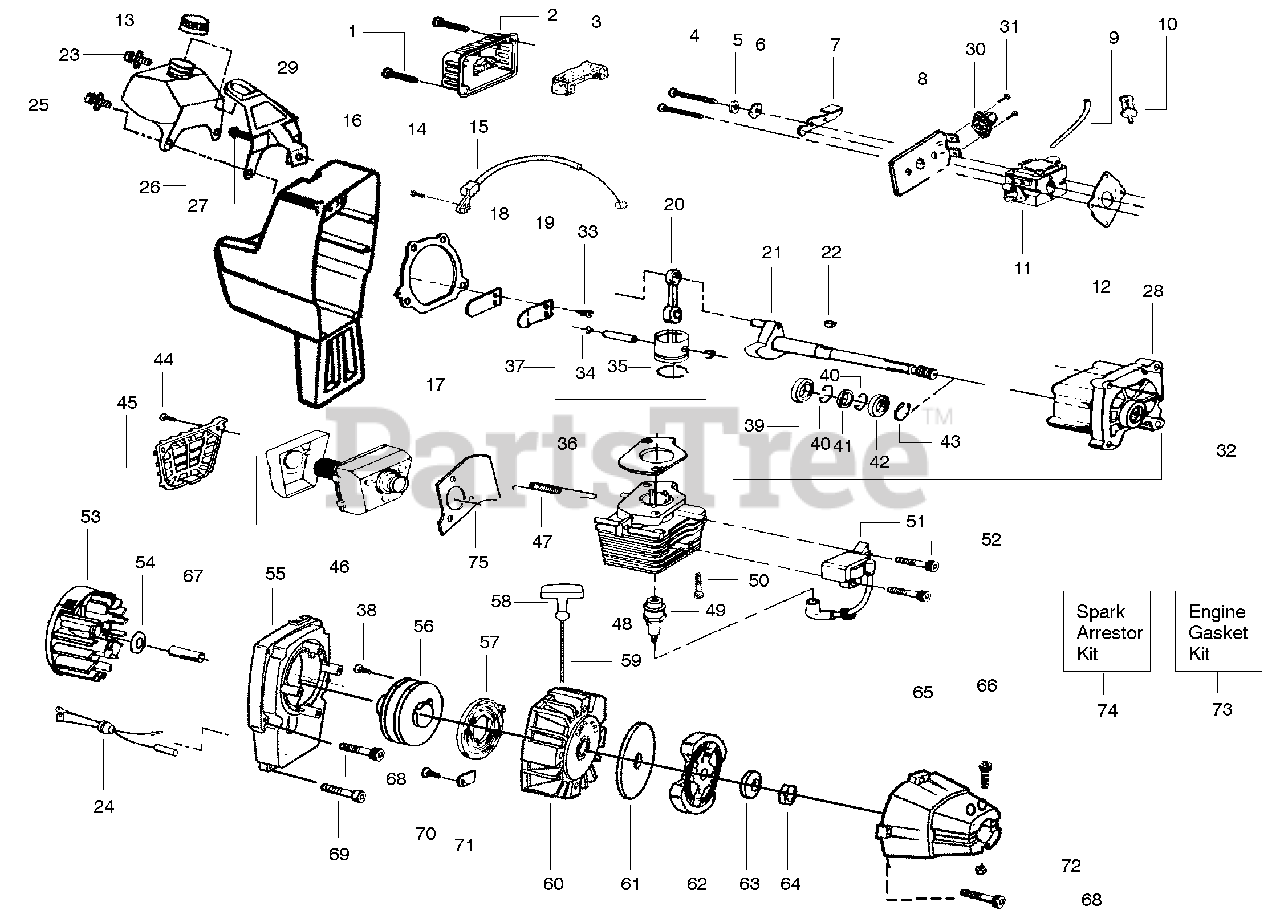

Brushcutter

Engine Parts Diagram

  • Title

1

Poulan 530015773

Screw

$3.99

$

In Stock, only 2 left!

0

2

Poulan 530027529

Air Filter Cover

$

$

Not available

3

Poulan 530027530

Air Filter

$6.49

$

In Stock, Qty 11

0

4

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Poulan 530015852

Choke Spacer

$3.49

$

In Stock, only 1 left!

0

6

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

7

Poulan 530038103

Choke Shutter

$

$

Not available

8

Poulan 530037930

Air Filter Plate

$

$

Not available

9

Poulan 530069247

Fuel Line Kit

$7.99

$

In Stock, Qty 20+

0

10

Poulan 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

11

Poulan 530069651

Carburetor Ass'y. Kit

Note: (Incls. Limiter Caps)

$

$

Not available

12

Poulan 530019156

Gasket-Carburetor

$8.99

$

In Stock, only 2 left!

0

13

Poulan 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 15

0

14

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

15

Poulan 530047040

Throttle Cable Ass'y.

$

$

Not available

16

Poulan 530027923

Shroud

$

$

Not available

17

Poulan 530019154

Gasket-C'case/Shroud

$3.99

$

In Stock, only 1 left!

0

18

Poulan 530027593

Reed Valve

$6.49

$

In Stock, only 2 left!

0

19

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

20

Poulan 530010960

Connecting Rod Ass'y.

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 530010934

Crankshaft Ass'y.

$34.99

$

Usually ships in 3-10 days

0

22

Poulan 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530015843

Screw

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 530047145

Leadwire/Grommet Ass'y.

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

26

Poulan 530038166

Assy-Fuel Tank

$

$

Not available

27

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

28

Poulan 530014016

Crankcase Ass'y.

Note: (Incls. 39-42)

$

$

Not available

29

Poulan 530029370

Bracket-Fuel tank

$9.99

$

Usually ships in 3-10 days

0

30

Poulan 530038874

Bulb Ass'y.

$

$

Not available

31

Poulan 530016091

Screw

$4.99

$

In Stock, only 1 left!

0

32

Poulan 530014015

Crankcase/Crankshaft Ass'y.
(Superseded to 530071705)

Note: (Incls.21, 28 & 39-43)

$37.99

$

Usually ships in 3-10 days

0

33

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

34

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

35

Poulan 530025875

Piston Ring

$

$

Not available

36

Poulan 530019178

Gasket-Cylinder
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

37

Poulan 530069899

Piston Kit

Note: (Incls. 34, 35 & Pin)

$

$

Not available

38

Poulan 530016080

Screw

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 530032103

Inner Bearing

$

$

Not available

40

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 530032102

Outer Bearing

$

$

Not available

43

Poulan 530015789

Retaining Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

44

Poulan 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

45

Poulan 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530069310

Muffler Kit

$

$

Not available

47

Poulan 530036409

Muffler Spring

$

$

Not available

48

Poulan 530069626

Cylinder Kit

$

$

Not available

49

Poulan 952030201

Spark Plug (RCJ-8Y)
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

50

Poulan 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 530039134

Ignition Module

$

$

Not available

52

Poulan 530015816

Screw

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 530039189

Flywheel Ass'y.

$

$

Not available

54

Poulan 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530027947

Fan Housing

$14.99

$

Usually ships in 3-10 days

0

56

Poulan 530069291

Starter Pulley Kit
(Superseded to 530071387)

Note: (Incls. 38)

$

$

Not available

57

Poulan 530027531

Starter Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

58

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

59

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

60

Poulan 530014009

Pulley Housing Ass'y.

$

$

Not available

61

Poulan 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

62

Poulan 530069254

Clutch Ass'y. Kit

$

$

Not available

63

Poulan 530015796

Washer-Bevel

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530001733

Nut

$

$

Not available

65

Poulan 530014017

Clutch Housing

$37.99

$

In Stock, only 1 left!

0

66

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

67

Poulan 530027511

Spacer-Clutch

$8.99

$

Usually ships in 3-10 days

0

68

Poulan 530015770

Screw

$

$

Not available

69

Poulan 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

72

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

73

Poulan 530069276

Engine Gasket Kit

Note: (Incls. 12, 17 & 36)

$

$

Not available

74

Poulan 952701612

Spark Arrestor Kit

$

$

Not available

75

Poulan 530053346

Heat Shield/Air Dam
(Superseded to 530058957)

$6.49

$

In Stock, only 2 left!

0
