BC 30 B - Poulan String Trimmer (2006-05) Shaft Parts Diagram

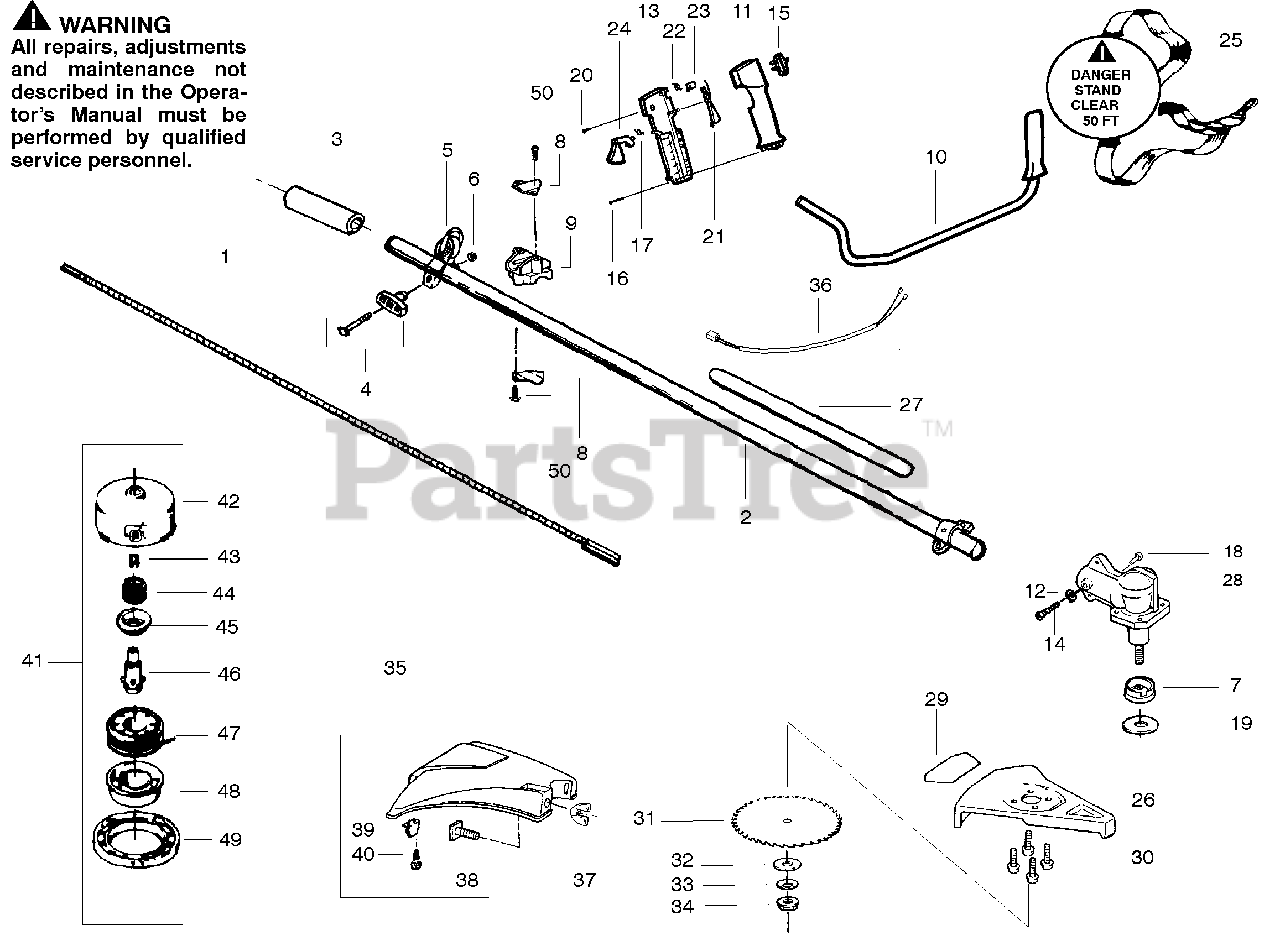

String Trimmer

Shaft Parts Diagram

  • Title

1

Electrolux/AYP 530094566

Flex-Shaft-57"

$96.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530069783

Drive Shaft Housing

$70.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 530027706

Pad-Drive Shaft

$

$

Not available

4

Electrolux/AYP 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530094686

Clamp Harness Assy.

$7.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530015197

Nut

$6.49

$

In Stock, only 4 left!

0

7

Electrolux/AYP 530016166

Dust Cup

$15.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 530012207

Clamp-Handlebar

$

$

Not available

10

Electrolux/AYP 530047139

Handlebar Ass'y.

$

$

Not available

11

Electrolux/AYP 502208502

Throttle Hsg. Left
(Superseded to 502208507)

$24.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530015328

Lockwasher-Locator

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 502208602

Throttle Hsg. Right

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530016140

Screw-Locator

$2.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 503718201

Rocker Switch

$13.99

$

In Stock, Qty 5

0

16

Electrolux/AYP 503210738

Screw

$3.99

$

In Stock, only 4 left!

0

17

Electrolux/AYP 502199301

Trigger Spring
(Superseded to 503794101)

$4.99

$

In Stock, Qty 5

0

18

Electrolux/AYP 530015650

Screw-Pinch Clamp

$

$

Not available

19

Electrolux/AYP 530016167

Washer-Blade Ret.

$

$

Not available

20

Electrolux/AYP 503210719

Screw

$2.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 502199403

Throttle Lockout

$

$

Not available

22

Electrolux/AYP 530403152

Spring Throttle Lock

$3.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 502209602

Throttle Lock

$2.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 502199203

Throttle Trigger

$

$

Not available

25

Electrolux/AYP 530094417

Shoulder Strap

$

$

Not available

26

Electrolux/AYP 530069780

Blade Shield Kit

$

$

Not available

27

Electrolux/AYP 530038908

Shaft Warning Decal
(Superseded to 530055349)

$

$

Not available

28

Electrolux/AYP 530095409

Gear Box Ass'y.
(Superseded to 530071585)

$

$

Not available

29

Electrolux/AYP 530049211

Decal Blade Direction

$2.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530016141

Screw

$5.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 952701610

Brush Blade
(Superseded to 952711585)

$

$

Not available

32

Electrolux/AYP 530015792

Washer-Flat

$5.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 530015492

Washer-Spring Bevel
(Superseded to 530016240)

$6.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 530015793

Nut-Flange

$6.49

$

In Stock, Qty 5

0

35

Electrolux/AYP 530069779

Shield Kit Ass'y.

Note: (Incls. 37-40)

$

$

Not available

36

Electrolux/AYP 530053255

Wire Harness Ass'y.

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530401992

Wingnut
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

38

Electrolux/AYP 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 530095387

Line Limiter

$1.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

41

Electrolux/AYP 952701643

Cutting Head Ass'y.

Note: (Incls. 42-49)

$

$

Not available

42

Electrolux/AYP 530093896

Hub Ass'y.
(Superseded to 530071295)

$21.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 530340007

Spring

$3.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530328929

Cap Spring

$

$

Not available

46

Electrolux/AYP 530095121

Drive Gear
(Superseded to 530071295)

$21.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 952701589

Accy-Spool w/line

$6.99

$

In Stock, Qty 6

0

48

Electrolux/AYP 530401183

Release Button

$

$

Not available

49

Electrolux/AYP 530092133

Cover

$

$

Not available

50

Electrolux/AYP 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530085757

Operator Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530031098

Hex Wrench (3/16)

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530031159

Hex Wrench (5/32)

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
