BC 280 (41ADZ28C912) - Cub Cadet Brush Cutter (2014) Engine Assembly Parts Diagram

Brush Cutter

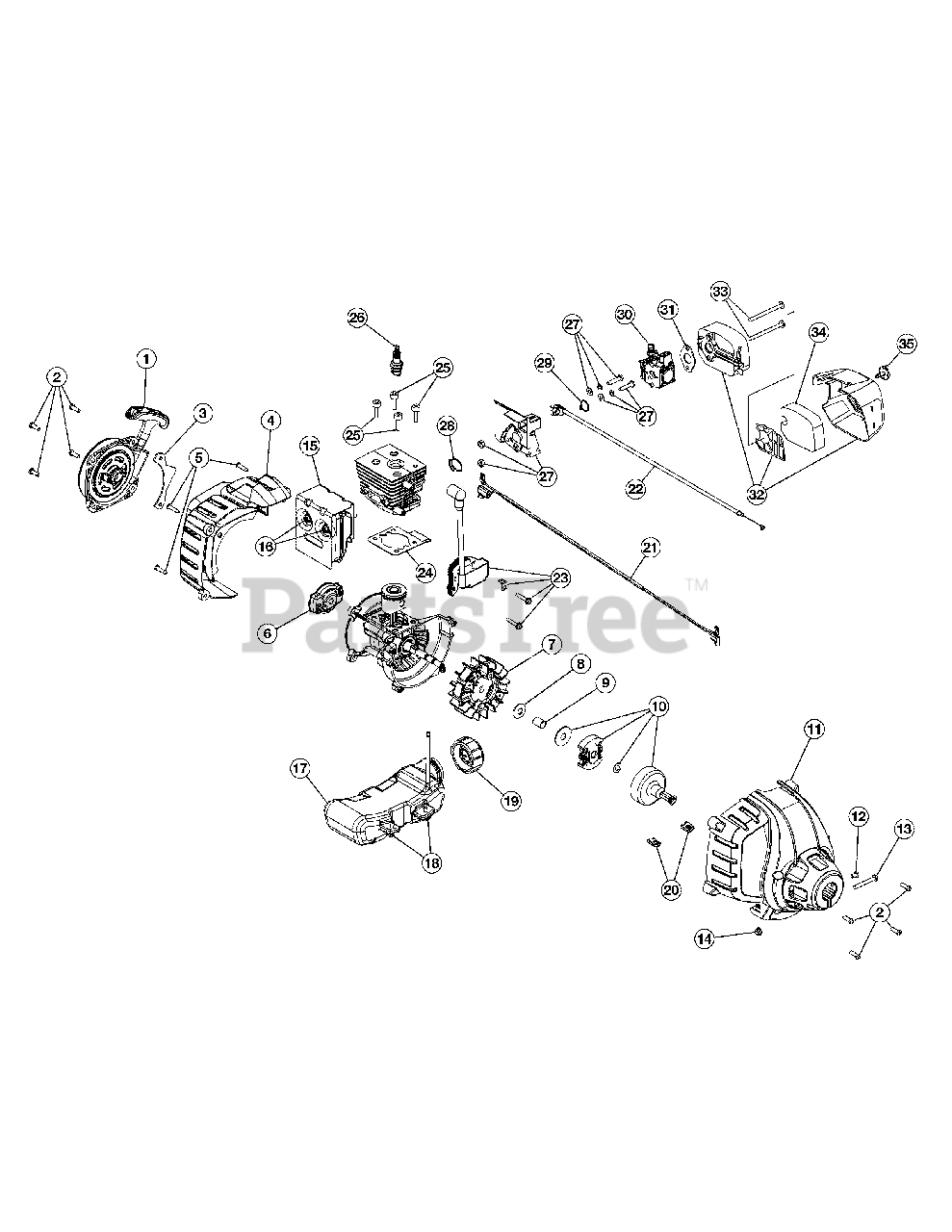

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06829

Starter Assembly (Incl. 2 & 3)

$20.99

$

In Stock, Qty 20+

0

2

Cub Cadet 791-181862

Starter Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 753-06244

Starter Assembly Guard (Incl. 2)

$3.99

$

In Stock, only 1 left!

0

4

Cub Cadet 753-06245

Rear Engine Cover (Incl. 5)

$

$

Not available

5

Cub Cadet 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 753-06091

Pawl Assembly

$9.49

$

In Stock, Qty 5

0

7

Cub Cadet 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

8

Cub Cadet 753-06247

Washer

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 753-06248

Spacer

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 6

0

11

Cub Cadet 753-06891

Clutch Cover Assembly (Incl. 2, 12 -14 & 20)

$12.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

13

Cub Cadet 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

14

Cub Cadet 712-0161

Clamp Nut

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 753-06418

Muffler Assembly (Incl. 16)
(Superseded to 753-08745)

$26.99

$

In Stock, only 2 left!

0

16

Cub Cadet 753-06294

Muffler Screw

$2.99

$

In Stock, only 2 left!

0

17

Cub Cadet 753-06250

Fuel Tank Assembly (Incl. 18 and 19)

$21.99

$

In Stock, Qty 6

0

18

Cub Cadet 791-181930

Tank Screw

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 753-06857

Fuel Cap

$7.99

$

In Stock, only 4 left!

0

20

Cub Cadet 791-182366

U-shaped Nut

$5.99

$

In Stock, only 2 left!

0

21

Cub Cadet 753-05877

Lead Wires

$9.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-06570

Throttle Cable

$7.99

$

In Stock, only 1 left!

0

23

Cub Cadet 753-06892

Module Assembly

$28.99

$

In Stock, Qty 7

0

24

Cub Cadet 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

25

Cub Cadet 710-04715

Cylinder Bolt

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 11

0

27

Cub Cadet 753-06189

Insulator Assembly (Incl. 28 and 29)

$7.99

$

In Stock, only 2 left!

0

28

Cub Cadet 753-06184

Insulator O-Ring

$3.49

$

In Stock, Qty 19

0

29

Cub Cadet 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

30

Cub Cadet 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

31

Cub Cadet 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet 753-06913

Air Cleaner Assembly

$11.99

$

In Stock, only 3 left!

0

33

Cub Cadet 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

34

Cub Cadet 753-06954

Air Cleaner Filter

$2.99

$

In Stock, Qty 20+

0

35

Cub Cadet 753-06838

Knob

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 753-06508

Short Block Assembly

Note: (not shown) (Incl. Crankcase, Cylinder, Piston, 7 - 10, 24 - 27)

$108.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-04619

Muffler Gasket

Note: (not shown)

$9.49

$

In Stock, only 3 left!

0
